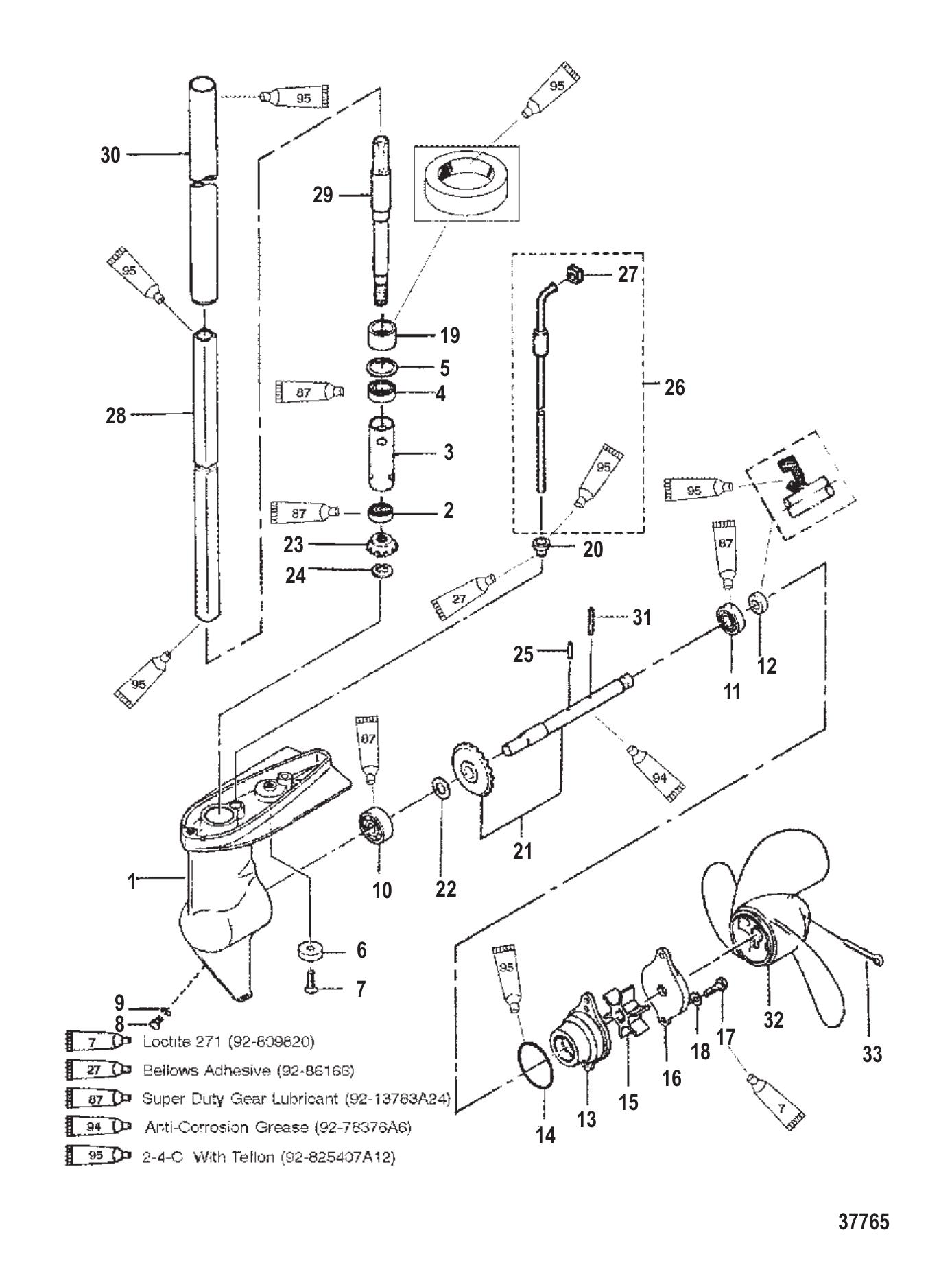

Parts for 3.3 2-Stroke Carbureted Mercury Outboard Motor Gear Housing Assembly (Non-Shift)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 825122A2 | GEAR HSG ASSY-BLK (BLACK) (1 required per assembly) |
  |
|
1668-825122A 2 - Gear Housing Assembly [ More info ]
|
| #- | 825123A3 | GEAR HSG ASSY-GRA (GRAY) (1 required per assembly) |
  |
|
1668-825123A 3 - Gear Housing Assembly [ More info ]
|
| #- | 8M0082878 | GASKET SET (1 required per assembly) — Replaces: 95220A3 |
  |
|
278M0082878 - Gasket Set [ More info ]
|
| #1 | 825122T1 | GEAR HOUSING ASSEMBLY BASIC (BLACK) (1 required per assembly) — Replaces: 825122A1 |
  |
|
1668-825122T 1 - Gear Housing Assembly [ More info ]
|
  |
|
1668-825123A 1 - Gear Housing Assembly [ More info ]
|
| #1 | 825123A1 | GEAR HOUSING ASSEMBLY (GRAY) (1 required per assembly) |
| #2 | 95342 | BEARING BALL (LOWER) (1 required per assembly) |
  |
|
30-95342 - Ball Bearing [ More info ]
|
| #3 | 95343 | SPACER (1 required per assembly) |
  |
|
23-95343 - Spacer - NLA [ More info ] Unavailable |
| #4 | 95344 | BEARING BALL (UPPER) (1 required per assembly) |
  |
|
30-95344 - Ball Bearing [ More info ]
|
| #5 | 95345 | RING SNAP (1 required per assembly) |
  |
|
53-95345 - Ring -snap [ More info ]
|
| #6 | 823913Q | ANODE (1 required per assembly) — Replaces: 823913 |
  |
|
97-823913Q - Anode, Aluminum [ More info ]
|
| #7 | 16832 | BOLT (M6 X 16) (1 required per assembly) |
  |
|
|
| #8 | 953683 | PLUG (2 required per assembly) — Replaces: 953681 |
  |
22-95368 3 - Oil Plug [ More info ] Unavailable |
|
  |
|
22-8M0229353 - PLUG [ More info ]
|
| #9 | 8M0082880 | SEAL KIT DRAIN PLUG (2 required per assembly) — Replaces: 95220 |
  |
|
8M0082880 - Seal - Priced Individually [ More info ]
|
  |
|
18-60103 - Gasket, Drain Plug 332600060M [ More info ]
|
| #10 | 95347 | BEARING (1 required per assembly) |
  |
|
30-95347 - Ball Bearing [ More info ]
|
| #11 | 95344 | BEARING BALL (1 required per assembly) |
| #12 | 95348 | SEAL OIL (1 required per assembly) |
  |
|
26-95348 - Oil Seal [ More info ]
|
| #13 | 952871 | PUMP WATER (BLACK) (1 required per assembly) |
  |
|
46-95287 1 - Water Pump Housing [ More info ]
|
| #13 | 8150782 | PUMP WATER (GRAY) (1 required per assembly) |
  |
|
8150782 [ More info ] Unavailable Replaced by 0281214 |
  |
|
0281214 - Part (281214) [ More info ] Unavailable |
| #14 | 95288 | O-RING (1 required per assembly) |
  |
|
25-95288 - O-ring, Water Pump [ More info ]
|
| #15 | 952892 | IMPELLER (1 required per assembly) — Replaces: 95289 |
  |
|
47-95289 2 - Impeller [ More info ]
|
  |
|
47-47211 - Water Pump Impeller 0114812, 47-95289 2 [ More info ]
|
| #16 | 825114 | COVER (BLACK) (1 required per assembly) |
  |
|
|
| #16 | 825115 | COVER (GRAY) (1 required per assembly) |
  |
|
825115 - Gearcase Cover - Gray [ More info ] Unavailable |
| #17 | 16705 | BOLT (2 required per assembly) |
  |
|
|
| #17 | 167051 | BOLT (M6 X 20) (2 required per assembly) |
  |
|
10-16705 1 - Bolt [ More info ]
|
| #18 | 16826 | WASHER STAINLESS STEEL (2 required per assembly) |
  |
|
12-16826 - Washer, Stainless Steel [ More info ]
|
| #19 | 95350 | SEAL OIL (1 required per assembly) |
  |
|
26-95350 - Oil Seal [ More info ]
|
| #20 | 95361 | BUSHING (LOWER) (1 required per assembly) |
  |
|
23-95361 - Bushing [ More info ]
|
| #21 | 95291A1 | PROPELLER SHAFT (WITH BEVEL GEAR) (1 required per assembly) |
  |
|
44-95291A 1 - Prop Shaft Assembly, NLA [ More info ] Unavailable |
| #22 | 811647A1 | SHIM (AR required per assembly) |
  |
|
15-811647A 1 - Shim Set [ More info ]
|
| #23 | 95293 | GEAR PINION (1 required per assembly) |
  |
|
43-95293 - Gear, Pinion, NLA [ More info ]
|
| #24 | 815066 | RING SNAP (1 required per assembly) |
  |
|
53-815066 - E Ring [ More info ]
|
| #25 | 95371 | KEY (1 required per assembly) |
  |
|
|
| #26 | 95359 | HOSE (SHORT) (1 required per assembly) |
  |
|
32-95359 - Tube - Water [ More info ]
|
| #26 | 953593 | TUBING (LONG) (1 required per assembly) |
  |
|
32-95359 3 - Tubing, NLA [ More info ] Unavailable |
| #27 | 953601 | GROMMET (UPPER) (1 required per assembly) |
  |
|
25-95360 1 - Grommet [ More info ] Unavailable |
| #28 | 95290 | DRIVESHAFT-UPPER (UPPER) (SHORT) (1 required per assembly) |
  |
|
45-95290 - Drive Shaft - Upper [ More info ]
|
| #28 | 952903 | DRIVESHAFT-LONG (UPPER) (LONG) (1 required per assembly) |
  |
|
45-95290 3 - Drive Shaft - Long [ More info ]
|
| #29 | 95369 | DRIVESHAFT-LOWER (LOWER) (1 required per assembly) |
  |
|
45-95369 - Drive Shaft - Lower, NLA [ More info ] Unavailable |
| #30 | 95277 | GUARD PIPE-TH (SHORT) (1 required per assembly) |
  |
|
95277 - Guard Pipe -th [ More info ]
|
| #30 | 952772 | GUARD PIPE-LONG (LONG) (1 required per assembly) |
  |
|
95277 2 - Guard Pipe - Long [ More info ]
|
| #31 | 815111Q02 | SHEAR PIN KT@2 (ALUMINUM PROP) (1 required per assembly) — Replaces: 815111, 815111002 |
  |
|
17-815111Q02 - Shear Pin Kit - Priced Individually [ More info ]
|
  |
|
17-815111 - Shear Pin, Stainless Steel - Priced Individually [ More info ]
|
| #31 | 815111002 | SHEAR PIN @5 (PLASTIC PROP) (1 required per assembly) — Replaces: 8151111, 815111 |
  |
17-815111002 - SHEAR PIN Note: Priced Individually [ More info ] Unavailable |
|
| #32 | 815083A01 | BLKMAX 7 3/8 X 6 (PLASTIC) (OPT required per assembly) — Replaces: 815083 |
  |
|
48-815083A01 - Black Max Prop 7 3/8 X 6 [ More info ]
|
| #32 | 815084A01 | BLKMAX 7 3/8 X 6 (STANDARD) (1 required per assembly) — Replaces: 815084 |
  |
|
48-815084A01 - Black Max Prop 7 3/8 X 6 [ More info ]
|
| #32 | 815084A02 | BLKMAX 7 3/8 X 7 RH (WITH RUBBER HUB) (OPT required per assembly) — Replaces: 8150841 |
  |
|
48-815084A02 - Black Max Prop 7 3/8 X 7 [ More info ]
|
| #33 | 95295 | PIN-COTTER @5 (1 required per assembly) |
  |
|
18-95295 - Cotter Pin - Priced Individually [ More info ]
|
  |
|
18-95295Q - Cotter Pin - Priced Individually [ More info ]
|
