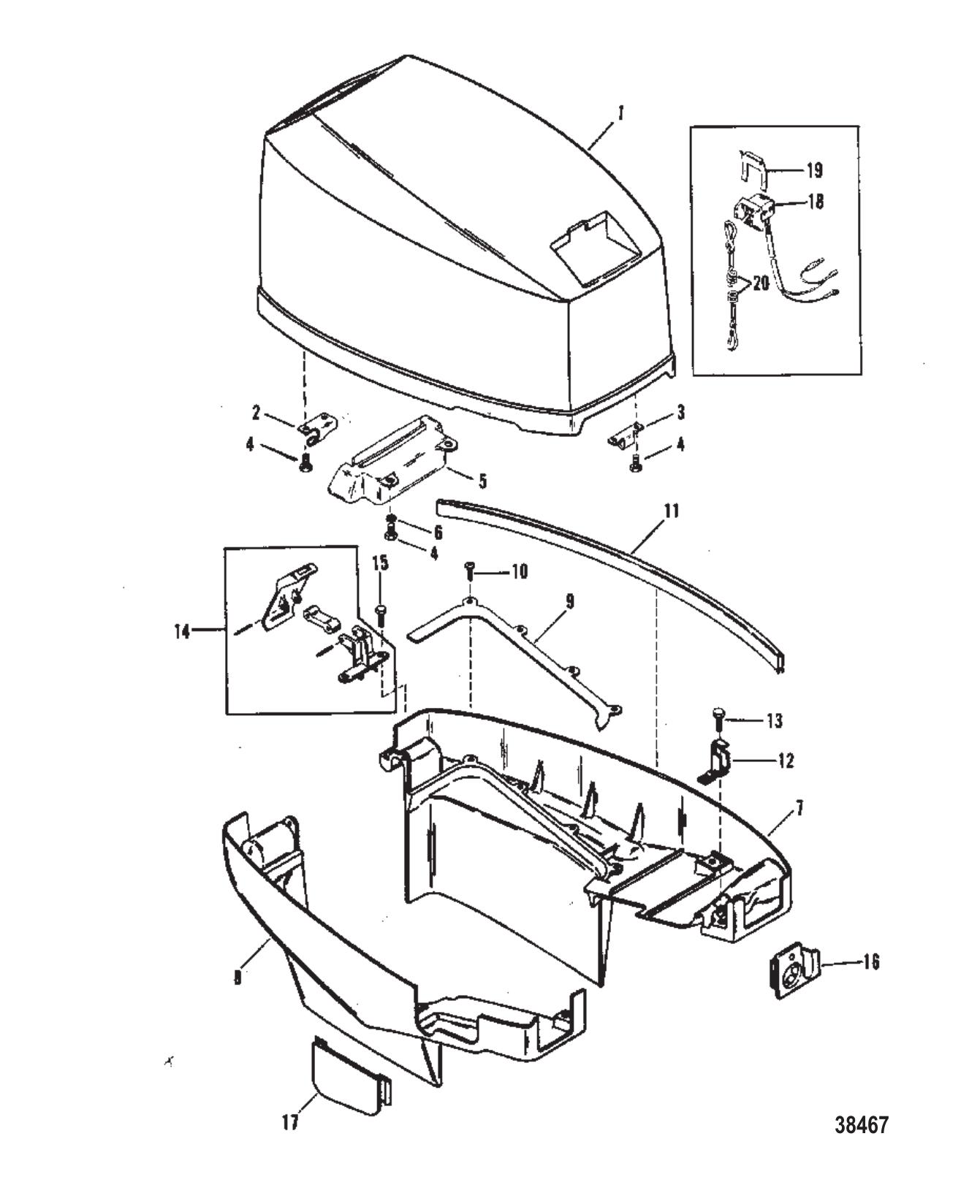

Parts for 25XD 2-Stroke Carbureted Mercury Outboard Motor Cowls (Mariner)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 9163A8 | COWL-TOP-GRAY (1 required per assembly) |
  |
|
2190-9163A 8 - COWL-TOP-GRAY,NLA [ More info ] Unavailable |
| #2 | 43515 | HINGE COWL LATCH (1 required per assembly) |
  |
|
|
| #3 | 43555 | BRACKET TOP COWL (1 required per assembly) |
  |
|
43555 - Bracket, NLA [ More info ]
|
| #4 | 400018 | SCREW (M5 X 12) HINGE TO TOP COWL (6 required per assembly) |
  |
|
10-40001 8 - Screw - Priced Individually [ More info ]
|
| #5 | 44311F2 | SHIELD TOP COWL (1 required per assembly) — Replaces: 443111, 44311T6 |
  |
|
44311F 2 - ORD 44311F 3 [ More info ] Unavailable |
  |
|
44311F 3 - Shield- Rear- Black [ More info ]
|
| #6 | 73288 | WASHER (.220 X .500 X .030) STAINLESS STEEL SHIELD SCREW (2 required per assembly) — Replaces: 33786 |
  |
|
12-73288 - Washer, (.220 X .500 X .030) Stainless Steel [ More info ]
|
| #7 | 9107A4 | BOTTOM COWL PORT (LIGHT GRAY) (1 required per assembly) — Replaces: 9107A3 |
  |
|
2176-9107A 4 - BOTTOM COWL,NLA [ More info ] Unavailable |
| #8 | 9108A3 | BOTTOM COWL STARBOARD (1 required per assembly) |
  |
|
2176-9108A 3 - BOTTOM COWL,NLA [ More info ] Unavailable |
| #9 | 15865 | PLATE BOTTOM COWL (2 required per assembly) — Replaces: 85982 |
  |
|
15865 - Plate, NLA [ More info ]
|
| #10 | 95700 | SCREW (#10-16 X .50) PLATE TO BOTTOM COWL (8 required per assembly) — Replaces: 70332 |
  |
|
10-95700 - Screw [ More info ]
|
| #11 | 15067A1 | SEAL BOTTOM COWL (2 required per assembly) |
  |
|
|
| #12 | 43514 | LATCH BOTTOM COWL (1 required per assembly) |
  |
|
43514 - Bottom Cowl Latch, NLA [ More info ]
|
| #13 | 400018 | SCREW (M5 X 12) LATCH TO BOTTOM COWL (2 required per assembly) |
| #14 | 43554A5 | LATCH COWL-REAR (1 required per assembly) — Replaces: 43554A4 |
  |
|
43554A 5 - Latch Assembly - Black [ More info ]
|
| #15 | 400018 | SCREW (M5 X 12) BRACKET TO BOTTOM COWL (2 required per assembly) |
| #16 | 11281 | COVER FUEL INLET (1 required per assembly) |
  |
|
11281 - Cover, NLA [ More info ] Unavailable |
| #17 | 416052 | PLATE BOTTOM COWL (WITHOUT STOP SWITCH) (1 required per assembly) |
  |
|
25-41605 2 - Grommet, NLA [ More info ]
|
| #17 | 416051 | PLATE BOTTOM COWL (WITH STOP SWITCH)(LIGHT GRAY) (1 required per assembly) |
  |
|
25-41605 1 - Grommet, NLA [ More info ] Unavailable |
| #18 | 11083A6 | SWITCH KIT-STOP (1 required per assembly) |
  |
|
87-11083A 6 - Stop Switch Kit [ More info ]
|
| #19 | 8M0032846 | RETAINER BRASS STOP SWITCH (1 required per assembly) — Replaces: 12044, 120441 |
  |
|
8M0032846 - Brass Retainer [ More info ]
|
| #20 | 15920Q54 | ORDER 8M0092850 (1 required per assembly) — Replaces: 15920A54 |
  |
|
15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable |
