Parts for 25XD 2-Stroke Carbureted Mercury Outboard Motor Cowls (Mercury)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25XD > 6443973 - 0B238463 - USA > Cowls (Mercury)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

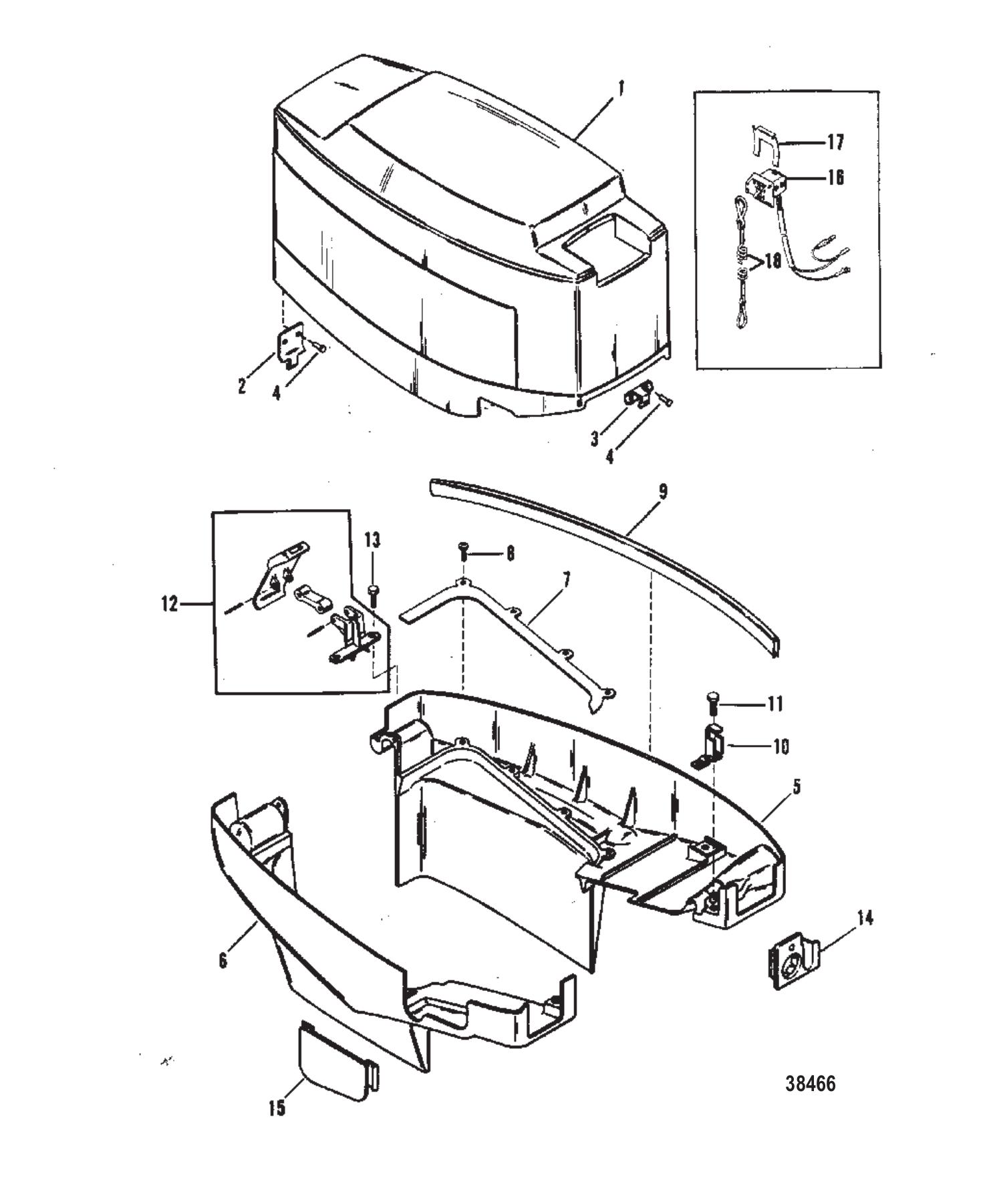

Cowls (Mercury)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	9163A22	COWL-TOP-BLACK (1 required per assembly) — Replaces: 8869A8
		2190-9163A22 - COWL-TOP-BLACK,NLA [ More info ] Unavailable
#2	43515	HINGE COWL LATCH (1 required per assembly)
		43515 - Hinge [ More info ] $86.99 Available to Order: Shipping delay up to 10 days.
#3	43555	BRACKET TOP COWL (1 required per assembly)
		43555 - Bracket, NLA [ More info ] $9.69 3 In Stock.
#4	400018	SCREW (M5 X 12) HINGE TO TOP COWL (4 required per assembly)
		10-40001 8 - Screw - Priced Individually [ More info ] $1.10 6 In Stock.
#5	9107A2	BOTTOM COWL ASSEMBLY PORT (1 required per assembly)
		2176-9107A 2 - BOTTOM COWL,NLA [ More info ] Unavailable
#6	9108A1	BOTTOM COWL ASSEMBLY STARBOARD (1 required per assembly)
		2176-9108A 1 - BOTTOM COWL,NLA [ More info ] Unavailable
#7	15865	PLATE BOTTOM COWL (2 required per assembly) — Replaces: 85982
		15865 - Plate, NLA [ More info ] $28.00 $23.72 4 In Stock.
#8	95700	SCREW (#10-16 X .50) PLATE TO BOTTOM COWL (8 required per assembly) — Replaces: 70332
		10-95700 - Screw [ More info ] $6.63 $1.60 10+ In Stock.
#9	15067A1	SEAL BOTTOM COWL (2 required per assembly)
		15067A 1 - Seal [ More info ] Unavailable
#10	43514	LATCH BOTTOM COWL (1 required per assembly)
		43514 - Bottom Cowl Latch, NLA [ More info ] $24.78 3 In Stock.
#11	400018	SCREW (M5 X 12) LATCH TO BOTTOM COWL (2 required per assembly)
#12	43554A5	LATCH COWL-REAR (1 required per assembly)
		43554A 5 - Latch Assembly - Black [ More info ] $135.42 1 In Stock.
#13	400018	SCREW (M5 X 12) BRACKET TO BOTTOM COWL (2 required per assembly)
#14	11281	COVER FUEL INLET (1 required per assembly)
		11281 - Cover, NLA [ More info ] Unavailable
#15	41604	PLATE BOTTOM COWL (WITHOUT STOP SWITCH) (1 required per assembly)
		25-41604 - Grommet, Bottom Cowl,NLA [ More info ] $10.76 10+ In Stock.
#15	416041	PLATE BOTTOM COWL (WITH STOP SWITCH) (1 required per assembly)
		25-41604 1 - Grommet, NLA [ More info ] $5.37 8 In Stock.
#16	11083A6	SWITCH KIT-STOP (1 required per assembly)
		87-11083A 6 - Stop Switch Kit [ More info ] $199.49 $172.16 10+ In Stock.
#17	8M0032846	RETAINER BRASS STOP SWITCH (1 required per assembly) — Replaces: 12044, 120441
		8M0032846 - Brass Retainer [ More info ] $4.61 Available to Order: Shipping delay up to 10 days.
#18	15920Q54	LANYARD ASSEMBLY (1 required per assembly) — Replaces: 15920A54
		15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable
