Parts for 25C (- Prop. Exhaust) 2-Stroke Carbureted Mercury Outboard Motor Cowling

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25C (- Prop. Exhaust) > 695-300101 - 318173 - USA > Cowling

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

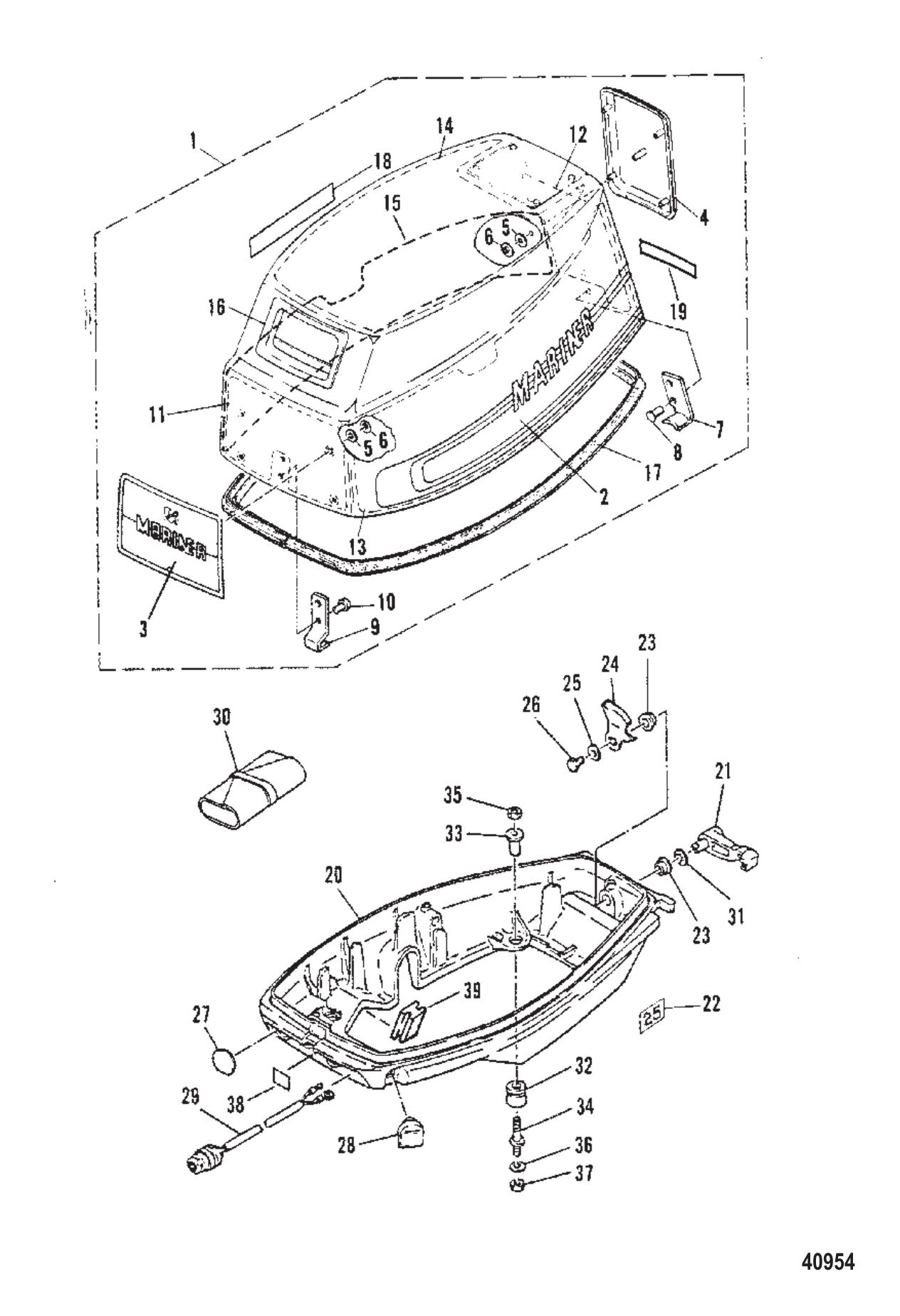

Cowling

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	9387M	TOP COWL [M-009376/ML-308481/E-251701/EL-552631] & Up (1 required per assembly) — Replaces: 8587M, 9368M
		2168-9387M - Top Cowl,NLA [ More info ] Unavailable
#1	9368M	TOP COWL [M-009375/ML-308480/E-251700/EL-552630] & Below (1 required per assembly) — Replaces: 6793M, 8587M
		2168-9368M - Top Cowl [ More info ] Unavailable
#2	95670M	DECAL SET SIDE AND REAR SET [M-009376/ML-308481/E-251701/EL-552631] & Up (1 required per assembly) — Replaces: 97766M
		37-95670M - Decal Set,NLA [ More info ] Unavailable
#2	81114M	DECAL SIDE SET [M-009375/ML-308480/E-251700/EL-552630] & Below (1 required per assembly)
		37-81114M - Decal Set, NLA [ More info ] Unavailable
#3	95641M	EMBLEM FRONT [M-009376/ML-308481/E-251701/EL-552631] & Up (1 required per assembly) — Replaces: 97767M
		37-95641M - Decal, NLA [ More info ] Unavailable
#3	82898M	APPLIQUE FRONT [M-009375/ML-308480/E-251700/EL-552630] & Below (1 required per assembly)
		82898M - EMBLEM,NLA [ More info ] Unavailable
#4	82899M	APPLIQUE REAR [M-019910/ML-315400/E-252995/EL-554735] & Below (1 required per assembly)
		82899M - EMBLEM,NLA [ More info ] Unavailable
#5	80884M	WASHER APPLIQUE NUT [M-009375/ML-308480/E-251700/EL-552630] & Below (10 required per assembly)
		12-80884M - WASHER,NLA [ More info ] $1.25 $1.06 9 In Stock.
#6	82927M	NUT APPLIQUE ATTACHING [M-009375/ML-308480/E-251700/EL-552630] & Below (10 required per assembly)
		11-82927M - Nut, Applique Attaching, NLA [ More info ] Unavailable
#7	83212M	HOLDER CLAMP BAND (1 required per assembly)
		83212M - Bracket [ More info ] Unavailable
#8	84903M	RIVET (2 required per assembly)
		17-84903M - Rivet, NLA [ More info ] Unavailable
#9	83137M	HOOK (1 required per assembly)
		83137M - Hook, NLA [ More info ] Unavailable
#10	83140M	RIVET (2 required per assembly)
		17-83140M - Rivet, NLA [ More info ] Unavailable
#11	84323M	SOUND BLANKET (1 required per assembly) — Replaces: 83319M
		84323M - Sound Blanket, NLA [ More info ] Unavailable
#12	84323M	SOUND BLANKET REAR (1 required per assembly) — Replaces: 83320M
#13	83125M	SOUND BLANKET STARBOARD (1 required per assembly) — Replaces: 83321M
		83125M - Damper,NLA [ More info ] Unavailable
#14	83232M	BLANKET TOP (1 required per assembly) — Replaces: 83322M
		83232M - Blanket,NLA [ More info ] Unavailable
#15	83125M	SOUND BLANKET PORT (1 required per assembly) — Replaces: 95506M
#16	80601M	SEAL RUBBER-STARTER (1 required per assembly)
		80601M - SEAL,NLA [ More info ] Unavailable
#17	84901M	SEAL TOP COWL (1 required per assembly)
		84901M - Seal, NLA [ More info ] Unavailable
#18	81202M	DECAL SHIFT INDICATOR (1 required per assembly)
		37-81202M - DECAL,NLA [ More info ] Unavailable
#19	95547M	DECAL (ELECTRIC MODELS) [E-252996/EL-554736] & Up (1 required per assembly)
		37-95547M - Decal, NLA [ More info ] Unavailable
#20	9349M	BOTTOM COWL (1 required per assembly) — Replaces: 7854M
		2168-9349M - BOTTOM COWL,NLA [ More info ] Unavailable
#21	84913M	LEVER COWL CLAMP (1 required per assembly)
		84913M - Lever [ More info ] Unavailable
#22	82900M	GRAPHIC SIDE (HP) (2 required per assembly)
		37-82900M - Decal, NLA [ More info ] Unavailable
#23	81949M	BUSHING COWL CLAMP LEVER (2 required per assembly)
		23-81949M - Bushing [ More info ] Unavailable
#24	84914M	CLAMP COWL (1 required per assembly)
		54-84914M - Clamp [ More info ] Unavailable
#25	81794M	WASHER @5 (1 required per assembly)
		12-81794M - Washer, Cowl Clamp Lever [ More info ] $2.99 $2.53 10+ In Stock.
#26	84088M	BOLT (1 required per assembly) — Replaces: 84315M
		10-84088M - Bolt [ More info ] $3.40 5 In Stock.
#27	83988M	GROMMET BOTTOM COWL (MANUAL) (1 required per assembly)
		25-83988M - Grommet, Bottom Cowl (manual) NLA [ More info ] $4.09 $3.46 4 In Stock.
#28	826981M	GROMMET BOTTOM COWL (1 required per assembly) — Replaces: 84915M
		25-826981M - Grommet, NLA [ More info ] Unavailable
#29	93102M	SWITCH (MANUAL) [M-009376/ML-308481/E-251701/EL-552631] & Up (1 required per assembly) — Replaces: 84916M
		87-93102M - Switch [ More info ] $41.99 Available to Order: Shipping delay up to 10 days.
#29	91622M	SWITCH (MANUAL) [M-009375/ML-308480/E-251700/EL-552630] & Below (1 required per assembly) — Replaces: 92600M
		87-91622M - Switch [ More info ] $46.99 Available to Order: Shipping delay up to 10 days.
#30	8M0168899	TOOL KIT (1 required per assembly) — Replaces: 81669M, 803581
		918M0168899 - TOOL KIT [ More info ] $13.29 Available to Order: Shipping delay up to 10 days.
#31	81869M	WASHER WAVE (1 required per assembly)
		13-81869M - Wave Washer, NLA [ More info ] $4.44 $3.76 10+ In Stock.
#32	84910M	GROMMET (4 required per assembly)
		25-84910M - Grommet, NLA [ More info ] Unavailable
#33	84911M	COLLAR (4 required per assembly)
		23-84911M - Collar, NLA [ More info ] Unavailable
#34	95505M	STUD SPECIAL (4 required per assembly) — Replaces: 84912M
		16-95505M - Stud, NLA [ More info ] $3.26 $2.76 10+ In Stock.
#35	82383M	NUT @2 (4 required per assembly)
		11-82383M - Nut, NLA [ More info ] $5.43 $4.60 10+ In Stock.
#36	82217M	WASHER @5 (4 required per assembly)
		12-82217M - Washer, NLA [ More info ] $1.67 $1.42 10 In Stock.
#37	82383M	NUT @2 (4 required per assembly) — Replaces: 82393M
#38	95570M	DECAL [M-019911/ML-315401/E-252996/EL-554736] & Up (1 required per assembly)
		37-95570M - DECAL,NLA [ More info ] Unavailable
#39	83728M	GROMMET (FOR ENGINE WITHOUT MANUAL STEERING) [M-019911/ML-315401/E-252996/EL-554736] & Up (OPT required per assembly)
		25-83728M - Grommet (w/o Manual Steering) NLA [ More info ] Unavailable
