Parts for 25C (- Prop. Exhaust) 2-Stroke Carbureted Mercury Outboard Motor Intake Manifold

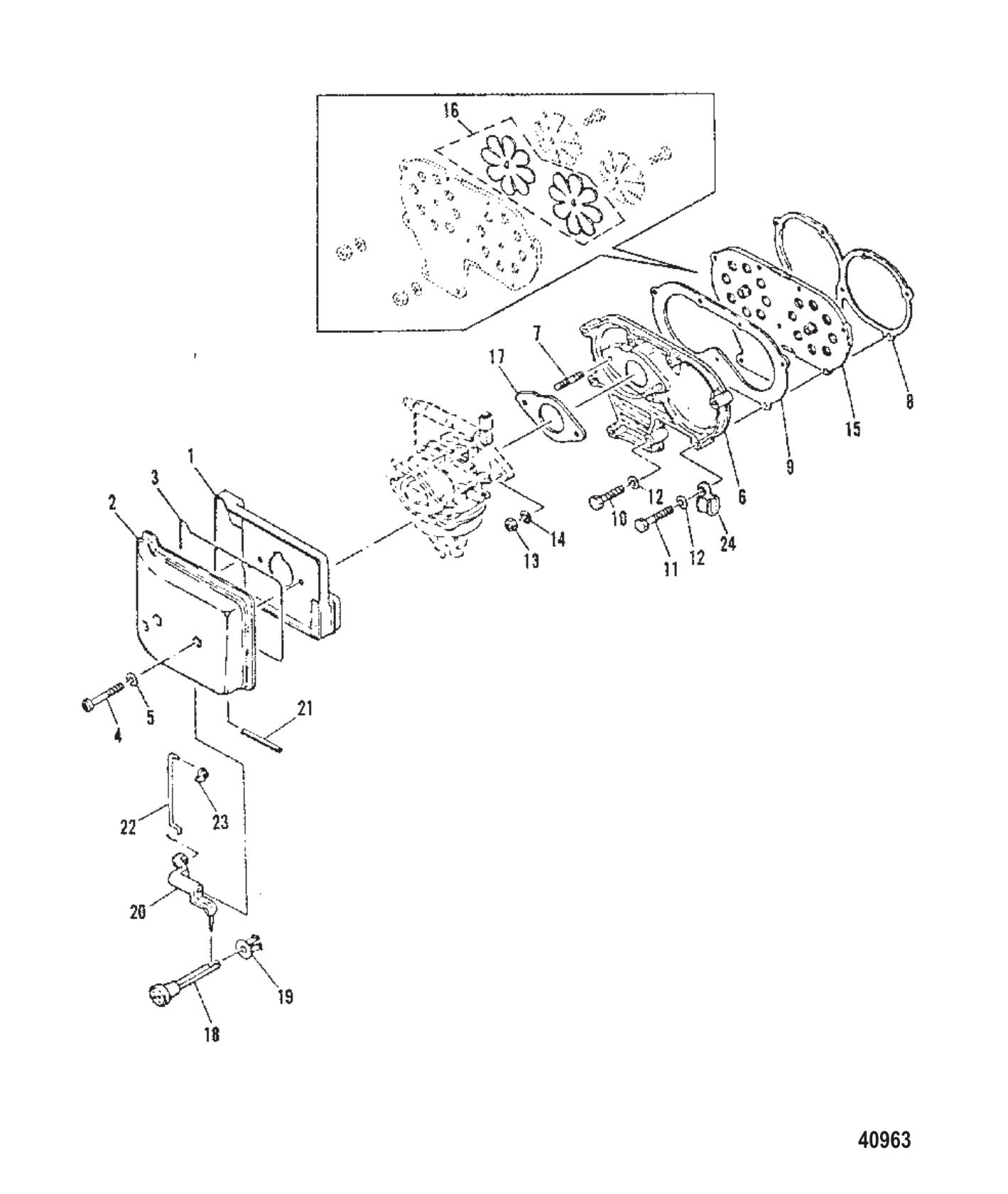

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 92575M | GASKET SET POWERHEAD (1 required per assembly) |
  |
|
27-92575M - Gasket Set [ More info ] Unavailable |
| #- | 811038M | REPAIR KIT-CARB (1 required per assembly) — Replaces: 84773M |
  |
|
811038M - Carburetor Repair Kit [ More info ]
|
| #1 | 92576M | COVER AIR INTAKE (INNER) (1 required per assembly) |
  |
|
92576M - Cover, NLA [ More info ] Unavailable |
| #2 | 92577M | COVER AIR INTAKE (OUTER) (1 required per assembly) |
  |
|
92577M - Cover [ More info ] Unavailable |
| #3 | 84757M | O-RING COVER (1 required per assembly) — Replaces: 92578M |
  |
|
25-84757M - O-Ring [ More info ] Unavailable |
| #4 | 82522M | SCREW (2 required per assembly) — Replaces: 84245M, 82523M |
  |
|
10-82522M - Screw, NLA [ More info ] Unavailable |
| #5 | 82211M | WASHER @5 (2 required per assembly) — Replaces: 82196M |
  |
|
12-82211M - Washer - Priced Individually [ More info ]
|
| #6 | 80570002 | MANIFOLD INTAKE INTAKE (1 required per assembly) — Replaces: 80570M |
  |
|
80570002 - MANIFOLD Intake NLA [ More info ] Unavailable |
| #7 | 91735M | STUD CARBURETOR ATTACHING (2 required per assembly) |
  |
|
16-91735M - Stud, NLA [ More info ]
|
| #8 | 80569M | GASKET INTAKE MANIFOLD (1 required per assembly) |
  |
|
27-80569M - Intake Manifold Gasket [ More info ]
|
| #9 | 80571M | GASKET REED VALVE (1 required per assembly) |
  |
|
27-80571M - Intake Manifold Gasket [ More info ] Unavailable |
| #10 | 82405M | SCREW @2 (2 required per assembly) |
  |
|
10-82405M - Screw, NLA [ More info ]
|
| #11 | 83285M | SCREW @5 (7 required per assembly) |
  |
|
10-83285M - Screw - Priced Individually [ More info ]
|
| #12 | 82214M | WASHER LOCK (9 required per assembly) — Replaces: 82199M |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #13 | 82389M | NUT @2 (2 required per assembly) — Replaces: 82380M |
  |
|
11-82389M - Nut, NLA [ More info ] Unavailable |
| #14 | 82214M | WASHER @5 (2 required per assembly) — Replaces: 82199M |
| #15 | 811027M | REED VALVE (1 required per assembly) — Replaces: 84758M |
  |
|
811027M - Reed Valve [ More info ]
|
| #16 | 84759M | REED SET (REED STOPS NOT INCLUDED) (1 required per assembly) |
  |
|
34-84759M - Reed Kit, NLA [ More info ]
|
| #17 | 80572 | GASKET CARBURETOR MANIFOLD (1 required per assembly) — Replaces: 80572M |
  |
|
27-80572 - Carburetor Manifold Gasket [ More info ]
|
| #18 | 83960M | KNOB CHOKE (1 required per assembly) |
  |
|
83960M - Choke Knob, NLA [ More info ] Unavailable |
| #19 | 84760M | GROMMET CHOKE KNOB (1 required per assembly) |
  |
|
25-84760M - Grommet, Choke Knob,NLA [ More info ] Unavailable |
| #20 | 84761M | LEVER CHOKE (1 required per assembly) |
  |
|
84761M - Choke Lever [ More info ] Unavailable |
| #21 | 84762M | PIN ROLL (1 required per assembly) |
  |
|
17-84762M - Pin -roll, NLA [ More info ]
|
| #22 | 92579M | ROD CHOKE (1 required per assembly) |
  |
|
92579M - CHOKE ROD,NLA [ More info ] Unavailable |
| #23 | 16333 | ROD SNAP (1 required per assembly) — Replaces: 81191M |
  |
|
16333 - Rod Snap [ More info ] Unavailable |
| #24 | 96348M | CLAMP HOSE (1 required per assembly) — Replaces: 82034M, 97561M |
  |
|
54-96348M - Clamp [ More info ]
|
