Parts for 25, 25 Sea Pro, Super 15 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Carburetor (20)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25, 25 Sea Pro, Super 15 (2 Cyl.) > 9507381 - 9807908 - Belgium > Carburetor (20)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Carburetor (20)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	9844A1	SERVICE KIT PARTS INCLUDED IN KIT ARE INDICATED BY A DOT ON THE ILLUSTRATION. (1 required per assembly)
		1395-9844A 1 - Service Kit [ More info ] $40.49 8 In Stock.
		18-97351 - Carb Kit, Mercury 1395-9844A1 [ More info ] $42.35 $36.04 2 In Stock.
#-	41499A88	GASKET SET (1 required per assembly) — Replaces: 41499A87
		27-41499A88 - Engine Gasket Set [ More info ] $154.49 Available to Order: Shipping delay up to 10 days.
#-	90885A89	POWERHEAD MARINE [0D116956] THRU [0D117955] (1 required per assembly) — Replaces: 822261A92, 90885A88
		90885A89 - Powerhead MARINE [ More info ] Unavailable
		90885T89 - Powerhead [ More info ] Unavailable
		879732T89 - PH 20/25,NLA [ More info ] Unavailable
#-	90885T89	POWERHEAD (1 required per assembly) — Replaces: 90885A88, 90885A89
#1	8888T10	CARBURETOR (ELECTRIC) - WMC-37 (1 required per assembly) — Replaces: 8888A9, 8888A10, 8676A12
		1390-8888T10 - Carburetor [ More info ] Unavailable
		1390-8888T14 - Carburetor [ More info ] Unavailable
		1390-8888T18 - Carburetor [ More info ] Unavailable
#1	8888T14	CARBURETOR (MANUAL) - WMC-36 (1 required per assembly) — Replaces: 8888A10, 8888T10
#1	8888A10	CARBURETOR (ELECTRIC) - WMC-30 (1 required per assembly) — Replaces: 8676A11, 8676A12
		1390-8888A10 - Carburetor [ More info ] Unavailable
#2	9640	VALVE THROTTLE (1 required per assembly)
		1395-9640 - THROTTLE Valve, NLA [ More info ] Unavailable
#3	9695	SHAFT THROTTLE (1 required per assembly)
		1395-9695 - Throttle Shaft [ More info ] Unavailable
#4	9164	BOWL FUEL (1 required per assembly)
		1395-9164 - Fuel Bowl [ More info ] $88.99 Available to Order: Shipping delay up to 10 days.
#5	91691	FLOAT (1 required per assembly) — Replaces: 9169
		1395-9169 1 - Float [ More info ] $13.59 9 In Stock.
#6	803861	VALVE INLET NEEDLE INLET NEEDLE (1 required per assembly) — Replaces: 9855, 879194048
		1395-803861 - Inlet Valve [ More info ] $25.49 9 In Stock.
#7	5317	JET (.046) MAIN FUEL (WMC 29/30) (1 required per assembly)
		1399-5317 - Jet -.046 [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#7	7394	JET (.044) MAIN FUEL (WMC 36/37) (1 required per assembly)
		1395-7394 - Jet -.044 [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#8	9171	PLUG JET RETAINER (1 required per assembly)
		1395-9171 - Plug [ More info ] $8.89 1 In Stock.
#9	813618	COVER DIAPHRAGM (WMC 29/30) (1 required per assembly)
		813618 - Cover [ More info ] Unavailable
#10	9697	SCREW DIAPHRAGM COVER (4 required per assembly)
		1395-9697 - Screw Assembly [ More info ] Unavailable
#11	9702	COVER/FUEL PUMP KIT FUEL PUMP (1 required per assembly) — Replaces: 15827A1
		1395-9702 - Fuel Pump Kit [ More info ] Unavailable
#12	9643	SCREW FUEL PUMP COVER (5 required per assembly)
		1395-9643 - Screw Assembly [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#13	9637	COVER FUEL PUMP (1 required per assembly)
		1395-9637 - Cover [ More info ] $30.79 Available to Order: Shipping delay up to 10 days.
#14	9762	PLUG (1 required per assembly)
		1395-9762 - Plug [ More info ] Unavailable
#15	97611	GASKET/DIAPHRAGM KIT (1 required per assembly) — Replaces: 9803
		1395-9761 1 - Gasket and Diaphragm Kit [ More info ] $87.99 5 In Stock.
		18-7212 - Carburetor and Fuel Pump Diaphragm Kit, 1395-9761 1 [ More info ] $64.19 $62.86 10+ In Stock.
		1300-36004 - Carburetor Kit - Mercury 1395-9761 1 [ More info ] $61.99 $47.40 10 In Stock.
#16	8237072	REPAIR KIT (WMC 36/37) (1 required per assembly) — Replaces: 9802, 823649
		1395-823707 2 - Carburetor Repair Kit, Float NOT included [ More info ] $136.99 1 In Stock.
		18-97350 - Carb Kit, Mercury 1395-823707 2, Float Not Included [ More info ] $137.82 $126.28 5 In Stock.
#17	9699	PLATE COVER (MANUAL) (1 required per assembly)
		1395-9699 - Cover Plate [ More info ] Unavailable
#18	823433	CHOKE ELECTRIC (ELECTRIC) (1 required per assembly)
		1395-823433 - Solenoid [ More info ] Unavailable
#19	9696	SCREW COVER PLATE (2 required per assembly)
		1395-9696 - Screw Assembly [ More info ] Unavailable
#20	192061	GASKET CARBURETOR CARBURETOR (1 required per assembly) — Replaces: 414491
		27-19206 1 - Gasket [ More info ] $4.99 5 In Stock.
#21	9635	DIAPHRAGM/GASKET (1 required per assembly)
		1395-9635 - Diaphragm [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#22	9633	GASKET (1 required per assembly)
		1395-9633 - Fuel Pump Gasket [ More info ] $5.19 1 In Stock.
#23	F10064	SHAFT (1 required per assembly)
		F10064 - Float Support Shaft [ More info ] $4.59 10+ In Stock.
#24	824401	LEVER FLOAT (1 required per assembly)
		1395-824401 - Float Lever [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#25	12110	SCREW (#6-32 X .750) FAST IDLE LEVER (1 required per assembly) — Replaces: 79964
		10-12110 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.

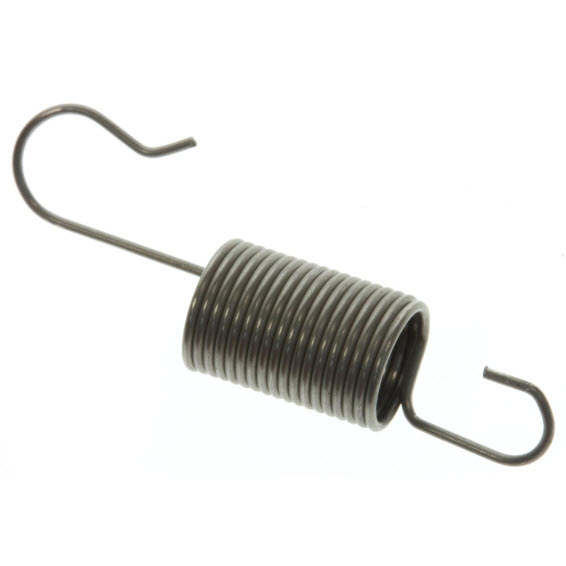

#26	11277	SPRING (1 required per assembly)
		24-11277 - Spring, Tension [ More info ] $3.69 4 In Stock.
#27	40056110	SCREW (M5 X 30) PRIMER BRACKET (2 required per assembly)
		10-40056110 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#27	400018	SCREW (M5 X 12) PRIMER BRACKET (M5 X 8 X 12 MM) (2 required per assembly)
		10-40001 8 - Screw - Priced Individually [ More info ] $1.10 2 In Stock.
#28	79965	SCREW (#8-32 X .500) STAINLESS STEEL PRIMER BRACKET (1 required per assembly)
		10-79965 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#29	112731	LEVER-PRIMER (1 required per assembly)
		0112731 - Bearing (112731) [ More info ] Unavailable
#30	11280	BLOCK (1 required per assembly)
		11280 - Cam Block [ More info ] $8.09 2 In Stock.
#31	11278	RING-RETAINING (1 required per assembly)
		53-11278 - Ring - Retaining [ More info ] $6.69 4 In Stock.
#32	172291	CHOKE-BEZEL (1 required per assembly)
		17229 1 - Choke-Bezel [ More info ] $28.93 3 In Stock.
#33	128022	PRIMER KNOB PRIMER (1 required per assembly) — Replaces: 12802
		0128022 - L/P 9.14 [ More info ] Unavailable
#34	17442	COVER CARBURETOR (1 required per assembly)
		17442 - Carburetor Cover [ More info ] Unavailable
#35	47579	PLUG CARBURETOR COVER (1 required per assembly)
		19-47579 - Plug - Priced Individually [ More info ] $1.60 10+ In Stock.
		18-3232-9 - Plug, 19-47579, 5PK [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#36	127332	WIRE-IDLE (1 required per assembly) — Replaces: 127331
		12733 2 - Wire - Idle [ More info ] $31.99 10+ In Stock.
#37	128053	LEVER FAST IDLE FAST IDLE (1 required per assembly)
		0128053 - L/P 66.89 [ More info ] Unavailable
#38	12803	BRACKET PRIMER PRIMER (1 required per assembly)
		12803 - Primer Bracket [ More info ] $31.15 5 In Stock.
#39	821979	NUT FAST IDLE LEVER (1 required per assembly) — Replaces: 97877
		11-821979 - Nut [ More info ] $1.70 5 In Stock.
