Parts for 25, 25 Marathon, Super 15 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Driveshaft Housing Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 41499A88 | GASKET SET (1 required per assembly) — Replaces: 41499A87 |
  |
|
27-41499A88 - Engine Gasket Set [ More info ]
|
| #- | 804350T99 | POWERHEAD (1 required per assembly) — Replaces: 90885A97, 90885T99 |
  |
804350T99 - Powerhead [ More info ] Unavailable |
|
  |
804946T00 - Powerhead [ More info ] Unavailable |
|
  |
804946T01 - Powerhead [ More info ] Unavailable |
|
  |
|
804946T02 - Powerhead 25 2ST, NLA [ More info ] Unavailable |
| #1 | 158664 | SEAL (1 required per assembly) |
  |
|
|
| #2 | 99702A7 | ADAPTOR PLATE ASM (1 required per assembly) |
  |
|
99702A 7 - Adaptor Plate Assembly [ More info ]
|
| #3 | 41670006 | GASKET (1 required per assembly) — Replaces: 416705 |
  |
|
27-41670006 - Adaptor Plate Gasket [ More info ]
|
  |
|
18-0336 - Gasket, 27-41670-4 [ More info ]
|
| #4 | 8M0204741 | SCREW @4 (2 required per assembly) — Replaces: 40011128, 8M4503518 |
  |
|
108M0204741 - SCREW Note: Priced Individually [ More info ]
|
| #5 | 41211 | BRACKET (2 required per assembly) |
  |
|
|
| #6 | NSS | NOT SOLD SEPARATE EXHAUST TUBE (INCLUDED WITH ADAPTOR PLATE) (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #7 | 96248A1 | HOUSING ASSY (1 required per assembly) |
  |
|
96248A 1 - Housing Assembly, NLA [ More info ] Unavailable |
| #8 | 889715 | SPACER @2 (1 required per assembly) — Replaces: 96247 |
  |
|
23-889715 - Spacer - Water Tube [ More info ] Unavailable |
| #9 | 25329 | SEAL @5 (1 required per assembly) |
  |
|
26-25329 - Seal - Priced Individually [ More info ]
|
| #10 | 40011107 | SCREW @5 (2 required per assembly) |
  |
|
10-40011107 - SCREW [ More info ]
|

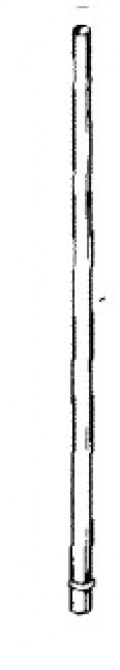

| #11 | 85116 | TUBE-WATER (SHORT SHAFT) (1 required per assembly) |
  |
|
32-85116 - Water Tube [ More info ] Unavailable |
| #11 | 86292 | TUBE-WATER (LONG SHAFT) (1 required per assembly) |
  |
|
32-86292 - Water Tube [ More info ] Unavailable |
| #12 | 9097T5 | DRIESHAFT HSG-BL (SHORT SHAFT) BLACK (1 required per assembly) — Replaces: 9097A5 |
  |
|
1588-9097T 5 - Drive Shaft Housing, Black, NLA [ More info ] Unavailable |
| #12 | 9098T5 | DRIVESHAFT HSG-BL (LONG) (TRACKER GRAPHITE GRAY) (1 required per assembly) — Replaces: 9098A5, 9098A6, 9098A7 |
  |
|
1588-9098T 5 - Drive Shaft Housing -bl [ More info ] Unavailable |
| #12 | 9097T6 | DRIVESHAFT HSG-GR (SHORT SHAFT) GRAY (1 required per assembly) — Replaces: 9097A6 |
  |
|
1588-9097T 6 - Drive Shaft Housing -gr [ More info ] Unavailable |
| #13 | 433374 | GASKET DRIVE SHAFT HOUSING (1 required per assembly) |
  |
0433374 - Primer Solenoid Assembly (433374) [ More info ] Unavailable |
|
  |
|
0437232 - Primer Solenoid (437232) [ More info ]
|
| #14 | 14621 | GASKET (1 required per assembly) |
  |
|
27-14621 - Idle Relief Cover Gasket [ More info ]
|
| #15 | 14534 | COVER (1 required per assembly) |
  |
|
|
| #16 | 14742 | SCREW (.250-20 X 1.25) (1 required per assembly) |
  |
|
10-14742 - Screw [ More info ]
|
| #17 | 1993870 | SCREW (M8 X 70) (M8 X 70) (6 required per assembly) — Replaces: 4000360 |
  |
|
10-19938 70 - Screw [ More info ]
|
| #18 | 4002317 | WASHER @5 (6 required per assembly) |
  |
|
12-40023 17 - Washer - Priced Individually [ More info ]
|
| #19 | 8M0204741 | SCREW @4 (4 required per assembly) — Replaces: 40011128, 8M4503518 |
| #20 | 17258T | TRIM COVER (TRACKER GRAPHITE GRAY) (1 required per assembly) — Replaces: 17258T6, 17258F4 |
  |
|
17258T - Trim Cover [ More info ] Unavailable |
