Parts for 25, 25 Marathon, Super 15 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Clamp Bracket Assembly

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25, 25 Marathon, Super 15 (2 Cyl.) > 9807909 - 0P016999 - Belgium > Clamp Bracket Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

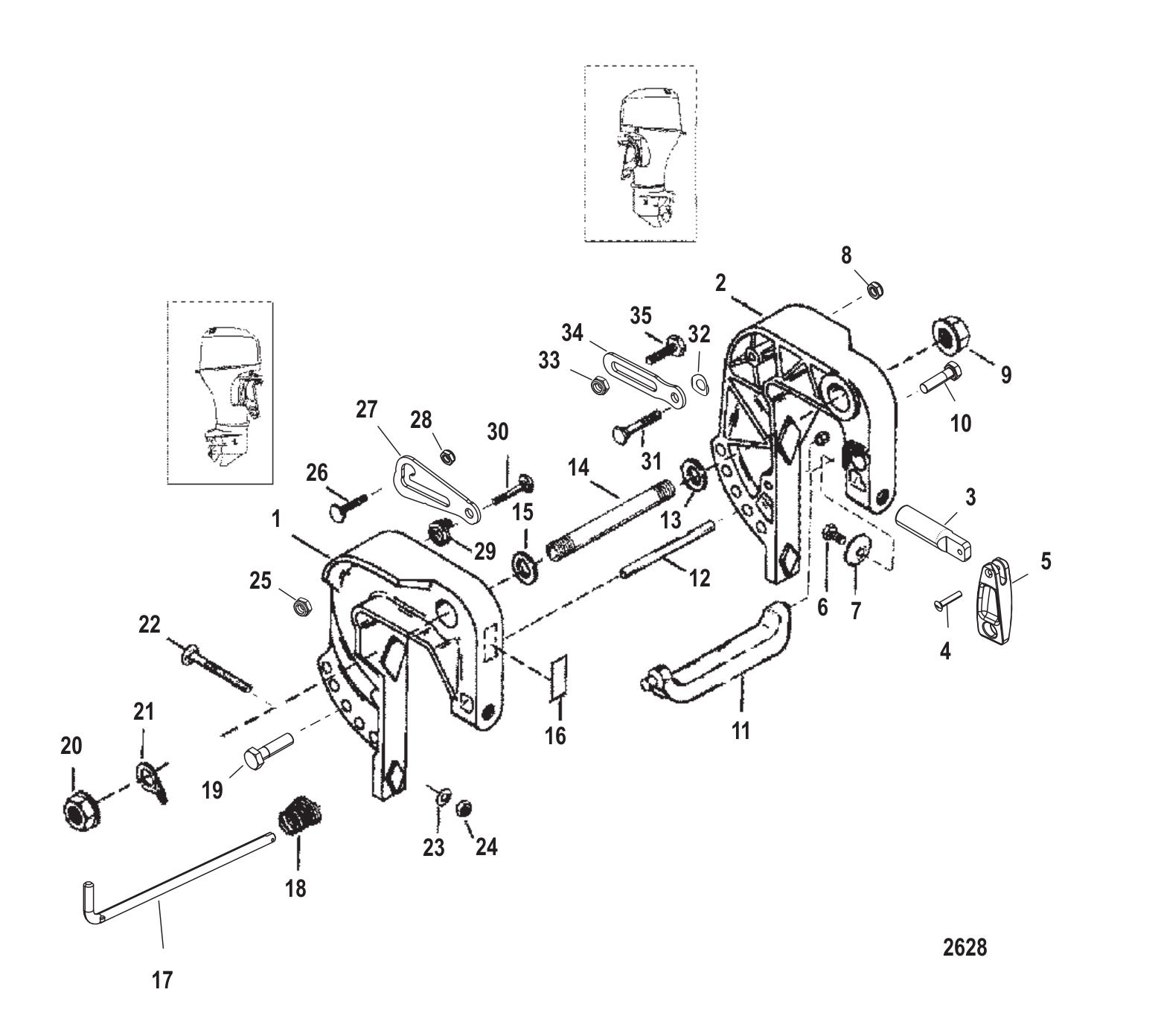

Clamp Bracket Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8796A7	BRKT-TRANSOM-BLK (STBD.) (TRACKER GRAPHITE GRAY) (1 required per assembly) — Replaces: 8796A8, 8796A9
		1497-8796A 7 - Transom Bracket - Black [ More info ] Unavailable
#2	8794A9	BRKT-TRANSOM-BLK (PORT) (TRACKER GRAPHITE GRAY) (1 required per assembly) — Replaces: 8794A10, 8794A11
		1497-8794A 9 - Transom Bracket, Port Side, Black [ More info ] $136.99 Available to Order: Shipping delay up to 10 days.
#3	92767A3	THUMB SCREW ASSEMBLY (16 MM) (2 required per assembly)
		10-92767A 3 - Thumb Screw Assembly, 16MM [ More info ] $50.43 4 In Stock.
#4	NSS	NOT SOLD SEPARATE RIVET (2 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#5	NSS	NOT SOLD SEPARATE HANDLE (2 required per assembly)
#6	768042	SHOULDER SCREW HEX (2 required per assembly)
		0768042 - T-SHRT-M-G.BASS [ More info ] Unavailable
#7	818884	WASHER (2 required per assembly) — Replaces: 73719
		12-818884 - Washer [ More info ] $13.79 $11.04 2 In Stock.
#8	826709109	NUT @5 (1 required per assembly) — Replaces: 35045
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 5 In Stock.
#9	93164	NUT (1 required per assembly)
		11-93164 - Nut, (.875) [ More info ] $3.80 7 In Stock.
#10	4000333	SCREW @5 (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#11	41042	HANDLE (1 required per assembly)
		41042 - Carrying Handle [ More info ] $21.99 Available to Order: Shipping delay up to 10 days.
#12	818538	SPACER (1 required per assembly)
		23-818538 - Spacer [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#13	71421	WASHER @2 (1 required per assembly)
		12-71421 - Washer, Nylon [ More info ] $1.80 2 In Stock.
#14	8M0035075	TILT TUBE (1 required per assembly) — Replaces: 41171, 883068
		8M0035075 - Tilt Tube [ More info ] $53.08 1 In Stock.
#15	71421	WASHER @2 (1 required per assembly)
#16	8237011	DECAL-CO PILOT (1 required per assembly)
		37-823701 1 - Decal -co Pilot [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#17	56373A2	PIN-KIT (1 required per assembly)
		17-56373A 2 - Pin Assembly, Tilt [ More info ] $27.48 2 In Stock.
#18	92995	SPRING (1 required per assembly)
		24-92995 - Spring [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#19	4000333	SCREW @5 (1 required per assembly)
#20	93164	NUT (1 required per assembly)
#21	8M0085928	CLIP (1 required per assembly) — Replaces: 30954
		548M0085928 - Clip [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#22	814945	SCREW (2 required per assembly)
		10-814945 - Screw [ More info ] $6.89 $5.52 3 In Stock.
#23	67981	WASHER (2 required per assembly)
		12-67981 - Washer, Clamp Bracket Bolt [ More info ] $3.19 7 In Stock.
#24	815848	NUT (2 required per assembly)
		11-815848 - Nut, (.312) [ More info ] $6.79 $1.36 4 In Stock.
#25	826709109	NUT @5 (1 required per assembly) — Replaces: 35045
#26	41523	SCREW (1 required per assembly)
		10-41523 - Screw [ More info ] $6.69 6 In Stock.
#27	96965	LEVER STARBOARD SIDE (1 required per assembly)
		96965 - Tilt Stop Lever [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#28	826709109	NUT @5 (1 required per assembly) — Replaces: 35045
#29	44581	SPRING (1 required per assembly)
		24-44581 - Spring, Tilt Stop Lever Screw [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#30	41524	SCREW (1 required per assembly)
		10-41524 - Screw [ More info ] $9.39 4 In Stock.
#31	41524	SCREW (1 required per assembly)
#32	31030	WASHER-WAVE @5 (1 required per assembly)
		13-31030 - Wave Washer - Priced Individually [ More info ] $1.80 10+ In Stock.
#33	826709109	NUT @5 (1 required per assembly) — Replaces: 35045
#34	90901	STRAP PORT SIDE (1 required per assembly)
		90901 - Tilt Stop Strap [ More info ] Unavailable
#35	41523	SCREW (1 required per assembly)
