Parts for 25, 25 Marathon, Super 15 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Clamp Bracket Assembly

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25, 25 Marathon, Super 15 (2 Cyl.) > 0A730007 & Up - Canada > Clamp Bracket Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

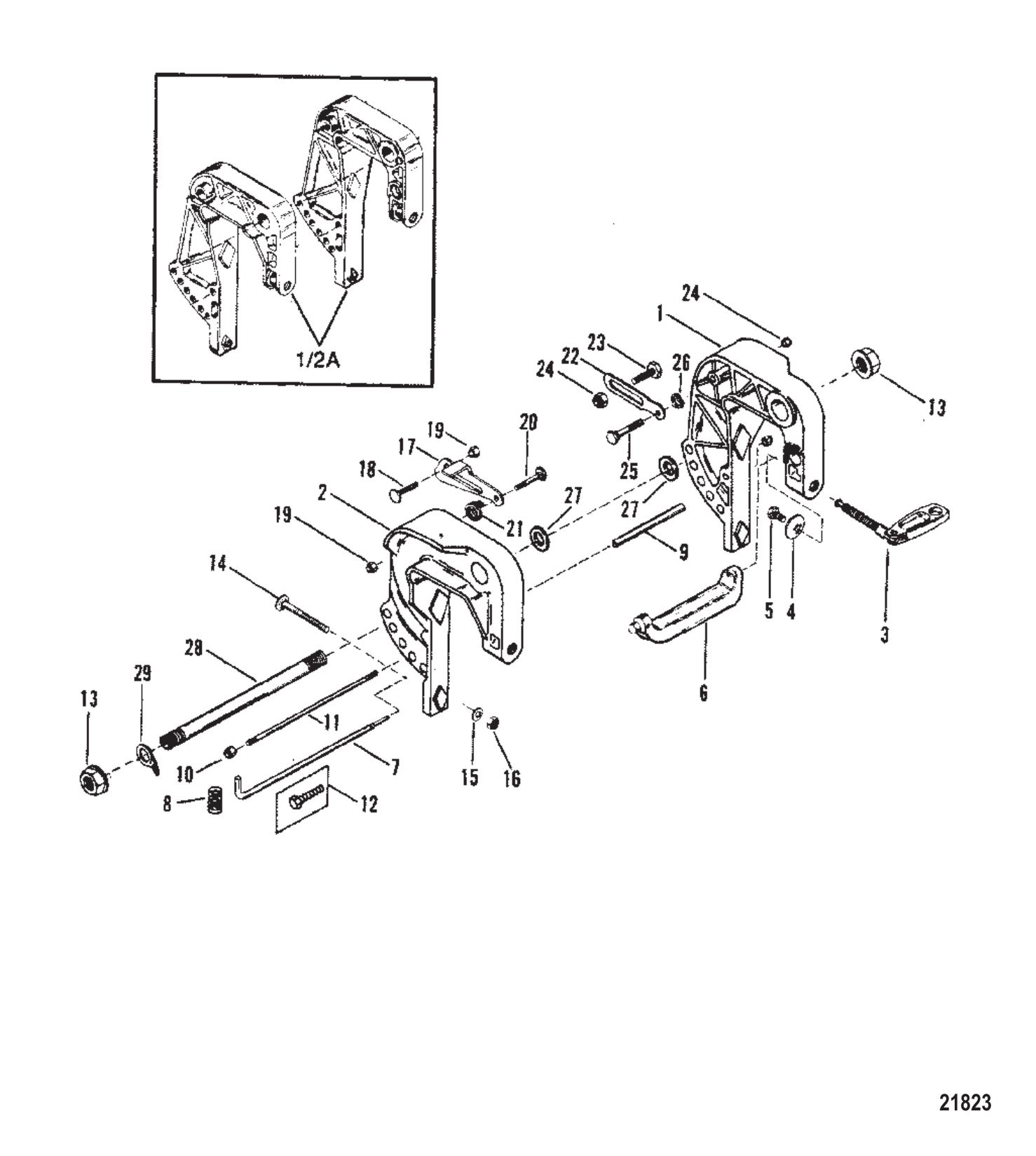

Clamp Bracket Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8794A7	BRACKET ASSEMBLY TRANSOM (PORT)(GRAY) (5 Hole Stud Attaching) (1 required per assembly) — Replaces: 8794A8
		1497-8794A 7 - Transom Bracket, Black, Port Side, NLA [ More info ] Unavailable
#1	8794A9	BRACKET ASSEMBLY TRANSOM (PORT) (TRACKER) (1 required per assembly) — Replaces: 8794A10, 8794A11
		1497-8794A 9 - Transom Bracket, Port Side, Black [ More info ] $136.99 Available to Order: Shipping delay up to 10 days.
#2	8796A5	BRACKET ASSEMBLY TRANSOM (STBD.) (BLACK) (5 Hole Stud Attaching) (1 required per assembly)
		1497-8796A 5 - Clamp Bracket, NLA [ More info ] Unavailable
#2	8796A6	BRACKET ASSEMBLY TRANSOM (STBD.)(GRAY) (5 Hole Stud Attaching) (1 required per assembly)
		1497-8796A 6 - Clamp Bracket, NLA [ More info ] Unavailable
#2	8796A7	BRACKET ASSEMBLY TRANSOM (STBD.) (TRACKER) (1 required per assembly) — Replaces: 8796A8, 8796A9
		1497-8796A 7 - Transom Bracket - Black [ More info ] Unavailable
#3	92767A1	THUMB SCREW ASSEMBLY (14 MM) (2 required per assembly)
		10-92767A 1 - Thumb Screw Assembly, 14MM [ More info ] $66.31 1 In Stock.
#3	92767A3	THUMB SCREW ASSEMBLY (16 MM) (2 required per assembly)
		10-92767A 3 - Thumb Screw Assembly, 16MM [ More info ] $50.43 4 In Stock.
#4	818884	WASHER THUMB SCREW (2 required per assembly) — Replaces: 73719
		12-818884 - Washer [ More info ] $13.79 $11.04 2 In Stock.
#5	768042	SHOULDER SCREW HEX WASHER ATTACHING (2 required per assembly) — Replaces: 768041
		0768042 - T-SHRT-M-G.BASS [ More info ] Unavailable
#6	41042	HANDLE CARRYING (1 required per assembly)
		41042 - Carrying Handle [ More info ] $21.99 Available to Order: Shipping delay up to 10 days.
#7	99929A1	PIN KIT-TILT LOCK USE WITH 6 HOLE BRACKET (1 required per assembly)
		17-99929A 1 - Tilt Lock Pin Kit [ More info ] Unavailable
#7	56373A2	PIN-KIT USE WITH 5 HOLE BRACKET (1 required per assembly)
		17-56373A 2 - Pin Assembly, Tilt [ More info ] $27.48 2 In Stock.
#8	92995	SPRING USE WITH 5 HOLE BRACKET (1 required per assembly)
		24-92995 - Spring [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#9	41041	SPACER STUD ATTACHING (1 required per assembly)
		23-41041 - Spacer - Clamp Bracket Stud [ More info ] $16.17 10+ In Stock.
#9	818538	SPACER SCREW ATTACHING (1 required per assembly)
		23-818538 - Spacer [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#10	400213	NUT @2 STUD ATTACHING (2 required per assembly)
		11-40021 3 - Nut - Priced Individually [ More info ] $2.89 1 In Stock.
#11	99928	STUD STUD ATTACHING (1 required per assembly)
		16-99928 - Stud, NLA [ More info ] $7.02 10+ In Stock.
#12	4000333	SCREW @5 SCREW ATTACHING (2 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#13	93164	NUT (.875) TILT TUBE (2 required per assembly)
		11-93164 - Nut, (.875) [ More info ] $3.80 7 In Stock.
#14	814945	SCREW (.312-18 X 3.500) STAINLESS STEEL CLAMP BRACKET TO TRANSOM (2 required per assembly)
		10-814945 - Screw [ More info ] $6.89 $5.52 3 In Stock.
#15	67981	WASHER CLAMP BRACKET BOLT (2 required per assembly)
		12-67981 - Washer, Clamp Bracket Bolt [ More info ] $3.19 7 In Stock.
#16	815848	NUT (.312) CLAMP BRACKET BOLT (2 required per assembly)
		11-815848 - Nut, (.312) [ More info ] $6.79 $1.36 4 In Stock.
#17	96965	LEVER TILT STOP - STARBOARD STAR (1 required per assembly)
		96965 - Tilt Stop Lever [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#18	41523	SCREW (.250-28 X 1.00) LEVER TO SWIVEL BRACKET (1 required per assembly)
		10-41523 - Screw [ More info ] $6.69 6 In Stock.
#19	826709109	NUT (.250-28) STAINLESS STEEL TILT STOP LEVER SCREW (2 required per assembly) — Replaces: 35045
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 5 In Stock.
#20	41524	SCREW (.250-28 X 1.75) LEVER TO CLAMP BRACKET (1 required per assembly)
		10-41524 - Screw [ More info ] $9.39 4 In Stock.
#21	44581	SPRING TILT STOP LEVER SCREW (1 required per assembly)
		24-44581 - Spring, Tilt Stop Lever Screw [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#22	90901	STRAP TILT STOP - PORT SIDE (1 required per assembly)
		90901 - Tilt Stop Strap [ More info ] Unavailable
#23	41523	SCREW (.250-28 X 1.00) STRAP TO SWIVEL BRACKET (1 required per assembly)
#24	826709109	NUT (.250-28) STAINLESS STEEL TILT STOP STRAP SCREW (2 required per assembly) — Replaces: 35045
#25	41524	SCREW (.250-28 X 1.75) STRAP TO CLAMP BRACKET (1 required per assembly)
#26	31030	WAVE WASHER TILT STOP STRAP SCREW (1 required per assembly)
		13-31030 - Wave Washer - Priced Individually [ More info ] $1.80 10+ In Stock.
#27	71421	WASHER NYLON TILT TUBE (NYLON) (2 required per assembly)
		12-71421 - Washer, Nylon [ More info ] $1.80 2 In Stock.
#28	8M0035075	TILT TUBE (1 required per assembly) — Replaces: 41171, 883068
		8M0035075 - Tilt Tube [ More info ] $53.08 1 In Stock.
#29	8M0085928	CLIP SAFETY (1 required per assembly) — Replaces: 30954
		548M0085928 - Clip [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#1/2A	8794A5	BRACKET ASSEMBLY TRANSOM (PORT/STBD.) (BLACK) 6 HOLE (1 required per assembly)
		1497-8794A 5 - Transom Bracket KIT,NLA [ More info ] Unavailable
#1/2A	8794A6	BRACKET ASSEMBLY TRANSOM (PORT/STBD.) (GRAY) 6 HOLE (1 required per assembly)
		1497-8794A 6 - Transom Bracket Kit, NLA [ More info ] Unavailable
