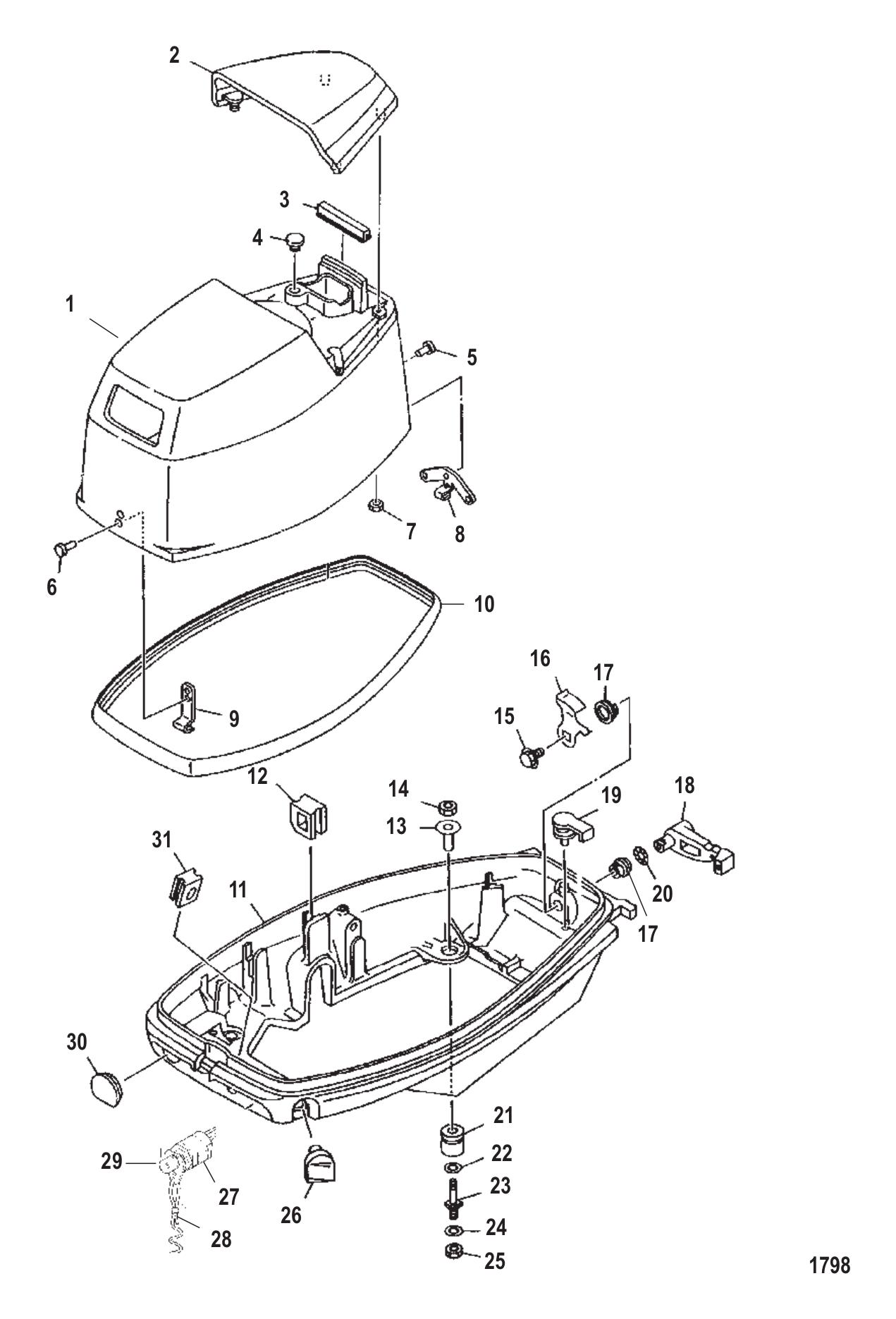

Parts for 25 K 2-Stroke Carbureted Mercury Outboard Motor Cowling
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 824092A02 | DECAL SET (1 required per assembly) |
  |
|
37-824092A02 - DECAL SET NLA [ More info ] Unavailable |
| #- | 824092001 | DECAL FRONT (1 required per assembly) |
  |
|
37-824092001 - DECAL Front NLA [ More info ] Unavailable |
| #- | 81202M | DECAL SHIFT INDICATOR (1 required per assembly) |
  |
|
37-81202M - DECAL,NLA [ More info ] Unavailable |
| #1 | 826972A02 | TOP COWL (1 required per assembly) |
  |
|
2168-826972A02 - TOP COWL ASSEMBLY NLA [ More info ] Unavailable |
| #2 | 826975001 | MOLDING (1 required per assembly) |
  |
|
826975001 - MOLDING NLA [ More info ] Unavailable |
| #3 | 826977M | SEAL (1 required per assembly) |
  |
|
826977M - Seal,NLA [ More info ] Unavailable |
| #4 | 91675M | GROMMET (1 required per assembly) |
  |
|
25-91675M - Grommet, NLA [ More info ]
|
| #5 | 84903M | RIVET (3 required per assembly) |
  |
|
17-84903M - Rivet, NLA [ More info ]
|
| #6 | 83140M | RIVET (2 required per assembly) |
  |
|
17-83140M - Rivet, NLA [ More info ]
|
| #7 | 826976M | NUT (4 required per assembly) |
  |
|
11-826976M - NUT,NLA [ More info ] Unavailable |
| #8 | 84902M | HOOK (1 required per assembly) |
  |
|
84902M - Hook, NLA [ More info ] Unavailable |
| #9 | 826974M | HOOK (1 required per assembly) |
  |
|
826974M - Hook, NLA [ More info ] Unavailable |
| #10 | 826973M | SEAL (1 required per assembly) |
  |
|
826973M - SEAL,NLA [ More info ] Unavailable |
| #11 | 826980005 | COWL-BOTTOM (1 required per assembly) |
  |
|
2168-826980005 - BOTTOM COWL NLA [ More info ] Unavailable |
| #12 | 84876M | GROMMET (1 required per assembly) |
  |
|
25-84876M - Grommet, NLA [ More info ]
|
| #13 | 84911M | COLLAR (4 required per assembly) |
  |
|
23-84911M - Collar, NLA [ More info ] Unavailable |
| #14 | 82383M | NUT @2 (4 required per assembly) |
  |
|
11-82383M - Nut, NLA [ More info ]
|
| #15 | 84088001 | BOLT (1 required per assembly) |
  |
|
10-84088001 - BOLT NLA [ More info ] Unavailable |
| #16 | 84914M | CLAMP (1 required per assembly) |
  |
|
54-84914M - Clamp [ More info ] Unavailable |
| #17 | 81949M | BUSHING (2 required per assembly) |
  |
|
23-81949M - Bushing [ More info ] Unavailable |
| #18 | 84913M | LEVER (1 required per assembly) |
  |
|
84913M - Lever [ More info ] Unavailable |
| #19 | 80510M | SPACER (1 required per assembly) |
  |
|
80510M - Spacer, NLA [ More info ] Unavailable |
| #20 | 81869M | WASHER-WAVE @2 (1 required per assembly) |
  |
|
13-81869M - Wave Washer, NLA [ More info ]
|
| #21 | 84910M | GROMMET (4 required per assembly) |
  |
|
25-84910M - Grommet, NLA [ More info ] Unavailable |
| #22 | 95507M | WASHER (4 required per assembly) |
  |
|
12-95507M - Washer, NLA [ More info ]
|
| #23 | 95505M | STUD (4 required per assembly) |
  |
|
16-95505M - Stud, NLA [ More info ]
|
| #24 | 82217M | WASHER @5 (4 required per assembly) |
  |
|
12-82217M - Washer, NLA [ More info ]
|
| #25 | 82383M | NUT @2 (4 required per assembly) |
| #26 | 826981M | GROMMET (1 required per assembly) |
  |
|
25-826981M - Grommet, NLA [ More info ] Unavailable |
| #27 | 97757M | SWITCH ASSY (1 required per assembly) |
  |
|
87-97757M - Switch Assembly, NLA [ More info ]
|
| #28 | 97756M | STOPPER (1 required per assembly) |
  |
|
97756M - Lanyard Stopper [ More info ]
|
| #29 | 852837 | CAP (1 required per assembly) |
  |
|
19-852837 - CAP NLA [ More info ] Unavailable |
| #30 | 83988M | GROMMET (1 required per assembly) |
  |
|
25-83988M - Grommet, Bottom Cowl (manual) NLA [ More info ]
|
| #31 | 826986M | GROMMET (1 required per assembly) |
  |
|
25-826986M - Grommet, NLA [ More info ] Unavailable |
