Parts for 25 HP Lightning (3 Cyl.) (Intl. Only) 2-Stroke Carbureted Mercury Outboard Motor Shift Linkage

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25 HP Lightning (3 Cyl.) (Intl. Only) > 0E288000 & Up - USA > Shift Linkage

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

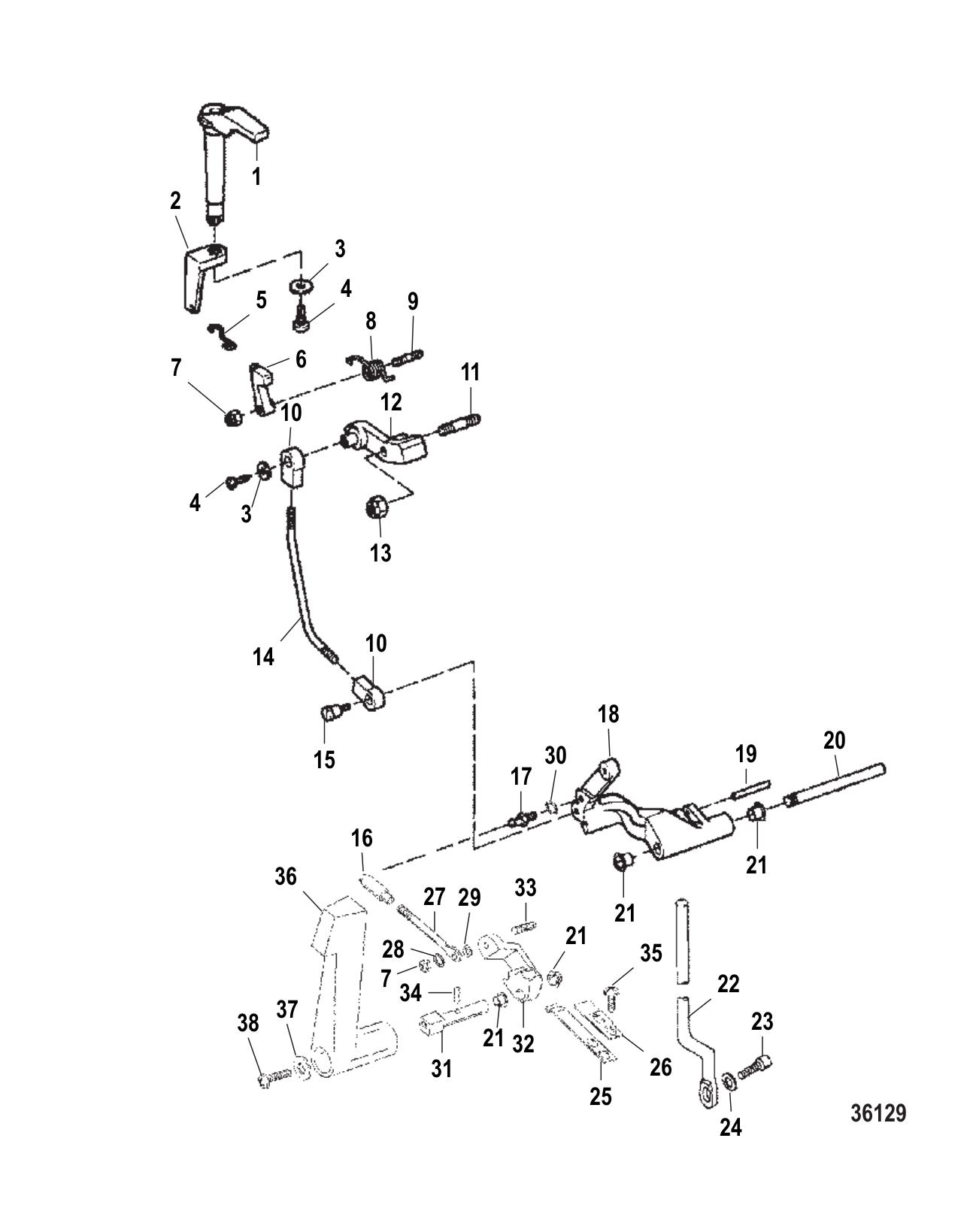

Shift Linkage

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	819240A6	POWERHEAD ASSY (1 required per assembly) — Replaces: 819240A3
		800-819240A 6 - Powerhead, 25HP 1996 to 1998 [ More info ] Unavailable
#1	F681490	STOP (1 required per assembly)
		F681490 - Stop,NLA [ More info ] Unavailable
#2	F681003-1	ARM-INTERLOCK (1 required per assembly)
		F681003-1 - Arm - Interlock, NLA [ More info ] $5.39 10+ In Stock.
#3	F8143	WASHER (2 required per assembly)
		12-F8143 - WASHER,NLA [ More info ] Unavailable
#4	48408	SCREW @5 (2 required per assembly)
		10-48408 - Screw - Priced Individually [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#5	F681263-1	LINK (1 required per assembly)
		F681263-1 - Link, NLA [ More info ] $8.46 $7.16 10+ In Stock.
#6	F681742	LEVER (1 required per assembly)
		F681742 - Lever [ More info ] $2.33 10+ In Stock.
#7	20110	NUT @5 (2 required per assembly)
		11-20110 - Nut (M10X32) [ More info ] $1.70 10+ In Stock.
#8	F681424	SPRING (1 required per assembly)
		24-F681424 - Spring, Interlock Lever,NLA [ More info ] Unavailable
#9	F681134	STUD (1 required per assembly)
		16-F681134 - Stud, NLA [ More info ] Unavailable
#10	816514	BEARING-BLACK (2 required per assembly)
		816514 - Bearing - Black [ More info ] Unavailable
#11	826590	STUD (.250-20 X 1.690) (.250-20 X 1.690) (1 required per assembly)
		16-826590 - Stud, NLA [ More info ] $1.51 $1.28 10 In Stock.
#12	824357	LEVER (1 required per assembly)
		824357 - Neutral Interlock Lever [ More info ] $8.79 10 In Stock.
#13	8M0207776	NUT (1 required per assembly) — Replaces: 814101
		118M0207776 - NUT [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#14	819159	ROD-INTERLOCK (1 required per assembly)
		819159 - Interlock Rod, NLA [ More info ] Unavailable
#15	819625	SCREW (1 required per assembly)
		10-819625 - Screw, NLA [ More info ] $9.89 10+ In Stock.
#16	F286685	CONNECTOR (1 required per assembly)
		F286685 - Connector, NLA [ More info ] $10.87 $9.21 10+ In Stock.
#17	F98273	STUD (1 required per assembly)
		16-F98273 - Stud, NLA [ More info ] $19.92 $16.88 10 In Stock.
#18	855621T	LEVER-GEAR SHIFT (1 required per assembly)
		855621T - Gear Shift Lever [ More info ] $66.31 1 In Stock.
#19	25319	PIN-ROLL @5 (1 required per assembly)
		17-25319 - Pin, (.125 X 0.75 Inches) [ More info ] $5.09 10+ In Stock.
#20	F286871T	PIN-GEAR SHIFT (1 required per assembly)
		F286871T - Gear Shift Lever Pin [ More info ] $2.50 $2.13 10+ In Stock.
#21	26841	BUSHING @3 (4 required per assembly)
		23-26841 - Bushing - Priced Individually [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#22	8193781	ROD-GEAR SHIFT (1 required per assembly)
		819378 1 - Gear Shift Rod, NLA [ More info ] Unavailable
#23	F1976	SCREW-SS (1 required per assembly)
		10-F1976 - Screw -ss, NLA [ More info ] $4.43 $3.76 10+ In Stock.
#24	89302	WASHER @5 (1 required per assembly)
		12-89302 - Washer (.203 X .406 X .040) [ More info ] $1.80 10+ In Stock.
#25	39627	SPRING (1 required per assembly)
		24-39627 - Spring, Detent [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#26	824994	PLATE-SPRING (1 required per assembly)
		824994 - Spring, Plate [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#27	850388	LINK-SHIFT LEVER (1 required per assembly)
		850388 - Shift Lever Link, NLA [ More info ] Unavailable
#28	F8048	WASHER-BOWED (1 required per assembly)
		13-F8048 - Washer -bowed, NLA [ More info ] Unavailable
#29	26996	LOCKWASHER @15 (1 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#30	F8058	LOCKWASHER (1 required per assembly)
		13-F8058 - LockWasher, NLA [ More info ] $1.09 10+ In Stock.
#31	850386	SHAFT-SHIFTHANDLE (1 required per assembly)
		850386 - Shift Shaft Handle, NLA [ More info ] Unavailable
#32	850387A1	LEVER ASSY-DETENT (1 required per assembly)
		850387A 1 - Lever Assembly -deten, NLA [ More info ] Unavailable
#33	846345	STUD (#10-32 X .750) (1 required per assembly)
		16-846345 - Stud [ More info ] $21.79 Available to Order: Shipping delay up to 10 days.
#34	25905	PIN (1 required per assembly)
		17-25905 - Pin, Roll, NLA [ More info ] $7.81 10+ In Stock.
#35	42813	SCREW (#10-32 X .380) (#10-32 X .380) (2 required per assembly)
		10-42813 - Screw [ More info ] $0.20 $0.16 7 In Stock.
#36	852545	HANDLE-SHIFT (1 required per assembly)
		852545 - Shift Handle, NLA [ More info ] Unavailable
#37	4002314	WASHER @5 (1 required per assembly)
		12-40023 14 - Washer - Priced Individually [ More info ] $3.69 $2.96 10+ In Stock.

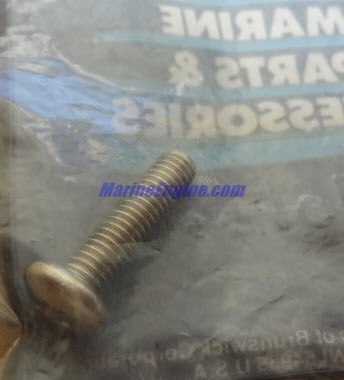

#38	15124	SCREW (1 required per assembly)
		10-15124 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
