Parts for 25 HP Lightning (3 Cyl.) (Intl. Only) 2-Stroke Carbureted Mercury Outboard Motor Gear Housing Assembly Driveshaft

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25 HP Lightning (3 Cyl.) (Intl. Only) > 0E288000 & Up - USA > Gear Housing Assembly Driveshaft

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

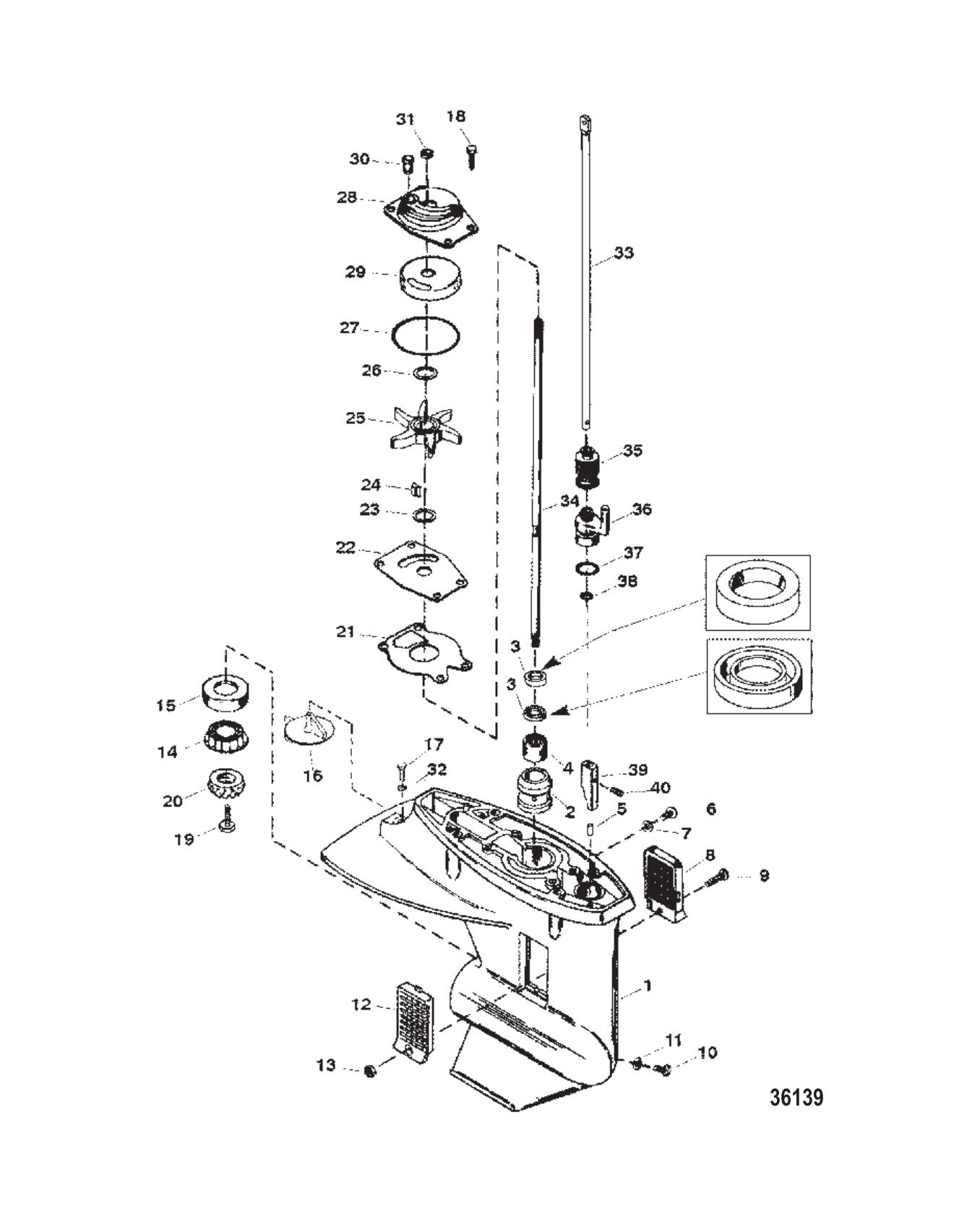

Gear Housing Assembly Driveshaft

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	85090A2	SEAL KIT (1 required per assembly)
		26-85090A 2 - Seal Kit [ More info ] $102.99 Available to Order: Shipping delay up to 10 days.
#-	99157T2	PUMP KIT-WATER (1 required per assembly) — Replaces: 99157A2
		46-99157T 2 - Water Pump Kit [ More info ] $121.49 3 In Stock.
#1	8669A42	GEAR HSG-COMP-BLK (15 IN. SHORT) (COMPLETE) (MERCURY) (1 required per assembly)
		16658669A42 - Gearcase Assembly [ More info ] Unavailable
#1	8669A43	GEAR HSG-COMP-GRA (15 IN. SHORT) (COMPLETE) (MARINER) (1 required per assembly)
		1665-8669A43 - Gear Housing - Comp-gra, NLA [ More info ] Unavailable
#1	8669A44	GEAR HSG-COMP-BLK (20 IN. LONG) (COMPLETE) (MERCURY) (1 required per assembly)
		1665-8669A44 - GEAR HOUSING ASSE NLA [ More info ] Unavailable
#1	8669A45	GEAR HSG-COMP-MAR (20 IN. LONG) (COMPLETE) (MARINER) (1 required per assembly)
		16658669A45 - Gearcase Assembly , NLA [ More info ] Unavailable
#1	8M0083538	GC BASIC 25 2S (1 required per assembly) — Replaces: 8669A21, 8669A22
		16008M0083538 - Gearcase Basic 25 2S [ More info ] $922.49 Available to Order: Shipping delay up to 10 days.
#2	NSS	NOT SOLD SEPARATE SLEEVE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	99325	SEAL (2 required per assembly)
		26-99325 - Seal [ More info ] $19.29 3 In Stock.
		18-0586 - Seal, 26-99325 [ More info ] $13.99 $13.57 2 In Stock.
#4	41326	BEARING ROLLER (1 required per assembly)
		31-41326 - Roller Bearing [ More info ] Unavailable
#5	8M0084726	PIN DOWEL (1 required per assembly) — Replaces: 85500
		178M0084726 - Pin - Dowel [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#6	79953Q04	SCREW KIT DRAIN (1 required per assembly) — Replaces: 79953A2, 79953Q2
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#7	191833	SEAL (1 required per assembly) — Replaces: 19183, 191832
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 7 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 10 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#8	41133	SCREEN WATER INLET PORT (1 required per assembly)
		35-41133 - Water Intake Screen, Sold Individually [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#9	40031112	SCREW (M5 X 40) (1 required per assembly)
		10-40031112 - Screw - Priced Individually [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#10	67892A06	PLUG KIT DRAIN - MAGNETIC (1 required per assembly) — Replaces: 67892A1, 67892A05
		22-67892A06 - Drain Plug Kit [ More info ] Unavailable
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 9 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#11	191833	SEAL (1 required per assembly) — Replaces: 19183, 191832
#12	41134	SCREEN (STARBOARD) (1 required per assembly)
		35-41134 - Water Intake Screen, Sold Individually [ More info ] $7.09 2 In Stock.
#13	400263	NUT (M5) SCREEN SCREW (1 required per assembly)
		11-40026 3 - NUT,NLA [ More info ] Unavailable
#14	98294A1	BEARING ASSEMBLY ROLLER (1 required per assembly)
		31-98294A 1 - Bearing Kit [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
#15	NSS	NOT SOLD SEPARATE CUP-ROLLER BEARING (1 required per assembly)
#16	98432Q6	TRIM TAB (1 required per assembly) — Replaces: 984325, 98432T5
		97-98432Q 6 - Trim Tab Anode, Zinc [ More info ] $25.49 8 In Stock.
		97-98432T 6 - Trim Tab Anode, Zinc [ More info ] $27.99 4 In Stock.
#17	4000354	SCREW (M8 X 30) (1 required per assembly)
		10-40003 54 - Screw - Priced Individually [ More info ] $4.79 7 In Stock.
#18	8248324	SCREW (M6 X 16) (4 required per assembly)
		10-824832 4 - Screw [ More info ] $1.80 5 In Stock.
#19	49908	SCREW (.250-28 X .750) (1 required per assembly)
		10-49908 - Screw - Priced Individually [ More info ] $3.28 10+ In Stock.
#20	98302	GEAR PINION (1 required per assembly)
		43-98302 - Gear, Pinion (12 Teeth) [ More info ] $176.49 Available to Order: Shipping delay up to 10 days.
#21	993261	GASKET (1 required per assembly)
		27-99326 1 - Gasket [ More info ] $1.99 7 In Stock.
#22	85083	FACE PLATE (1 required per assembly)
		85083 - Face Plate [ More info ] $14.19 1 In Stock.
#23	8M0204722	WASHER (1 required per assembly) — Replaces: 8M0027721
		128M0204722 - WASHER [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#24	8M0032838	KEY @5 (1 required per assembly) — Replaces: 85119
		28-8M0032838 - Key - Priced Individually [ More info ] Unavailable
		288M0214993 - KEY Note: Priced Individually [ More info ] $3.69 10+ In Stock.
#25	8M0204712	IMPELLER (1 required per assembly) — Replaces: 850893, 8508910
		47-8M0204712 - Impeller [ More info ] $39.49 3 In Stock.
#26	8M0204722	WASHER (1 required per assembly) — Replaces: 8M0027721
#27	69202	O-RING (1 required per assembly)
		25-69202 - O-ring, Water Pump [ More info ] $4.59 4 In Stock.
		18-7419 - O-Ring 25-69202 [ More info ] $4.28 $3.37 6 In Stock.
#28	99157A02	PUMP ASSEMBLY WATER (1 required per assembly) — Replaces: 99157A1
		46-99157A02 - Water Pump Housing [ More info ] $67.99 Available to Order: Shipping delay up to 10 days.
#29	NSS	NOT SOLD SEPARATE INSERT (1 required per assembly)
#30	85090001	SEAL (1 required per assembly) — Replaces: 85090
		26-85090001 - Seal - Priced Individually [ More info ] $6.79 4 In Stock.
#31	86203	O-RING (1 required per assembly)
		25-86203 - O Ring-Driveshaft [ More info ] $1.50 5 In Stock.
#32	8M0042642	WASHER (.323 X .562 X .063) (1 required per assembly) — Replaces: 70132
		12-8M0042642 - Washer - Priced Individually [ More info ] $1.80 6 In Stock.
#33	853939	ROD GEAR SHIFT (15 IN. SHORT MODELS) (1 required per assembly)
		853939 - Gear Shift Rod [ More info ] Unavailable
#33	853940	ROD GEAR SHIFT (20 IN. LONG MODELS) (1 required per assembly)
		853940 - Oil Cooler, NLA [ More info ] Unavailable
#34	827024T	DRIVESHAFT (15 IN. SHORT MODELS) (1 required per assembly)
		45-827024T - Drive Shaft - Short, NLA [ More info ] $116.00 $98.25 1 In Stock.
#34	827025T	DRIVESHAFT (20 IN. LONG MODELS) (1 required per assembly)
		45-827025T - Drive Shaft - Long, NLA [ More info ] Unavailable
#35	85552001	BOOT (1 required per assembly) — Replaces: 85552
		85552001 - Boot [ More info ] $5.09 5 In Stock.
		18-2742 - Boot [ More info ] $4.67 Available to Order: Shipping delay up to 10 days.
#36	93878	RETAINER (1 required per assembly)
		93878 - Shift Retainer, New Take Off, See Detail Page [ More info ] Unavailable
#37	35276	O-RING (.734 X .139) (1 required per assembly)
		25-35276 - O-ring, (.734 X .139) [ More info ] $2.39 2 In Stock.
		18-7135 - O-Ring 25-35276 [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#38	85594	O-RING (.239 X .174) (1 required per assembly)
		25-85594 - O-ring, (.239 X .174) [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
		18-7100-9 - O-Ring (PK5) 301877 [ More info ] $12.74 Available to Order: Shipping delay up to 10 days.
#39	85562A2	SHIFT CAM (1 required per assembly)
		85562A 2 - Shift Cam Kit [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#40	85096	PIN DRIVE (1 required per assembly)
		17-85096 - Pin, Drive [ More info ] $5.19 2 In Stock.
