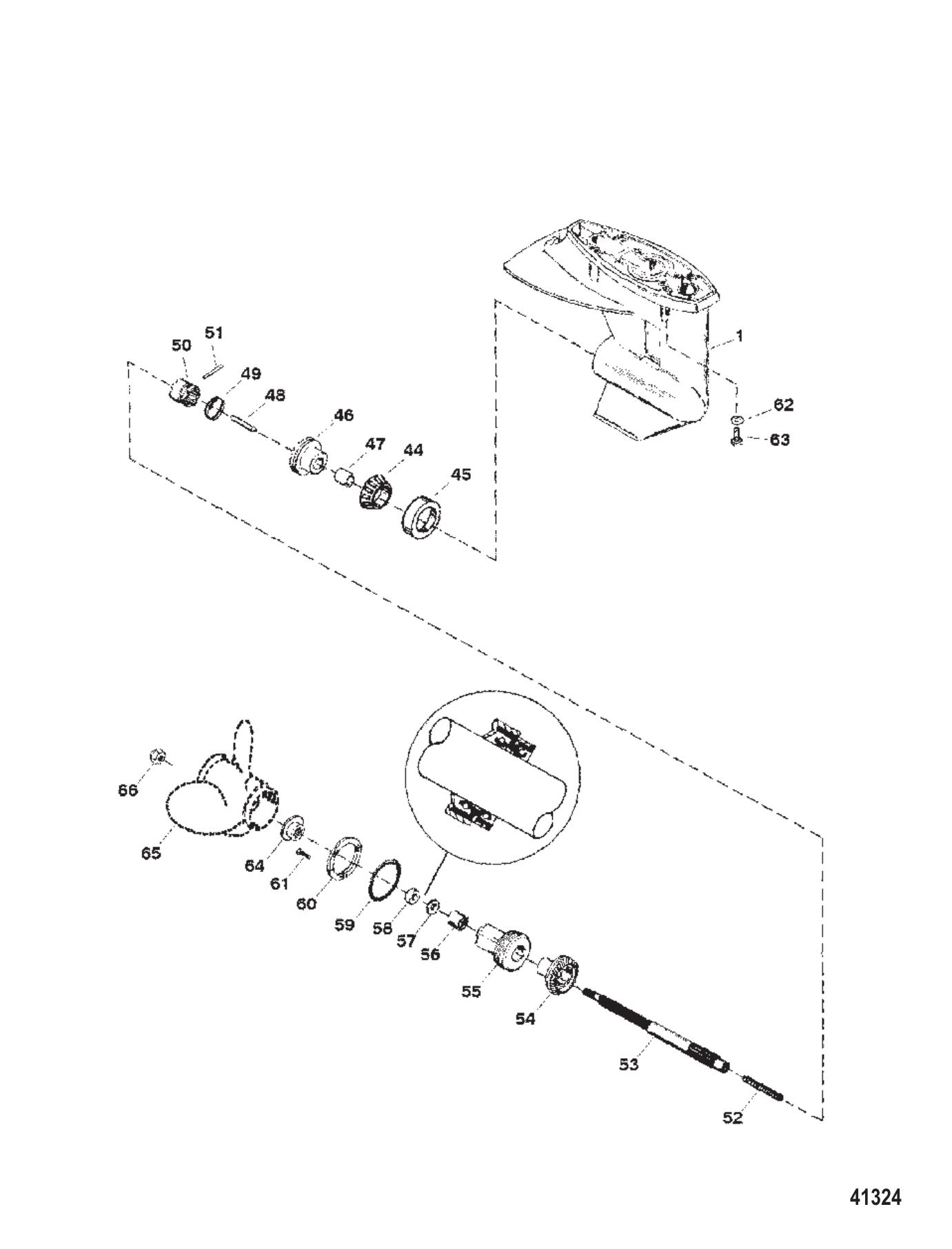

Parts for 25 HP Lightning (3 Cyl.) (Intl. Only) 2-Stroke Carbureted Mercury Outboard Motor Gear Housing Assembly (Propeller Shaft)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 85090A2 | SEAL KIT (1 required per assembly) |
  |
|
26-85090A 2 - Seal Kit [ More info ]
|
| #1 | 8669A35 | GEAR HSG-COMP-BLK (15 IN. SHORT) (COMPLETE) (MERCURY) (1 required per assembly) |
  |
|
1665-8669A35 - GEAR HOUSING ASSE NLA [ More info ] Unavailable |
| #1 | 8669A36 | GEAR HSG-COMP-GRA (15 IN. SHORT) (COMPLETE) (MARINER) (1 required per assembly) |
  |
|
16658669A36 - Gearcase Housing , NLA [ More info ] Unavailable |
| #1 | 8669A37 | GEAR HSG-COMP-BLK (20 IN. LONG) (COMPLETE) (MERCURY) (1 required per assembly) |
  |
|
1665-8669A37 - GEAR HOUSING ASSE NLA [ More info ] Unavailable |
| #1 | 8669A38 | GEAR HSG-COMP-GRA (20 IN. LONG) (COMPLETE) (MARINER) (1 required per assembly) |
  |
|
16658669A38 - GEARCASE ASY 25HP [ More info ] Unavailable |
| #1 | 8M0083538 | GC BASIC 25 2S (1 required per assembly) — Replaces: 8669A21, 8669A22 |
  |
|
16008M0083538 - Gearcase Basic 25 2S [ More info ]
|
| #44 | 8M0103470 | BEARING ASSEMBLY TAPERED ROLLER (CONE & CUP) (1 required per assembly) — Replaces: 99328A1 |
  |
|
31-8M0103470 - Bearing Assembly, Captive [ More info ]
|
| #45 | NSS | NOT SOLD SEPARATE CUP (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #46 | 44213T1 | GEAR FORWARD (1 required per assembly) — Replaces: 44213A1 |
  |
|
43-44213T 1 - Forward Gear Assembly [ More info ]
|
| #47 | 85557 | BUSHING (1 required per assembly) |
  |
|
23-85557 - Bushing [ More info ]
|
| #48 | 85094 | FOLLOWER CAM (1 required per assembly) |
  |
|
85094 - Cam Follower [ More info ]
|
| #49 | 38114 | SPRING (1 required per assembly) |
  |
|
24-38114 - Spring, Retaining - Cross Pin [ More info ]
|
| #50 | 41040T1 | CLUTCH (1 required per assembly) — Replaces: 410401 |
  |
|
52-41040T 1 - Clutch [ More info ]
|
| #51 | 8M0020999 | PIN CROSS (1 required per assembly) — Replaces: 85093 |
  |
|
17-8M0020999 - Pin Cross [ More info ]
|
| #52 | 88680 | SPRING (1 required per assembly) |
  |
|
24-88680 - Spring, Compression - Propeller Shaft [ More info ] Unavailable |
| #53 | 8166231 | PROPELLER SHAFT (1 required per assembly) |
  |
|
44-816623 1 - Propeller Shaft [ More info ]
|
| #54 | 99542T | GEAR REVERSE (1 required per assembly) — Replaces: 99542 |
  |
|
43-99542T - Reverse Gear [ More info ]
|
| #55 | 99906T1 | CARRIER ASSEMBLY BEARING (1 required per assembly) — Replaces: 99906A1 |
  |
|
99906T 1 - Carrier Assembly [ More info ]
|
| #56 | 21739 | BEARING ROLLER (1 required per assembly) |
  |
|
31-21739 - Roller Bearing - Forward Gear [ More info ]
|
| #57 | 41132 | SEAL OIL (INNER) (1 required per assembly) |
  |
|
|
  |
|
18-0580 - Seal, 26-41132 [ More info ]
|
| #58 | 41131 | SEAL OIL (OUTER) (1 required per assembly) |
  |
|
26-41131 - Seal [ More info ] Unavailable |
  |
|
18-0579 - Seal, 26-41131 [ More info ]
|
| #59 | 85549 | O-RING (1 required per assembly) |
  |
|
25-85549 - O-ring, Propeller Shaft Outer Oil Seal [ More info ]
|
| #60 | 87293 | PLATE (1 required per assembly) |
  |
|
87293 - Gear Housing Plate [ More info ]
|
| #61 | 90883 | SCREW (M5 X 16) (3 required per assembly) |
  |
|
10-90883 - Screw [ More info ]
|
| #62 | 856774 | WASHER @5 (4 required per assembly) — Replaces: 45175 |
  |
12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable |
|
  |
|
128M0214963 - WASHER Note: Priced Individually [ More info ]
|
| #63 | 65210 | SCREW @3 (4 required per assembly) |
  |
|
10-65210 - Screw - Priced Individually [ More info ]
|
| #64 | 858498 | THRUST WASHER (1 required per assembly) — Replaces: 8M0027793 |
  |
|
858498 - Thrust Washer [ More info ]
|
| #65 | 19640A40 | PROPELLER (ALUM-10.375 X 13.0 RH) (BLACK MAX) (1 required per assembly) |
  |
|
48-19640A40 - Propeller, Black Max 10 3/8 X 13 RH, Aluminum, 3 Blade [ More info ]
|
  |
|
Solas Amita 3 Blade Aluminum 13P Mercury 1211-101-13 [ More info ]
|
| #65 | 19642A40 | PROPELLER (ALUM-10.250 X 14.5 RH) (BLACK MAX) (OPT required per assembly) |
  |
|
48-19642A40 - Propeller, Black Max10 1/4R14 1/2 [ More info ]
|
  |
|
Solas Amita 3 Blade Aluminum 14P Mercury 1211-100-14 [ More info ]
|
| #65 | 19639A40 | PROPELLER (ALUM-10.375 X 12.0 RH) (BLACK MAX) (OPT required per assembly) |
  |
|
48-19639A40 - Propeller, Black Max 10 3/8R12 [ More info ]
|
  |
|
Prop Mercury/Mercruiser Aluminum 9.9-25HP 12 1211-103-12 [ More info ]
|
| #65 | 19638A40 | PROPELLER (ALUM-10.375 X 11.0 RH) (BLACK MAX) (OPT required per assembly) |
  |
|
48-19638A40 - Propeller, Black Max 10 3/8R11 [ More info ]
|
  |
|
Solas Amita 3 Blade Aluminum 11P Mercury 1211-105-11 [ More info ]
|
| #65 | 19636A10 | BLACK MAX PROPELLER (ALUM-10.375 X 9.50 RH) (BLACK MAX) (OPT required per assembly) |
  |
|
48-19636A10 - Propeller, Black Max 10 3/8R9 1/2 [ More info ]
|
  |
|
Prop Mercury/Mercruiser Stainless Steel 9.9-25HP 10 1231-108-10 [ More info ]
|
| #65 | 43592A61 | PROP-10.38R18 CII (SS-10.375 X 18.0 RH) (CHOPPER) (OPT required per assembly) — Replaces: 43592A5 |
  |
|
48-43592A61 - Propeller - 10.38R18 Cii [ More info ] Unavailable |
| #65 | 19644A5 | PROPELLER (SS-10.375 X 13.0 RH) (VENGEANCE) (OPT required per assembly) |
  |
|
48-19644A 5 - Prop - Veng 10 3/8R13 [ More info ] Unavailable |
  |
|
Solas NSaturn Stainless Steel 13P Mercury 1231-101-13 [ More info ]
|
| #66 | 4011912 | PROP NUT (M12 BRASS)-FOR SS PROPELLERS (OPT required per assembly) |
  |
|
11-40119 12 - Prop Nut [ More info ] Unavailable |
| #66 | 88228 | PROP NUT (M12 NYLON)-FOR ALUM PROPELLERS (1 required per assembly) |
  |
|
11-88228 - Prop Nut - Priced Individually [ More info ]
|
  |
|
18-3703 - Nut, 11-88228 [ More info ]
|
