Parts for 25 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Starter Assembly (Manual)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25 (2 Cyl.) > 0T980000 - 0T999999 - USA > Starter Assembly (Manual)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

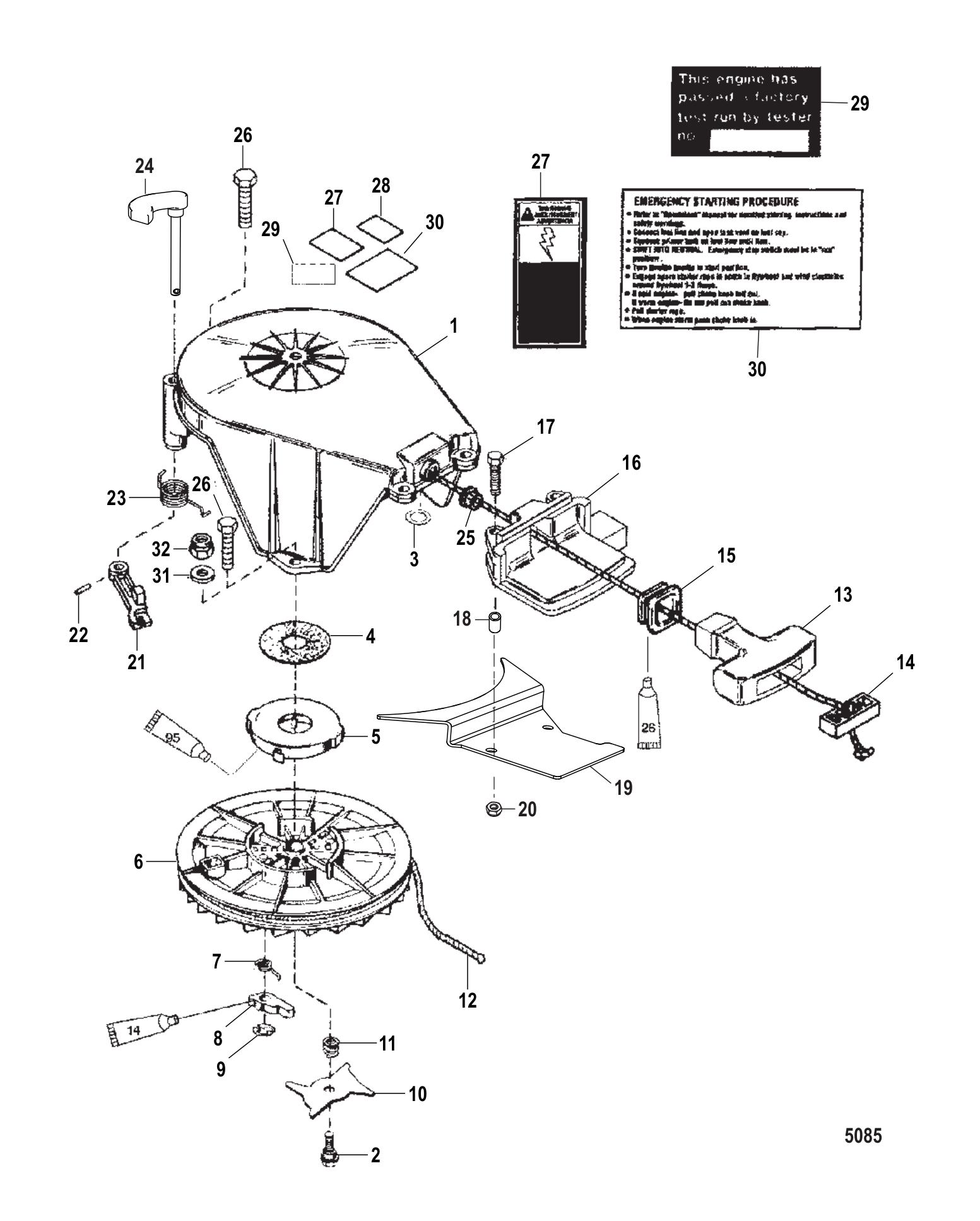

Starter Assembly (Manual)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	90906A23	RECOIL STARTER (1 required per assembly)
		90906A23 - Recoil Starter [ More info ] Unavailable
#1	86689A5	HOUSING ASSEMBLY STARTER (1 required per assembly)
		86689A 5 - Starter Housing [ More info ] Unavailable
#2	826253	SCREW (.250-20 X .625) (1 required per assembly)
		10-826253 - Screw [ More info ] Unavailable
#3	818853	RING RETAINING (1 required per assembly)
		53-818853 - Ring - Retaining [ More info ] $1.80 1 In Stock.
#4	833161T	PAD-FELT (1 required per assembly) — Replaces: 833161
		833161T - Felt Pad [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#5	86857T01	SPRING (1 required per assembly) — Replaces: 868571
		24-86857T01 - Spring [ More info ] $46.25 1 In Stock.
#6	825269T01	SHEAVE STARTR ASU (1 required per assembly) — Replaces: 825269A1
		50-825269T01 - Starter Sheave [ More info ] $68.18 1 In Stock.
#7	86851T02	SPRING @2 (2 required per assembly) — Replaces: 868512
		24-86851T02 - Spring - Priced Individually [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#8	868501	CAM (2 required per assembly)
		86850 1 - Cam Dog [ More info ] $18.99 $18.24 10+ In Stock.
#9	86849T01	RING @2 (2 required per assembly) — Replaces: 868491
		53-86849T01 - Ring - Priced Individually [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#10	86853T01	CAM (1 required per assembly) — Replaces: 868531
		86853T01 - Cam [ More info ] $8.89 Available to Order: Shipping delay up to 10 days.
#11	868523	SPRING (1 required per assembly)
		24-86852 3 - Spring [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#12	12066Q10	ROPE-STARTR @2 (1 required per assembly) — Replaces: 12066Q9
		50-12066Q10 - Starter Rope - Priced Individually [ More info ] $13.59 6 In Stock.
		18-4915 - Pull Rope, 50-12066Q9 [ More info ] $4.79 $4.53 4 In Stock.
		50-12066K10 - Starter Rope - Priced Individually [ More info ] $14.99 3 In Stock.
#13	85174A1	HANDLE ASSEMBLY (1 required per assembly)
		85174A 1 - Handle Assembly -start [ More info ] $28.29 Available to Order: Shipping delay up to 10 days.
#14	NSS	NOT SOLD SEPARATE RETAINER (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#15	44180	BUSHING ROPE (1 required per assembly)
		44180 - Rope Bushing [ More info ] $15.39 Available to Order: Shipping delay up to 10 days.
#16	426264	SUPPORT (1 required per assembly)
		42626 4 - Rest - Starter Handle [ More info ] Unavailable
#17	40019111	SCREW (M5 X 35) (2 required per assembly)
		10-40019111 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#18	309772	SPACER (4 required per assembly)
		23-30977 2 - Spacer [ More info ] $4.79 2 In Stock.
#19	856154T01	SUPPORT (1 required per assembly) — Replaces: 856154, 8561541
		856154T01 - Support [ More info ] $9.69 Available to Order: Shipping delay up to 10 days.
#20	401385	NUT (M5) STAINLESS STEEL (2 required per assembly)
		11-40138 5 - Nut [ More info ] Unavailable
#21	93876T02	LEVER LOWER (1 required per assembly) — Replaces: 938762
		93876T02 - Lever [ More info ] $11.29 2 In Stock.
#22	38489	PIN ROLL (1 required per assembly)
		17-38489 - Pin -roll [ More info ] $5.19 2 In Stock.
#23	823778	SPRING UPPER LOCK LEVER (1 required per assembly)
		24-823778 - Spring, Upper Lock Lever [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#24	858925	LEVER LOCK UPPER (1 required per assembly)
		858925 - Upper Lock Lever [ More info ] Unavailable
#25	8M0183792	ROPE BUSHING (1 required per assembly) — Replaces: 42690
		8M0183792 - ROPE BUSHING [ More info ] Unavailable
#26	1993735	SCREW (M6 X 35 MM) (Non-Seapro/Marathon) (3 required per assembly)
		10-19937 35 - Screw [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#27	8272822	DECAL WARNING HIGH VOLTAGE (1 required per assembly)
		37-827282 2 - Decal - Warning [ More info ] $2.09 Available to Order: Shipping delay up to 10 days.
#28	NSS	NOT SOLD SEPARATE DECAL-SERVICING REFERRRAL (1 required per assembly)
#29	881865	DECAL-CAUTION (Start In Gear) (Remote Control) (1 required per assembly)
		37-881865 - Decal -Caution [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#30	NSS	NOT SOLD SEPARATE DECAL-EMERGENCY START PROCEDURE (1 required per assembly)
#31	69056	WASHER (Commercial Engines) (3 required per assembly)
		12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $1.80 2 In Stock.
#32	401386	NUT @5 (Commercial Engines) (3 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
