Parts for 25 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Jet Pump Assembly

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25 (2 Cyl.) > 0P325500 & Up - Belgium > Jet Pump Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

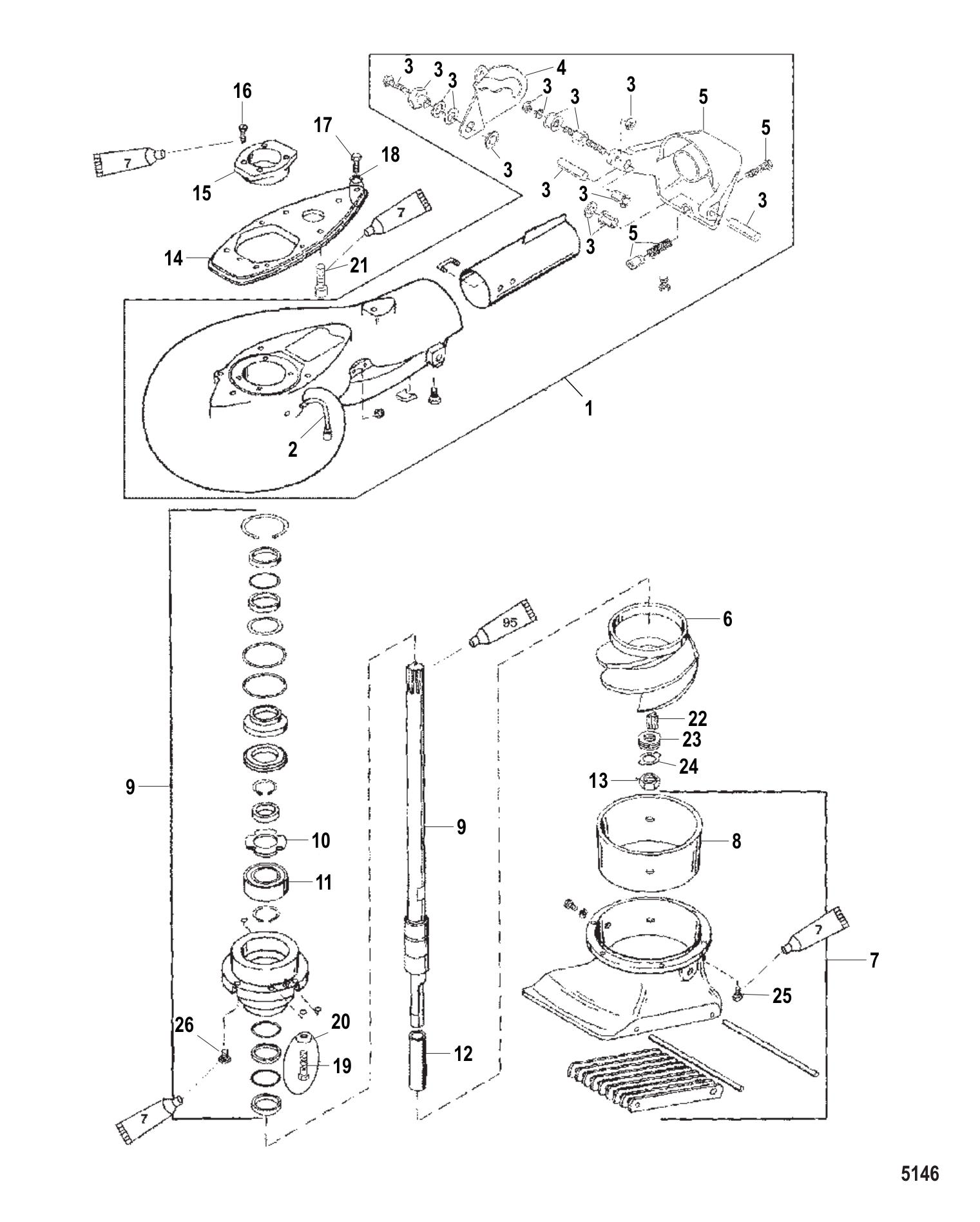

Jet Pump Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	856143A4	JET PUMP ASSY (1 required per assembly)
		856143A 4 - Jet Pump, NLA [ More info ] Unavailable
#1	801411251	HOUSING PUMP (1 required per assembly)
		801411251 - Pump Housing [ More info ] $1,781.49 Available to Order: Shipping delay up to 10 days.
#2	827490	HOSE LUBE (1 required per assembly)
		32-827490 - Hose - Lube [ More info ] $91.49 Available to Order: Shipping delay up to 10 days.
#3	878376	SHIFT LINKAGE KIT (1 required per assembly)
		878376 - Shift Linkage Kit [ More info ] $268.99 Available to Order: Shipping delay up to 10 days.
#4	878381	CAM (1 required per assembly)
		878381 - Cam [ More info ] $72.99 Available to Order: Shipping delay up to 10 days.
#5	878378	GATE REVERSE - WITH BUMPER (1 required per assembly)
		878378 - Gate - Reverse [ More info ] $388.49 Available to Order: Shipping delay up to 10 days.
#6	855708T25	IMPELLER (Stainless Steel) (1 required per assembly)
		47-855708T25 - Impeller [ More info ] $512.22 Available to Order: Shipping delay up to 10 days.
#7	80141225	HOUSING INTAKE (1 required per assembly)
		801412 25 - Intake Housing [ More info ] $989.99 Available to Order: Shipping delay up to 10 days.
#8	827188T	LINER (1 required per assembly)
		827188T - Liner [ More info ] $209.49 Available to Order: Shipping delay up to 10 days.
#9	8M0084536	DRIVESHAFT (1 required per assembly) — Replaces: 80141325
		458M0084536 - Drive Shaft [ More info ] $1,164.99 Available to Order: Shipping delay up to 10 days.
#10	879652	THRUST WASHER (1 required per assembly)
		12-879652 - Thrust Washer [ More info ] $30.09 Available to Order: Shipping delay up to 10 days.
#11	879653	BEARING BALL (1 required per assembly)
		30-879653 - Ball Bearing [ More info ] $155.99 Available to Order: Shipping delay up to 10 days.
#12	827189	SLEEVE (1 required per assembly)
		23-827189 - Sleeve [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#13	827190	NUT (1 required per assembly)
		11-827190 - Nut [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#14	801430	ADAPTER (1 required per assembly)
		801430 - Adaptor [ More info ] $363.99 Available to Order: Shipping delay up to 10 days.
#15	801431	BASE PUMP (1 required per assembly)
		801431 - Base [ More info ] $170.99 Available to Order: Shipping delay up to 10 days.
#16	846500	SCREW (4 required per assembly)
		10-846500 - Screw [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#17	19925125	SCREW (1 required per assembly)
		10-19925125 - Screw [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#18	34931	WASHER (1 required per assembly)
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#19	19924200	SCREW (4 required per assembly)
		10-19924200 - Screw [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#20	8M0207778	WASHER @5 (4 required per assembly) — Replaces: 12038
		12-8M0207778 - WASHER Note: Priced Individually [ More info ] $11.89 5 In Stock.
#21	801432	SCREW (4 required per assembly)
		10-801432 - Screw [ More info ] $10.59 Available to Order: Shipping delay up to 10 days.
#22	801405625	KEY (1 required per assembly)
		28-801405625 - Key [ More info ] $23.99 Available to Order: Shipping delay up to 10 days.
#23	801404625	SHIM (8 required per assembly)
		15-801404625 - Shim [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#24	801403625	WASHER-TAB (1 required per assembly)
		14-801403625 - Tab Washer [ More info ] Unavailable
#25	90192	SCREW (6 required per assembly)
		10-90192 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#26	F2211	SCREW-SS (2 required per assembly)
		10-F2211 - Screw -ss [ More info ] $0.60 Available to Order: Shipping delay up to 10 days.
