Parts for 225 Seapro (3.0L Carb) 2-Stroke Carbureted Mercury Outboard Motor Gear Hsg (Driveshaft-Std / Counter-S/N 0G960500 & Up)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 225 Seapro (3.0L Carb) > 0G760300 - 0T408999 - USA > Gear Hsg (Driveshaft-Std / Counter-S/N 0G960500 & Up)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

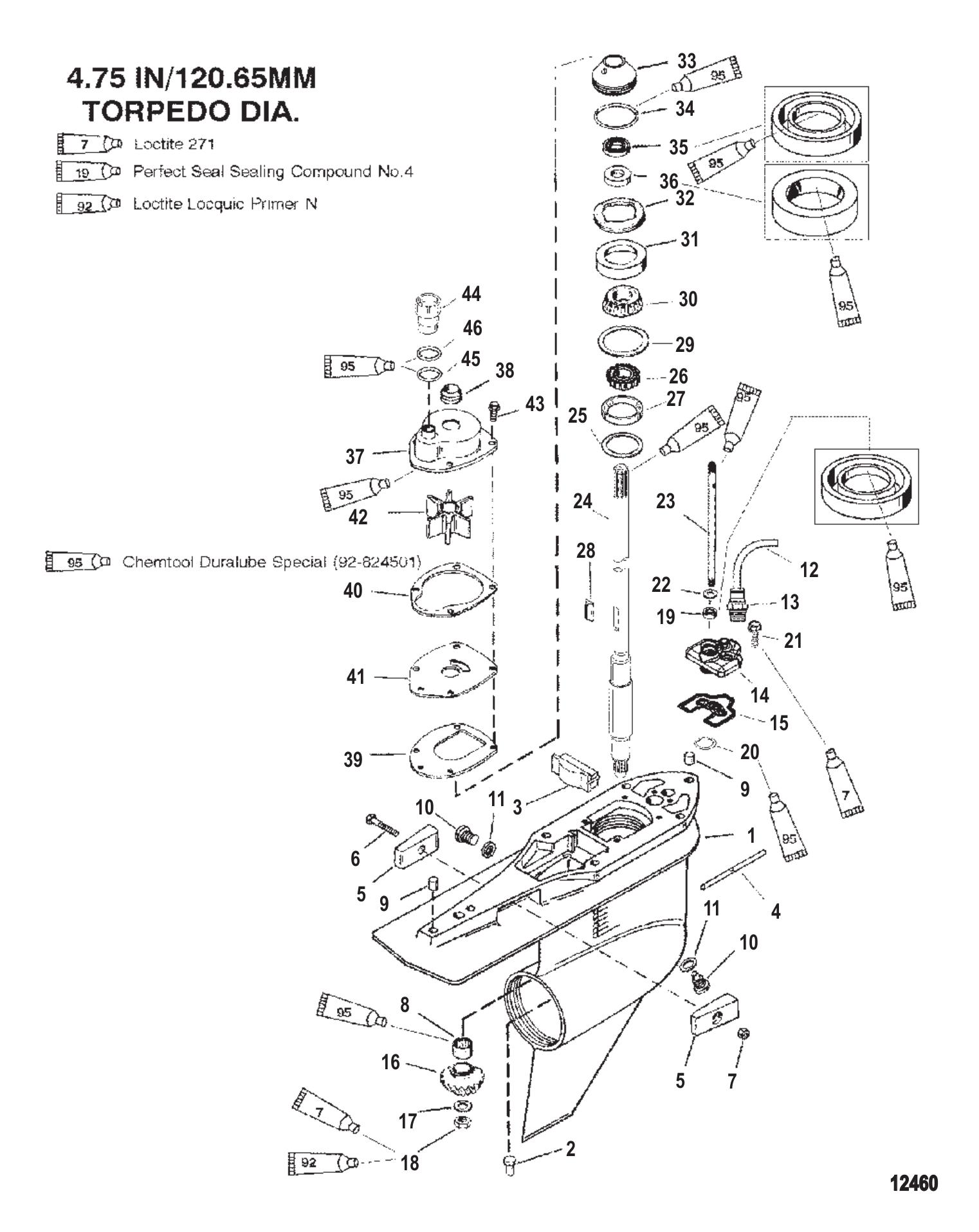

Gear Hsg (Driveshaft-Std / Counter-S/N 0G960500 & Up)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	816575A4	SEAL KIT (1 required per assembly)
		26-816575A 4 - Seal Kit [ More info ] $48.49 In Stock
		26-00835 - Lower Unit Seal Kit, 26-816575A 4 [ More info ] $35.84 2 In Stock.
#-	817275A5	REBUILD KIT-W/P (1 required per assembly)
		817275A 5 - Water Pump Rebuild Kit [ More info ] $161.99 $155.99 In Stock
		46-46502 - Mercury Mercruiser Water Pump Kit with Housing and Seal Carrier, 817275A4 [ More info ] $125.99 $109.58 10+ In Stock.
#-	8M0100526	REPAIR KIT - IMP (1 required per assembly) — Replaces: 43026T11, 43026Q06
		47-8M0100526 - Impeller Repair Kit [ More info ] $66.99 5 In Stock.
		18-3265 - Water Pump Kit 47-43026Q06 [ More info ] $60.49 $59.34 10+ In Stock.
		18-3214 - Impeller Repair Kit, Without Housing [ More info ] $42.99 $42.32 10+ In Stock.
		47-8M0100527 - Repair Kit - Impeller [ More info ] $73.50 Available to Order: Shipping delay up to 10 days.
		46-01811 - Water Pump Kit without Housing 47-43026T11, Q06 [ More info ] $46.99 $45.81 10+ In Stock.
#1	859399T18	GEAR HSG-BASIC (1 required per assembly)
		1623-859399T18 - Gear Housing Assembly [ More info ] $2,994.49 Available to Order: Shipping delay up to 10 days.
#2	379721	PIN (1 required per assembly)
		17-37972 1 - Pin [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#3	821526001	FILLER BLOCK (1 required per assembly) — Replaces: 821526
		821526001 - Filler Block [ More info ] $18.99 Available to Order: Shipping delay up to 10 days.
#4	859402	PITOT TUBE (1 required per assembly)
		859402 - Pilot Tube [ More info ] $33.99 Available to Order: Shipping delay up to 10 days.
#5	826134Q	ANODE (2 required per assembly)
		97-826134Q - Anode, Aluminum, Outboard Side Pocket, Priced Individually [ More info ] $16.49 10 In Stock.
		18-6068 - Anode, Zinc, 826134 [ More info ] $14.31 6 In Stock.
		97-826134T - Anode - Outboard Side Pocket - Priced Individually [ More info ] $18.19 5 In Stock.
#6	4000333	SCREW (M6 X 40) (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#7	401386	NUT (M6) STAINLESS STEEL (1 required per assembly) — Replaces: 8268336, 40144
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#8	42647A1	BEARING ASSEMBLY ROLLER (1 required per assembly)
		31-42647A 1 - Roller Bearing - Drive Shaft [ More info ] $65.99 Available to Order: Shipping delay up to 10 days.
		18-1117 - Bearing, 387817, 31-42647A1 [ More info ] $56.09 1 In Stock.
		31-02762 - Bearing, 31-42647A1, 387817 [ More info ] $47.99 $42.20 Available to Order: Shipping delay up to 10 days.
#9	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (2 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#10	79953Q04	SCREW KIT DRAIN (2 required per assembly) — Replaces: 79953A2, 79953Q2
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 9 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#11	191833	SEAL (2 required per assembly) — Replaces: 19183, 191832
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 6 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 8 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#12	85944975	TUBING (72.00 INCHES BULK) (X-LONG - 12 IN) (1 required per assembly) — Replaces: 85944971
		32-859449 75 - Tubing - 72 Inches [ More info ] $55.49 Available to Order: Shipping delay up to 10 days.
#13	881866	FITTING (1 required per assembly) — Replaces: 859432
		22-881866 - Fitting [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#14	858934	COVER (1 required per assembly)
		858934 - Cover [ More info ] $126.99 Available to Order: Shipping delay up to 10 days.
#15	858935	GASKET (1 required per assembly)
		27-858935 - Cover Gasket [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
		18-0649 - Gasket 27-858935 [ More info ] $5.57 Available to Order: Shipping delay up to 10 days.
#16	NSS	NOT SOLD SEPARATE Pinion Gear (Part of 43-859321A3 or 43-828695A1) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#17	92721	WASHER @2 (1 required per assembly)
		12-92721 - Washer, Pinion Gear [ More info ] $1.50 $0.85 10+ In Stock.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#18	35921	NUT @5 (1 required per assembly)
		11-35921 - Nut, (.625-18) [ More info ] $7.99 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.19 1 In Stock.
#19	8M0204708	SEAL (1 required per assembly) — Replaces: 8164641
		26-8M0204708 - Shift Shaft Oil Seal-O/B [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
		26-8M0246145 - SHIFT SHAFT OIL SEAL O/B [ More info ] $16.99 10 In Stock.
#20	36318	O RING @5 (1 required per assembly)
		25-36318 - O-ring, (.799) [ More info ] $1.60 10+ In Stock.
		25-8M0214927 - O RING @5 [ More info ] Unavailable
#21	1993716	SCREW (2 required per assembly)
		10-19937 16 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#22	77674	WASHER (1 required per assembly)
		12-77674 - Washer, Rubber [ More info ] $1.80 4 In Stock.
		18-2316-9 - Washer, 12-77674, 5PK [ More info ] $4.69 $4.68 Available to Order: Shipping delay up to 10 days.
#23	824145	SHIFT SHAFT (LOWER) (1 required per assembly)
		824145 - Shift Shaft - Lower [ More info ] $92.93 1 In Stock.
#24	881938	DRIVESHAFT (LONG) (1 required per assembly) — Replaces: 858711
		45-881938 - Drive Shaft [ More info ] $456.99 Available to Order: Shipping delay up to 10 days.
		92-216-04-20 - Drive Shaft replaces 45-881938 [ More info ] $214.18 $214.18 Available to Order
#24	881942	DRIVESHAFT (X-LONG) (1 required per assembly) — Replaces: 858712
		45-881942 - Drive Shaft [ More info ] $425.49 Available to Order: Shipping delay up to 10 days.
		92-216-04-25 - Drive Shaft replaces 45-881942 [ More info ] $206.37 $206.37 Available to Order
#25	8M0063268	SHIM SET (AR required per assembly) — Replaces: 38657A1
		15-8M0063268 - Shim Set [ More info ] $31.57 4 In Stock.
#26	8M0146553	BEARING ASSY (1 required per assembly) — Replaces: 48939A2
		318M0146553 - Bearing ASSY [ More info ] $27.23 1 In Stock.
#27	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
#28	8M0204723	KEY @2 (1 required per assembly) — Replaces: 43037, 8M0032833
		288M0204723 - KEY Note: Priced Individually [ More info ] $4.39 2 In Stock.
#29	8M0063267	SHIM SET (AR required per assembly) — Replaces: 42637A1
		15-8M0063267 - Shim Set [ More info ] $28.41 10+ In Stock.
#30	8M0146566	BEARING CUP CONE (1 required per assembly) — Replaces: 36387A1
		318M0146566 - Upper Driveshaft Bearing [ More info ] $74.99 $74.83 Available to Order: Shipping delay up to 10 days.
		31-02194 - Bearing Kit 31-36387A 1 [ More info ] $52.49 $41.29 In Stock
#31	NSS	NOT SOLD SEPARATE CUP (1 required per assembly)
#32	8245191	RETAINER (1 required per assembly) — Replaces: 824519
		824519 1 - Retainer [ More info ] $6.99 1 In Stock.
		18-2346 - Retainer, 824519 1 [ More info ] $5.25 Available to Order: Shipping delay up to 10 days.
#33	807929A1	CARRIER ASSY (1 required per assembly)
		807929A 1 - Carrier Assembly [ More info ] Unavailable
		18-2354 - Carrier, 821759A4 [ More info ] $36.99 $36.95 10+ In Stock.
		93-02638 - Seal Carrier Assembly Mercury Mariner V6, 807929A 1 [ More info ] $31.52 1 In Stock.
#34	8M0142854	O RING (2.175 X .103) (1 required per assembly) — Replaces: 90011, 896523
		25-8M0142854 - O-Ring [ More info ] $1.10 5 In Stock.
#35	66302	SEAL OIL (1 required per assembly)
		26-66302 - Seal - Priced Individually [ More info ] $12.99 10+ In Stock.
		18-2056 - Seal, 26-96503 1 [ More info ] $15.52 8 In Stock.
		26-8M0214939 - Carrier Oil Seal, Priced Individually [ More info ] $17.32 2 In Stock.
#36	66302	SEAL OIL (1 required per assembly)
#37	817275A1	HOUSING KIT-W/P (1 required per assembly)
		817275A 1 - Housing for Water Pump [ More info ] $102.99 $101.34 In Stock
		18-3570 - Water Pump Kit 817275A1, A2 [ More info ] $90.99 $85.66 10+ In Stock.
#38	816575A2	SEAL KIT (1 required per assembly)
		26-816575A 2 - Seal Kit [ More info ] $10.89 3 In Stock.
		18-2599 - Seal, 26-816575A 2 [ More info ] $7.72 10+ In Stock.
		26-02106 - Seal, 26-816575A2 [ More info ] $7.49 $6.48 3 In Stock.
#39	430331	GASKET (1 required per assembly)
		27-43033 1 - Face Plate To Cover Gasket [ More info ] $11.09 10+ In Stock.
#40	8172771	GASKET (1 required per assembly)
		27-817277 1 - Gasket -Sold each [ More info ] $5.69 9 In Stock.
		18-2566-9 - Gasket 27-817277 2-Pack [ More info ] $8.67 10+ In Stock.
#41	8M0204709	FACEPLATE-W/P (1 required per assembly) — Replaces: 8172761
		8M0204709 - Water Pump Faceplate, Outboard [ More info ] $14.59 Available to Order: Shipping delay up to 10 days.
#42	43026T2	IMPELLER-W/P (1 required per assembly)
		47-43026T 2 - Water Pump Impeller [ More info ] $36.49 6 In Stock.
		18-3056 - Impeller 47-43026-2 [ More info ] $26.99 $26.12 10+ In Stock.
		47-43026Q02 - Water Pump Impeller [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#43	1993716	SCREW (4 required per assembly)
#44	832942A1	COUPLING KIT (1 required per assembly)
		832942A 1 - Coupling Kit [ More info ] $28.49 Available to Order: Shipping delay up to 10 days.
#45	8M0204645	O RING (1 required per assembly) — Replaces: 21836
		25-8M0204645 - O RING [ More info ] $2.39 5 In Stock.
#46	8M0204654	O RING @10 (1 required per assembly) — Replaces: 35027
		25-8M0204654 - O RING @10 [ More info ] Unavailable
