Parts for 225 Marathon (3.0L Carb) 2-Stroke Carbureted Mercury Outboard Motor Reed Block / Sound Attenuator
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 814195A93 | GASKET SET (1 required per assembly) |
  |
|
27-814195A93 - Powerhead Gasket Set [ More info ]
|
| #- | 809794R97 | PH 225/250 -RM (1 required per assembly) — Replaces: 809794A97 |
  |
|
809794R97 - Powerhead 225/250 -rm [ More info ] Unavailable |
| #- | 809793A00 | PH 225 3.0L CARB (SEAPRO/MARATHON) (1 required per assembly) |
  |
|
809793A00 - PH 225 3.0L Carburetor [ More info ] Unavailable |
| #1 | 8184441 | SOUND ATTENUATOR (1 required per assembly) |
  |
|
818444 1 - Sound Attenuator [ More info ] Unavailable |
| #2 | 8215542 | PLATE-ATTENUATOR (1 required per assembly) |
  |
|
821554 2 - Attenuator Plate [ More info ] Unavailable |
| #3 | 8266151 | SEAL (1 required per assembly) |
  |
|
826615 1 - Seal [ More info ] Unavailable |
| #4 | 82130020 | SCREW @5 (6 required per assembly) |
  |
|
10-821300 20 - Screw - Priced Individually [ More info ]
|
| #5 | 8161843 | PLATE-CARB ADAPT (1 required per assembly) |
  |
|
816184 3 - Carburetor Adapter Plate [ More info ] Unavailable |
| #6 | 827507 | RETAINER (1 required per assembly) |
  |
|
827507 - Retainer [ More info ] Unavailable |
| #7 | 8165712 | STUD (M6 X 29.50) (6 required per assembly) |
  |
|
16-816571 2 - STUD [ More info ] Unavailable |
| #8 | 82130025 | SCREW @5 (12 required per assembly) |
  |
|
10-821300 25 - Screw [ More info ]
|
| #9 | 8141951 | GASKET (1 required per assembly) |
  |
|
27-814195 1 - Gasket [ More info ]
|
| #10 | 828623T6 | REED BLOCK ASSY [0G960499] & Below (6 required per assembly) — Replaces: 828623T |
  |
|
828623T 6 - Reed Block Assembly, New Take Off [ More info ]
|
| #10 | 828623T4 | REED BLOCK ASSY [0G960500] & Up (6 required per assembly) |
  |
|
828623T 4 - Reed Block Assembly [ More info ]
|
| #11 | 4007420 | SCREW (12 required per assembly) |
  |
|
10-40074 20 - Screw [ More info ]
|
| #12 | 822520 | HANDLE-LATCH (2 required per assembly) |
  |
|
822520 - Handle - Latch C [ More info ] Unavailable |
| #13 | 48408 | SCREW @5 (2 required per assembly) |
  |
|
10-48408 - Screw - Priced Individually [ More info ]
|
| #14 | 8M0204666 | WASHER @5 (2 required per assembly) — Replaces: 56681 |
  |
|
128M0204666 - WASHER Note: Priced Individually [ More info ]
|
| #15 | 822527 | PAWL (2 required per assembly) |
  |
|
822527 - Pawl [ More info ] Unavailable |

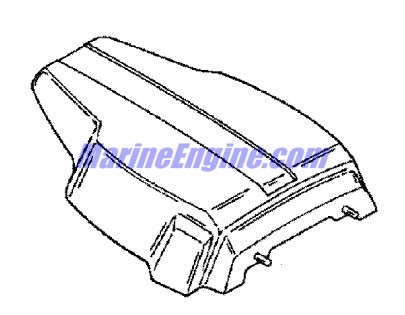

| #16 | 818446 | COVER-FLYWHEEL (1 required per assembly) |
  |
|
818446 - Flywheel Cover [ More info ] Unavailable |
| #17 | 8M0153609 | GROMMET @4 (4 required per assembly) — Replaces: 821555, 821555001 |
  |
|
25-8M0153609 - Grommet - Priced Individually [ More info ]
|
| #18 | 856985A12 | REF SOB 09-18 (1999) (1 required per assembly) |
  |
|
37-856985A12 - Decal -epa, NLA [ More info ] Unavailable |
| #18 | 804670A00 | REF SOB 09-18 (2000) (1 required per assembly) |
  |
|
37-804670A00 - Ref Ob Sb 09-18, NLA [ More info ]
|
| #18 | 804670A01 | REF SOB 09-18 (2001) (1 required per assembly) |
  |
|
37-804670A01 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #19 | NSS | NOT SOLD SEPARATE DECAL-TIMING (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #20 | NSS | NOT SOLD SEPARATE DECAL-CAUTION-IN GEAR (1 required per assembly) |
| #21 | 881865 | DECAL CAUTION-START IN GEAR START IN GEAR (1 required per assembly) — Replaces: 825064 |
  |
|
37-881865 - Decal -Caution [ More info ]
|
| #22 | NSS | NOT SOLD SEPARATE DECAL-CAUTION-AIRBOX (1 required per assembly) |
