Parts for 225 Marathon (3.0L Carb) 2-Stroke Carbureted Mercury Outboard Motor Bleed System (Port)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 225 Marathon (3.0L Carb) > 0G760300 - 0T408999 - USA > Bleed System (Port)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

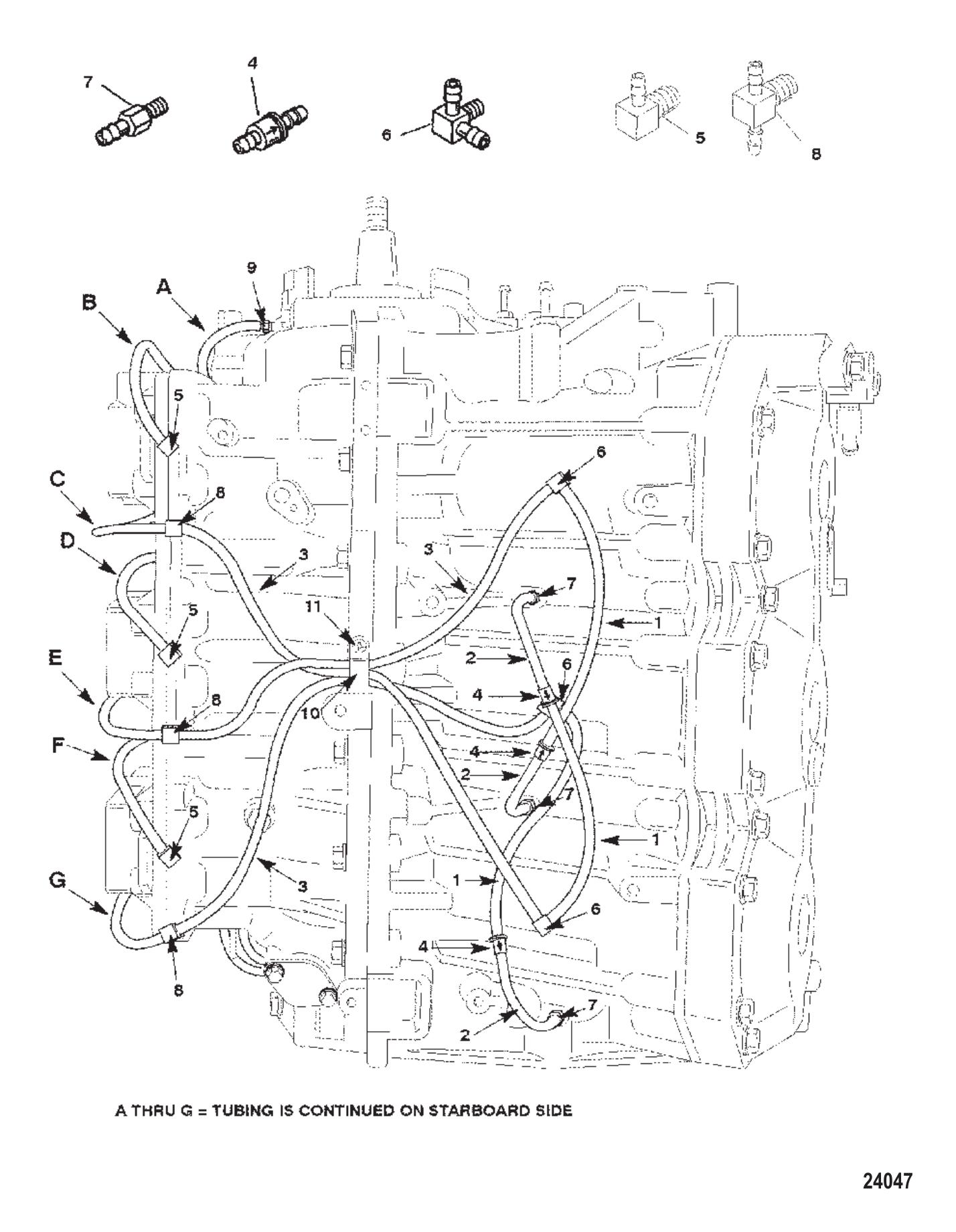

Bleed System (Port)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	809794R97	PH 225/250 -RM (1 required per assembly) — Replaces: 809794A97
		809794R97 - Powerhead 225/250 -rm [ More info ] Unavailable
#-	809793A00	PH 225 3.0L CARB (SEAPRO/MARATHON) (1 required per assembly)
		809793A00 - PH 225 3.0L Carburetor [ More info ] Unavailable
#1	892024122	TUBING (240.00 INCHES BULK) (6 IN.) (3 required per assembly) — Replaces: 99130122
		32-892024122 - Tubing - 20 Feet [ More info ] $49.32 3 In Stock.
#2	892024122	TUBING (240.00 INCHES BULK) (3 IN.) (3 required per assembly) — Replaces: 99130122
#3	892024122	TUBING (240.00 INCHES BULK) (13-1/4 IN.) (3 required per assembly) — Replaces: 99130122
#4	149126	VALVE-CHECK (3 required per assembly)
		21-14912 6 - Check Valve [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#5	8282182	CHECK VALVE (3 required per assembly)
		21-828218 2 - Check Valve [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#6	8243561	FITTING (3 required per assembly)
		22-824356 1 - Fitting [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#7	8245021	CONNECTOR (3 required per assembly)
		22-824502 1 - Connector [ More info ] $8.59 Available to Order: Shipping delay up to 10 days.
#8	8348041	VALVE-CHECK (3 required per assembly)
		21-834804 1 - Check Valve [ More info ] $112.99 Available to Order: Shipping delay up to 10 days.
#9	8159234	VALVE-CHECK (1 required per assembly)
		21-815923 4 - Check Valve [ More info ] $15.59 $12.48 3 In Stock.
#10	22875	CLIP @2 (1 required per assembly)
		54-22875 - Clip - Priced Individually [ More info ] $3.99 1 In Stock.
#11	48408	SCREW @5 (1 required per assembly)
		10-48408 - Screw - Priced Individually [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
