Parts for 20C (- Prop. Exhaust) 2-Stroke Carbureted Mercury Outboard Motor Gearhousing Assembly

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 20C (- Prop. Exhaust) > 6A9-550694 & Up - Canada > Gearhousing Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Gearhousing Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	9362M	GEAR HOUSING ASSEMBLY (1 required per assembly)
		1651-9362M - Gear Housing, NLA [ More info ] Unavailable
#2	81924M	PLUG (3 required per assembly)
		22-81924M - Plug - Priced Individually [ More info ] $14.99 10+ In Stock.
#3	81987	GASKET PLUG (3 required per assembly) — Replaces: 81987M
		27-81987 - Drain Plug Gasket [ More info ] $3.79 10+ In Stock.
		18-46981-9 - Drain Fill Washer (50 Pack) [ More info ] $119.99 In Stock
		18-4698 - Drain Fill Washer [ More info ] $2.30 10+ In Stock.
#4	84787M	RETAINER SHIFT SHAFT (1 required per assembly)
		84787M - Bracket, NLA [ More info ] $10.76 10+ In Stock.
#5	84788M	SCREW (1 required per assembly)
		10-84788M - Screw, NLA [ More info ] Unavailable
#6	83069M	SHIFT SHAFT ASSEMBLY (SHORT SHAFT) (1 required per assembly)
		83069M - Shift Shaft, NLA [ More info ] Unavailable
#6	83052M	SHIFT SHAFT ASSEMBLY (LONG SHAFT) (1 required per assembly)
		83052M - Shift Shaft, NLA [ More info ] Unavailable
#6	83805M	SHIFT SHAFT ASSEMBLY (ULTRA LONG SHAFT) (1 required per assembly)
		83805M - Shift Shaft, NLA [ More info ] Unavailable
#7	82914M	BOOT (1 required per assembly)
		82914M - Boot [ More info ] Unavailable
#8	95651M	HOUSING WATER PUMP (1 required per assembly)
		46-95651M - Water Pump Housing [ More info ] Unavailable
#9	804124	BOLT (SHORT SHAFT) (3 required per assembly) — Replaces: 84790M
		10-804124 - Bolt, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#10	84791M	WASHER (SHORT SHAFT) (3 required per assembly)
		12-84791M - WASHER,NLA [ More info ] Unavailable
#11	84792M	COVER WATER PUMP (LONG SHAFT) (1 required per assembly)
		84792M - EXTENSION,NLA [ More info ] Unavailable
#12	83285M	BOLT (LONG SHAFT) (3 required per assembly) — Replaces: 96293M
		10-83285M - Screw - Priced Individually [ More info ] $5.19 10+ In Stock.
#13	82214M	WASHER (LONG SHAFT) (3 required per assembly)
		12-82214M - Washer - Priced Individually [ More info ] $5.28 10+ In Stock.
#14	95652M	INSERT WATER PUMP (1 required per assembly)
		95652M - Insert [ More info ] Unavailable
#15	95653M	SEAL (1 required per assembly)
		27-95653M - Gasket [ More info ] Unavailable
#16	95654M	BASE PLATE (1 required per assembly)
		95654M - Base Plate, NLA [ More info ] Unavailable
#17	41273	GASKET HOUSING (1 required per assembly) — Replaces: 41273M
		27-41273 - Gasket [ More info ] $7.49 1 In Stock.
#18	84797M	IMPELLER (1 required per assembly)
		47-84797M - Impeller [ More info ] $37.20 1 In Stock.
		18-3067 - Impeller, 47-84797M [ More info ] $29.99 $29.88 9 In Stock.
#19	811173M	PROTECTOR OIL SEAL (1 required per assembly) — Replaces: 95655M
		811173M - Protector, NLA [ More info ] $26.93 10+ In Stock.
#20	84054M	O-RING (1 required per assembly)
		25-84054M - O-Ring [ More info ] $6.99 4 In Stock.
#21	854017	SEAL OIL (2 required per assembly) — Replaces: 82233M
		26-854017 - Oil Seal - Priced Individually [ More info ] $12.29 4 In Stock.
		18-0296 - Seal, 93101-22067-00 [ More info ] $8.99 $8.95 6 In Stock.
#22	41271M	COVER OIL SEAL (1 required per assembly)
		41271M - Cover [ More info ] $47.49 Available to Order: Shipping delay up to 10 days.
#23	84799	GASKET PROTECTOR (1 required per assembly) — Replaces: 41272M, 84799M
		27-84799 - Gasket [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#24	84800M	DRIVESHAFT (SHORT SHAFT) (1 required per assembly)
		45-84800M - Drive Shaft, NLA [ More info ] $183.33 $155.28 3 In Stock.
#24	84801M	DRIVESHAFT (LONG SHAFT) (1 required per assembly)
		45-84801M - Drive Shaft [ More info ] Unavailable
#24	84802M	DRIVESHAFT (ULTRA LONG SHAFT) (1 required per assembly)
		45-84802M - Drive Shaft, NLA [ More info ] Unavailable
#25	81603M	KEY IMPELLER DRIVE (1 required per assembly)
		28-81603M - Key [ More info ] Unavailable
#26	84803M	BEARING ROLLER (LOWER) (1 required per assembly)
		29-84803M - Needle Bearing [ More info ] $37.71 10+ In Stock.
#27	84804M	SLEEVE DRIVE SHAFT (1 required per assembly)
		23-84804M - Sleeve [ More info ] $8.21 1 In Stock.
#28	81638M	SHIM DRIVE SHAFT (.05 MM) (AR required per assembly)
		15-81638M - Shim, NLA [ More info ] $2.70 7 In Stock.
#28	81639M	SHIM DRIVE SHAFT (.08 MM) (AR required per assembly)
		15-81639M - Shim - Priced Individually [ More info ] Unavailable
#28	19118M	SHIM DRIVE SHAFT (.12 MM) (AR required per assembly) — Replaces: 81640M
		15-19118M - Shim, NLA [ More info ] $2.16 10+ In Stock.
#28	19121M	SHIM (.30 MM) (AR required per assembly) — Replaces: 81641M
		15-19121M - Shim, NLA [ More info ] $1.50 $1.28 8 In Stock.
#28	19123001	SHIM @5 DRIVE SHAFT (.50 MM) (AR required per assembly) — Replaces: 81642M, 19123M
		15-19123001 - Shim - Priced Individually [ More info ] $1.50 $1.28 1 In Stock.
#29	84805T	BEARING TAPERED ROLLER (UPPER) (1 required per assembly) — Replaces: 84805M
		31-84805T - Bearing, NLA [ More info ] Unavailable
#30	81624M	THRUST WASHER (1 required per assembly)
		12-81624M - Thrust Washer [ More info ] $11.72 10+ In Stock.
#31	84806T	PINION GEAR (1 required per assembly) — Replaces: 84806M
		43-84806T - Pinion Gear [ More info ] Unavailable
#32	84807M	NUT (1 required per assembly)
		11-84807M - Nut, NLA [ More info ] $7.82 9 In Stock.
#33	81626M	SHIM FORWARD GEAR (.05 MM) (AR required per assembly)
		15-81626M - Shim, NLA [ More info ] $6.47 10+ In Stock.
#33	81627M	SHIM FORWARD GEAR (.08 MM) (AR required per assembly)
		15-81627M - Shim, NLA [ More info ] $5.39 10+ In Stock.
#33	18955M	SHIM FORWARD GEAR (.12 MM) (AR required per assembly) — Replaces: 81628M
		15-18955M - Shim, NLA [ More info ] $3.33 $2.82 6 In Stock.
#33	18958M	SHIM FORWARD GEAR (.30 MM) (AR required per assembly) — Replaces: 81629M
		15-18958M - Shim, NLA [ More info ] Unavailable
#33	18960M	SHIM FORWARD GEAR (.50 MM) (AR required per assembly) — Replaces: 81630M
		15-18960M - Shim, NLA [ More info ] Unavailable
#34	82321T	BEARING TAPERED ROLLER (FORWARD) (1 required per assembly) — Replaces: 82321M
		31-82321T - Bearing [ More info ] $33.54 7 In Stock.
#35	84808T	FORWARD GEAR FORWARD (1 required per assembly) — Replaces: 84808M
		43-84808T - Forward Gear [ More info ] Unavailable
#36	82078M	SPRING COMPRESSION (1 required per assembly)
		24-82078M - Spring, Compression,NLA [ More info ] Unavailable
#37	80679M	SLIDE SPRING (1 required per assembly)
		80679M - Slide, NLA [ More info ] Unavailable
#38	81644T	CLUTCH (1 required per assembly) — Replaces: 81644M
		52-81644T - Clutch [ More info ] $67.49 Available to Order: Shipping delay up to 10 days.
#39	81899M	PIN CROSS (1 required per assembly)
		17-81899M - Cross Pin, Clutch, NLA [ More info ] $10.39 $8.79 10+ In Stock.
#40	80678M	RING CROSS PIN (1 required per assembly)
		53-80678M - Retaining Ring, NLA [ More info ] Unavailable
#41	80680M	PLUNGER SHIFT (1 required per assembly)
		80680M -Shift Plunger, NLA [ More info ] $9.58 10+ In Stock.
#42	81831M	WASHER THRUST (1 required per assembly)
		12-81831M - Washer - Priced Individually [ More info ] Unavailable
#43	19124A1	PROPSHAFT KIT (1 required per assembly) — Replaces: 84809M, 19124M
		44-19124A 1 - Prop Shaft Kit [ More info ] $381.49 Available to Order: Shipping delay up to 10 days.
#44	84810T	REVERSE GEAR REVERSE (1 required per assembly) — Replaces: 84810M
		43-84810T - Reverse Gear [ More info ] $294.92 Available to Order: Shipping delay up to 10 days.
#45	811174T	BEARING CARRIER (1 required per assembly) — Replaces: 84811M, 811174M
		811174T - Bearing Carrier [ More info ] Unavailable
		8M0119783 - Bearing Carrier [ More info ] $66.99 Available to Order: Shipping delay up to 10 days.
#46	82295T	BEARING BALL ROLLER (1 required per assembly) — Replaces: 82295M
		30-82295T - Ball Bearing, NLA [ More info ] $55.07 9 In Stock.
#47	81633M	SHIM REVERSE GEAR (.05 MM) (AR required per assembly)
		15-81633M - Shim, NLA [ More info ] $6.59 5 In Stock.
#47	81634M	SHIM REVERSE GEAR (.08 MM) (AR required per assembly)
		15-81634M - Shim, NLA [ More info ] $2.34 8 In Stock.
#47	19126M	SHIM REVERSE GEAR (.12 MM) (AR required per assembly) — Replaces: 81635M
		15-19126M - Shim, NLA [ More info ] Unavailable
#47	19129M	SHIM REVERSE GEAR (.30 MM) (AR required per assembly) — Replaces: 81636M
		15-19129M - Shim, NLA [ More info ] $6.59 10 In Stock.
#47	19131M	SHIM REVERSE GEAR (.50 MM) (AR required per assembly) — Replaces: 81637M
		15-19131M - Shim - Priced Individually [ More info ] $5.63 $4.77 10+ In Stock.
#48	81632M	WASHER THRUST (1 required per assembly)
		12-81632M - Washer, NLA [ More info ] Unavailable
#49	811175M	O-RING (1 required per assembly) — Replaces: 84812M
		25-811175M - O-Ring, NLA [ More info ] Unavailable
#50	82315M	BEARING ROLLER (1 required per assembly)
		31-82315M - Bearing, NLA [ More info ] $83.78 10+ In Stock.
#51	84813M	SEAL OIL (2 required per assembly)
		26-84813M - Seal [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
		18-0554 - Seal, 93101-20M07-00 [ More info ] $12.99 $12.37 2 In Stock.
#52	84814M	WASHER TAB (1 required per assembly)
		14-84814M - Tab Washer, NLA [ More info ] Unavailable

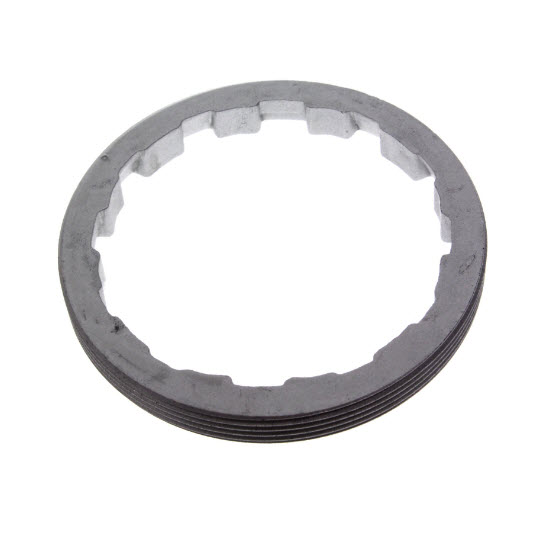

#53	8M0073430	NUT (1 required per assembly) — Replaces: 81619M
		118M0073430 - Nut [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#54	81916M	KEY (1 required per assembly)
		28-81916M - Key, NLA [ More info ] $10.76 10+ In Stock.
#55	41275M	PIN DOWEL DOWEL (2 required per assembly)
		17-41275M - Pin, Dowel [ More info ] $3.09 $2.48 2 In Stock.
#56	95656M	GASKET WATER PUMP (1 required per assembly)
		27-95656M - Water Pump Gasket [ More info ] $12.19 Available to Order: Shipping delay up to 10 days.
#57	94720M	BOLT (2 required per assembly)
		10-94720M - Bolt, NLA [ More info ] $8.15 $6.90 10+ In Stock.
#58	81711M	BOLT (2 required per assembly)
		10-81711M - Bolt, NLA [ More info ] Unavailable
#59	82220M	WASHER @2 (4 required per assembly)
		12-82220M - Washer - Priced Individually [ More info ] Unavailable
#60	82364M	PIN DOWEL DOWEL (2 required per assembly)
		17-82364M - Pin -Dowel - Priced Individually [ More info ] $4.40 10+ In Stock.
#61	82795T	TRIM TAB (1 required per assembly) — Replaces: 82795M
		82795T - Trim Tab, Zinc [ More info ] $45.49 Available to Order: Shipping delay up to 10 days.
#62	82477M	BOLT (1 required per assembly)
		10-82477M - Bolt, NLA [ More info ] Unavailable
#63	41896M	COVER WATER INLET (PORT) (1 required per assembly)
		41896M - Water Inlet Cover, NLA [ More info ] $23.42 2 In Stock.
#64	41897M	COVER WATER INLET (STAR BOARD) (1 required per assembly)
		41897M - Water Inlet Cover, NLA [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#65	811916M	SCREW (1 required per assembly) — Replaces: 84300M
		10-811916M - Screw, NLA [ More info ] $3.61 $3.06 10+ In Stock.
#66	8528165	NUT (1 required per assembly) — Replaces: 81781M
		11-852816 5 - Nut [ More info ] $5.21 10+ In Stock.
#67	81605M	TUBE WATER (SHORT SHAFT) (1 required per assembly)
		32-81605M - Tubing, NLA [ More info ] Unavailable
#67	84816M	TUBE WATER (LONG SHAFT) (1 required per assembly)
		32-84816M - Tubing, NLA [ More info ] Unavailable
#67	84817M	TUBE WATER (ULTRA LONG SHAFT) (1 required per assembly)
		32-84817M - TUBING,NLA [ More info ] Unavailable
#68	84818M	SEAL UPPER (1 required per assembly)
		26-84818M - Seal, NLA [ More info ] $9.99 $8.45 10+ In Stock.
#69	80239M	SEAL LOWER (1 required per assembly)
		26-80239M - Seal - Priced Individually [ More info ] $9.99 10+ In Stock.
#70	84819M	SPACER (1 required per assembly)
		23-84819M - Spacer, NLA [ More info ] Unavailable
#71	84820M	EXTENSION WATER TUBE (LONG AND ULTRA LONG SHAFT) (SEE NOTE) (1 required per assembly)
		84820M - Extension, NLA [ More info ] Unavailable
#72	84821M	O-RING (LONG AND ULTRA LONG SHAFT) (2 required per assembly)
		25-84821M - O-Ring [ More info ] $6.69 10+ In Stock.
#73	41277M	PLATE (LONG AND ULTRA LONG SHAFT) (1 required per assembly)
		41277M - Plate - Long and Ultra Long Shaft Serial # 00005811-09999999 [ More info ] $5.99 10+ In Stock.
#74	859917	THRUST WASHER FORWARD (1 required per assembly) — Replaces: 81650M
		859917 - Thrust Washer,NLA [ More info ] Unavailable
#75	859895	THRUST HUB REVERSE (1 required per assembly) — Replaces: 84823M, 84823T
		859895 - SPACER,NLA [ More info ] Unavailable
#76	859905	WASHER (1 required per assembly) — Replaces: 82222M
		859905 - Washer, NLA [ More info ] $5.00 $4.24 1 In Stock.
#77	81774M	NUT PROPELLER (1 required per assembly)
		11-81774M - Prop Nut, NLA [ More info ] Unavailable
#78	89961	PIN COTTER OPTIONAL PARTS (1 required per assembly) — Replaces: 82131M, 82132M
		18-89961 - Cotter Pin [ More info ] Unavailable
		188M0214988 - PIN-COTTER [ More info ] $3.05 4 In Stock.
#79	8M0121335	PLUG OPTIONAL PARTS (1 required per assembly) — Replaces: 95633M
		22-8M0121335 - PLUG NLA [ More info ] Unavailable
#80	95657M	CHROME PUMP KIT (1 required per assembly)
		46-95657M - Chrome Pump Kit, NLA [ More info ] Unavailable
#81	95658M	INSERT CARTRIDGE (1 required per assembly)
		95658M - INSERT,NLA [ More info ] Unavailable
#82	95653M	SEAL (Seal attached to insert in Kit 95657M) (1 required per assembly)
#83	95659M	BASE PLATE (1 required per assembly)
		95659M - Plate [ More info ] $12.08 $10.23 1 In Stock.
#83	95660T	GASKET SET LOWER UNIT REPLACEMENT PARTS (1 required per assembly) — Replaces: 95660M
		27-95660T - Gasket Set [ More info ] Unavailable
#83	95661T	REPAIR KIT WATER PUMP REPLACEMENT PARTS (1 required per assembly) — Replaces: 95661M
		95661T - Repair Kit [ More info ] $99.99 Available to Order: Shipping delay up to 10 days.
#0-1	9360M	GEAR HOUSING ASSEMBLY (SHORT SHAFT) (1 required per assembly)
		1651-9360M - GEAR Housing, NLA [ More info ] Unavailable
#0-1	9804M	GEAR HOUSING ASSEMBLY (LONG AND ULTRA LONG SHAFT) (1 required per assembly) — Replaces: 9361M
		1651-9804M - GEAR Housing, NLA [ More info ] Unavailable
