Parts for 20C (- Prop. Exhaust) 2-Stroke Carbureted Mercury Outboard Motor Crankcase & Cylinder Head

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 20C (- Prop. Exhaust) > 6A9-306543 & Up - Belgium > Crankcase & Cylinder Head

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

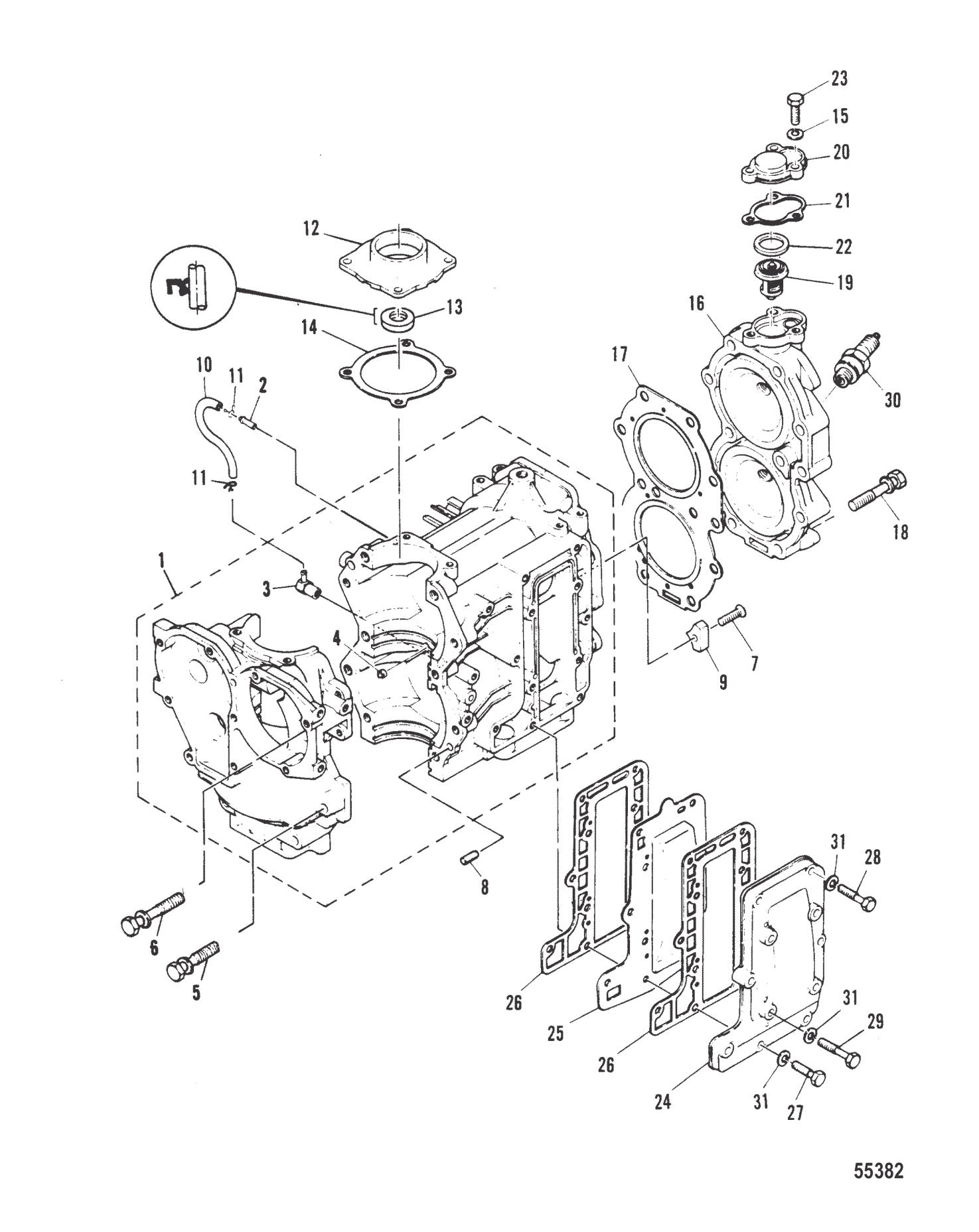

Crankcase & Cylinder Head

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	9359M	CYLINDER BLOCK (1 required per assembly)
		870-9359M - Cylinder Block,NLA [ More info ] Unavailable
#2	80122M	FITTING CRANKCASE DRAIN (1 required per assembly)
		22-80122M - Fitting - Priced Individually, NLA [ More info ] $1.50 $1.28 6 In Stock.
#3	80727M	CHECK VALVE ASSEMBLY (1 required per assembly)
		21-80727M - Check Valve, NLA [ More info ] $25.54 $21.64 10+ In Stock.
#4	80107M	VALVE (1 required per assembly)
		21-80107M - Check Valve, NLA [ More info ] Unavailable
#5	8M0101617	BOLT (8 required per assembly) — Replaces: 41884M
		108M0101617 - Bolt [ More info ] Unavailable
#6	41885M	BOLT (2 required per assembly)
		10-41885M - Bolt, NLA [ More info ] $6.67 $5.65 10+ In Stock.
#7	95209M	SCREW (1 required per assembly)
		10-95209M - Screw, NLA [ More info ] $1.67 $1.42 10+ In Stock.
#8	82364M	PIN DOWEL DOWEL (2 required per assembly)
		17-82364M - Pin -Dowel - Priced Individually [ More info ] $4.40 10+ In Stock.
#9	84732M	ANODE (1 required per assembly)
		9784732M - Anode, Zinc [ More info ] $8.46 $7.16 2 In Stock.
#10	811045M	HOSE (1 required per assembly) — Replaces: 82000M
		32-811045M - Hose, NLA [ More info ] Unavailable
#11	82046M	CLAMP HOSE (2 required per assembly)
		54-82046M - Clip, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#12	81564M	HOUSING OIL SEAL (UPPER) (1 required per assembly)
		81564M - Housing, NLA [ More info ] Unavailable
#13	82245M	SEAL OIL CRANKSHAFT (UPPER) (1 required per assembly)
		26-82245M - Seal, NLA [ More info ] $19.39 10+ In Stock.
#14	81565M	GASKET OIL SEAL HOUSING (1 required per assembly)
		27-81565M - Oil Seal Housing Gasket [ More info ] $5.37 10+ In Stock.
#15	82214M	WASHER @5 (11 required per assembly)
		12-82214M - Washer - Priced Individually [ More info ] $5.28 10+ In Stock.
#16	8374M	HEAD CYLINDER (1 required per assembly)
		968-8374M - Cylinder Head,NLA [ More info ] Unavailable
#17	81555	GASKET CYLINDER HEAD (1 required per assembly) — Replaces: 81555M
		27-81555 - Gasket [ More info ] Unavailable
#18	41885M	BOLT (11 required per assembly)
#19	814554001	THERMOSTAT (1 required per assembly) — Replaces: 11752M, 814554M
		814554001 - Thermostat [ More info ] Unavailable
		814554T01 - Thermostat [ More info ] $103.99 Available to Order: Shipping delay up to 10 days.
#20	81030M	COVER THERMOSTAT (1 required per assembly)
		81030M - Cover, NLA [ More info ] Unavailable
#21	81031	GASKET THERMOSTAT COVER (1 required per assembly) — Replaces: 81031M
		27-81031 - Cover Gasket [ More info ] $6.89 $5.52 10+ In Stock.
#22	81835M	WASHER @2 (1 required per assembly)
		12-81835M - Washer, Thermostat Spacer [ More info ] $8.79 10+ In Stock.
#23	84058M	BOLT (3 required per assembly) — Replaces: 83539M
		10-84058M - Bolt [ More info ] $7.79 1 In Stock.
#24	81569M	COVER EXHAUST-OUTER (1 required per assembly)
		81569M - EXHAUST Cover, NLA [ More info ] Unavailable
#25	81568M	COVER EXHAUST-INNER (1 required per assembly)
		81568M - Exhaust Cover [ More info ] $79.49 Available to Order: Shipping delay up to 10 days.
#26	81570	GASKET EXHAUST COVER (2 required per assembly) — Replaces: 81570M
		27-81570 - Gasket [ More info ] Unavailable
#27	82405M	SCREW @2 (1 required per assembly) — Replaces: 82453M
		10-82405M - Screw, NLA [ More info ] $10.86 $9.19 10+ In Stock.
#28	83285M	SCREW @5 (4 required per assembly) — Replaces: 96293M
		10-83285M - Screw - Priced Individually [ More info ] $5.19 10+ In Stock.
#29	83285M	SCREW @5 (6 required per assembly) — Replaces: 92523M, 84237M
#30	8M0114739	S PLUG B7HS @4 (AC M42FF) (2 required per assembly) — Replaces: 53098, 82371M
		33-8M0114739 - Spark Plug B7HS-82 - Priced Individually [ More info ] $6.59 Available to Order: Shipping delay up to 10 days.
#31	82214M	WASHER @5 (3 required per assembly)
#31	14233M	POWERHEAD ASSEMBLY COMPLETE (SEE NOTE) REPLACEMENT PARTS (1 required per assembly) — Replaces: 95648M
		14233M - Powerhead MARINE,NLA [ More info ] Unavailable
##	92575M	GASKET SET POWERHEAD REPLACEMENT PARTS (1 required per assembly)
		27-92575M - Gasket Set [ More info ] Unavailable
