Cylinder Block & Crankcase Assembly

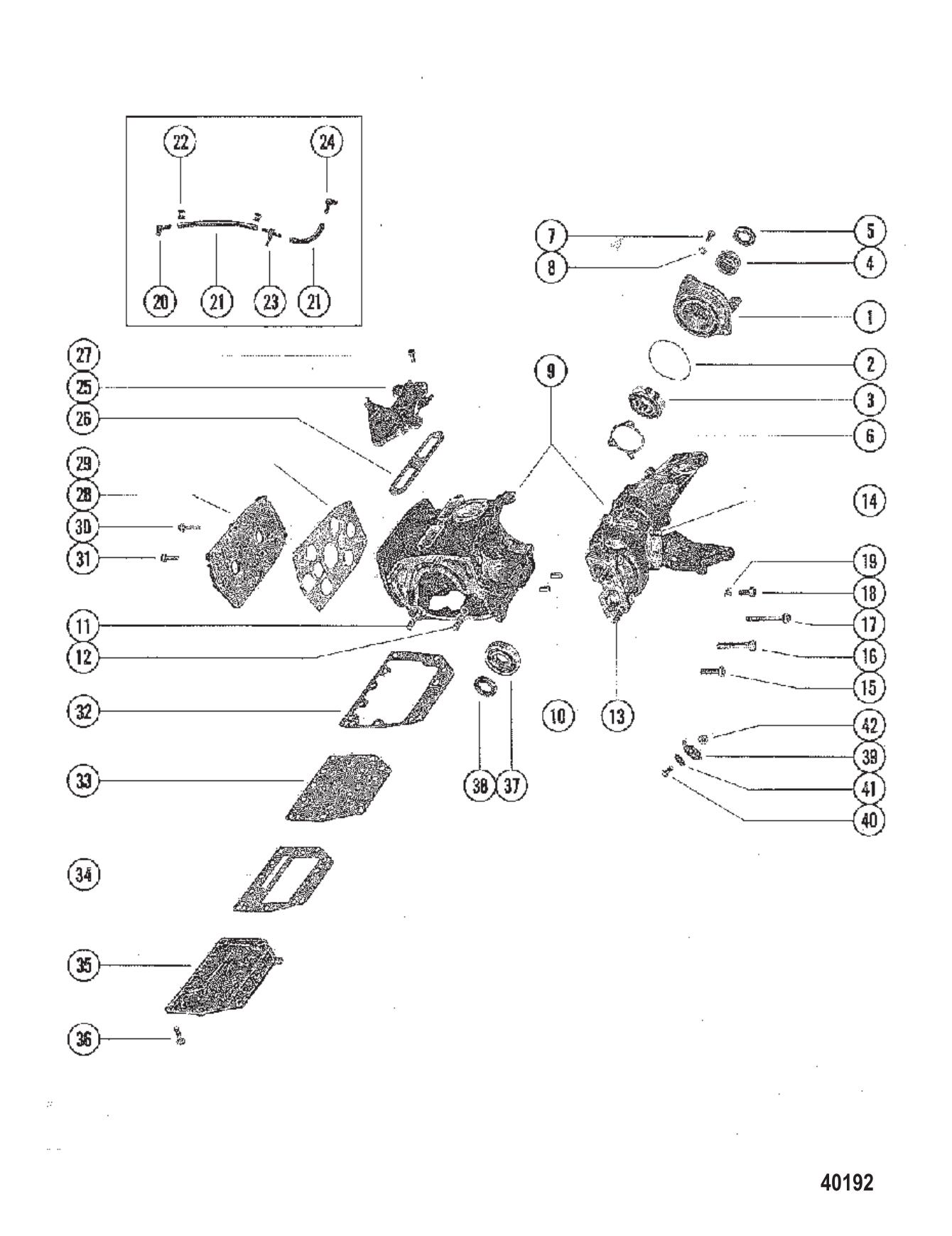

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	75392A77	POWERHEAD MARINE [USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237] & Below (1 required per assembly)
		75392A77 - Powerhead MARINE,NLA [ More info ] Unavailable
#-	75392A80	POWERHEAD [USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238] & Up (1 required per assembly)
		75392A80 - Powerhead,NLA [ More info ] Unavailable
#1	6437A1	END CAP ASSY (1 required per assembly)
		1163-6437A 1 - End Cap, NLA [ More info ] Unavailable
#2	20071	O-RING CRANKCASE TOP (1 required per assembly)
		20071 - LEAD SEAL,NLA [ More info ] Unavailable
#3	63326T	BEARING-BALL BALL - CRANKCASE TOP (UPPER) (1 required per assembly) — Replaces: 63326
		30-63326T - Ball Bearing [ More info ] $26.89 Available to Order: Shipping delay up to 10 days.
		31-02122 - Lower Ball Bearing, 63326T [ More info ] $24.49 $18.73 1 In Stock.
#4	20594	BEARING ROLLER - CRANKCASE TOP (UPPER) (1 required per assembly)
		31-20594 - Bearing, NLA [ More info ] Unavailable
#5	66300	SEAL OIL CRANKCASE TOP (UPPER) (1 required per assembly)
		26-66300 - Seal - Priced Individually [ More info ] $26.59 $17.87 10+ In Stock.
#6	56191A1	SHIM ASSY (AR required per assembly)
		15-56191A 1 - Shim Assembly, NLA [ More info ] $9.99 $8.45 4 In Stock.
#7	86750	SCREW (.312-18 X .620) CRANKCASE TOP TO CYLINDR BLOCK (5/8&QUOT;) (3 required per assembly) — Replaces: 73456
		10-86750 - Screw [ More info ] $1.00 $0.80 2 In Stock.
#8	75670	TAB WASHER CRANKCSAE TOP SCREW (3 required per assembly)
		14-75670 - Tab Washer, NLA [ More info ] $1.36 10+ In Stock.
#9	6430A3	CYLINDER BLOCK (1 required per assembly)
		848-6430A 3 - Cylinder Block,NLA [ More info ] Unavailable
#10	23784	PIN DOWEL CRANKCASE TO CYLINDER BLOCK (2 required per assembly)
		17-23784 - Pin, Dowel [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#11	72743	STUD (2 1/8&QUOT;) (2 required per assembly)
		16-72743 - Stud, NLA [ More info ] Unavailable
#12	8M0034434	STUD (2 required per assembly) — Replaces: 78986
		16-8M0034434 - Stud [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
#13	8M0034434	STUD (2 required per assembly) — Replaces: 78986
#14	72742	STUD (.312-18/.324-24 X 1.090) (2 required per assembly)
		16-72742 - Stud [ More info ] $40.49 Available to Order: Shipping delay up to 10 days.
#15	74824	SCREW @5 (6 required per assembly)
		10-74824 - Screw - Priced Individually [ More info ] $1.80 3 In Stock.
#16	35385	SCREW (2 required per assembly)
		10-35385 - Screw [ More info ] $1.62 10+ In Stock.
#17	67450	SCREW @2 (2 required per assembly)
		10-67450 - Screw - Priced Individually [ More info ] $4.22 $3.57 10+ In Stock.
#18	98260	SCREW (.375-16 X .620) USE WHERE APPLICABLE (1 required per assembly) — Replaces: 26801
		10-98260 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#19	20091	TAB WASHER USE WHERE APPLICABLE (1 required per assembly)
		14-20091 - Tab Washer - Priced Individually [ More info ] $1.80 10+ In Stock.
#20	42863	CHECK VALVE BLEED DRAIN - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY (1 required per assembly) — Replaces: 77207
		21-42863 - Check Valve, NLA [ More info ] $63.59 10+ In Stock.
#21	5493579	HOSE BLEED DRAIN - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY (2 required per assembly) — Replaces: 54936, 5493576
		32-54935 79 - Hose [ More info ] Unavailable
		32-99387 79 - Hose -27 Inch [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#22	56223	CLAMP BLEED HOSE ATTACHING - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY (4 required per assembly)
		54-56223 - Clamp, NLA [ More info ] $4.40 $3.73 10+ In Stock.
#23	78917	TEE INJECTION - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY (1 required per assembly)
		22-78917 - Elbow,NLA [ More info ] Unavailable
#24	78915	ELBOW BLEED DRIAN - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY (1 required per assembly)
		22-78915 - Elbow, NLA [ More info ] $29.99 $25.39 5 In Stock.
#25	76347	COVER TRANSFER PORT (1 required per assembly)
		76347 - Cover [ More info ] Unavailable
#26	279361	GASKET TRANSFER PORT COVER (1 required per assembly) — Replaces: 27936
		27-27936 1 - Gasket [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#27	49668	SCREW @5 (1 required per assembly)
		10-49668 - Screw - Priced Individually [ More info ] $1.10 $0.88 5 In Stock.
#27	24646	SCREW (5/8 INCH) (2 required per assembly)
		10-24646 - Screw, NLA [ More info ] $1.94 10+ In Stock.
#28	3567	COVER CYLINDER BLOCK (1 required per assembly)
		1022-3567 - Cover, NLA [ More info ] Unavailable
#29	78410	GASKET CYLINDER BLOCK COVER (1 required per assembly)
		27-78410 - Cylinder Block Cover Gasket [ More info ] $8.29 Available to Order: Shipping delay up to 10 days.
#30	76596	SCREW (2 required per assembly)
		10-76596 - Screw [ More info ] $2.49 5 In Stock.
#31	76630	SCREW @5 (4 required per assembly)
		10-76630 - Screw - Priced Individually [ More info ] $1.24 1 In Stock.
		108M0214943 - SCREW, Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#32	78411	GASKET CYLINDER BLOCK TO BAFFLE PLATE (1 required per assembly)
		27-78411 - Cylinder Block To Baffle Plate Gasket [ More info ] $19.39 10+ In Stock.
#33	39308	PLATE BAFFLE - EXHAUST MANIFOLD (1 required per assembly)
		39308 - Plate, NLA [ More info ] Unavailable
#34	78409	GASKET BAFFLE PLATE TO MANIFOLD COVER (1 required per assembly)
		27-78409 - Baffle Plate To Manifold Cover Gasket [ More info ] $11.49 1 In Stock.
#35	88797	COVER EXHAUST MANIFOLD [USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238] & Up (1 required per assembly) — Replaces: 73458
		88797 - Cover,NLA [ More info ] Unavailable
#36	28782	SCREW @5 (7 required per assembly)
		10-28782 - Screw - Priced Individually [ More info ] $2.99 10+ In Stock.
#37	63326T	BEARING-BALL BALL - CRANKCASE (LOWER) (1 required per assembly) — Replaces: 63326
#38	66302	SEAL OIL CRANKCASE (LOWER) (1 required per assembly)
		26-66302 - Seal - Priced Individually [ More info ] $12.99 10+ In Stock.
		18-2056 - Seal, 26-96503 1 [ More info ] $15.52 8 In Stock.
		26-8M0214939 - Carrier Oil Seal, Priced Individually [ More info ] $17.32 2 In Stock.
#39	76255	INDICATOR TIMING Electric (1 required per assembly)
		76255 - Indicator, NLA [ More info ] Unavailable
#40	20784	SCREW INDICATOR TO CRANKCASE Electric (1 required per assembly)
		10-20784 - Screw, NLA [ More info ] $2.06 10+ In Stock.
#41	8M0204649	WASHER @10 INDICATOR SCREW Electric (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#42	35888	NUT (.250-28) STAINLESS STEEL INDICATOR SCREW Electric (1 required per assembly)
		11-35888 - Nut (1/4-28) [ More info ] $6.89 $3.04 10+ In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
