Parts for 20 Jet 2-Stroke Carbureted Mercury Outboard Motor Carburetor (Seapro / Marathon 15 / 25 & Super 15)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 20 Jet > 0G044027 - 0G760299 - USA > Carburetor (Seapro / Marathon 15 / 25 & Super 15)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

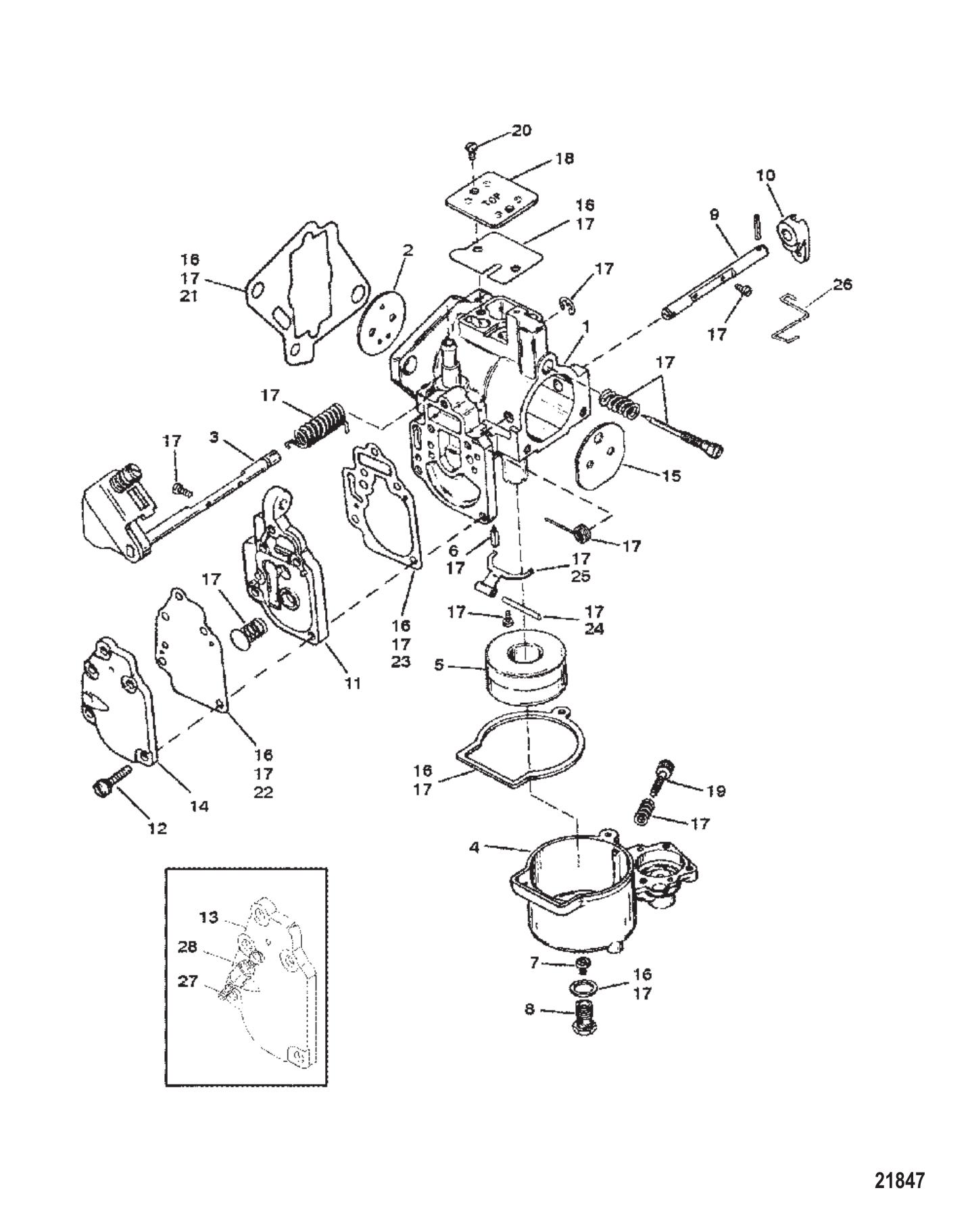

Carburetor (Seapro / Marathon 15 / 25 & Super 15)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	41499A88	GASKET SET (1 required per assembly) — Replaces: 41499A87
		27-41499A88 - Engine Gasket Set [ More info ] $154.49 Available to Order: Shipping delay up to 10 days.
#-	804350T99	POWERHEAD (1 required per assembly) — Replaces: 90885A97, 90885T99
		804350T99 - Powerhead [ More info ] Unavailable
		804946T00 - Powerhead [ More info ] Unavailable
		804946T01 - Powerhead [ More info ] Unavailable
		804946T02 - Powerhead 25 2ST, NLA [ More info ] Unavailable
#1	817405T20	CARBURETOR (WMC-54A) (1 required per assembly) — Replaces: 817405A12, 817405T12
		1390-817405T20 - Carburetor [ More info ] Unavailable
#1	817405A8	CARBURETOR (WMC-46A) (1 required per assembly)
		1390-817405A 8 - Carburetor [ More info ] Unavailable
#1	823907T6	CARBURETOR (WMC-56) (1 required per assembly) — Replaces: 823907A3, 823907A6
		1392-823907T 6 - 1392-823907T 6 - CARBURETOR (WMC-5 [ More info ] Unavailable Replaced by 1392-823907T13
		1392-823907T13 - Carburetor [ More info ] Unavailable
#2	96461	VALVE THROTTLE (WMC-46/46A/54/54A) (1 required per assembly)
		1395-9646 1 - Throttle Valve [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#2	815133	VALVE THROTTLE (WMC-56/56A) (1 required per assembly)
		815133 - VALVE-THROTTLE,NLA [ More info ] Unavailable
#3	96951	SHAFT THROTTLE (1 required per assembly)
		1395-9695 1 - Throttle Shaft [ More info ] Unavailable
#4	811353	BOWL FUEL (1 required per assembly)
		1395-811353 - Fuel Bowl, NLA [ More info ] $18.31 10+ In Stock.
#5	91691	FLOAT (1 required per assembly)
		1395-9169 1 - Float [ More info ] $13.59 9 In Stock.
#6	803861	VALVE INLET NEEDLE (1 required per assembly) — Replaces: 879194048
		1395-803861 - Inlet Valve [ More info ] $25.49 8 In Stock.
#7	3796	JET (.076) (WMC-46) (1 required per assembly)
		1399-3796 - Jet -.076 [ More info ] Unavailable
#7	6201	JET (.080) (WMC-46A/54/54A) (1 required per assembly)
		1395-6201 - Jet -.080 - Priced Individually [ More info ] $15.99 $12.80 10+ In Stock.
#7	5317	JET (.046) (WMC-56/56A) (1 required per assembly)
		1399-5317 - Jet -.046 [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#8	9171	PLUG (1 required per assembly)
		1395-9171 - Plug [ More info ] $8.89 Available to Order: Shipping delay up to 10 days.
#9	8113541	SHAFT CHOKE (1 required per assembly)
		1395-811354 1 - Choke Kit, NLA [ More info ] $17.25 $14.61 6 In Stock.
#10	811805	LEVER CHOKE (1 required per assembly)
		1395-811805 - Choke Lever [ More info ] $4.99 $4.22 10+ In Stock.
#11	9702	COVER/FUEL PUMP KIT (1 required per assembly) — Replaces: 15827A1
		1395-9702 - Fuel Pump Kit [ More info ] Unavailable
#12	9643	SCREW (5 required per assembly)
		1395-9643 - Screw Assembly [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#13	96371	COVER FUEL PUMP (WMC-54/54A/56/56A) (1 required per assembly)
		1395-9637 1 - Cover [ More info ] Unavailable
#14	9637	COVER (WMC-46/46A) (1 required per assembly)
		1395-9637 - Cover [ More info ] $30.79 Available to Order: Shipping delay up to 10 days.
#15	811806	VALVE CHOKE (1 required per assembly)
		1395-811806 - Choke Valve, NLA [ More info ] $2.50 $2.13 8 In Stock.
#16	97611	GASKET/DIAPHRAGM KIT (1 required per assembly)
		1395-9761 1 - Gasket and Diaphragm Kit [ More info ] $87.99 1 In Stock.
		18-7212 - Carburetor and Fuel Pump Diaphragm Kit, 1395-9761 1 [ More info ] $64.19 $62.86 10+ In Stock.
		1300-36004 - Carburetor Kit - Mercury 1395-9761 1 [ More info ] $61.99 $47.40 8 In Stock.
#17	8237072	REPAIR KIT (1 required per assembly)
		1395-823707 2 - Carburetor Repair Kit, Float NOT included [ More info ] $136.99 1 In Stock.
		18-97350 - Carb Kit, Mercury 1395-823707 2, Float Not Included [ More info ] $137.82 $126.28 3 In Stock.
#18	9699	PLATE (1 required per assembly)
		1395-9699 - Cover Plate [ More info ] Unavailable
#19	811360	SCREW BOWL DRAIN (1 required per assembly)
		1395-811360 - Screw, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#20	9696	SCREW (2 required per assembly)
		1395-9696 - Screw Assembly [ More info ] Unavailable
#21	192061	GASKET CARBURETOR (1 required per assembly)
		27-19206 1 - Gasket [ More info ] $4.99 4 In Stock.
#22	9635	DIAPHRAGM/GASKET (1 required per assembly)
		1395-9635 - Diaphragm [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#23	9633	GASKET (1 required per assembly)
		1395-9633 - Fuel Pump Gasket [ More info ] $5.19 1 In Stock.
#24	F10064	SHAFT (1 required per assembly)
		F10064 - Float Support Shaft [ More info ] $4.59 10+ In Stock.
#25	824401	LEVER FLOAT (1 required per assembly)
		1395-824401 - Float Lever [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#26	817425	LINK CHOKE (1 required per assembly)
		817425 - Choke Link [ More info ] $15.69 Available to Order: Shipping delay up to 10 days.
#27	40019111	SCREW (1 required per assembly)
		10-40019111 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#28	400211	NUT (1 required per assembly)
		11-40021 1 - Nut [ More info ] $3.59 10+ In Stock.
