Parts for 20 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Fuel Filter Assembly

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 20 (2 Cyl.) > 0A730007 & Up - Canada > Fuel Filter Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

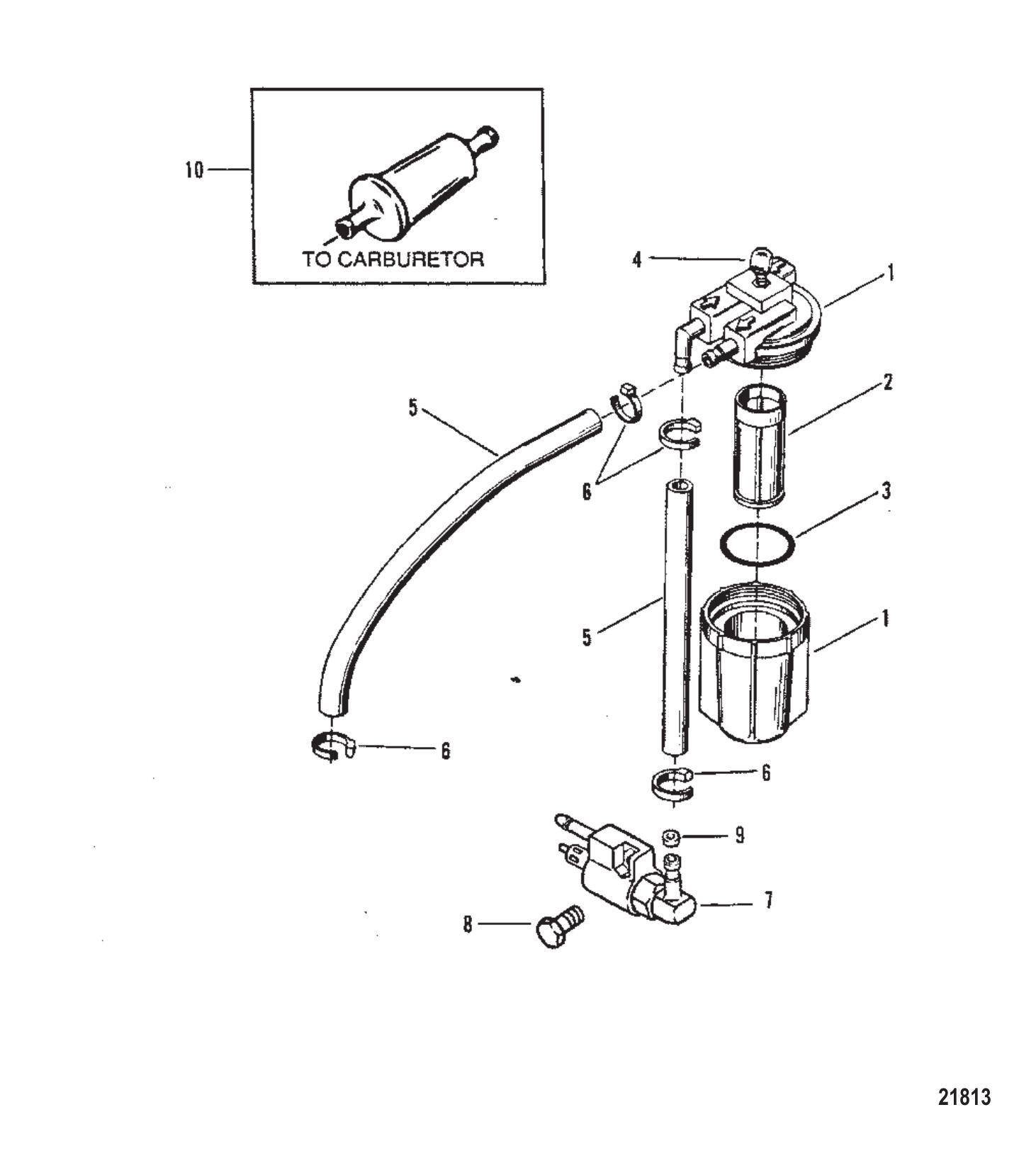

Fuel Filter Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	889527A07	FILTER KIT (DESIGN I) (1 required per assembly) — Replaces: 87946A15, 8M0111436
		35-889527A07 - Fuel Filter Kit [ More info ] $29.09 10+ In Stock.
#2	87946Q04	FILTER KIT FUEL (DESIGN I) (1 required per assembly) — Replaces: 87946A3, 87946Q3
		35-87946Q04 - Fuel Filter - Priced Individually [ More info ] $15.29 9 In Stock.
		18-7802 - Filter, 35-87946A3, Q3, Q0 [ More info ] $9.49 10+ In Stock.
		35-87946K04 - Fuel Filter - Priced Individually [ More info ] $16.79 5 In Stock.
		35-35417 - Fuel Filter [ More info ] $8.39 $6.40 2 In Stock.
#3	897536	SEAL (DESIGN I) (1 required per assembly) — Replaces: 98277
		25-897536 - Filter Seal - Priced Individually [ More info ] $2.69 10+ In Stock.
		18-7113-9 - O-Ring 25-897536 10 Pack [ More info ] $14.99 $14.74 2 In Stock.
#4	858731	BALL FUEL FILTER (DESIGN I) (1 required per assembly) — Replaces: 91935
		858731 - Fuel Filter Ball [ More info ] $2.89 1 In Stock.
#5	8M0047428	HOSE-57 INCH (2 required per assembly) — Replaces: 99127109, 830756109
		32-8M0047428 - Hose -57 Inch [ More info ] Unavailable
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 In Stock
#6	816311T	TIE STRAP @100 (AR required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#7	15781A9	CONNECTOR-FUEL (1 required per assembly)
		22-15781A 9 - Fuel Connector, 90 Degree [ More info ] $41.89 7 In Stock.
#8	8M0204707	SCREW @5 FUEL CONNECTOR (1 required per assembly) — Replaces: 4000330
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#9	18202	GROMMET FUEL CONNECTOR (1 required per assembly)
		25-18202 - Grommet, Fuel Connector [ More info ] $7.19 1 In Stock.
#10	816296Q2	FILTER FUEL (DESIGN II) (1 required per assembly) — Replaces: 8162961, 816296Q1
		35-816296Q 2 - Fuel Filter - Priced Individually [ More info ] $10.39 8 In Stock.
		18-7830 - Inline Filter 5/16 [ More info ] $8.62 10+ In Stock.
		35-816296K 2 - Fuel Filter - Priced Individually [ More info ] $11.39 10+ In Stock.
