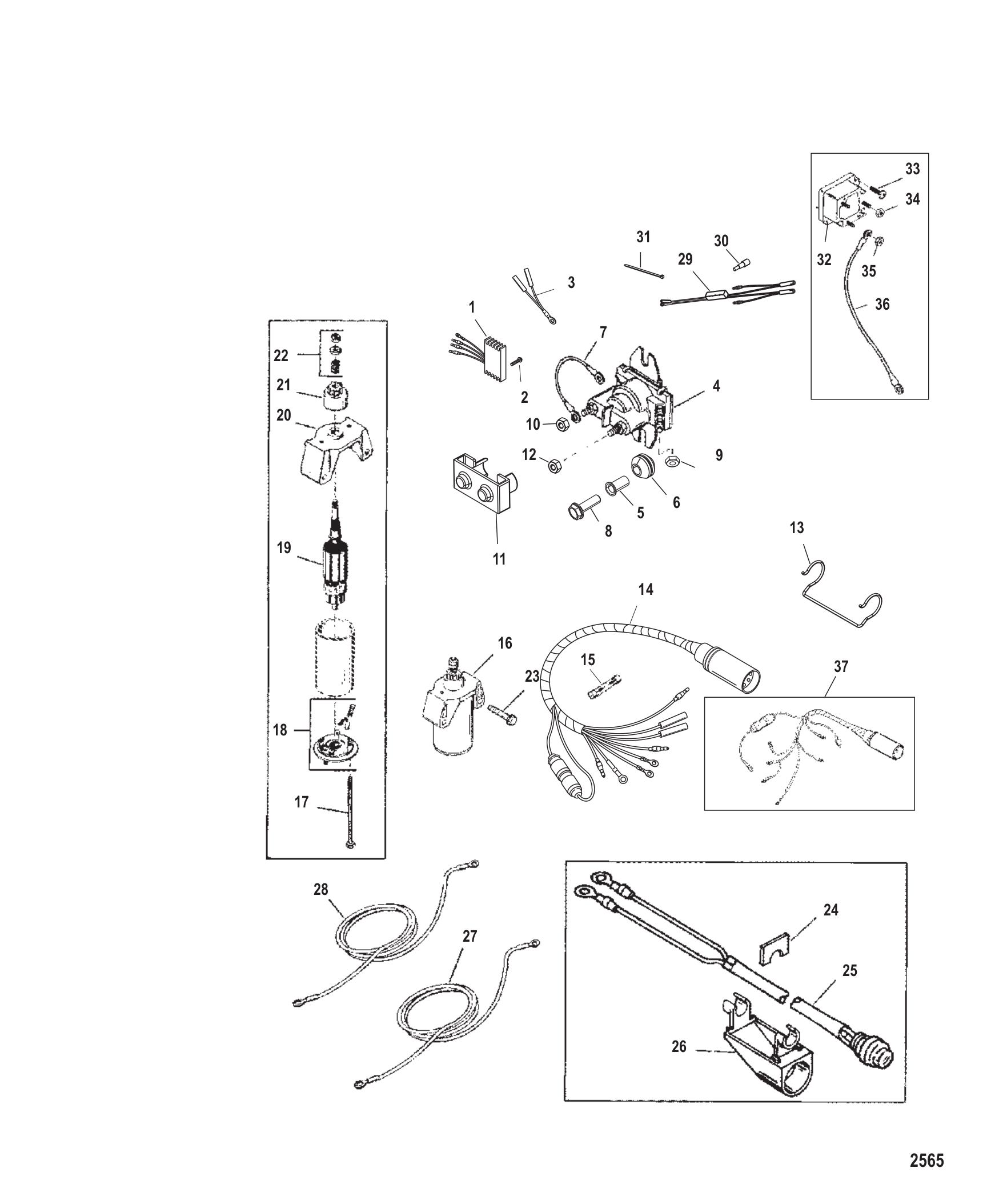

Parts for 15 Sea Pro (XD) 2-Stroke Carbureted Mercury Outboard Motor Electric Start Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 853358T1 | RECTIFIER [USA-0T409000/BEL-0P153500] & Up (1 required per assembly) |
  |
|
853358T 1 - Rectifier [ More info ]
|
| #2 | 883075 | SCREW [USA-0T409000/BEL-0P153500] & Up (2 required per assembly) |
  |
|
10-883075 - Screw [ More info ]
|
| #3 | 11149A54 | HARNESS ASSY (1 required per assembly) |
  |
|
84-11149A54 - Harness Assembly [ More info ]
|
| #4 | 8M0185147 | SOLENOID ASSY (1 required per assembly) — Replaces: 850188T1 |
  |
|
89-8M0185147 - Starter Solenoid [ More info ]
|
| #5 | 818968 | BUSHING (2 required per assembly) |
  |
23-818968 - Bushing [ More info ] Unavailable |
|
  |
|
238M0214955 - Bushing [ More info ]
|
| #6 | 8M0207785 | GROMMET (2 required per assembly) — Replaces: 818967 |
  |
|
258M0207785 - Grommet [ More info ]
|
| #7 | 88809A5 | WIRE ASSY (1 required per assembly) |
  |
|
84-88809A 5 - Wire Assembly [ More info ]
|
| #8 | 40011129 | SCREW (2 required per assembly) |
  |
|
10-40011129 - Screw [ More info ]
|
| #9 | 26419 | NUT @5 (2 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #10 | 64015 | NUT @3 (1 required per assembly) |
  |
|
11-64015 - Nut (1 /4-20) [ More info ]
|
| #11 | 97861 | INSULATOR (1 required per assembly) |
  |
|
85-97861 - Insulator [ More info ]
|
| #12 | 64015 | NUT @3 (1 required per assembly) |
| #13 | 92753 | RETAINER (1 required per assembly) |
  |
|
92753 - Harness Retainer [ More info ]
|
| #14 | 92436A9 | HARNESS ASSY [USA-0T409000/BEL-0P153500] & Up (1 required per assembly) |
  |
|
84-92436A 9 - Harness Assembly [ More info ]
|
| #15 | 8M0207796 | FUSE-20 AMP @5 (1 required per assembly) — Replaces: 79091 |
  |
|
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ]
|
| #16 | 8M0033984 | STARTER ASSY (1 required per assembly) — Replaces: 90983T1, 893889T |
  |
|
50-8M0033984 - Starter Assembly [ More info ]
|
  |
|
18-5611 - Starter, 50-90983A1 [ More info ]
|
  |
|
5367 - Starter, 50-90983A1, T1 [ More info ]
|
| #17 | 96566 | THRU BOLT (1 required per assembly) |
  |
|
10-96566 - Bolt -thru [ More info ] Unavailable |
| #18 | 96564T | END CAP WITH BRUSHES (1 required per assembly) |
  |
|
96564T - End Cap [ More info ] Unavailable |
  |
|
SR367 - Repair Kit End Cap, 96564T [ More info ]
|
| #19 | 96565 | ARMATURE (1 required per assembly) |
  |
|
96565 - Armature [ More info ] Unavailable |
| #20 | 96563T | END CAP (1 required per assembly) |
  |
|
96563T - End Cap [ More info ]
|
| #21 | 96562 | DRIVE (1 required per assembly) |
  |
|
|
  |
|
DV367 - Starter Drive [ More info ]
|
| #22 | 96561 | DRIVE KIT (1 required per assembly) |
  |
|
96561 - Drive Retainer Kit [ More info ]
|
| #23 | 421251 | SCREW (2 required per assembly) |
  |
|
10-42125 1 - Screw [ More info ]
|
  |
|
10-42125 - SCREW [ More info ]
|
| #24 | 824918 | CLIP (Local Electric) (1 required per assembly) |
  |
|
824918 - Start Switch Clip [ More info ]
|
| #25 | 823609A6 | SWITCH ASSY (Local Electric) (1 required per assembly) |
  |
|
87-823609A 6 - Switch Assembly [ More info ]
|
| #26 | 889734 | HOUSING-SWITCH (Local Electric) (1 required per assembly) — Replaces: 8239172 |
  |
|
889734 - Switch Housing [ More info ]
|
| #27 | 88439A28 | CABLE ASY-BATTERY (1 required per assembly) |
  |
|
84-88439A28 - Battery Cable Assembly [ More info ]
|
| #28 | 88439A27 | CABLE ASY-BATTERY (1 required per assembly) |
  |
|
84-88439A27 - Battery Cable Assembly [ More info ]
|
| #29 | 17461T11 | MODULE KIT-TACH (1 required per assembly) |
  |
|
17461T11 - Module Kit - Tachometer [ More info ]
|
| #30 | 13541 | PLUG (1 required per assembly) |
  |
|
|
| #31 | 816311T | TIE STRAP @100 (1 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #32 | 8M0058226 | RECTIFIER [USA-0T408999/BEL-0P153499] & Below (1 required per assembly) — Replaces: 816770T |
  |
|
8M0058226 - Rectifier - Outboard [ More info ]
|
  |
|
18-99416 - Regulated Rectifier 445114, 193-5114 [ More info ]
|
  |
|
18-5707 - Rectifier 816770 [ More info ]
|
  |
|
300-01404 - Rectifier, 8M0058226 [ More info ]
|
  |
|
AR351 - Rectifier [ More info ]
|
| #33 | 48409 | SCREW @2 [USA-0T408999/BEL-0P153499] & Below (2 required per assembly) |
  |
|
10-48409 - Screw - Priced Individually [ More info ]
|
| #34 | 45076 | NUT @10 [USA-0T408999/BEL-0P153499] & Below (2 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #35 | 45076 | NUT @10 [USA-0T408999/BEL-0P153499] & Below (1 required per assembly) |
| #36 | 79139A20 | CABLE ASSEMBLY RED [USA-0T408999/BEL-0P153499] & Below (1 required per assembly) |
  |
|
84-79139A20 - Cable Assembly [ More info ]
|
| #37 | 92436A5 | HARNESS ASSY [USA-0T408999/BEL-0P153499] & Below (1 required per assembly) |
  |
|
84-92436A 5 - Harness Assembly [ More info ]
|
