Parts for 15 Sea Pro 2-Stroke Carbureted Mercury Outboard Motor Swivel Head & Steering Handle

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 15 Sea Pro > 0T980000 - 0T999999 - USA > Swivel Head & Steering Handle

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

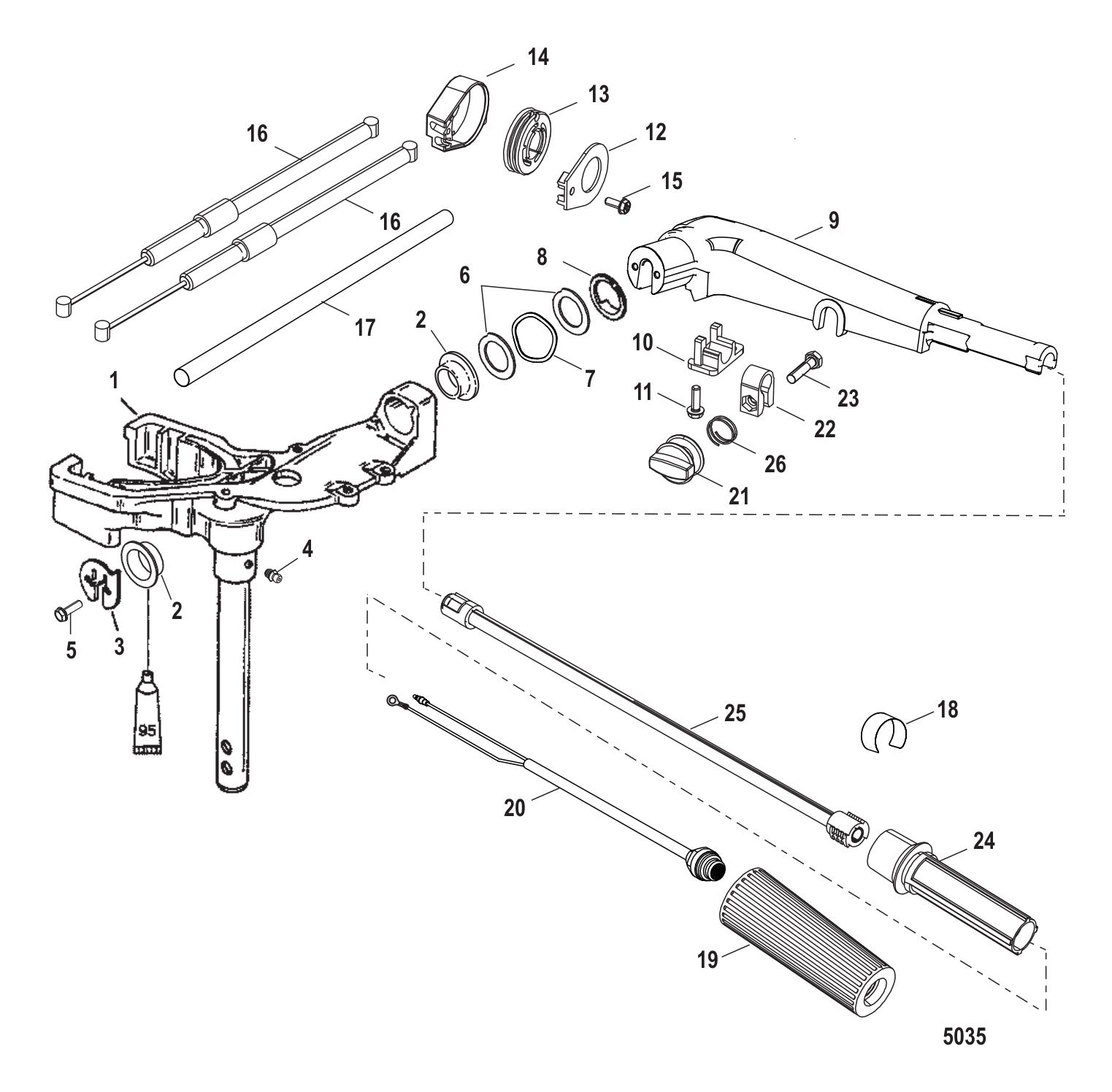

Swivel Head & Steering Handle

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	42213A24	SWIVEL HEAD-BLACK (Black) (1 required per assembly)
		42213A24 - Swivel Head - Black [ More info ] $360.49 Available to Order: Shipping delay up to 10 days.
#2	823939	BUSHING (2 required per assembly)
		23-823939 - Bushing [ More info ] $17.15 3 In Stock.
#3	8221471	PLATE @2 (1 required per assembly)
		822147 1 - Plate - Priced Individually [ More info ] $10.99 1 In Stock.
#4	8M0169589	FITTING @2 (1 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#5	4010516	SCREW @2 (2 required per assembly)
		10-40105 16 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#6	822145	WASHER (2 required per assembly)
		12-822145 - Washer [ More info ] $2.49 3 In Stock.
#7	826792	WASHER-WAVE (1 required per assembly)
		13-826792 - Wave Washer [ More info ] $8.79 3 In Stock.
#8	822146	WASHER (1 required per assembly)
		12-822146 - Washer [ More info ] $17.99 1 In Stock.
#9	821468A66	ARM-STRG. HANDLE (Black) (1 required per assembly)
		821468A66 - Steering Handle Arm [ More info ] $195.99 Available to Order: Shipping delay up to 10 days.
#10	822441	RETAINER (1 required per assembly)
		822441 - Retainer [ More info ] $3.59 5 In Stock.
#11	40011107	SCREW @5 (1 required per assembly)
		10-40011107 - SCREW [ More info ] $1.80 2 In Stock.
#12	822148A3	COVER KIT (Handle Shift) (1 required per assembly)
		822148A 3 - Cover Kit with Pulley and Throttle Cables [ More info ] $112.46 1 In Stock.
#12	822148A2	COVER KIT (Side Shift) (1 required per assembly)
		822148A 2 - Cover Kit for Side Shift Lever Models [ More info ] $85.49 Available to Order: Shipping delay up to 10 days.
#13	822150	PULLEY (1 required per assembly)
		822150 - Pulley [ More info ] $35.49 Available to Order: Shipping delay up to 10 days.
#14	NSS	NOT SOLD SEPARATE (PULLEY CASE) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#15	878608	SCREW (#10-16 X .500) (1 required per assembly)
		10-878608 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#16	43242T18	CABLE-THROTTLE (Tiller Handle Shift) (2 required per assembly) — Replaces: 4324218
		43242T18 - Throttle Cable [ More info ] $34.49 Available to Order: Shipping delay up to 10 days.
#16	432426	CABLE THROTTLE (Side Shift) (2 required per assembly)
		0432426 - L/P 522.41 [ More info ] Unavailable
#17	9600910	SLEEVE (Tiller Handle Shift) (1 required per assembly)
		85-96009 10 - Insulator - Priced Individually [ More info ] $1.60 9 In Stock.
#17	960099	SLEEVE (12.00 INCHES) (Side Shift) (1 required per assembly)
		85-96009 9 - Sleeve -12 Inch [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#18	8242002	DECAL-SHIFT (Tiller Handle Shift) (1 required per assembly)
		37-824200 2 - Decal - Shift [ More info ] $13.79 Available to Order: Shipping delay up to 10 days.
#18	8242004	DECAL-TILLER HLD (Side Shift) (1 required per assembly)
		37-824200 4 - Decal - Tiller Hld [ More info ] $13.79 1 In Stock.
#19	99589003	GRIP (1 required per assembly) — Replaces: 99589
		99589003 - Grip [ More info ] Unavailable
		8M0221732 - Outer Grip [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
#20	8M0104615	SWITCH ASSY (1 required per assembly) — Replaces: 823609A17
		87-8M0104615 - Switch [ More info ] $61.27 1 In Stock.
#21	821972T	KNOB-THROTTLE (1 required per assembly) — Replaces: 821972
		821972T - Throttle Knob [ More info ] $18.59 Available to Order: Shipping delay up to 10 days.
#22	892995	LOCK-THROTTLE (1 required per assembly)
		892995 - Throttle Lock [ More info ] $7.79 1 In Stock.
#23	8M0204707	SCREW @5 (1 required per assembly) — Replaces: 4000330
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#24	822429	HANDLE-THROTTLE (Tiller Handle Shift) (1 required per assembly)
		822429 - Throttle Handle [ More info ] $16.59 Available to Order: Shipping delay up to 10 days.
#24	821465	HANDLE-THROTTLE (Side Shift) (1 required per assembly)
		821465 - Throttle Handle [ More info ] $26.49 $17.81 5 In Stock.
#25	821463T01	TUBE-TILLER (1 required per assembly) — Replaces: 821463A1
		821463T01 - Tiller Tube [ More info ] $97.49 Available to Order: Shipping delay up to 10 days.
#26	96203	SPRING (1 required per assembly)
		24-96203 - Spring, Pilot Control Screw [ More info ] $4.19 2 In Stock.
