Parts for 15 Marathon 2-Stroke Carbureted Mercury Outboard Motor Remote Control Attaching Components

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 15 Marathon > 0P017000 - 0P325499 - Belgium > Remote Control Attaching Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

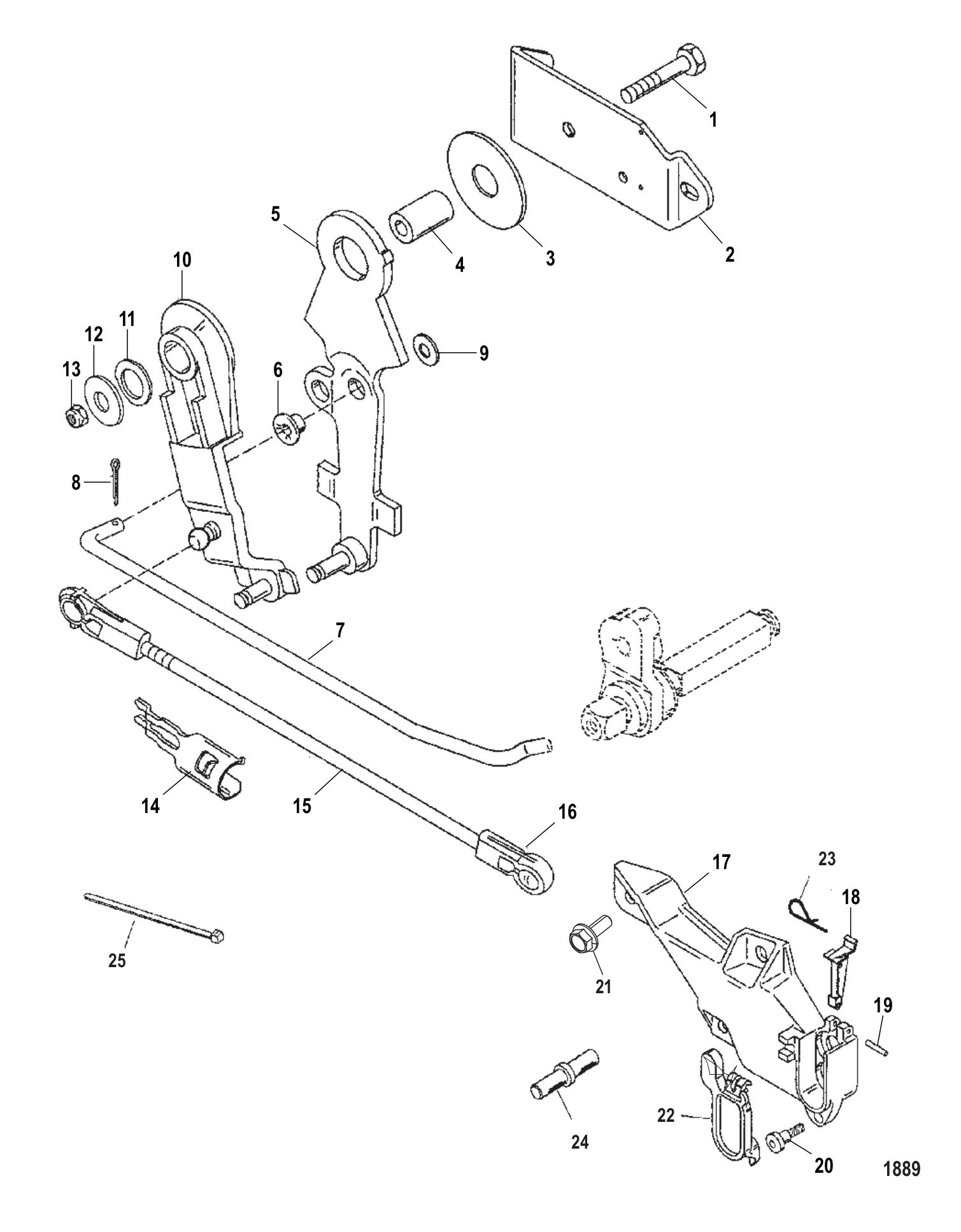

Remote Control Attaching Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	4000332	SCREW (1 required per assembly)
		10-40003 32 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#2	42809	BRACKET (1 required per assembly)
		42809 - Bracket [ More info ] $20.99 $17.77 6 In Stock.
#3	12132	WASHER (1-1/2 X .52 I.D.) (1 required per assembly)
		12-12132 - Washer (1.500 X .520 Id) [ More info ] Unavailable
#4	823807	BUSHING (1 required per assembly) — Replaces: 42806
		23-823807 - Bushing [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#5	42810A8	ARM ASSY-SHIFT (1 required per assembly)
		42810A 8 - Shift Arm Assembly [ More info ] $62.37 Available to Order: Shipping delay up to 10 days.
#6	889731	BUSHING (1 required per assembly) — Replaces: 12136
		23-889731 - Bushing [ More info ] $6.87 Available to Order: Shipping delay up to 10 days.
#7	878169	SHIFT LINK (1 required per assembly)
		878169 - Shift Rod Link [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#8	210711	COTTER PIN @2 (1 required per assembly) — Replaces: 21071
		0210711 [ More info ] Unavailable Replaced by 0210710
		[ More info ] Unavailable
#9	8M0204666	WASHER @5 (1/2 X .203 I.D.) (1 required per assembly) — Replaces: 56681
		128M0204666 - WASHER Note: Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#10	428071	ARM (1 required per assembly)
		42807 1 - Arm [ More info ] Unavailable
#11	12134	WASHER-WAVE (1 required per assembly)
		13-12134 - Wave Washer [ More info ] Unavailable
#12	65567	WASHER @2 (3/4 X .265 I.D.) (1 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#13	401386	NUT @5 (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#14	424291	RETAINER (2 required per assembly)
		42429 1 - Retainer [ More info ] $13.30 Available to Order: Shipping delay up to 10 days.
#15	8M0084741	LINK ASY-THROTTLE (1 required per assembly) — Replaces: 19385A2
		8M0084741 - Throttle Link [ More info ] $23.57 1 In Stock.
#16	8M0084742	SOCKET (1 required per assembly) — Replaces: 19384
		8M0084742 - Socket - Ball [ More info ] $2.49 10+ In Stock.
#17	42805A3	BRACKET ASSY (1 required per assembly)
		42805A 3 - Bracket Assembly [ More info ] $148.44 1 In Stock.
#18	11373	PIN LATCH (1 required per assembly)
		11373 - Pin, Latch [ More info ] $14.50 Available to Order: Shipping delay up to 10 days.
#19	239281	PIN ROLL (1 required per assembly)
		17-23928 1 - Pin -roll - Priced Individually [ More info ] $4.39 $2.46 10+ In Stock.
#20	42975	DRIVE SCREW (1 required per assembly)
		10-42975 - Screw - Drive [ More info ] $2.37 7 In Stock.
#21	4006731	SCREW (2 required per assembly)
		10-40067 31 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#22	428021	RETAINER (1 required per assembly)
		42802 1 - Retainer [ More info ] $6.63 Available to Order: Shipping delay up to 10 days.
#23	11372	CLIP (1 required per assembly)
		54-11372 - Clip [ More info ] $5.43 Available to Order: Shipping delay up to 10 days.
#24	15822001	PLUG (1 required per assembly) — Replaces: 15822
		15822001 - Plug [ More info ] $13.09 1 In Stock.
#25	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
