Power Trim Kit (76509A27) (Page 2 of 2)

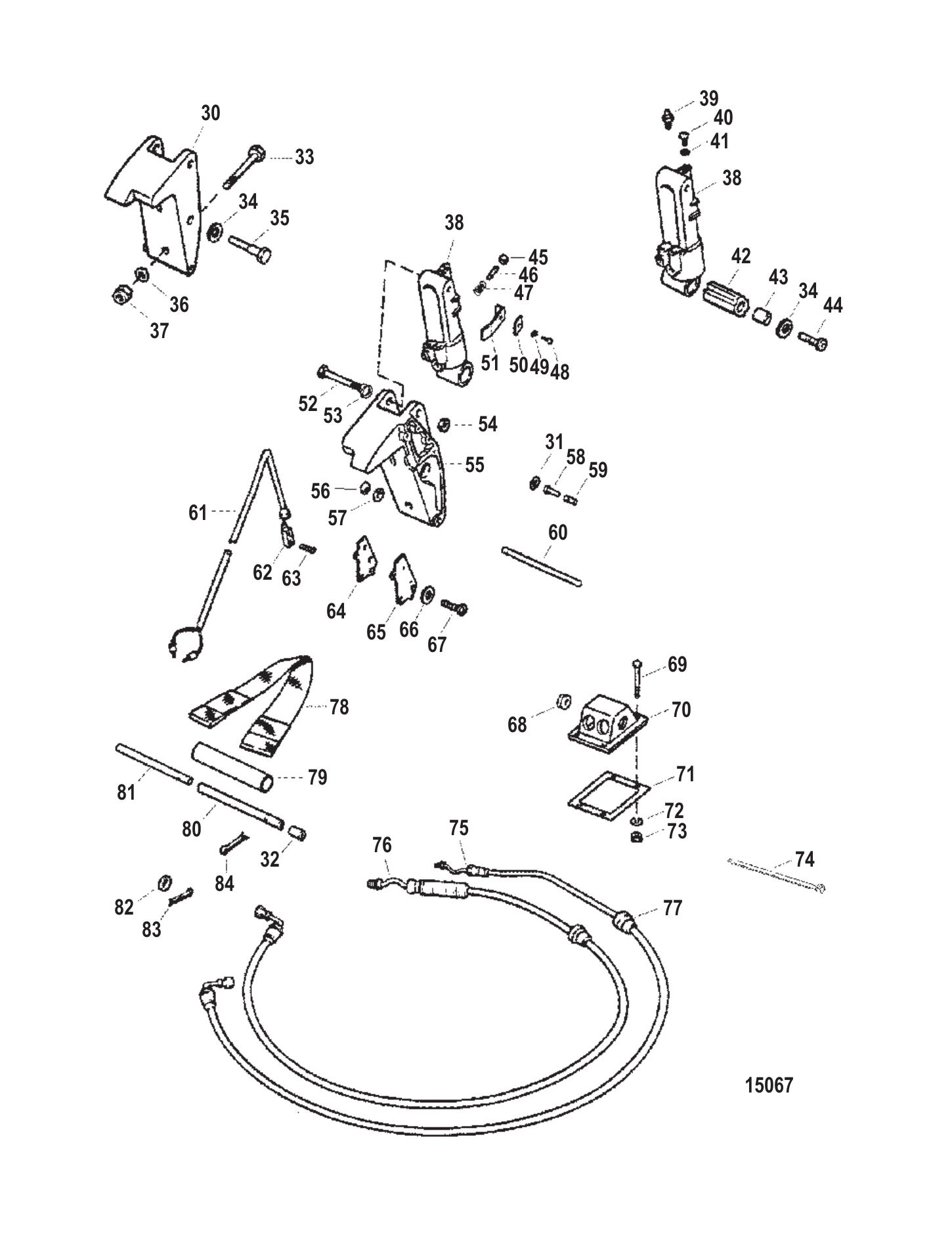

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#30	89108A3	BRACKET (Port) (1 required per assembly)
		89108A 3 - Bracket Assembly, NLA [ More info ] Unavailable
#31	70608	SEAL OIL (1 required per assembly)
		26-70608 - Seal, NLA [ More info ] $13.27 $11.24 10+ In Stock.
#32	89112	BUSHING (2 required per assembly)
		23-89112 - Bushing, NLA [ More info ] $17.78 $15.06 10+ In Stock.
#33	68298	BOLT (.375-16 X 3.250) (4 required per assembly)
		10-68298 - Screw, NLA [ More info ] $8.76 $7.42 10+ In Stock.
#34	8M0204648	WASHER (1.5 X 3.05 X 0.13) STAINLESS STEEL (4 required per assembly) — Replaces: 28421
		12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#35	45263	SCREW (.500-20 X .2.250) (2 required per assembly)
		10-45263 - Bolt, NLA [ More info ] $3.33 $2.82 10+ In Stock.
#36	46765	WASHER (.390 X 1.50 X .120) (4 required per assembly) — Replaces: 68410
		12-46765 - Washer (1.50 X .390 X .120) [ More info ] $11.39 10+ In Stock.
#37	82670912	NUT (.375-16) STAINLESS STEEL (4 required per assembly) — Replaces: 68411
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.79 $3.81 10+ In Stock.
#38	92194A14	TRIM CYLINDER (2 required per assembly)
		92194A14 - Trim Cylinder, Unpainted [ More info ] Unavailable
#39	8M0169589	FITTING GREASE (2 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#40	45265	SCREW (#10-32 X .3125) (4 required per assembly)
		10-45265 - Screw, NLA [ More info ] $1.06 10 In Stock.
#41	45016	O-RING (4 required per assembly)
		25-45016 - O-Ring, Shock Cylinder Bleed Screw [ More info ] $0.74 10+ In Stock.
#42	94907A1	BUSHING (2 PER) (2 required per assembly)
		23-94907A 1 - Bushing Kit, 2 Bushings [ More info ] $43.87 1 In Stock.
#43	45280	SPACER (2 required per assembly)
		23-45280 - Spacer - Trim Cylinder -Lower [ More info ] $15.08 10+ In Stock.
#44	92050	SCREW (.500-20 X 1.500) (2 required per assembly)
		10-92050 - Screw, NLA [ More info ] $12.83 $10.87 10+ In Stock.
#45	859124	NUT (#10-32) STAINLESS STEEL (1 required per assembly) — Replaces: 45812
		11-859124 - Nut, (#10-32) Stainless Steel, Nylon Insert [ More info ] $18.69 10+ In Stock.
#46	8M0034461	STUD (1 required per assembly) — Replaces: 21085
		16-8M0034461 - Stud [ More info ] $21.59 7 In Stock.
#47	24390	SPRING (1 required per assembly)
		24-24390 - Spring, Tension,NLA [ More info ] $1.80 10+ In Stock.
#48	68513	SCREW (#10-32 X .375) STAINLESS STEEL (1 required per assembly)
		10-68513 - Screw [ More info ] $1.40 10 In Stock.
#49	26996	LOCKWASHER (#10) STAINLESS STEEL (1 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#50	86967	PLATE RETAINER (1 required per assembly)
		86967 - Plate [ More info ] $17.78 $15.06 10+ In Stock.
#51	99897	CAM SWITCH (1 required per assembly)
		99897 - Cam - Switch [ More info ] $8.46 $7.16 10+ In Stock.
#52	45328	SCREW (.437-20 X 3.560) (2 required per assembly)
		10-45328 - Screw, NLA [ More info ] Unavailable
#53	37807	WASHER (1 required per assembly)
		12-37807 - Washer, Trim Cylinder Screw (starboard Only) NLA [ More info ] $2.21 $1.88 4 In Stock.
#54	8M0143423	NUT NYLON (2 required per assembly) — Replaces: 35053
		11-8M0143423 - NUT, Priced Individually [ More info ] $9.49 1 In Stock.
#55	89111T	BRACKET (Starboard) (1 required per assembly)
		89111T - Bracket - Starboard, NLA [ More info ] $65.00 $55.06 1 In Stock.
#56	22053	NUT (.312-24) (2 required per assembly)
		11-22053 - Nut (5/16x24) [ More info ] $0.20 10+ In Stock.
#57	8M0204647	LOCKWASHER @5 (2 required per assembly) — Replaces: 26993
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#58	89290	PLUNGER (1 required per assembly)
		89290 - Limit Switch Actuating Plunger, NLA [ More info ] $7.99 $6.76 10 In Stock.
#59	95881	SPRING (1 required per assembly)
		24-95881 - Spring, Tension - Limit Switch Plunger,NLA [ More info ] $7.24 $6.13 10 In Stock.
#60	45282	STUD (.312-24 X 16.620) (1 required per assembly)
		16-45282 - Stud, NLA [ More info ] $24.14 $20.45 10+ In Stock.
#61	45326A2	SWITCH ASSEMBLY (1 required per assembly)
		45326A 2 - Switch Assembly, NLA [ More info ] Unavailable
#62	45354	BUSHING (1 required per assembly)
		23-45354 - Bushing [ More info ] $3.99 $3.37 10+ In Stock.
#63	47255	SCREW (#4-40 X .625) (2 required per assembly)
		10-47255 - Screw, NLA [ More info ] Unavailable
#64	892731	GASKET (1 required per assembly)
		27-89273 1 - Gasket [ More info ] $6.99 $5.91 10+ In Stock.
#65	89272	COVER SWITCH (1 required per assembly)
		89272 - Cover [ More info ] $15.22 $12.89 1 In Stock.
#66	38833	WASHER (4 required per assembly)
		12-38833 - Washer [ More info ] $3.79 $3.04 10+ In Stock.
#67	34994	SCREW (#10-32 X 1.00) STAINLESS STEEL (4 required per assembly)
		10-34994 - Screw [ More info ] $1.10 2 In Stock.
#68	45507	GROMMET (1 required per assembly)
		25-45507 - Grommet, Rubber [ More info ] $4.49 10+ In Stock.
#69	36070	SCREW (#10-32 X 1.250) (4 required per assembly)
		10-36070 - Screw - Priced Individually [ More info ] $3.10 10+ In Stock.
#70	87774A1	COVER (1 required per assembly)
		87774A 1 - Cover [ More info ] $48.82 10+ In Stock.
#71	87775	GASKET (1 required per assembly)
		27-87775 - Inlet Cover Gasket [ More info ] $10.89 Available to Order: Shipping delay up to 10 days.
#72	26996	LOCKWASHER (#10) STAINLESS STEEL (4 required per assembly)
#73	68219	NUT (#10-32) STAINLESS STEEL (4 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#74	816311T	TIE STRAP (8.00 INCHES) (5 required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#75	88005	HOSE TRIM (5.00 Feet, .375 Outside Diameter) (2 required per assembly)
		32-88005 - Hydraulic Hose Assembly [ More info ] $112.49 $107.76 1 In Stock.
		18-2110 - Power Trim Hose, Small Diameter, 32-88005 [ More info ] $99.39 7 In Stock.
#76	88006	HOSE LIFT (5.00 Feet, .531 Outside Diameter) (2 required per assembly)
		32-88006 - Hydraulic Hose Assembly [ More info ] $229.62 1 In Stock.
		18-2111 - Power Trim Hose, Large Diameter, 32-88006 [ More info ] $187.99 $173.48 6 In Stock.
#77	35977	GROMMET (.375 x .875) (2 required per assembly) — Replaces: 97191
		23-35977 - Bushing [ More info ] $16.29 1 In Stock.
#77	12602002	GROMMET (.437 x .875) (2 required per assembly) — Replaces: 12602, 126021
		25-12602002 - Grommet (.44 I.d.) [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#78	73519A1	STRAP TILT STOP (1 required per assembly)
		73519A 1 - Tilt Stop Assembly, NLA [ More info ] Unavailable
#79	63473	TUBE CUSHION (1 required per assembly)
		63473 - Tube, NLA [ More info ] $7.00 2 In Stock.
#80	69259	TUBE TILT STOP (1 required per assembly)
		69259 - Tube, NLA [ More info ] $19.39 10 In Stock.
#81	69258	PIN (1 required per assembly)
		69258 - Tilt Stop Pin [ More info ] $7.02 10 In Stock.
#82	39304	WASHER (1 required per assembly)
		12-39304 - Washer, NLA [ More info ] $3.26 $2.76 10+ In Stock.
#83	45882	COTTER PIN (Tilt Pin Retaining) (1 required per assembly)
		18-45882 - Cotter Pin - Priced Individually [ More info ] $3.03 10+ In Stock.
#84	328571	COTTER PIN (Mounting Tube Pin) (1 required per assembly) — Replaces: 32857
		[ More info ] Unavailable
#_	76509A27	POWER TRIM KIT (1 required per assembly)
		76509A27 - Power Trim Kit,NLA [ More info ] Unavailable
