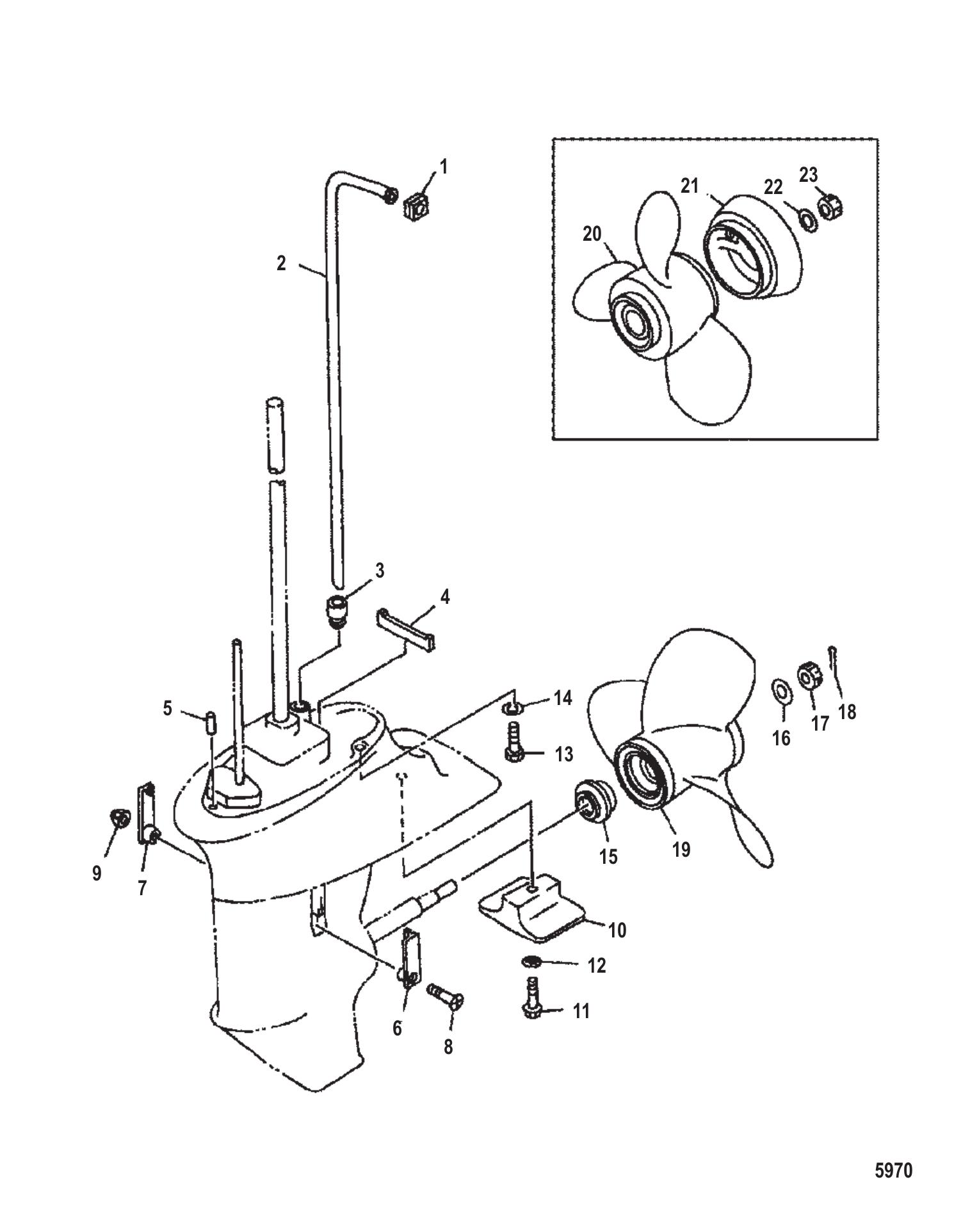

Parts for 15 K 2-Stroke Carbureted Mercury Outboard Motor Gear Housing
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 852867A1 | GASKET SET-L/UNIT (1 required per assembly) |
  |
|
27-852867A 1 - GASKET SET Lower NLA [ More info ] Unavailable |
| #1 | 852859 | SEAL (1 required per assembly) |
  |
|
26-852859 - Seal [ More info ] Unavailable |
| #2 | 80450011 | TUBE-WATER-LONG (1 required per assembly) |
  |
|
32-804500 11 - Water Tube-LONG [ More info ] Unavailable |
| #3 | 8528591 | SEAL (1 required per assembly) |
  |
|
26-8528591 - SEAL NLA [ More info ] Unavailable |
| #4 | 8528592 | DAMPER (1 required per assembly) |
  |
|
26-8528592 - DAMPER NLA [ More info ] Unavailable |
| #5 | 41275M | PIN (2 required per assembly) |
  |
|
17-41275M - Pin, Dowel [ More info ]
|
| #6 | 852861 | COVER (1 required per assembly) |
  |
|
852861 - COVER NLA [ More info ] Unavailable |
| #7 | 8528611 | COVER (1 required per assembly) |
  |
|
8528611 - COVER NLA [ More info ] Unavailable |
| #8 | 8527879 | SCREW (1 required per assembly) |
  |
|
10-8527879 - SCREW NLA [ More info ] Unavailable |
| #9 | 8528165 | NUT (1 required per assembly) |
  |
|
11-852816 5 - Nut [ More info ]
|
| #10 | 827053M | ANODE (1 required per assembly) |
  |
|
97-827053M - ANODE NLA [ More info ] Unavailable |
| #11 | 11561M | BOLT (1 required per assembly) |
  |
|
10-11561M - Bolt [ More info ]
|
| #12 | 827055M | WASHER (1 required per assembly) |
  |
|
12-827055M - WASHER [ More info ] Unavailable |
| #13 | 85277615 | BOLT (4 required per assembly) |
  |
|
10-852776 15 - BOLT,NLA [ More info ] Unavailable |
| #14 | 82217M | WASHER @5 (4 required per assembly) |
  |
|
12-82217M - Washer, NLA [ More info ]
|
| #15 | 815025M | WASHER-THRUST (1 required per assembly) |
  |
|
12-815025M - Thrust Washer [ More info ] Unavailable |
| #16 | 859894 | SPACER (1 required per assembly) |
  |
|
859894 - SPACER,NLA [ More info ] Unavailable |
| #17 | 859933 | PROP NUT (1 required per assembly) |
  |
|
859933 - Prop Nut, NLA [ More info ] Unavailable |
| #18 | 852862 | PIN-COTTER (1 required per assembly) |
  |
|
18-852862 - Cotter Pin [ More info ]
|
| #19 | QA3902R | BLKDI 9 1/4R8 (3 X 9-1/4 X 8) (1 required per assembly) — Replaces: QA3902T |
  |
|
QA3902R - Black Diamond Propi 9 1/4R8 [ More info ] Unavailable |
  |
|
Solas Amita 3 Blade Aluminum 8P 3111-093-08 [ More info ]
|
| #19 | 84083M | SEE QA SERIE PROP (3 X 9-1/2 X 6-1/2) (1 required per assembly) |
  |
|
48-84083M - Propeller, Black Max 9 1/4R6 1/2 [ More info ] Unavailable |
| #19 | QA3906R | BLKDI 9 1/4R9 (3 X 9-1/4 X 9) (1 required per assembly) — Replaces: QA3906T |
  |
|
QA3906R - Black Diamond Propi 9 1/4R9 [ More info ]
|
  |
|
Solas Amita 3 Blade Aluminum 9P 3111-093-09 [ More info ]
|
| #19 | QA3914R | BLKDMD 9.25R10 (3 X 9-1/4 X 10-1/2) (1 required per assembly) — Replaces: 84407M, 8M0060279, QA3914T |
  |
|
QA3914R - Black Diamond Prop 9.25R10 [ More info ]
|
  |
|
Solas Amita 3 Blade Aluminum 10P 3111-093-10 [ More info ]
|
| #19 | QA3920R | BLKDMD 9.25R11 (3 X 9-1/4 X 12) (1 required per assembly) — Replaces: 84079M, QA3920T |
  |
|
QA3920R - Black Diamond Prop 9.25R11 [ More info ] Unavailable |
 |
|
3111-093-12 - Prop Yamaha/Honda/MERC AL 9.9-15HP 1 [ More info ]
|
  |
|
2111-093-11P - Aluminum Prop 9.25X11 Pin Drive [ More info ]
|
| #20 | QA3902R | BLKDI 9 1/4R8 (3 X 9-3/4 X 6-1/2)(DUAL THRUST HUB) (1 required per assembly) — Replaces: 94786M, 8M0062303, 94787M |
| #21 | 827129M | DEFLECTOR RING (DUAL THRUST HUB) (1 required per assembly) |
  |
|
827129M - DEFLECTOR RING NLA [ More info ] Unavailable |
| #22 | 84974M | WASHER (DUAL THRUST HUB) (1 required per assembly) |
  |
|
12-84974M - Washer [ More info ] Unavailable |
| #23 | 827130M | NUT (DUAL THRUST HUB) (1 required per assembly) |
  |
|
11-827130M - NUT NLA [ More info ] Unavailable |
