Parts for 15 (2 Cyl.) (International) 2-Stroke Carbureted Mercury Outboard Motor Crankshaft, Pistons & Connecting Rods

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 15 (2 Cyl.) (International) > 0N055285 & Up > Crankshaft, Pistons & Connecting Rods

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

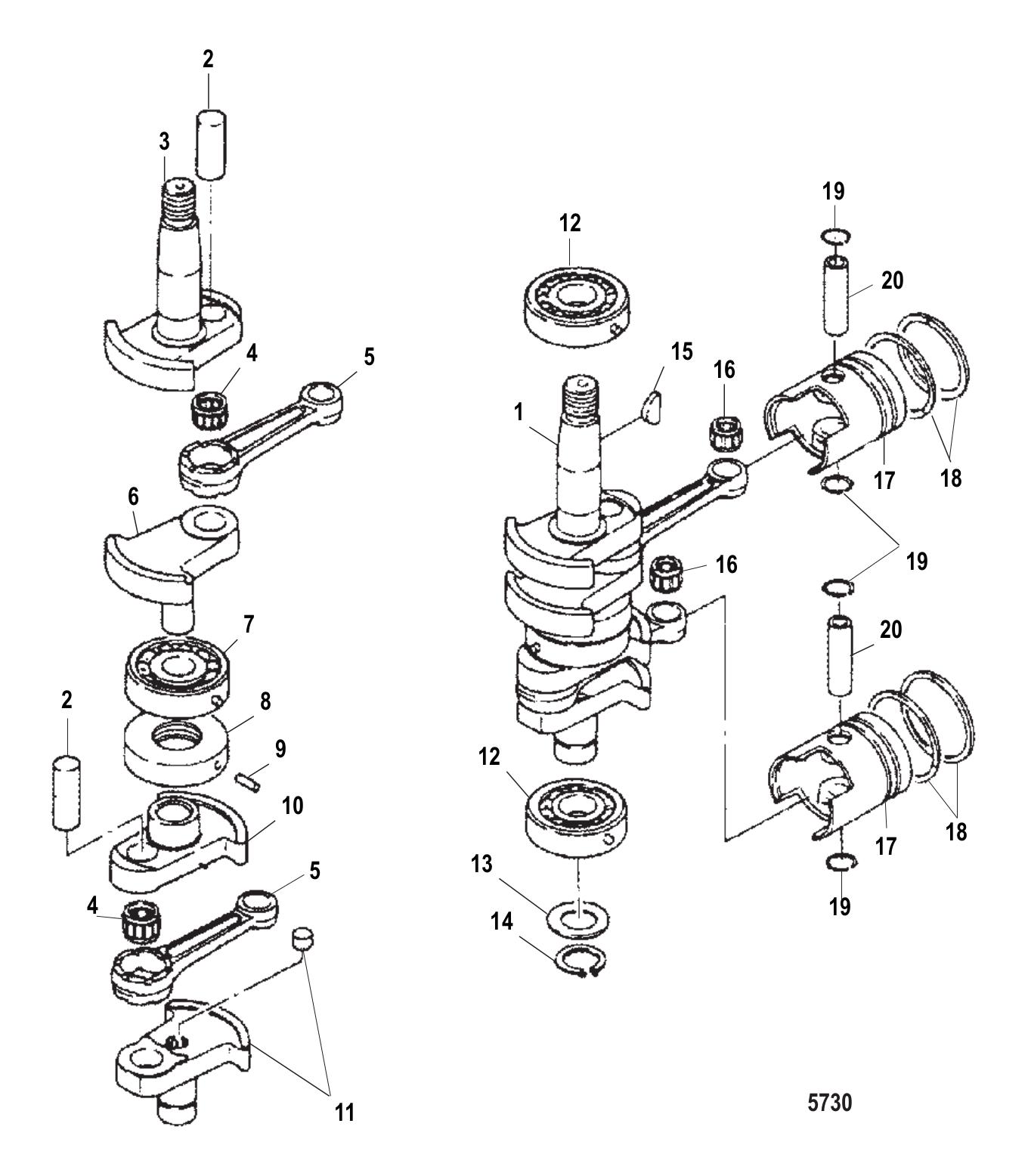

Crankshaft, Pistons & Connecting Rods

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0069509	POWERHEAD (15/18) (1 required per assembly) — Replaces: 803679A10, 8M0046405
		8M0069509 - 8M0069509 - POWERHEAD [ More info ] Unavailable Replaced by 61-8M0117952
		61-8M0117952 - 61-8M0117952 - POWERHEAD [ More info ] Unavailable Replaced by -8M0128520
		618M0128520 - Powerhead [ More info ] $1,550.00 Available to Order: Shipping delay up to 10 days.
#-	8M0133075	POWERHEAD (9.9) (1 required per assembly) — Replaces: 803679A08, 8M0047750
		61-8M0133075 - 61-8M0133075 - ->8M0157273 [ More info ] Unavailable Replaced by -8M0157273
		61-8M0157273 - POWERHEAD [ More info ] Unavailable
#1	8M0047749	CRANKSHAFT (1 required per assembly) — Replaces: 803672A04, 803672A09
		8M0047749 - CrankShaft [ More info ] $595.49 Available to Order: Shipping delay up to 10 days.
#2	8M0074253	CRANK PIN (2 required per assembly) — Replaces: 803673
		8M0074253 - Crank Pin [ More info ] $20.49 Available to Order: Shipping delay up to 10 days.
#3	803672A02	CRANKSHAFT KIT (1 required per assembly) — Replaces: 8036721
		474-803672A02 - CrankShaft Kit [ More info ] $247.49 Available to Order: Shipping delay up to 10 days.
#4	803675	BEARING NEEDLE (2 required per assembly)
		31-803675 - Bearing-Needle [ More info ] $15.59 Available to Order: Shipping delay up to 10 days.
#5	803674T	CONNECTING ROD (2 required per assembly) — Replaces: 803674
		629-803674T - Connecting Rod [ More info ] $88.99 Available to Order: Shipping delay up to 10 days.
#6	8M0090845	CRANKSHAFT B (1 required per assembly) — Replaces: 8036722
		4748M0090845 - CrankShaft B [ More info ] $193.49 Available to Order: Shipping delay up to 10 days.
#7	160494	BEARING BALL (1 required per assembly)
		30-16049 4 - Ball Bearing [ More info ] $33.29 Available to Order: Shipping delay up to 10 days.
#8	8036672	SEAL (1 required per assembly)
		26-803667 2 - Seal [ More info ] $29.99 Available to Order: Shipping delay up to 10 days.
#9	161791	PIN (1 required per assembly)
		[ More info ] Unavailable
#10	8M0090846	CRANKSHAFT C (1 required per assembly) — Replaces: 8036723
		4748M0090846 - CrankShaft C [ More info ] $195.99 Available to Order: Shipping delay up to 10 days.
#11	8036724	CRANKSHAFT D (1 required per assembly)
		474-803672 4 - CrankShaft D [ More info ] $209.99 Available to Order: Shipping delay up to 10 days.
#12	160494	BALL BEARING (2 required per assembly)
#13	853715	SPACER (1 required per assembly)
		23-853715 - Spacer [ More info ] $2.19 Available to Order: Shipping delay up to 10 days.
		23-8M0233349 - SPACER [ More info ] Unavailable
#14	853714	C CLIP (1 required per assembly)
		53-853714 - C Clip [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#15	160531	KEY (1 required per assembly)
		28-16053 1 - Key [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#16	16052	BEARING (2 required per assembly)
		31-16052 - Bearing - Roller - Connecting Rod [ More info ] $27.89 $26.72 2 In Stock.
#17	8M0103788	PISTON ASSY (Standard)(9.9) (2 required per assembly)
		7008M0103788 - Piston [ More info ] $126.99 Available to Order: Shipping delay up to 10 days.
#17	8M0103787	PISTON ASSEMBLY (0.5 Oversize)(9.9) (AR required per assembly) — Replaces: 803677003
		7008M0103787 - Piston [ More info ] $119.99 Available to Order: Shipping delay up to 10 days.
#17	8M0103789	PISTON ASSEMBLY (Standard)(15/18) (2 required per assembly) — Replaces: 803677, 803677T
		7008M0103789 - Piston [ More info ] $122.99 Available to Order: Shipping delay up to 10 days.
#17	8M0103790	PISTON ASSY (0.5 Oversize)(15/18) (A/R required per assembly)
		7008M0103790 - Piston [ More info ] $114.99 Available to Order: Shipping delay up to 10 days.
#17	803677T04	ORDER 8M0103788 (Standard)(9.9) (2 required per assembly) — Replaces: 803677002, 803677T02
		779-803677T04 - ORDER 8M0103788 [ More info ] Unavailable
#17	8M0065503	PISTON ASSEMBLY (0.5 Oversize)(15/18) (AR required per assembly) — Replaces: 8036771, 803677T01
		7008M0065503 - Piston [ More info ] $64.99 Available to Order: Shipping delay up to 10 days.
#18	8M0065495	RING SET (Standard)(9.9),Services one piston (2 required per assembly)
		398M0065495 - Piston Ring Set [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#18	8M0080353	RING SET PISTON (0.5 Oversize)(9.9),Services one piston (AR required per assembly) — Replaces: 803678A08
		398M0080353 - Piston Ring Set [ More info ] $38.49 Available to Order: Shipping delay up to 10 days.
#18	8M0065496	RING SET (Standard)(15/18),Services one piston (2 required per assembly)
		398M0065496 - Piston Ring Set [ More info ] $68.49 Available to Order: Shipping delay up to 10 days.
#18	8M0080352	RING SET PISTON (0.5 Oversize)(15/18),Services one piston (AR required per assembly) — Replaces: 803678A2
		398M0080352 - Piston Ring Set [ More info ] $38.49 Available to Order: Shipping delay up to 10 days.
#19	16057	CLIP COMPONENT OF PISTON ASSY (4 required per assembly)
		53-16057 - Clip [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#20	803680002	PIN-PISTON COMPONENT OF PISTON ASSY (15/18) (2 required per assembly) — Replaces: 803680
		41-803680002 - Pin-Piston [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#20	825713002	PIN PISTON COMPONENT OF PISTON ASSY (9.9) (2 required per assembly) — Replaces: 825713001
		41-825713002 - Piston Pin [ More info ] $15.39 Available to Order: Shipping delay up to 10 days.
