Parts for 15 (2 Cyl.) (International) 2-Stroke Carbureted Mercury Outboard Motor Swivel Bracket

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 15 (2 Cyl.) (International) > 0N001590 - 0N055284 > Swivel Bracket

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

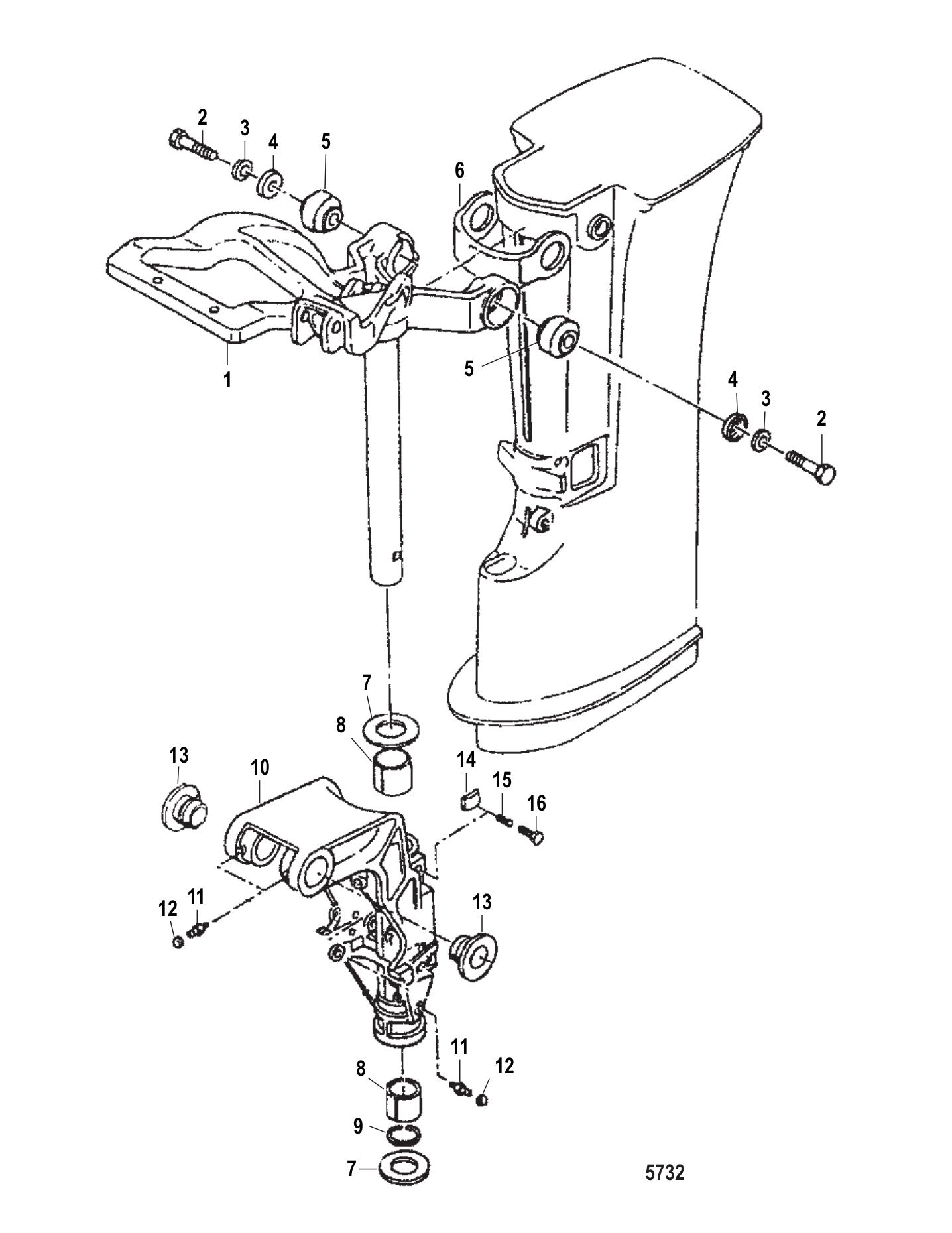

Swivel Bracket

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0149919	STEERING SHAFT (1 required per assembly) — Replaces: 803773
		8M0149919 - Steering Shaft [ More info ] $357.99 Available to Order: Shipping delay up to 10 days.
#2	803777	BOLT (2 required per assembly)
		10-803777 - Bolt [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#3	168261	WASHER (2 required per assembly)
		12-16826 1 - Washer [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#4	8M0056392	WASHER (2 required per assembly) — Replaces: 8538221, 853822003
		128M0056392 - Washer [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#5	8M0153613	MOUNT (2 required per assembly) — Replaces: 8037752
		8M0153613 - MOUNT [ More info ] $32.39 Available to Order: Shipping delay up to 10 days.
#6	803778	DAMPER (1 required per assembly)
		803778 - Damper [ More info ] $18.59 Available to Order: Shipping delay up to 10 days.
#7	803774	THRUST PLATE (2 required per assembly)
		803774 - Thrust Plate [ More info ] $14.89 Available to Order: Shipping delay up to 10 days.
#8	163363	BUSHING (2 required per assembly)
		23-16336 3 - Bushing [ More info ] $8.29 Available to Order: Shipping delay up to 10 days.
#9	161091	O RING (1 required per assembly)
		25-16109 1 - O-Ring [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#10	8M0099819	SWIVEL BRACKET KT (1 required per assembly) — Replaces: 803772
		8M0099819 - SWIVEL BRACKET KT [ More info ] Unavailable
#11	824969	FITTING (2 required per assembly)
		22-824969 - Fitting [ More info ] $8.99 3 In Stock.
#12	808599	CAP (2 required per assembly)
		808599 - Cap, NLA [ More info ] Unavailable
#13	8537435	BUSHING (2 required per assembly)
		23-853743 5 - Bushing [ More info ] $13.59 Available to Order: Shipping delay up to 10 days.
#14	162052	FRICTION PLATE (1 required per assembly)
		16205 2 - Friction Plate [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#15	953831	SPRING (1 required per assembly)
		24-95383 1 - Spring [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#16	4000354	SCREW @5 (1 required per assembly)
		10-40003 54 - Screw - Priced Individually [ More info ] $4.79 7 In Stock.
