Parts for 15 (2 Cyl.) (International) 2-Stroke Carbureted Mercury Outboard Motor Gear Housing Propeller Shaft

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 15 (2 Cyl.) (International) > 0N001590 - 0N055284 > Gear Housing Propeller Shaft

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

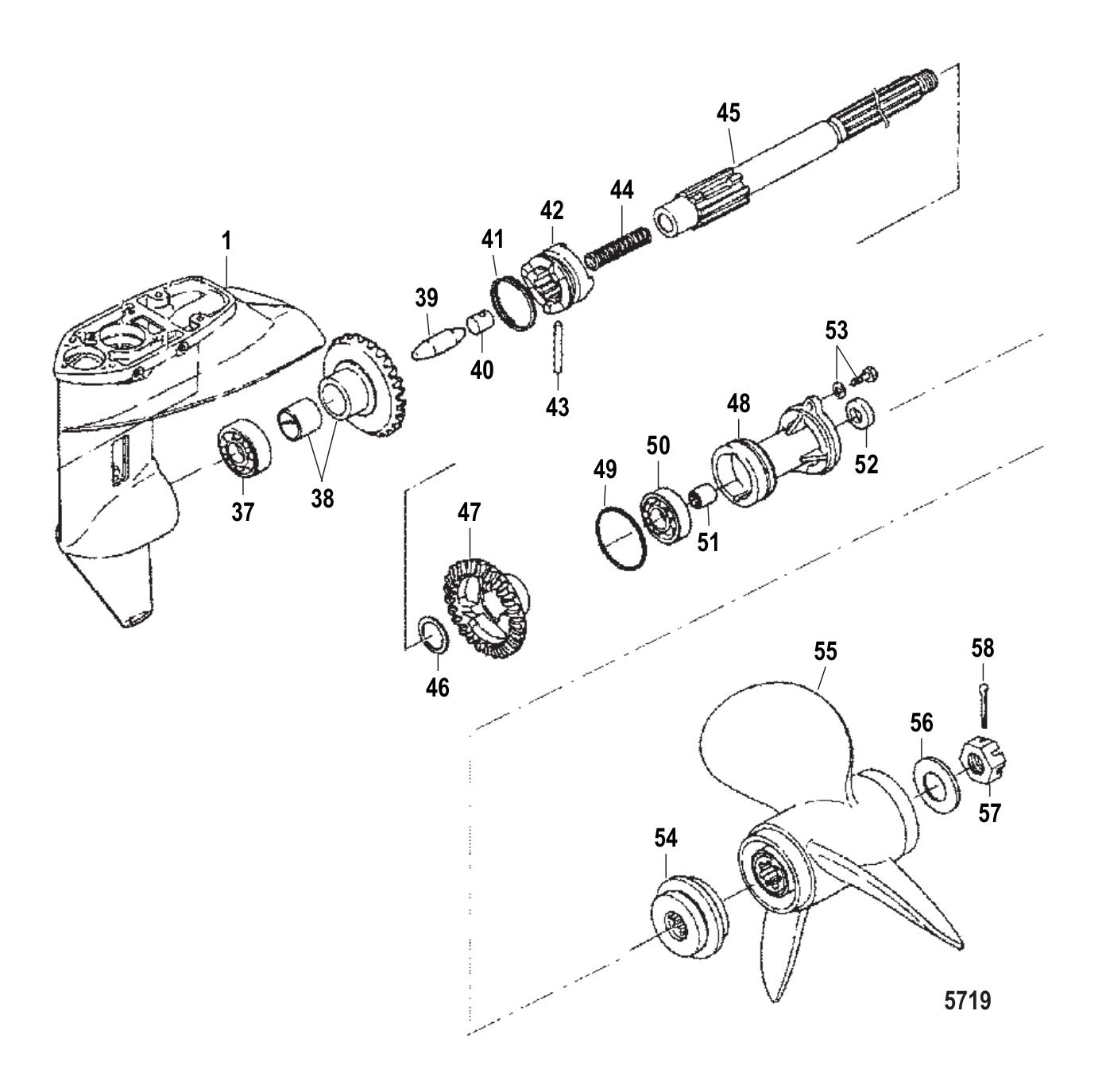

Gear Housing Propeller Shaft

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0070903	GC 9.9-18 2S SH (Short) (1 required per assembly) — Replaces: 803729A1
		16688M0070903 - Gearcase 9.9-18 2S SH [ More info ] $1,500.00 Available to Order: Shipping delay up to 10 days.
#-	8M0070904	GC HSG COMP INT L (Long) (1 required per assembly) — Replaces: 803729A2
		16688M0070904 - Gearcase Housing COMP INT [ More info ] Unavailable
#-	8M0075314	HUB-RUBBER (1 required per assembly) — Replaces: 879782
		8M0075314 - Hub-Rubber [ More info ] $104.99 Available to Order: Shipping delay up to 10 days.
#-	8M0075042	GASKET SET (1 required per assembly) — Replaces: 803728A99, 803728A02
		27-8M0075042 - 27-8M0075042 - GASKET SET [ More info ] Unavailable Replaced by 27-8M0082884
		278M0082884 - Gasket Set [ More info ] $72.49 Available to Order: Shipping delay up to 10 days.
#1	8M0070873	GC BASIC 8/9.9 4S BASIC (1 required per assembly) — Replaces: 803729A3, 895154T06
		16688M0070873 - Gearcase Basic 8/9.9 4S [ More info ] $557.49 Available to Order: Shipping delay up to 10 days.
#37	16132T01	BEARING BALL (1 required per assembly) — Replaces: 161321
		30-16132T01 - Ball Bearing [ More info ] $44.49 Available to Order: Shipping delay up to 10 days.
#38	8M0183172	FORWARD GEAR (1 required per assembly) — Replaces: 803739, 8M0183170
		43-8M0183172 - FORWARD GEAR [ More info ] Unavailable
#39	803747	PUSH ROD (1 required per assembly)
		803747 - Push Rod [ More info ] $28.59 Available to Order: Shipping delay up to 10 days.
#40	853764003	RETAINER (1 required per assembly) — Replaces: 853764
		853764003 - Retainer [ More info ] $33.11 1 In Stock.
#41	803746	SPRING (1 required per assembly)
		24-803746 - Spring [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#42	803745	CLUTCH (1 required per assembly)
		52-803745 - Clutch [ More info ] $240.99 Available to Order: Shipping delay up to 10 days.
#43	160851	PIN (1 required per assembly)
		17-16085 1 - Clutch Pin [ More info ] $12.39 Available to Order: Shipping delay up to 10 days.
#44	176672	SPRING (1 required per assembly)
		24-17667 2 - Spring [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#45	879147T96	PROPELLER SHAFT (1 required per assembly) — Replaces: 803744, 879147096
		44-879147T96 - Propeller Shaft [ More info ] Unavailable
		448M0088568 - Propeller Shaft [ More info ] $368.49 Available to Order: Shipping delay up to 10 days.
#46	803742	WASHER (1 required per assembly)
		12-803742 - Washer [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#47	8M0183196	REVERSE GEAR (1 required per assembly) — Replaces: 803741
		438M0183196 - REVERSE GEAR [ More info ] $131.49 Available to Order: Shipping delay up to 10 days.
#48	8M0070877	CARRIER-BEARING (1 required per assembly) — Replaces: 803732A1, 803732T04
		8M0070877 - Bearing Carrier [ More info ] $179.49 Available to Order: Shipping delay up to 10 days.
#49	8M0087846	O-RING (1 required per assembly) — Replaces: 803735
		258M0087846 - O-Ring [ More info ] $10.19 Available to Order: Shipping delay up to 10 days.
#50	16132T01	BEARING BALL (1 required per assembly) — Replaces: 161321
#51	803734	BEARING NEEDLE (1 required per assembly)
		31-803734 - Needle Bearing [ More info ] $46.43 1 In Stock.
#52	161622	SEAL OIL (1 required per assembly)
		26-16162 2 - Oil Seal [ More info ] $19.37 3 In Stock.
#53	823042	BOLT (2 required per assembly)
		10-823042 - Bolt [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#54	8M0143215	THRUST HOLDER (1 required per assembly) — Replaces: 803743
		8M0143215 - Thrust Holder [ More info ] $38.49 Available to Order: Shipping delay up to 10 days.
#55	879781A10	BLKMAX 6 IN P (1 required per assembly) — Replaces: 879781
		48-879781A10 - BLKMAX 6 IN P,NLA [ More info ] Unavailable
#55	879779A10	BLKMAX 7 IN P (1 required per assembly) — Replaces: 879779
		48-879779A10 - 48-879779A10 - BLACK MAX PROPELL [ More info ] Unavailable Replaced by -8M0075313
		488M0075313 - Propeller 7 Inch [ More info ] Unavailable
#55	897748A10	BLKMAX 9.50X8 RH (1 required per assembly) — Replaces: 879780, 879780A10
		48-897748A10 - BLKMAX 9.50X8 RH [ More info ] Unavailable
		48-897748A11 - Black Max Prop 9.5 X 8 RH [ More info ] $181.97 Available to Order: Shipping delay up to 10 days.
#55	803832A10	PROPELLER (1 required per assembly) — Replaces: 803832
		48-803832A10 - Propeller,NLA [ More info ] Unavailable
#55	897750A10	BLKMAX 9.25X9 RH (1 required per assembly) — Replaces: 8038321, 853790A10
		48-897750A10 - BLKMAX 9.25X9 RH [ More info ] Unavailable
		48-897750A11 - Black Max Prop 9.25 X 9 R [ More info ] $181.97 Available to Order: Shipping delay up to 10 days.
#56	161402	WASHER (1 required per assembly)
		12-16140 2 - Washer [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#57	161471	PROP NUT (1 required per assembly)
		11-16147 1 - Prop Nut [ More info ] $12.12 Available to Order: Shipping delay up to 10 days.
#58	8150264	COTTER PIN (1 required per assembly)
		18-815026 4 - Cotter Pin [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
