Parts for 15 (2 Cyl.) (International) 2-Stroke Carbureted Mercury Outboard Motor Cylinder Block
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0065498 | GASKET SET (18) (1 required per assembly) — Replaces: 803663A99, 803663A29 |
  |
|
27-8M0065498 - 27-8M0065498 - GASKET SET [ More info ] Unavailable Replaced by -8M0141830 |
  |
|
278M0141830 - Gasket Set [ More info ]
|
  |
|
27-8M0231500 - GASKET SET [ More info ] Unavailable |
| #- | 8M0065497 | GASKET SET (15) (1 required per assembly) — Replaces: 803663A01, 803663A30 |
  |
|
278M0065497 - Gasket Set [ More info ]
|
| #- | 803679A10 | PH 18 2S (INT L) (18) [0N046439] & Below (1 required per assembly) — Replaces: 803679A1, 803679A4 |
  |
803679A10 - 8M0046405 [ More info ] Unavailable |
|
  |
|
8M0046405 - ORD 8M0069509 NLA [ More info ] Unavailable |
| #- | 8M0069509 | POWERHEAD (18) [0N046440] & Up (1 required per assembly) — Replaces: 803679A10, 8M0046405 |
  |
|
8M0069509 - 8M0069509 - POWERHEAD [ More info ] Unavailable Replaced by 61-8M0117952 |
  |
|
61-8M0117952 - 61-8M0117952 - POWERHEAD [ More info ] Unavailable Replaced by -8M0128520 |
  |
|
618M0128520 - Powerhead [ More info ]
|
| #- | 8M0047750 | ORD 8M0133075 (15) [0N046439] & Below (1 required per assembly) — Replaces: 803679A06, 803679A08 |
  |
|
8M0047750 - Powerhead [ More info ] Unavailable |
| #- | 8M0133075 | POWERHEAD (15) [0N046440] & Up (1 required per assembly) — Replaces: 803679A08, 8M0047750 |
  |
|
61-8M0133075 - 61-8M0133075 - ->8M0157273 [ More info ] Unavailable Replaced by -8M0157273 |
  |
|
61-8M0157273 - POWERHEAD [ More info ] Unavailable |
| #1 | 8M0148782 | CYLINDER BLK ASSY (18) (1 required per assembly) — Replaces: 803660A1, 8M0147033 |
  |
|
8008M0148782 - CYLINDER BLK ASSY [ More info ]
|
| #1 | 803660A06 | CYLINDER BLOCK (15) (1 required per assembly) |
  |
|
878803660A06 - Cylinder Block [ More info ]
|
| #2 | 8129601 | NIPPLE [0N010369] & Below (2 required per assembly) |
  |
|
22-812960 1 - Fitting [ More info ]
|
| #2 | 8M0064617 | FITTING-NIPPLE [0N010370] & Up (2 required per assembly) — Replaces: 812960 |
  |
|
228M0064617 - Nipple Fitting [ More info ]
|
| #3 | 812960A01 | NIPPLE/CHECK VALV [0N010369] & Below (1 required per assembly) — Replaces: 853696 |
  |
|
22-812960A01- Nipple/CHECK VALV [ More info ]
|
| #3 | 812960006 | NIPPLE [0N010370] & Up (1 required per assembly) |
  |
|
22-812960006 - Nipple [ More info ]
|
| #4 | 16119 | PIN DOWEL (2 required per assembly) |
  |
|
17-16119 - Dowel Pin [ More info ]
|
| #5 | 166951 | BOLT (10 required per assembly) — Replaces: 8150686 |
  |
|
10-16695 1 - Bolt [ More info ]
|
| #6 | 16826 | WASHER STAINLESS STEEL (10 required per assembly) — Replaces: 8M0074853, 879194338 |
  |
|
12-16826 - Washer, Stainless Steel [ More info ]
|
| #7 | 16700 | CHECK VALVE (1 required per assembly) |
  |
|
21-16700 - Check Valve -TH [ More info ]
|
| #8 | 8130282 | SPRING (1 required per assembly) |
  |
|
24-813028 2 - Spring [ More info ]
|
| #9 | 803661 | PLUG (1 required per assembly) |
  |
|
19-803661 - Plug [ More info ]
|
| #10 | 16832 | BOLT (1 required per assembly) |
  |
|
|
| #11 | 823913Q | ANODE(ALUM) @2 (1 required per assembly) — Replaces: 823913 |
  |
|
97-823913Q - Anode, Aluminum [ More info ]
|
| #12 | 8M0069700 | CYLINDER HEAD (18) (1 required per assembly) — Replaces: 803662 |
  |
|
9008M0069700 - Cylinder Head [ More info ]
|
| #12 | 803662003 | CYLINDER HEAD (15) (1 required per assembly) |
  |
|
979803662003 - Cylinder Head [ More info ]
|
| #13 | 8M0141796 | GASKET (18) (1 required per assembly) — Replaces: 803663, 803663019 |
  |
278M0141796 - Gasket [ More info ] Unavailable |
|
  |
|
27-8M0245737 - GASKET [ More info ]
|
| #13 | 803663034 | GASKET (15) (1 required per assembly) — Replaces: 803663018 |
  |
|
27803663034 - Gasket [ More info ]
|
| #14 | 168282 | BOLT (2 required per assembly) |
  |
|
10-16828 2 - Bolt [ More info ]
|
| #15 | 853705A01 | ORD PARTS SEPARAT (1 required per assembly) — Replaces: 853705 |
  |
|
853705A01 - Cover Kit [ More info ] Unavailable |
| #16 | 813275 | CLAMP [0N004305] & Up (1 required per assembly) |
  |
|
54-813275 - Clamp [ More info ]
|
| #17 | 853702005 | GASKET (1 required per assembly) — Replaces: 853702 |
  |
27-853702005 - New part # is 278M0214960 [ More info ] Unavailable |
|
  |
|

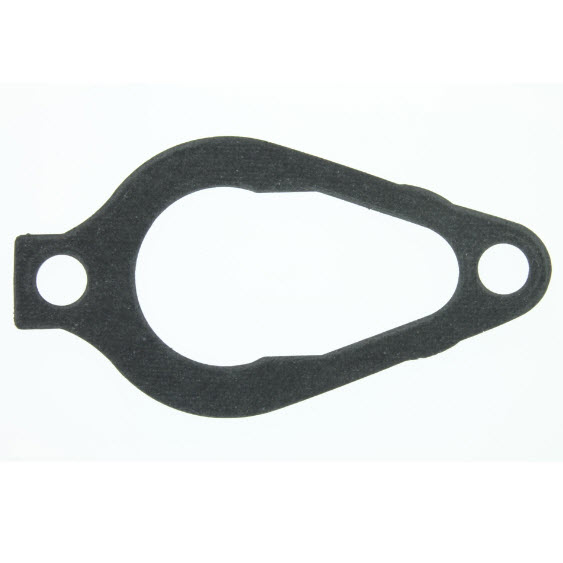

278M0214960 - Gasket [ More info ]
|
| #18 | 803665 | THERMOSTAT (1 required per assembly) |
  |
|
803665 - Thermostat [ More info ]
|
  |
|
8M0228411 - THERMOSTAT [ More info ] Unavailable |
| #19 | 828942 | NGK BR7HS-10@10 (NGK#B7HS-10) (2 required per assembly) — Replaces: 41263M, 8M0114740 |
  |
33-828942 - NGK Spark Plug BR7HS-10 - Priced Individually [ More info ] Unavailable |
|
  |
|
33-8M0181925 - NGK BR7HS-4 @4 [ More info ] Unavailable |
| #19 | 8M0114744 | SP BP7HS-10 @4 (With Resistance - NGK#BR7HS-10) (OPT required per assembly) — Replaces: 97184 |
  |
|
338M0114744 - S Plug BP7HS - Priced Individually [ More info ]
|
| #20 | 803664 | BOLT (10 required per assembly) |
  |
|
10-803664 - Bolt [ More info ]
|
| #21 | 4002217 | WASHER @3 (10 required per assembly) |
  |
|
12-40022 17 - Washer, Carburetor Stud [ More info ]
|
| #22 | 8M0065484 | COVER ASSY (1 required per assembly) — Replaces: 803666, 8M0073135 |
  |
|
8M0065484 - Cover [ More info ]
|
| #23 | 803663024 | GASKET (1 required per assembly) — Replaces: 8036631 |
  |
|
27-803663024 - Gasket [ More info ]
|
| #24 | 8M0065485 | EXHAUST COVER (1 required per assembly) — Replaces: 8036661 |
  |
|
8M0065485 - Exhaust Cover [ More info ]
|
| #25 | 803663025 | GASKET (1 required per assembly) — Replaces: 8036632 |
  |
|
27-803663025 - Gasket [ More info ]
|
| #26 | 8150683 | BOLT (11 required per assembly) |
  |
|
10-815068 3 - Bolt [ More info ]
|
| #27 | 16826 | WASHER (11 required per assembly) — Replaces: 879194338 |
| #28 | 803671 | THRUST PLATE (1 required per assembly) |
  |
|
803671 - Thrust Plate [ More info ]
|
| #29 | 8036711 | THURST PLATE (1 required per assembly) |
  |
|
803671 1 - Thrust Plate [ More info ]
|
| #30 | 803670 | O RING (1 required per assembly) |
  |
|
25-803670 - O-Ring [ More info ]
|
| #31 | 8M0065585 | OIL SEAL (1 required per assembly) — Replaces: 8036671 |
  |
|
268M0065585 - Oil Seal [ More info ]
|
| #32 | 803663020 | GASKET (1 required per assembly) — Replaces: 8036636 |
  |
|
27-803663020 - Gasket [ More info ]
|
| #33 | 16119 | DOWEL PIN (2 required per assembly) |
| #34 | 95224 | CLIP (4 required per assembly) |
  |
|
|
| #35 | 8M0057112 | HOSE (1 required per assembly) — Replaces: 952234, 8129404 |
  |
|
328M0057112 - Hose [ More info ]
|
| #36 | 8M0057112 | HOSE [0N010369] & Below (1 required per assembly) — Replaces: 8129403, 8129404 |
| #36 | 879194473 | HOSE [0N010370] & Up (1 required per assembly) — Replaces: 898101272 |
  |
|
32-879194473 - Hose [ More info ]
|
| #37 | 853709 | O RING (1 required per assembly) |
  |
|
25-853709 - O-Ring [ More info ]
|
| #38 | 803667 | OIL SEAL (1 required per assembly) |
  |
|
26-803667 - Oil Seal [ More info ]
|
| #39 | 803668 | END CAP (1 required per assembly) |
  |
|
1100-803668 - END CAP Upper [ More info ] Unavailable |
| #40 | 803669 | SET RING (1 required per assembly) |
  |
|
803669 - SET Ring [ More info ]
|
| #41 | 853711 | GUIDE PLATE (1 required per assembly) |
  |
|
853711 - Guide Plate [ More info ]
|
| #42 | 166953 | BOLT (2 required per assembly) |
  |
|
10-166953 - BOLT [ More info ] Unavailable |
