Parts for 15 (2 Cyl.) (International) 2-Stroke Carbureted Mercury Outboard Motor Carburetor

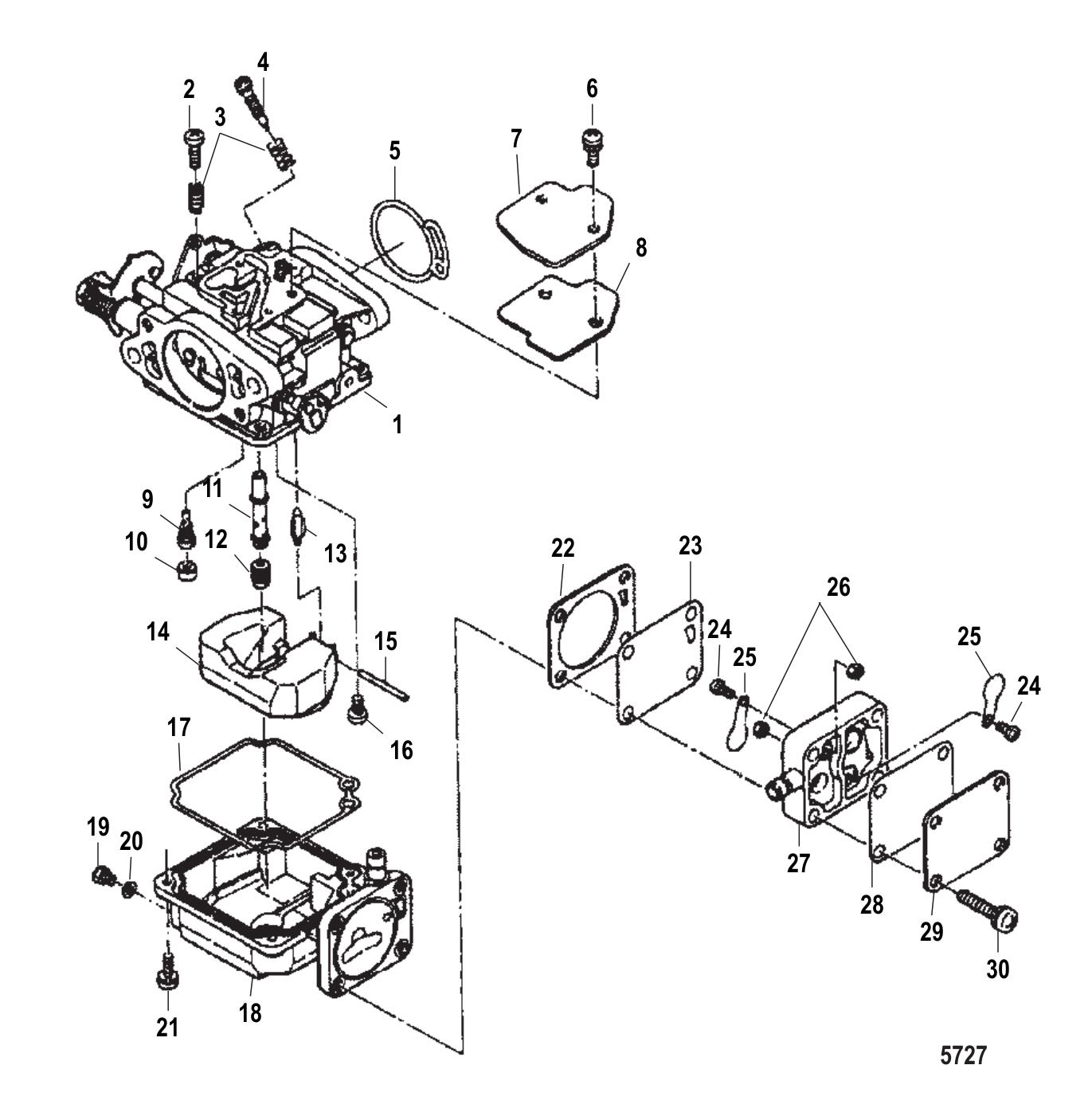

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0039870 | REPAIR KIT-CARB (1 required per assembly) — Replaces: 803826A1 |
  |
|
8M0039870 - Carburetor Repair Kit [ More info ]
|
| #- | 8M0065498 | GASKET SET (18) (1 required per assembly) — Replaces: 803663A99, 803663A29 |
  |
|
27-8M0065498 - 27-8M0065498 - GASKET SET [ More info ] Unavailable Replaced by -8M0141830 |
  |
|
278M0141830 - Gasket Set [ More info ]
|
  |
|
27-8M0231500 - GASKET SET [ More info ] Unavailable |
| #- | 8M0065497 | GASKET SET (15) (1 required per assembly) — Replaces: 803663A01, 803663A30 |
  |
|
278M0065497 - Gasket Set [ More info ]
|
| #1 | 803687T01 | CARBURETOR (1 required per assembly) — Replaces: 803687A1 |
  |
|
3303-803687T01 - Carburetor [ More info ]
|
| #2 | 8M0054702 | SCREW (1 required per assembly) — Replaces: 162631 |
  |
|
108M0054702 - Screw [ More info ]
|
| #3 | 803509A17 | SCREW AND SPRING KIT (18 MM) (2 required per assembly) — Replaces: 162641 |
  |
|
10-803509A17 - Screw/Spring Kit [ More info ]
|
| #4 | 803690 | SCREW ADJUSTING (1 required per assembly) |
  |
|
10-803690 - Screw-Adjust [ More info ]
|
| #5 | 161783 | O-RING ( required per assembly) |
  |
|
0161783 [ More info ] Unavailable Replaced by 0161917 |
  |
|
[ More info ] Unavailable |
| #6 | 809571003 | SCREW (2 required per assembly) — Replaces: 8555421 |
  |
|
10-809571003 - Screw [ More info ]
|
| #7 | 8555401 | COVER CARBURETOR (1 required per assembly) |
  |
|
8555401 - COVER [ More info ] Unavailable |
| #8 | 8555412 | GASKET (1 required per assembly) |
  |
|
27-855541 2 - Gasket [ More info ]
|
| #9 | 803689 | JET PILOT (#80) (1 required per assembly) |
  |
|
803689 - Pilot Jet (#80) [ More info ]
|
| #10 | 855566 | PLUG (1 required per assembly) |
  |
|
19-855566 - Plug [ More info ]
|
| #11 | 803692 | MAIN NOZZLE (1 required per assembly) |
  |
|
803692 - Main Nozzle [ More info ]
|
| #12 | 803688 | JET MAIN (#110) (1 required per assembly) |
  |
|
803688 - Main Jet #116 [ More info ]
|
| #13 | 162545 | FLOAT NEEDLE (1 required per assembly) — Replaces: 162542 |
  |
|
16254 5 - Float Needle [ More info ]
|
| #14 | 162532 | FLOAT (1 required per assembly) |
  |
|
|
| #15 | 162561 | PIN (1 required per assembly) |
  |
|
17-16256 1 - Float Pin [ More info ]
|
| #16 | 8536981 | SCREW (1 required per assembly) |
  |
|
10-853698 1 - Screw [ More info ]
|
| #17 | 855567 | GASKET (1 required per assembly) |
  |
|
27-855567 - Plug Gasket [ More info ]
|
| #18 | 803691 | FLOAT BOWL (1 required per assembly) |
  |
|
803691 - Float Bowl [ More info ]
|
| #19 | 8M0054703 | SCREW (1 required per assembly) — Replaces: 162613 |
  |
108M0054703 - Screw [ More info ] Unavailable |
|
  |
|
10-803509013 - Drain Screw [ More info ]
|
| #20 | 8555671 | GASKET (1 required per assembly) |
  |
27-855567 1 - Gasket [ More info ] Unavailable |
|
  |
|
27-8M0224378 - GASKET [ More info ] Unavailable |
| #21 | 162603 | SCREW (4 required per assembly) |
  |
|
10-16260 3 - Screw [ More info ]
|
| #22 | 8555691 | GASKET (1 required per assembly) |
  |
|
27-855569 1 - Gasket [ More info ]
|
| #23 | 8537312 | DIAPHRAGM (1 required per assembly) |
  |
|
853731 2 - Diaphragm [ More info ]
|
| #24 | 851813 | SCREW (2 required per assembly) |
  |
|
10-851813 - Screw [ More info ]
|
| #25 | 851812 | CHECK VALVE (2 required per assembly) |
  |
|
21-851812 - Check Valve [ More info ]
|
| #26 | 851814 | NUT (2 required per assembly) |
  |
|
|
| #27 | 8537291 | HOUSING PUMP (1 required per assembly) |
  |
|
853729 1 - Pump Housing [ More info ]
|
| #28 | 855569 | GASKET (1 required per assembly) |
  |
|
27-855569 - Lower Carburetor Gasket [ More info ]
|
| #29 | 855568 | COVER (1 required per assembly) — Replaces: 803693 |
  |
|
|
| #30 | 8M0062252 | SCREW (4 required per assembly) — Replaces: 162604, 8M0052624 |
  |
|
108M0062252 - Screw [ More info ]
|
