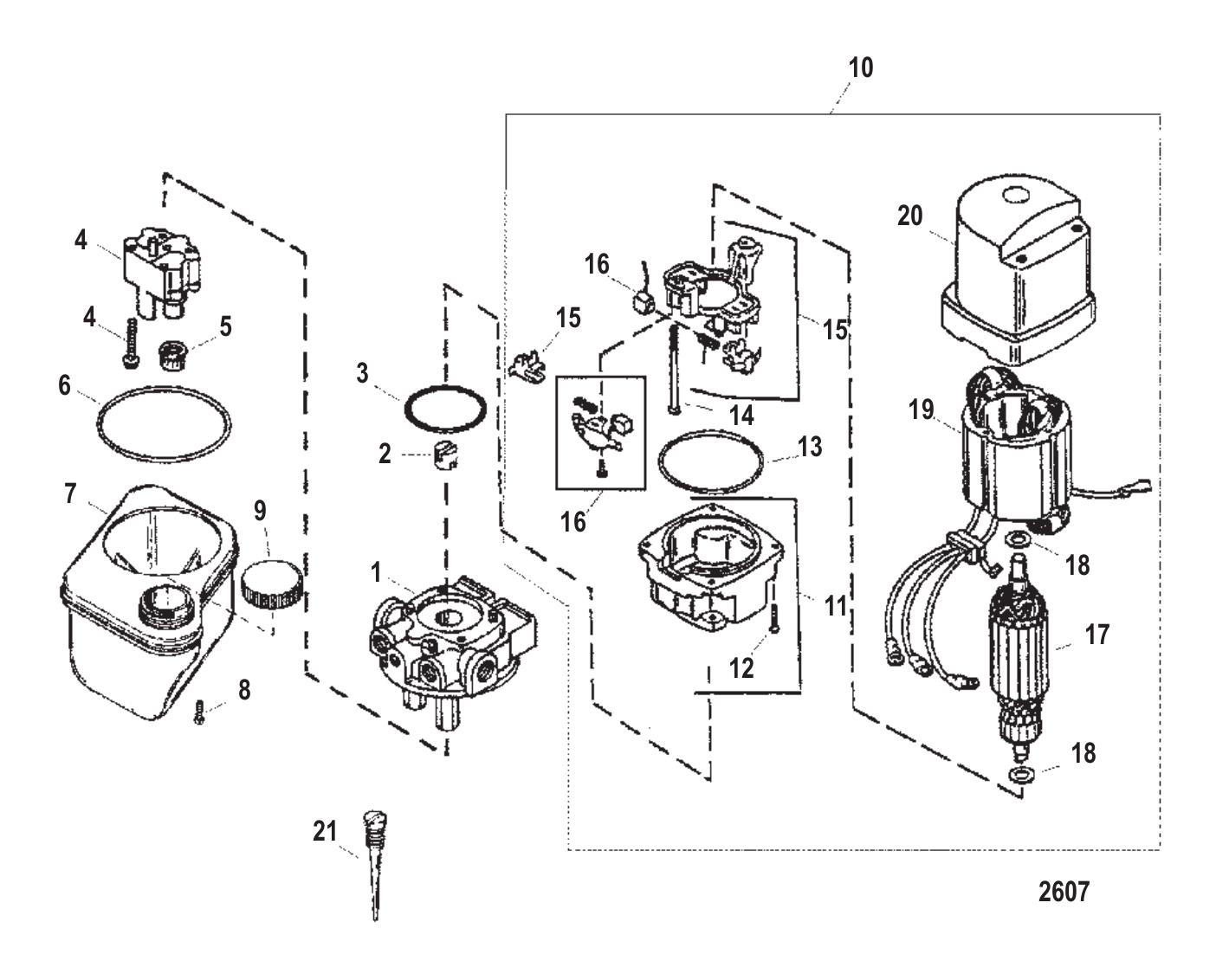

Mercury Marine K-planes Trim / Tilt / Lift Systems & Components Pump / Motor, Plastic Reservoir (Design I - 849670A1)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 849670T01 | PUMP ASSY-TRIM (Design I, Plastic Reservoir) (1 required per assembly) — Replaces: 849670A1 |
  |
|
849670T01 - Trim Pump Assembly [ More info ]
|
| #1 | NSS | NOT SOLD SEPARATE ADAPTOR (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #2 | 803852 | COUPLING (1 required per assembly) — Replaces: 89493 |
  |
|
803852 - Coupling [ More info ]
|
| #3 | 89498 | O-RING MOTOR TO ADAPTOR (1 required per assembly) |
  |
|
25-89498 - O-ring, Motor To Adaptor [ More info ]
|
| #4 | 811492T | PUMP ASSEMBLY WITH SCREWS (1 required per assembly) — Replaces: 811492 |
  |
|
|
| #5 | 89496 | FILTER (2 required per assembly) |
  |
|
35-89496 - Filter [ More info ]
|
| #6 | 17645 | O-RING RESERVOIR TO ADAPTOR (1 required per assembly) |
  |
|
25-17645 - O-ring, Reservoir To Adaptor [ More info ]
|
| #7 | 18525A1 | RESERVOIR (No Longer Available. See MCM Parts Bulletin Number 2001-04) (1 required per assembly) |
  |
|
18525A 1 - REF MCM PB 01-0,NLA [ More info ] Unavailable |
  |
|
18-6771 - Tilt Trim Reservoir 18-6771 [ More info ]
|
  |
|
M525 - Reservoir, 18525A1 [ More info ]
|
| #8 | 18527 | SCREW INCLUDES O-RING (1 required per assembly) |
  |
|
10-18527 - Screw And O-Ring [ More info ]
|
| #9 | 865448A01 | CAP OIL RESERVOIR (Rough Water Application) (1 required per assembly) — Replaces: 18526, 861597 |
  |
36-865448A01 - Cap - Oil Reservoir [ More info ] Unavailable |
|
  |
|
36-8M0188327 - CAP-OIL RESERVOIR [ More info ] Unavailable |
| #10 | 891736T | MOTOR ASSEMBLY (Design I - Small Manufacturing Decal on Top of Motor Cover and Wires Will Have White Spiral Line) (1 required per assembly) — Replaces: 17649T |
  |
|
891736T - Motor Assembly - Trim [ More info ]
|
  |
|
18-6772 - Trim Pump Motor [ More info ]
|
  |
|
10-17626 - Ord 891736T [ More info ]
|
  |
|
6218 - Tilt Trim Motor [ More info ]
|
| #11 | 891736T | MOTOR ASSEMBLY WITH BEARING (1 required per assembly) — Replaces: 17632T |
| #12 | 891736T | MOTOR ASSEMBLY (4 required per assembly) — Replaces: 17626 |
| #13 | 891736T | MOTOR ASSEMBLY FRAME TO HOUSING (1 required per assembly) — Replaces: 17625 |
| #14 | 891736T | MOTOR ASSEMBLY (2 required per assembly) — Replaces: 17621 |
| #15 | 891736T | MOTOR ASSEMBLY BRUSHES (1 required per assembly) — Replaces: 17633 |
| #16 | 891736T | MOTOR ASSEMBLY (1 required per assembly) — Replaces: 17631A1 |
| #17 | 891736T | MOTOR ASSEMBLY (1 required per assembly) — Replaces: 17623 |
| #18 | 891736T | MOTOR ASSEMBLY THRUST (2 required per assembly) — Replaces: 17653 |
| #19 | 891736T | MOTOR ASSEMBLY (1 required per assembly) — Replaces: 17624 |
| #20 | 891736T | MOTOR ASSEMBLY WITH BEARING (1 required per assembly) — Replaces: 17622 |
| #21 | 89499 | DIPSTICK (1 required per assembly) |
  |
|
89499 - Dipstick [ More info ]
|
| #NS | 812498A1 | VALVE KIT-RELIEF (1 required per assembly) |
  |
|
812498A 1 - Relief Valve Kit [ More info ]
|
