Parts for 15 2-Stroke Carbureted Mercury Outboard Motor Carb (6 / 8) (9.9 -USA-S/N 0G112449 / Bel-S/N 9831799 & Below)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 15 > 9792200 - 0P016999 - Belgium > Carb (6 / 8) (9.9 -USA-S/N 0G112449 / Bel-S/N 9831799 & Below)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

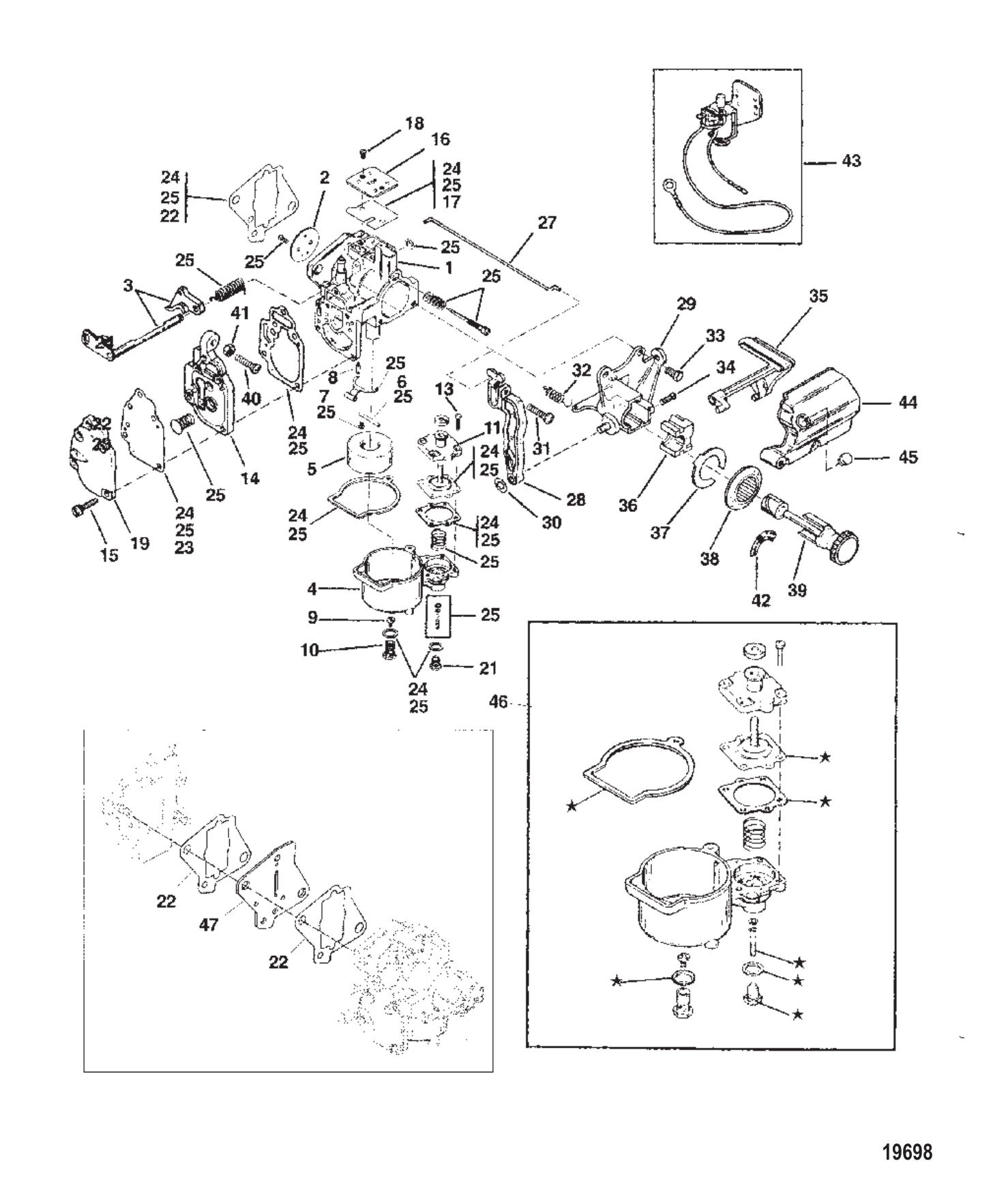

Carb (6 / 8) (9.9 -USA-S/N 0G112449 / Bel-S/N 9831799 & Below)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	42364A92	GASKET SET (1 required per assembly)
		27-42364A92 - Engine Gasket Set [ More info ] $114.69 1 In Stock.
#1	9266A21	CARBURETOR (6/8) (WMC-41) (1 required per assembly) — Replaces: 9266A14, 9266A16
		1392-9266A21 - Carburetor [ More info ] Unavailable
		1392-9266T22 - Carburetor [ More info ] $484.49 Available to Order: Shipping delay up to 10 days.
#1	9266T22	CARBURETOR (6/8) (WMC-41A) (1 required per assembly) — Replaces: 9266A16, 9266A21
#1	9503A20	CARBURETOR (6) (WMC-57) (1 required per assembly) — Replaces: 9503A13, 9503A15
		1392-9503A20 - Carburetor [ More info ] Unavailable
		1392-9503T21 - Carburetor [ More info ] Unavailable
#1	8846A24	CARBURETOR KIT (9.9) (WMC-23) (1 required per assembly) — Replaces: 8846A14
		1392-8846A24 - Carburetor Kit [ More info ] Unavailable
#2	9473	VALVE THROTTLE (WMC-20B/57) (1 required per assembly)
		1395-9473 - Throttle Valve [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#2	94731	VALVE THROTTLE (WMC-41) (1 required per assembly)
		1395-9473 1 - Throttle Valve [ More info ] $25.99 Available to Order: Shipping delay up to 10 days.
#2	815133	VALVE THROTTLE (WMC-23/41A) (1 required per assembly)
		815133 - VALVE-THROTTLE,NLA [ More info ] Unavailable
#3	804707	SHAFT (WMC-20B/57) (1 required per assembly) — Replaces: 9698
		1395-804707 - Throttle Shaft [ More info ] Unavailable
#3	96981	SHAFT (WMC-41) (1 required per assembly)
		96981 - SHAFT NLA [ More info ] Unavailable
#3	813022	SHAFT THROTTLE (INCL. SCREW/SPRING) (WMC-23/41A) (1 required per assembly)
		813022 - Throttle Shaft [ More info ] $59.99 Available to Order: Shipping delay up to 10 days.
#4	9164	BOWL FUEL (1 required per assembly)
		1395-9164 - Fuel Bowl [ More info ] $88.99 Available to Order: Shipping delay up to 10 days.
#5	91691	FLOAT (1 required per assembly)
		1395-9169 1 - Float [ More info ] $13.59 9 In Stock.
#6	F10064	SHAFT (1 required per assembly)
		F10064 - Float Support Shaft [ More info ] $4.59 10+ In Stock.
#7	5902	SCREW (#6-32 X .187) (1 required per assembly)
		1395-5902 - Screw Assembly, NLA [ More info ] $7.24 $6.13 10+ In Stock.
#8	803861	VALVE INLET NEEDLE (1 required per assembly) — Replaces: 879194048
		1395-803861 - Inlet Valve [ More info ] $25.49 8 In Stock.
#9	5315	JET MAIN FUEL (.042) (6) (1 required per assembly)
		1399-5315 - Jet -.042 - See Note On Detail Page [ More info ] Unavailable
#9	5317	JET (.046) (8) (1 required per assembly)
		1399-5317 - Jet -.046 [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#9	6359	JET (.052) (9.9) (1 required per assembly)
		1395-6359 - Jet -.052 [ More info ] $4.09 5 In Stock.
#10	9171	PLUG (1 required per assembly)
		1395-9171 - Plug [ More info ] $8.89 1 In Stock.
#11	813618	COVER (1 required per assembly)
		813618 - Cover [ More info ] Unavailable
#12	823648	COVER DIAPHRAGM (WMC-57) (1 required per assembly)
		1395-823648 - Diaphragm Cover [ More info ] $35.93 10+ In Stock.
#13	9697	SCREW (4 required per assembly)
		1395-9697 - Screw Assembly [ More info ] Unavailable
#14	9702	COVER/FUEL PUMP KIT (1 required per assembly) — Replaces: 15827A1
		1395-9702 - Fuel Pump Kit [ More info ] Unavailable
#15	9643	SCREW (5 required per assembly)
		1395-9643 - Screw Assembly [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#16	9699	PLATE (1 required per assembly)
		1395-9699 - Cover Plate [ More info ] Unavailable
#17	44426	GASKET (1 required per assembly)
		27-44426 - Electric Choke Gasket [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#18	9696	SCREW (2 required per assembly)
		1395-9696 - Screw Assembly [ More info ] Unavailable
#19	96371	COVER FUEL PUMP (WMC-57) (1 required per assembly)
		1395-9637 1 - Cover [ More info ] Unavailable
#20	9637	COVER (1 required per assembly)
		1395-9637 - Cover [ More info ] $30.79 Available to Order: Shipping delay up to 10 days.
#21	9762	PLUG (1 required per assembly)
		1395-9762 - Plug [ More info ] Unavailable
#22	192061	GASKET CARBURETOR (USE WHERE APPLICABLE) (1 required per assembly)
		27-19206 1 - Gasket [ More info ] $4.99 4 In Stock.
#23	9635	DIAPHRAGM/GASKET (1 required per assembly)
		1395-9635 - Diaphragm [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#24	97611	GASKET/DIAPHRAGM KIT (1 required per assembly)
		1395-9761 1 - Gasket and Diaphragm Kit [ More info ] $87.99 4 In Stock.
		18-7212 - Carburetor and Fuel Pump Diaphragm Kit, 1395-9761 1 [ More info ] $64.19 $62.86 10+ In Stock.
		1300-36004 - Carburetor Kit - Mercury 1395-9761 1 [ More info ] $61.99 $47.40 8 In Stock.
#25	96481	REPAIR KIT-CARB (WMC-20B) (1 required per assembly)
		1395-9648 1 - Carburetor Repair Kit [ More info ] Unavailable
#26	8237072	REPAIR KIT-CARB (WMC-23/41/57) (1 required per assembly)
		1395-823707 2 - Carburetor Repair Kit, Float NOT included [ More info ] $136.99 1 In Stock.
		18-97350 - Carb Kit, Mercury 1395-823707 2, Float Not Included [ More info ] $137.82 $126.28 4 In Stock.
#27	445541	WIRE-IDLE (1 required per assembly)
		44554 1 - Wire - Idle [ More info ] $11.19 2 In Stock.
#28	128053	LEVER-FAST IDLE (1 required per assembly)
		0128053 - L/P 66.89 [ More info ] Unavailable
#29	12803	BRACKET (1 required per assembly)
		12803 - Primer Bracket [ More info ] $31.15 5 In Stock.
#30	821979	NUT (1 required per assembly)
		11-821979 - Nut [ More info ] $1.70 5 In Stock.
#31	12110	SCREW (1 required per assembly) — Replaces: 79964
		10-12110 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#32	11277	SPRING (1 required per assembly)
		24-11277 - Spring, Tension [ More info ] $3.69 4 In Stock.
#33	400018	SCREW @2 (2 required per assembly)
		10-40001 8 - Screw - Priced Individually [ More info ] $1.10 2 In Stock.
#34	79965	SCREW (1 required per assembly)
		10-79965 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#35	112731	LEVER-PRIMER (1 required per assembly)
		0112731 - Bearing (112731) [ More info ] Unavailable
#36	11280	BLOCK (1 required per assembly)
		11280 - Cam Block [ More info ] $8.09 4 In Stock.
#37	11278	RING-RETAINING (1 required per assembly)
		53-11278 - Ring - Retaining [ More info ] $6.69 4 In Stock.
#38	12804A1	BEZEL ASSY (1 required per assembly)
		12804A 1 - Bezel Assembly [ More info ] $30.09 Available to Order: Shipping delay up to 10 days.
#39	128022	KNOB (1 required per assembly)
		0128022 - L/P 9.14 [ More info ] Unavailable
#40	40056110	SCREW (1 required per assembly)
		10-40056110 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#41	400211	NUT (1 required per assembly)
		11-40021 1 - Nut [ More info ] $3.59 10+ In Stock.
#42	129701	DECAL (SLOW/FAST) (1 required per assembly) — Replaces: 12970
		37-12970 1 - Decal [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#43	823433	SOLENOID (1 required per assembly)
		1395-823433 - Solenoid [ More info ] Unavailable
#44	174421	COVER-CARB (1 required per assembly)
		17442 1 - Carburetor Cover [ More info ] $78.49 Available to Order: Shipping delay up to 10 days.
#45	47579	PLUG @5 (1 required per assembly)
		19-47579 - Plug - Priced Individually [ More info ] $1.60 10+ In Stock.
		18-3232-9 - Plug, 19-47579, 5PK [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#46	9844A1	SERVICE KIT PRIMER/INJECTOR (SEE ILLUSTRATION FOR CONTENTS -INDICATED BY A STAR) (1 required per assembly)
		1395-9844A 1 - Service Kit [ More info ] $40.49 8 In Stock.
		18-97351 - Carb Kit, Mercury 1395-9844A1 [ More info ] $42.35 $36.04 2 In Stock.
#47	12750A1	CONVERSION KIT (RESTRICTED 6) (1 required per assembly)
		12750A 1 - Conversion Kit [ More info ] Unavailable
