Parts for 15 2-Stroke Carbureted Mercury Outboard Motor Crankshaft Pistons & Flywheel

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 15 > 0G760300 - 0T979999 - USA > Crankshaft Pistons & Flywheel

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

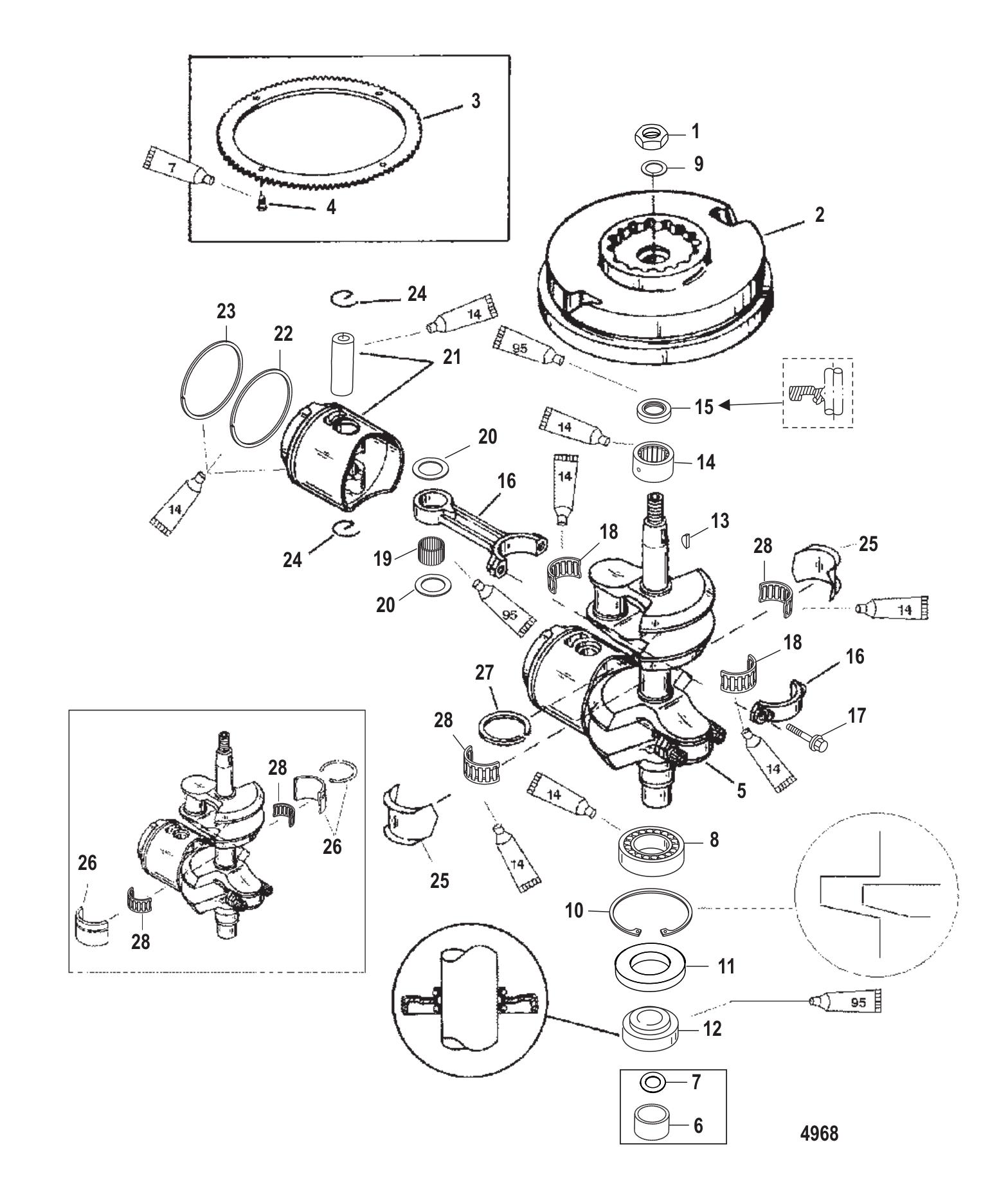

Crankshaft Pistons & Flywheel

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	12893T97	PH 6 (6) (1 required per assembly)
		12893T97 - Powerhead Assembly 6HP, NLA [ More info ] Unavailable
#-	811686T97	PH 6/8 (8) (1 required per assembly)
		811686T97 - Powerhead Assembly, NLA [ More info ] Unavailable
#-	19072T97	PH 10/15 2ST (9.9/15) (1 required per assembly)
		19072T97 - Powerhead 10/15 2ST [ More info ] $2,107.15 Available to Order: Shipping delay up to 10 days.
#1	818591	NUT (1 required per assembly)
		11-818591 - Nut (M14) [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#2	859231T18	FLYWHEEL (1 required per assembly) — Replaces: 859231T4, 859231T12
		260-859231T18 - Flywheel [ More info ] Unavailable
#3	99301	GEAR-RING (Electric) (1 required per assembly)
		43-99301 - Ring Gear [ More info ] $356.49 Available to Order: Shipping delay up to 10 days.
#4	88190313	SCREW (Electric) (4 required per assembly)
		10-881903 13 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#5	8M0083309	CRANKSHAFT ASSY (1 required per assembly) — Replaces: 8471A2
		4008M0083309 - CrankShaft Assembly [ More info ] Unavailable
#6	818630A1	SLEEVE (1 required per assembly)
		818630A 1 - Sleeve Kit [ More info ] $21.89 Available to Order: Shipping delay up to 10 days.
#7	NSS	NOT SOLD SEPARATE (O RING) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#8	41341	BEARING-BALL (1 required per assembly)
		30-41341 - Ball Bearing [ More info ] $22.99 Available to Order: Shipping delay up to 10 days.
#9	824451	WASHER (1 required per assembly)
		12-824451 - Washer, (.610 Inside Diamter X .890 Outside Diameter X .062) [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#10	42132	RING-RETAINING (1 required per assembly)
		53-42132 - Ring - Retaining [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#11	13031	WASHER (1 required per assembly)
		12-13031 - Washer, Lower [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#12	125661	SEAL (1 required per assembly)
		26-12566 1 - Seal [ More info ] $25.68 1 In Stock.
#13	20094	KEY @5 (1 required per assembly)
		28-20094 - Key - Priced Individually [ More info ] $1.80 10+ In Stock.
#14	878158	BEARING-ROLLER (1 required per assembly)
		31-878158 - Roller Bearing [ More info ] $26.79 Available to Order: Shipping delay up to 10 days.
#15	125671	SEAL (1 required per assembly)
		26-12567 1 - Seal [ More info ] $25.60 2 In Stock.
#16	8477A2	CONN ROD ASSY (2 required per assembly)
		637-8477A 2 - Connecting Rod Assembly [ More info ] $400.49 Available to Order: Shipping delay up to 10 days.
#17	823460	SCREW (M5 X 16) (4 required per assembly)
		10-823460 - Screw [ More info ] Unavailable
#18	42076A1	BEARING ASSEMBLY ROLLER (2 required per assembly)
		31-42076A 1 - Bearing Kit [ More info ] $47.49 Available to Order: Shipping delay up to 10 days.
#19	42186	BEARING NEEDLE (48 required per assembly)
		29-42186 - Needle Bearing [ More info ] $0.40 $0.18 10+ In Stock.
#20	8M0012297	WASHER-THRST@2 (4 required per assembly) — Replaces: 43348
		12-8M0012297 - Thrust Washer - Priced Individually [ More info ] $6.69 1 In Stock.
#21	9756T2	PISTON ASSY (6/8) (2 required per assembly)
		773-9756T 2 - Piston Assembly [ More info ] $136.21 10+ In Stock.
#21	9747T2	PISTON ASSY-STD (9.9/15)(Standard) (2 required per assembly)
		784-9747T 2 - Piston Assembly - Std [ More info ] $141.49 Available to Order: Shipping delay up to 10 days.
#21	9747A4	PISTON ASSY-.015 (9.9/15)(.015)(Over Size) (2 required per assembly)
		784-9747A 4 - Piston Assembly -.015 [ More info ] $141.49 Available to Order: Shipping delay up to 10 days.
#22	18514A4	RING SET PISTON (6/8) (2 required per assembly)
		39-18514A 4 - Ring Kit -4- Std [ More info ] $87.49 $71.06 2 In Stock.
#22	18212A4	RING SET PISTON (9.9/15)(Standard) (2 required per assembly)
		39-18212A 4 - Ring Kit -4- Std [ More info ] Unavailable
#22	18212A1	RING KIT-2-.015OS (9.9/15)(.015)(Over Size) (2 required per assembly)
		39-18212A 1 - Ring Kit -2-.015OS [ More info ] $79.99 Available to Order: Shipping delay up to 10 days.
#23	NSS	NOT SOLD SEPARATE (PISTON RING-TOP) (9.9/15)(Standard) (2 required per assembly)
#24	422021	LOCK RING (4 required per assembly)
		40-42202 1 - Lock Ring [ More info ] $2.59 7 In Stock.
#25	41373A1	BEARING KIT (6/8) (1 required per assembly)
		41373A 1 - Bearing Kit - Main [ More info ] $69.99 Available to Order: Shipping delay up to 10 days.
#26	17794A1	BEARING ASSY (9.9/15) (1 required per assembly)
		17794A 1 - Bearing [ More info ] $101.99 Available to Order: Shipping delay up to 10 days.
#27	818901	SEAL (1 required per assembly)
		26-818901 - Seal [ More info ] $9.69 Available to Order: Shipping delay up to 10 days.
#28	42076A1	BEARING ASSEMBLY ROLLER (9.9/15) (1 required per assembly)
