Parts for 15 2-Stroke Carbureted Mercury Outboard Motor Swivel Bracket & Steering Handle

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 15 > 0A197112 - 0D280999 - USA > Swivel Bracket & Steering Handle

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

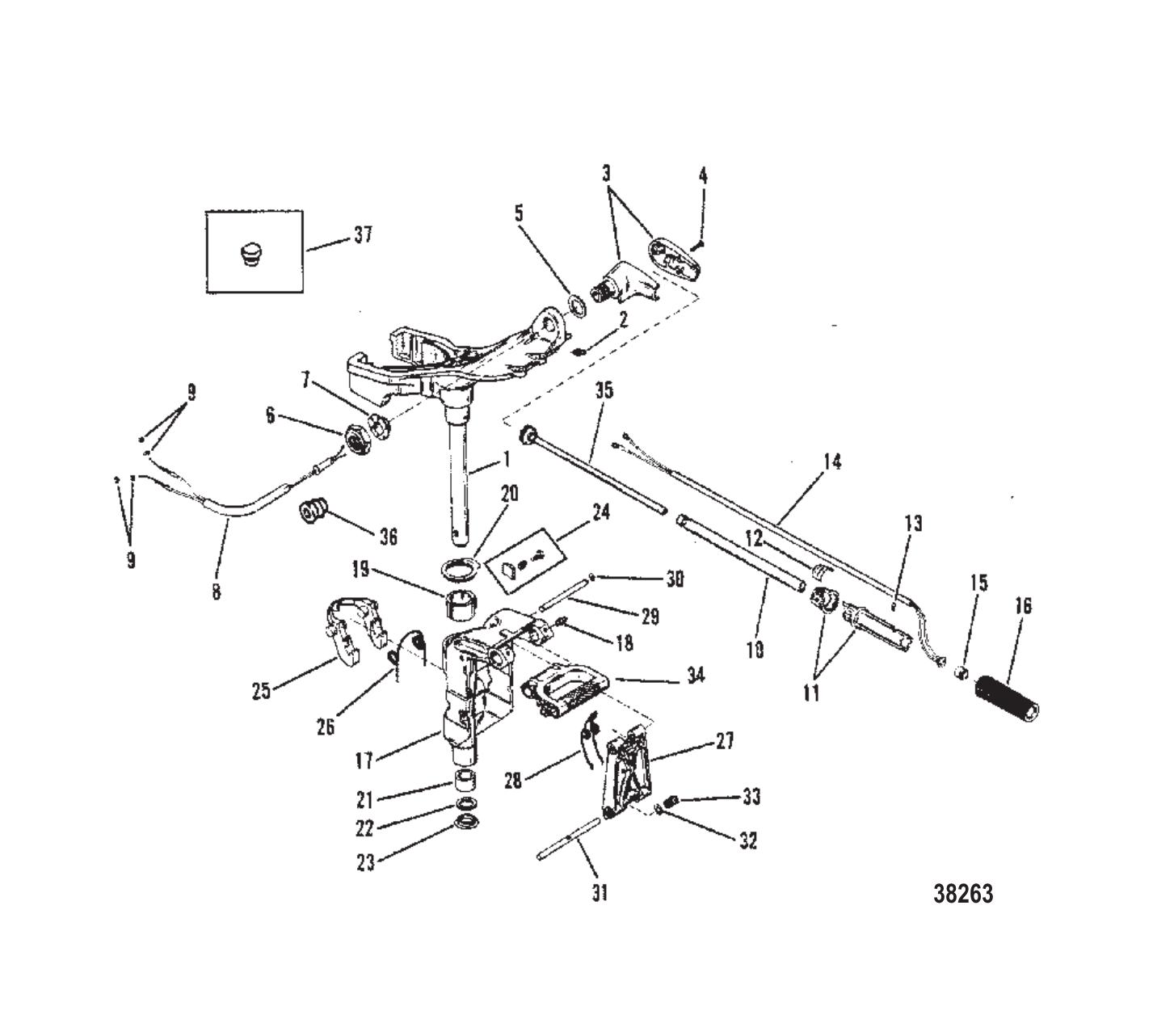

Swivel Bracket & Steering Handle

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	42213A14	SWIVEL TUBE REPLACEMENT (GRAY) REF #6 is 1-1/8 Inch - 12 (1 required per assembly) — Replaces: 42213A6, 42213A7, 42213A15
		42213A14 - SWIVEL HEAD KT-B,NLA [ More info ] Unavailable
#2	8M0169589	FITTING GREASE (1 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#3	NLA	NO LONGER AVAILABLE BRACKET (GRAY) (ORDER 4213A15) REF #6 is 1 Inch - 14 (1 required per assembly)
		NLA - No Longer Availab [ More info ] Unavailable
#3	44397A15	BRACKET ASSEMBLY (BLACK) REF #6 is 1-1/8 Inch - 12 (1 required per assembly)
		44397A15 - Bracket Assembly [ More info ] Unavailable
#3	44397A16	BRACKET ASSEMBLY (GRAY) REF #6 is 1-1/8 Inch - 12 (1 required per assembly)
		44397A16 - Bracket Assembly, NLA [ More info ] $25.99 $22.01 1 In Stock.
#4	40019109	SCREW (M5 X 25) REF #6 is 1 Inch - 14 (3 required per assembly)
		10-40019109 - Screw [ More info ] $3.10 $0.62 10+ In Stock.
#4	4005688	SCREW (M4 X 20) REF #6 is 1 Inch - 14 (3 required per assembly)
		10-40056 88 - Screw [ More info ] $6.10 $5.17 10+ In Stock.
#4	40011110	SCREW (M5 X 30) STAINLESS STEEL REF #6 is 1-1/8 Inch - 12 (3 required per assembly)
		10-40011110 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#5	177821	WASHER REF #6 is 1-1/8 Inch - 12 (1 required per assembly)
		12-17782 1 - Washer [ More info ] $3.10 10+ In Stock.
#6	859133	NUT (1.00-14) BRACKET (BLACK) REF #6 is 1 Inch - 14 (1 required per assembly) — Replaces: 90068F2, 34862
		11-859133 - Nut, NLA [ More info ] Unavailable
#6	82671327	NUT (1.0-14) BRACKET (GRAY) REF #6 is 1 Inch - 14 (1 required per assembly) — Replaces: 90068F3, 859133
		11-826713 27 - Nut [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#6	816880	NUT REF #6 is 1-1/8 Inch - 12 (1 required per assembly)
		11-816880 - Nut (1.125-12) NLA [ More info ] $35.14 10+ In Stock.
#7	85973	BUSHING BRACKET REF #6 is 1 Inch - 14 (1 required per assembly)
		23-85973 - Bushing, NLA [ More info ] $15.99 $13.54 1 In Stock.
#7	817026	BUSHING REF #6 is 1-1/8 Inch - 12 (1 required per assembly)
		23-817026 - Bushing, NLA [ More info ] $8.61 10+ In Stock.
#8	42210	CABLE THROTTLE (TILLER HANDLE SHIFT) (1 required per assembly)
		42210 - Throttle Cable [ More info ] $117.68 1 In Stock.
#8	422111	CABLE THROTTLE (SIDE SHIFT) (1 required per assembly)
		42211 1 - Cable Assembly, NLA [ More info ] $41.92 10+ In Stock.
#9	400212	NUT (M6) STAINLESS STEEL THROTTLE CABLE (AR required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#10	99333A2	TUBE ASSEMBLY STEERING (1 required per assembly)
		99333A 2 - Tube Assembly [ More info ] Unavailable
#11	823609A10	SWITCH KIT STOP - THROTTLE HANDLE (SIDE SHIFT) (1 required per assembly) — Replaces: 14025A4, 14170A5
		87-823609A10 - Switch Kit [ More info ] $112.49 Available to Order: Shipping delay up to 10 days.
#12	13239	DECAL THROTTLE (APPLY ON HANDLE) (1 required per assembly)
		37-13239 - Decal, NLA [ More info ] Unavailable
#12	140121	DECAL THROTTLE (APPLY ON TUBE) (BLACK) (1 required per assembly)
		37-14012 1 - Decal [ More info ] $18.19 Available to Order: Shipping delay up to 10 days.
#12	140122	DECAL (APPLY ON TUBE - GRAY 3-1/3&QUOT; X 1-1/4&QUOT;) (1 required per assembly)
		37-14012 2 - Decal [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#12	140123	DECAL (APPLY ON TUBE - 3.15&QUOT;X 2-1/2&QUOT;) (1 required per assembly)
		37-14012 3 - Decal [ More info ] $17.99 Available to Order: Shipping delay up to 10 days.
#12	140124	DECAL (INTERNATIONAL SYMBOLS) (1 required per assembly)
		37-14012 4 - Decal - Throttle [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#13	37342	SCREW (#12-14 X .375) THROTTLE HANDLE (1 required per assembly)
		10-37342 - Screw - Priced Individually [ More info ] $1.85 $1.57 10+ In Stock.
#14	823609A10	SWITCH KIT (1 required per assembly)
#15	11099A1	BOOT ASSEMBLY STOP SWITCH (1 required per assembly)
		11099A 1 - Boot Assembly [ More info ] $16.79 Available to Order: Shipping delay up to 10 days.
#16	99589003	GRIP RUBBER (1 required per assembly) — Replaces: 99589
		99589003 - Grip [ More info ] Unavailable
		8M0221732 - Outer Grip [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
#17	8831A6	SWIVEL BRACKET ASSEMBLY (BLACK) (1 required per assembly) — Replaces: 8831A1, 8831A3
		3402-8831A 6 - Swivel Bracket - Black [ More info ] Unavailable
		3402-8831A13 - Swivel Bracket - Black [ More info ] $399.99 Available to Order: Shipping delay up to 10 days.
#17	8831A7	SWIVEL BRACKET ASSEMBLY (GRAY) (1 required per assembly) — Replaces: 8831A2, 8831A4
		3402-8831A 7 - Swivel Bracket, Gray [ More info ] Unavailable
		3402-8831A14 - Ord 3402- 8831A1, NLA [ More info ] Unavailable
#18	8M0169589	FITTING GREASE (3 required per assembly) — Replaces: 74036
#19	42140	BUSHING UPPER (1 required per assembly)
		23-42140 - Bushing, NLA [ More info ] Unavailable
#20	42080T01	BEARING (1 required per assembly) — Replaces: 420801
		23-42080T01 - Bearing [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#21	42139	BUSHING LOWER (1 required per assembly)
		23-42139 - Bushing - Lower [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#22	42077	SEAL (1 required per assembly)
		26-42077 - Seal [ More info ] $12.49 4 In Stock.
#23	42373	THRUST WASHER LOWER (1 required per assembly)
		12-42373 - Thrust Washer [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#24	42124A1	PLATE ASSEMBLY CO-PILOT (1 required per assembly)
		42124A 1 - Co-Pilot Assembly, NLA [ More info ] Unavailable
#25	8M0075731	HOOK - REVERSE REVERSE LOCK (1 required per assembly) — Replaces: 42141, 421411
		8M0075731 - Hook - Reverse [ More info ] $14.99 Available to Order: Shipping delay up to 10 days.
#26	42127	SPRING REVERSE HOOK (1 required per assembly)
		24-42127 - Spring, Reverse Hook [ More info ] $7.49 4 In Stock.
#27	42082T04	BRACKET (1 required per assembly) — Replaces: 420822, 420824
		42082T04 - Bracket [ More info ] $35.49 Available to Order: Shipping delay up to 10 days.
#28	421301	SPRING (1 required per assembly) — Replaces: 42130
		24-42130 1 - Spring [ More info ] $10.09 Available to Order: Shipping delay up to 10 days.
#29	420811	PIN (1 required per assembly) — Replaces: 42081
		17-42081 1 - Pin [ More info ] $39.25 10+ In Stock.
#30	13194	RING-RETAIN @2 (2 required per assembly)
		53-13194 - Ring - Retaining - Priced Individually [ More info ] $1.27 10+ In Stock.
#31	830741A1	PIN KIT-PIVOT (1 required per assembly) — Replaces: 42083
		17-830741A 1 - Pivot Pin Kit [ More info ] $29.01 2 In Stock.
#32	8M0027716	WASHER (.390 X .600 X .032) STAINLESS STEEL PIVOT PIN (1 required per assembly)
		12-8M0027716 - Washer, (.390 X .600 X .032) Stainless Steel [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#33	42128	SPRING (1 required per assembly)
		24-42128 - Spring [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#34	420852	HANDLE-BLACK (1 required per assembly) — Replaces: 42085F1, 42085F4
		420852 - Handle, Black [ More info ] $27.59 Available to Order: Shipping delay up to 10 days.
#35	975501	DRIVE TUBE (1 required per assembly)
		97550 1 - Drive Tube [ More info ] Unavailable
#36	12602002	GROMMET (1 required per assembly) — Replaces: 12602, 126021
		25-12602002 - Grommet (.44 I.d.) [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#37	8M0179867	GROMMET (1 required per assembly) — Replaces: 19564, 19564001
		258M0179867 - Grommet [ More info ] $9.09 1 In Stock.
