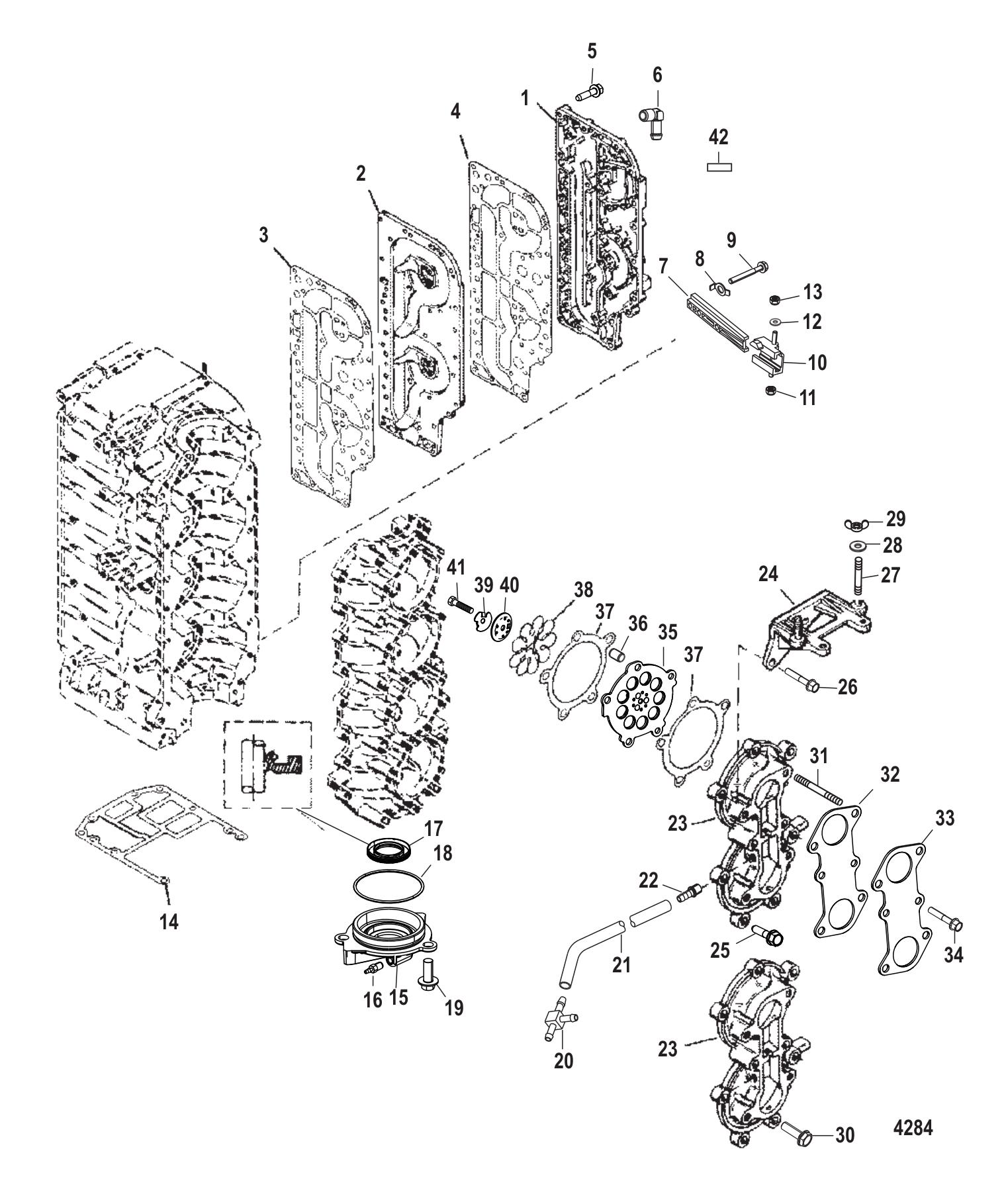

Parts for 125 (4 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Inducition Manifold & Reed Block
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 13461A99 | GASKET SET (1 required per assembly) |
  |
|
27-13461A99 - Engine Gasket Set [ More info ]
|
| #- | 17791R97 | PH 100-125 2S -RM (1 required per assembly) — Replaces: 17791T97 |
  |
|
17791R97 - Powerhead 100-125 2S -rm [ More info ] Unavailable |
| #1 | 44325A1 | COV/PLATE KIT-EXH (1 required per assembly) |
  |
|
44325A 1 - Exhaust Cover Plate Kit [ More info ]
|
| #2 | NSS | NOT SOLD SEPARATE EXHAUST PLATE (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #3 | 812775007 | GASKET BAFFLE PLATE TO CYLINDER BLOCK (1 required per assembly) |
  |
|
27-812775007 - Exhaust Plate To Cylinder Block Gasket [ More info ]
|
| #4 | 812775006 | GASKET EXHAUST BAFFLE TO EXHAUST COVER (1 required per assembly) |
  |
|
27-812775006 - Exhaust Baffle To Exhaust Cover Gasket [ More info ]
|
| #5 | 82127335 | SCREW (35 required per assembly) |
  |
|
10-821273 35 - Screw [ More info ]
|
| #6 | 996642 | ELBOW (1 required per assembly) |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #7 | 42881A1 | SHIFT RAIL ASSY (1 required per assembly) |
  |
|
42881A 1 - Shift Rail Assembly [ More info ]
|
| #8 | 42981 | TAB WASHER (2 required per assembly) |
  |
|
14-42981 - Tab Washer [ More info ]
|
| #9 | 40001134 | SCREW (2 required per assembly) |
  |
|
10-40001134 - Screw [ More info ]
|
| #10 | 988851 | SLIDE (1 required per assembly) |
  |
|
|
| #11 | 401386 | NUT @5 (1 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #12 | 35459 | WASHER (1 required per assembly) |
  |
|
12-35459 - Washer (.265 X .620 X .06) [ More info ]
|
| #13 | 401386 | NUT @5 (1 required per assembly) |
| #14 | 430075 | GASKET (1 required per assembly) |
  |
|
27-43007 5 - Gasket [ More info ]
|
  |
|
18-0670 - Gasket, 27-43007 5 [ More info ]
|
| #15 | 858552T2 | END CAP ASSY [0T758475] THRU [0T979999] (1 required per assembly) — Replaces: 9004T3 |
  |
|
1169-858552T 2 - End Cap Assembly [ More info ]
|
| #16 | 426585 | CHECK VALVE (1 required per assembly) |
  |
|
21-42658 5 - Check Valve [ More info ]
|
| #17 | 41953 | SEAL [0G760300] THRU [0T758474] (1 required per assembly) |
  |
|
26-41953 - Oil Seal - Priced Individually [ More info ]
|
  |
|
18-2016 - Seal, 26-41953 [ More info ]
|
| #17 | 419533 | SEAL OIL [0T758475] THRU [0T979999] (1 required per assembly) |
  |
|
26-41953 3 - Seal [ More info ]
|
| #18 | 89224 | O-RING (1 required per assembly) |
  |
|
25-89224 - O-ring (2.862 X .103) [ More info ]
|
| #19 | 4010825 | SCREW (3 required per assembly) |
  |
|
10-40108 25 - Screw [ More info ]
|
| #20 | 13033 | FITTING (1 required per assembly) |
  |
|
22-13033 - Fitting [ More info ] Unavailable |
| #21 | 1430165 | TUBING-38 INCH (Cut to 5.50 Inch Length) (2 required per assembly) |
  |
|
32-14301 65 - Tubing - 38 Inch [ More info ] Unavailable |
| #22 | 130351 | FITTING (STRAIGHT) (2 required per assembly) |
  |
|
22-13035 1 - Fitting [ More info ]
|
| #23 | 13545A1 | MANIFOLD ASSY (2 required per assembly) |
  |
|
13545A 1 - Manifold Assembly [ More info ]
|
| #24 | 827514 | BRACKET (1 required per assembly) |
  |
|
827514 - Bracket [ More info ] Unavailable |
| #25 | 82127335 | SCREW (12 required per assembly) |
| #26 | 81742740 | SCREW (2 required per assembly) |
  |
|
10-817427 40 - Screw [ More info ]
|
| #27 | 8161949 | STUD (2 required per assembly) |
  |
|
16-816194 9 - Stud [ More info ]
|
| #28 | 8M0204663 | WASHER @5 (2 required per assembly) — Replaces: 49221 |
  |
|
12-8M0204663 - Washer, Sold Individually [ More info ]
|
| #29 | 816872 | NUT-WING (2 required per assembly) |
  |
|
11-816872 - Wing Nut [ More info ]
|
| #30 | 40001167 | SCREW (M8 X 110) (#4 CYLINDER) (2 required per assembly) |
  |
|
10-40001167 - Screw [ More info ]
|
| #31 | 824470 | STUD (M8 X 1.25) (#1, 2, 3 CYLINDER) (6 required per assembly) |
  |
|
16-824470 - Stud [ More info ]
|
| #32 | 134612 | GASKET (2 required per assembly) |
  |
|
27-13461 2 - Gasket [ More info ]
|
| #33 | 13460 | COVER (2 required per assembly) |
  |
|
|
| #34 | 81742755 | SCREW (4 required per assembly) |
  |
|
10-817427 55 - Screw [ More info ]
|
| #35 | 42963A11 | REED BLOCK ASSY (4 required per assembly) |
  |
42963A11 - Reed Block Assembly [ More info ] Unavailable |
|
  |
|
8M0219198 - REED BLOCK ASSY [ More info ]
|
| #36 | NSS | NOT SOLD SEPARATE DOWEL PIN (24 required per assembly) |
| #37 | 139376 | GASKET (8 required per assembly) |
  |
|
27-13937 6 - Gasket [ More info ]
|
  |
|
18-0320 - Gasket, 27-13937-6 [ More info ]
|
  |
|
27-27531 - Reed Block Gasket, 27-139376 [ More info ]
|
| #38 | 43018A1 | REED SET (4 required per assembly) |
  |
|
34-43018A 1 - Reed Kit [ More info ]
|
| #39 | 429821 | TAB WASHER (4 required per assembly) |
  |
|
14-42982 1 - Tab Washer [ More info ]
|
| #40 | 42924 | RETAINER (4 required per assembly) |
  |
|
42924 - Retainer [ More info ]
|
| #41 | 88421471 | SCREW (M6 X 16) (4 required per assembly) |
  |
|
10-884214 71 - Screw [ More info ]
|
| #42 | 856985A9 | REF SOB 09-18 (1999) (1 required per assembly) |
  |
|
37-856985A 9 - Decal -epa, NLA [ More info ] Unavailable |
| #42 | 804667A00 | REF SOB 09-18 (2000) (1 required per assembly) |
  |
|
37-804667A00 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #42 | 804667A01 | REF SOB 09-18 (2001) (1 required per assembly) |
  |
|
37-804667A01 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #42 | 804667A02 | REF SOB 09-18 (2002) (1 required per assembly) |
  |
|
37-804667A02 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #42 | 804667A03 | REF SOB 09-18 (2003) (1 required per assembly) |
  |
|
37-804667A03 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #42 | 804667A04 | REF SOB 09-18 (2004) (1 required per assembly) |
  |
|
37-804667A04 - DECAL EPA Label I NLA [ More info ] Unavailable |
