Parts for 125 (4 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Bleed System

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 125 (4 Cyl.) > 0G760300 - 0T979999 - USA > Bleed System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

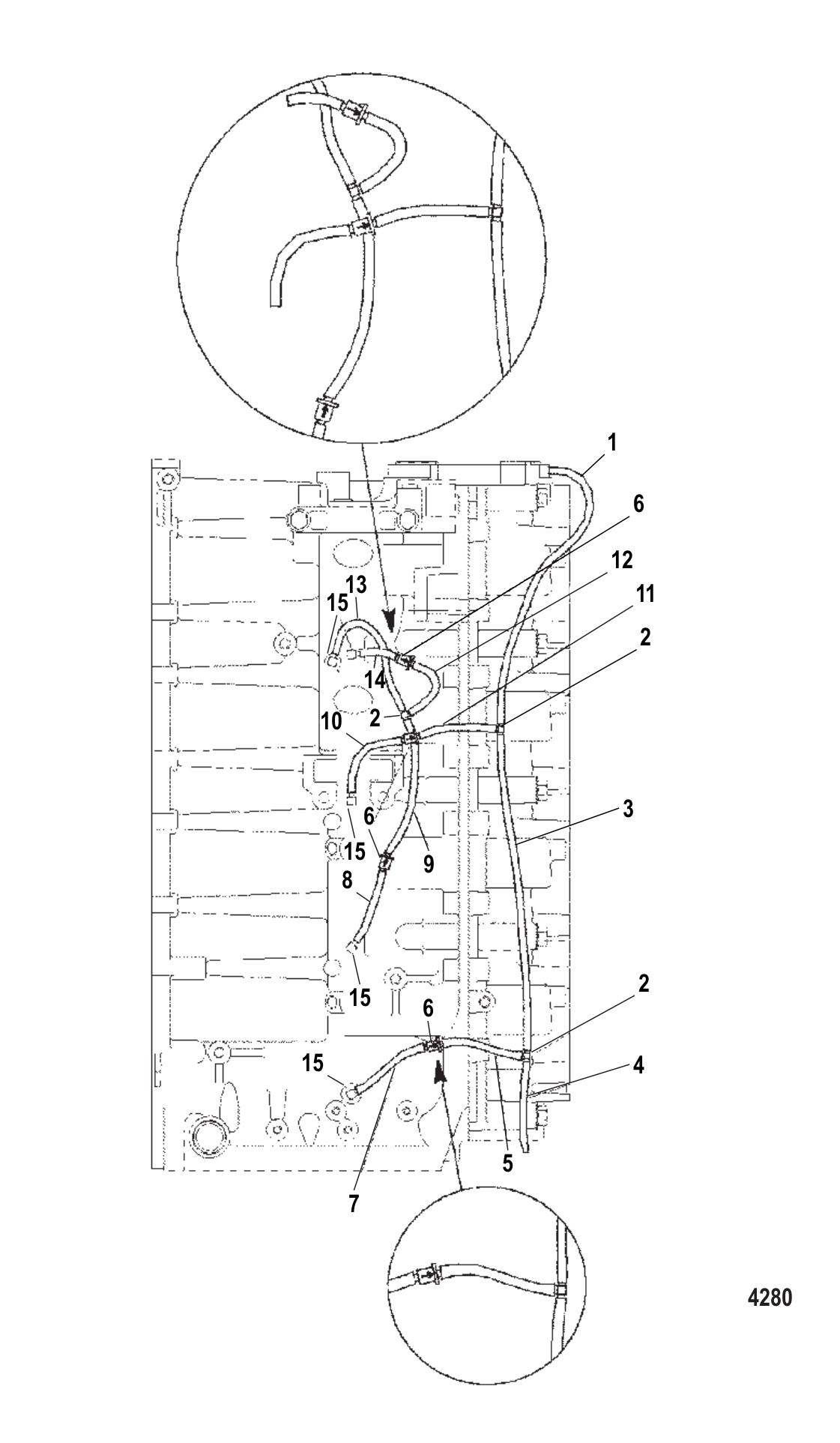

Bleed System

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	17791R97	PH 100-125 2S -RM (1 required per assembly) — Replaces: 17791T97
		17791R97 - Powerhead 100-125 2S -rm [ More info ] Unavailable
#1	892024122	TUBING-20 FEET (Cut to 9.00 Inch Length) (1 required per assembly) — Replaces: 99130122
		32-892024122 - Tubing - 20 Feet [ More info ] $49.32 1 In Stock.
#2	59169003	FITTING @2 (3 required per assembly) — Replaces: 591692
		22-59169003 - Fitting - Priced Individually [ More info ] $5.99 2 In Stock.
#3	892024122	TUBING-20 FEET (Cut to 9.00 Inch Length) (1 required per assembly) — Replaces: 99130122
#4	892024122	TUBING-20 FEET (Cut to 4.50 Inch Length) (1 required per assembly) — Replaces: 99130122
#5	892024122	TUBING-20 FEET (Cut to 2.50 Inch Length) (1 required per assembly) — Replaces: 99130122
#6	149126	VALVE-CHECK (4 required per assembly)
		21-14912 6 - Check Valve [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#7	892024122	TUBING-20 FEET (Cut to 2.50 Inch Length) (1 required per assembly) — Replaces: 99130122
#8	892024122	TUBING-20 FEET (Cut to 2.50 Inch Length) (1 required per assembly) — Replaces: 99130122
#9	892024122	TUBING-20 FEET (Cut to 4.50 Inch Length) (1 required per assembly) — Replaces: 99130122
#10	892024122	TUBING-20 FEET (Cut to 2.50 Inch Length) (1 required per assembly) — Replaces: 99130122
#11	892024122	TUBING-20 FEET (Cut to 2.50 Inch Length) (1 required per assembly) — Replaces: 99130122
#12	892024122	TUBING-20 FEET (Cut to 2.50 Inch Length) (1 required per assembly) — Replaces: 99130122
#13	892024122	TUBING-20 FEET (Cut to 6.00 Inch Length) (1 required per assembly) — Replaces: 99130122
#14	892024122	TUBING-20 FEET (Cut to 1.50 Inch Length) (1 required per assembly) — Replaces: 99130122
#15	15133	FITTING (5 required per assembly)
		22-15133 - Fitting [ More info ] $21.19 1 In Stock.
