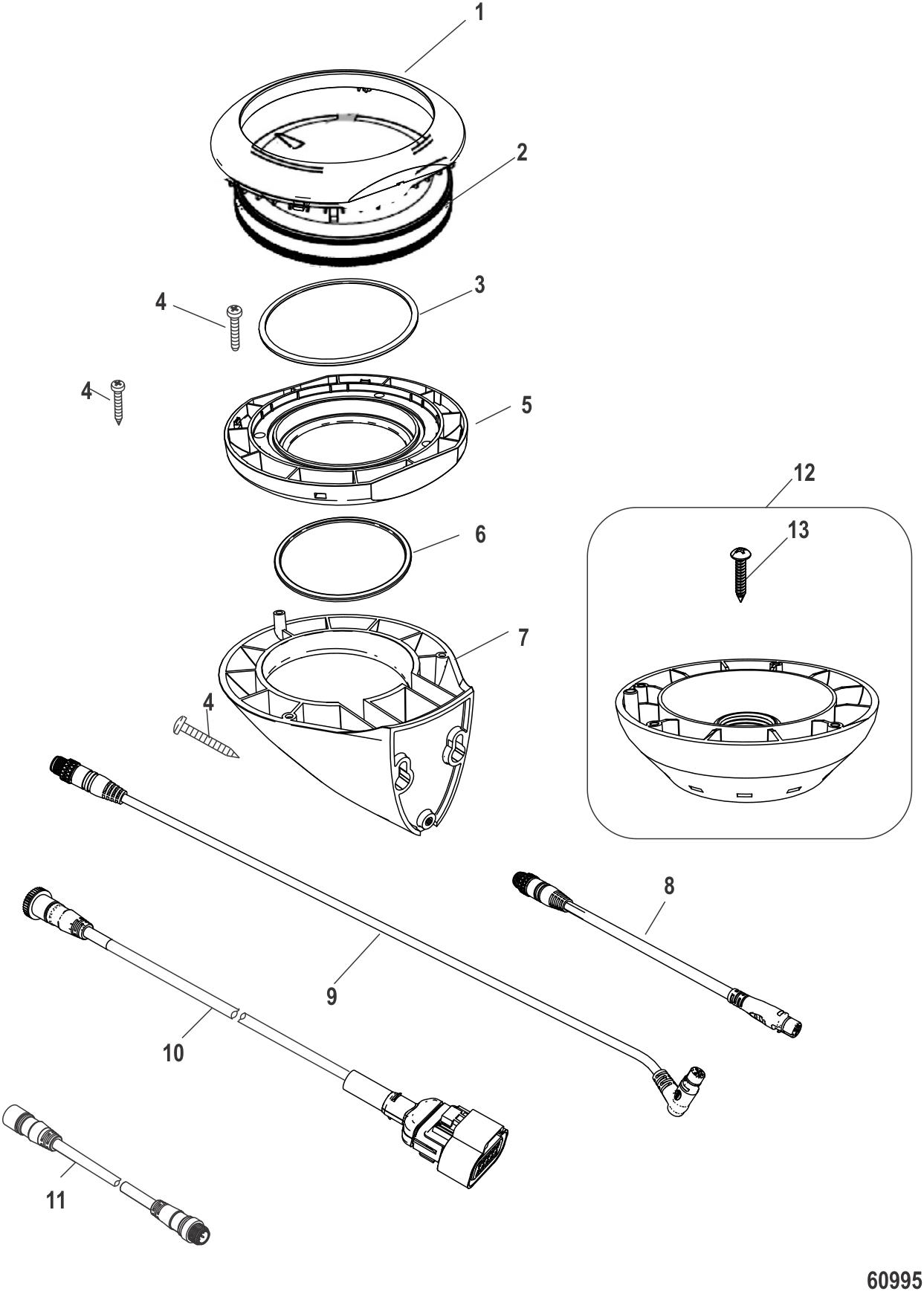

Gps / Imu Kit

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0134384	ESH GPS ADDIN (1 required per assembly)
		8M0134384 - ESH GPS ADDIN [ More info ] Unavailable
#-	8M0168463	GPS/IMU KIT (1 required per assembly) — Replaces: 8M0105389
		8M0168463 - GPS/IMU KIT [ More info ] $3,187.64 Available to Order: Shipping delay up to 10 days.
#1	8M6003875	MOUNT UPPER (1 required per assembly)
		8M6003875 - MOUNT-UPPER [ More info ] $16.30 Available to Order: Shipping delay up to 10 days.
#2	NSS	NOT SOLD SEPARATE GPS/IMU (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	8M6003879	RING SEAL LARGE (1 required per assembly)
		8M6003879 - RING SEAL [ More info ] $12.86 Available to Order: Shipping delay up to 10 days.
#4	8M6003881	HARDWARE BAG ASSEMBLY INCLUDES 4 SCREWS-PLASTIC THREAD FORMING (M3 X 12), 4 SCREWS (M2.9 X 13) AND 3 SCREWS (M3.9 X 22) (1 required per assembly)
		8M6003881 - HARDWARE BAG ASY [ More info ] Unavailable
#5	8M6003876	MOUNT LOWER (1 required per assembly)
		8M6003876 - MOUNT-LOWER [ More info ] $21.88 Available to Order: Shipping delay up to 10 days.
#6	8M6003880	RING SEAL SMALL (1 required per assembly)
		8M6003880 - RING SEAL [ More info ] $7.97 Available to Order: Shipping delay up to 10 days.
#7	8M6003878	MOUNT 90 DEGREE OPTIONAL (1 required per assembly)
		8M6003878 - MOUNT-90 DEGREE [ More info ] $22.11 Available to Order: Shipping delay up to 10 days.
#8	8M6003882	CABLE NET LEAD STRAIGHT (1 required per assembly)
		8M6003882 - Cable-STRAIGHT [ More info ] $58.09 Available to Order: Shipping delay up to 10 days.
#9	8M6003883	CABLE NET LEAD 90 DEGREE (1 required per assembly)
		8M6003883 - Cable-90 DEGREE [ More info ] $87.98 Available to Order: Shipping delay up to 10 days.
#10	8M0115495	HARNESS CAN H (GPS / IMU) (1 required per assembly)
		848M0115495 - Harness-CAN H [ More info ] $99.44 Available to Order: Shipping delay up to 10 days.
#11	879171T01	HARNESS EXTENSION (AR required per assembly)
		84-879171T01 - Harness Extension [ More info ] $38.24 Available to Order: Shipping delay up to 10 days.
#11	879171T02	HARNESS EXTN (AR required per assembly)
		84-879171T02 - Harness Extension [ More info ] $47.56 Available to Order: Shipping delay up to 10 days.
#11	879171T03	HARNESS EXTN (AR required per assembly)
		84-879171T03 - Harness Extension [ More info ] $45.24 Available to Order: Shipping delay up to 10 days.
#11	879171T04	HARNESS EXTN-3000 (AR required per assembly)
		84-879171T04 - Harness Extension -3000 [ More info ] $61.72 Available to Order: Shipping delay up to 10 days.
#11	879171T05	HARNESS EXTENSION (AR required per assembly)
		84-879171T05 - Harness Extension [ More info ] $80.70 Available to Order: Shipping delay up to 10 days.
#11	879171T06	HARNESS EXTENSION (AR required per assembly)
		84-879171T06 - Harness Extension [ More info ] $73.43 Available to Order: Shipping delay up to 10 days.
#11	879171T07	HARNESS EXTENSION (AR required per assembly)
		84-879171T07 - Harness Extension [ More info ] $88.96 Available to Order: Shipping delay up to 10 days.
#11	879171T08	HARNESS EXTENSION (AR required per assembly)
		84-879171T08 - Harness Extension [ More info ] $93.27 Available to Order: Shipping delay up to 10 days.
#12	8M0127541	MOUNT-GPS Optional - Order Separate (AR required per assembly)
		8M0127541 - MOUNT-GPS [ More info ] $23.61 Available to Order: Shipping delay up to 10 days.
#13	57807	SCREW (#10-16 X .750) STAINLESS STEEL (3 required per assembly)
		10-57807 - Screw - Priced Individually [ More info ] $7.39 $5.92 3 In Stock.
