Mercury Marine Sensors / Harnesses & Connectors Smartcraft Extension Harness Kit Gps / Imu

Revise Search: Accessories 1994 & Up > Smartcraft > Sensors / Harnesses & Connectors > 2000 & Up > Extension Harness Kit Gps / Imu

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

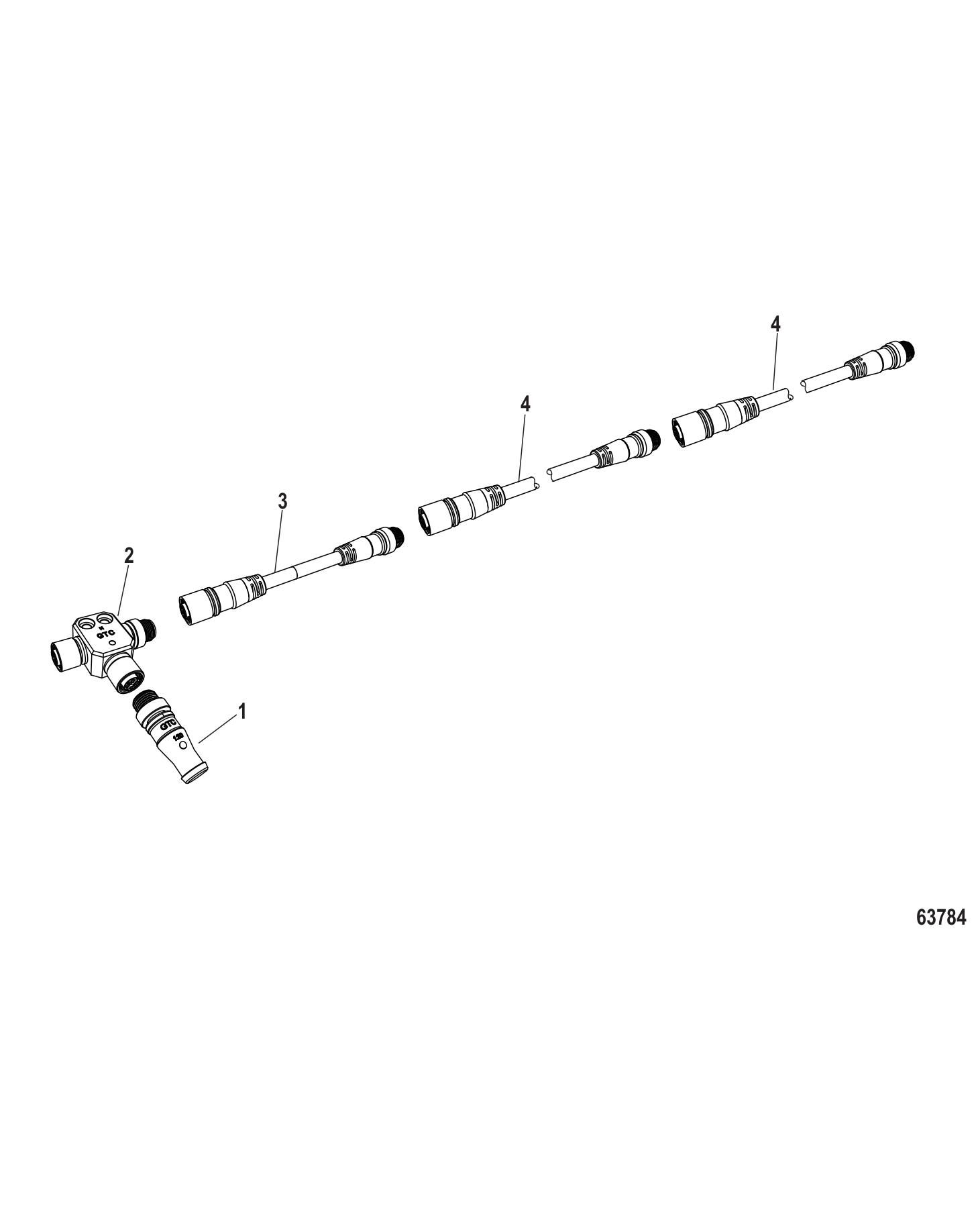

Extension Harness Kit Gps / Imu

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0133385	HARNESS EXTENSION KIT GPS/IMU (1 required per assembly)
		8M0133385 - KIT-Harness EXT [ More info ] Unavailable
#1	8M6004830	RESISTOR CAP MALE (1 required per assembly)
		8M6004830 - Resistor Cap-MALE [ More info ] $23.36 Available to Order: Shipping delay up to 10 days.
#2	8M0204742	TEE NMEA 2K (1 required per assembly) — Replaces: 8M6004829
		8M0204742 - TEE NMEA 2K [ More info ] Unavailable
#3	879171T05	HARNESS ASSEMBLY EXTENSION (4000 MM) (1 required per assembly)
		84-879171T05 - Harness Extension [ More info ] $80.70 Available to Order: Shipping delay up to 10 days.
#4	879171T07	HARNESS ASSEMBLY EXTENSION (6000 MM) (2 required per assembly)
		84-879171T07 - Harness Extension [ More info ] $88.96 Available to Order: Shipping delay up to 10 days.
