Parts for 115 (6 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Wiring Harness & Ignition Coil

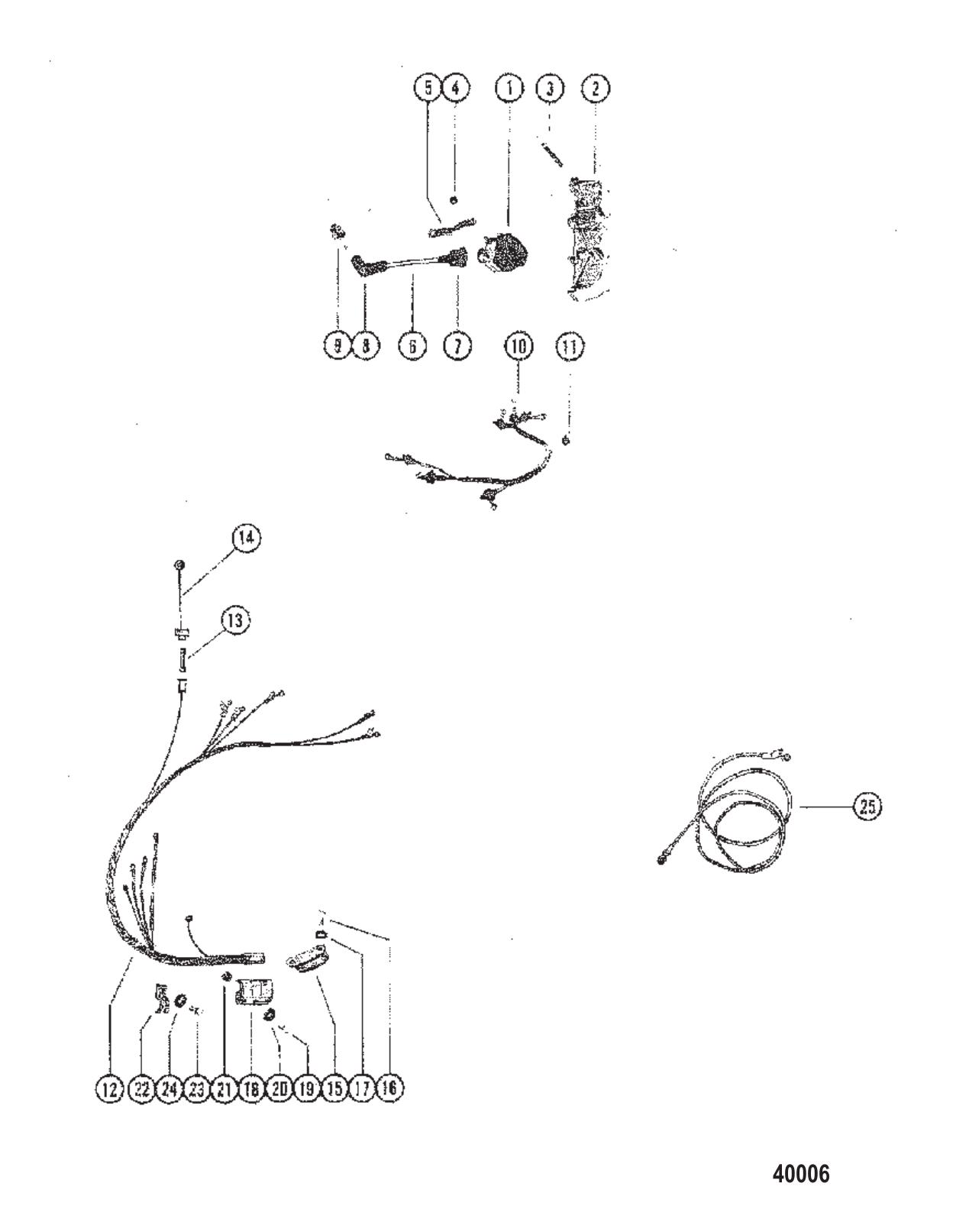

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 7370A13 | COIL KIT-IGN (6 required per assembly) — Replaces: 7370A2, 7370A8 |
  |
339-7370A13 - Ignition Coil [ More info ] Unavailable |
|
  |
339-832757A 4 - Ignition Coil [ More info ] Unavailable |
|
  |
|
18-5186 - Ignition Coil 339-7370A13 [ More info ]
|
  |
|
8M0230859 - Ignition Coil [ More info ]
|
| #2 | 43542 | COVER IGNITION COIL (2 required per assembly) — Replaces: 73218 |
  |
|
43542 - Coil Cover [ More info ] Unavailable |
| #3 | 88856 | SCREW (.190-32 X 2.00) IGNITION COIL COVER (12 required per assembly) |
  |
|
10-88856 - Screw, NLA [ More info ]
|
| #4 | 45076 | NUT (#10-32) BRASS IGNITION COIL TERMINAL (12 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #5 | 60466A1 | CABLE ASSEMBLY BLACK (2.50 INCHES) IGNITION COIL (6 required per assembly) |
  |
|
84-60466A 1 - Cable Assembly, NLA [ More info ]
|
| #6 | 99215A25 | LEAD ASSEMBLY HIGH TENSION (6 required per assembly) — Replaces: 90816A25, 93475A25 |
  |
84-99215A25 - Wire Assembly [ More info ] Unavailable |
|
  |
|
84-813715A 1 - Ignition Cable Assembly [ More info ]
|
  |
|
18-5228-1 - Spark Plug Wire, 9 Inch, 84-813715A1 [ More info ]
|
  |
|
18-5227-1 - Spark Plug Wire, 9 Inch Pre-made [ More info ]
|
| #7 | 2854T01 | BOOT @3 COIL END (6 required per assembly) — Replaces: 2854 |
  |
|
332-2854T01 - Boot - Priced Individually [ More info ]
|
| #8 | 63709A1 | BOOT/TERMINAL KIT SPARK PLUG END (6 required per assembly) |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #9 | 97180 | SPARK PLUG (CHAMPION #L76-V) (6 required per assembly) — Replaces: 68057, 57451 |
  |
33-97180 - NGK BUHW Note: Priced Individually [ More info ] Unavailable |
|
  |
33-97180Q - NGK Spark Plug Buhw - Priced Individually [ More info ] Unavailable |
|
  |
|
BUH - NGK Spark Plug, 2422 [ More info ]
|
  |
|
L76V - Champion Spark Plug ( #827M) [ More info ]
|
  |
|
33-896329827 - Spark Plug - L76V - Priced Individually [ More info ] Unavailable |
| #10 | 85537A2 | HARNESS ASSEMBLY COIL TO SWITCH BOX (#2, 4 AND 6) (1 required per assembly) |
  |
|
84-85537A 2 - Harness Assembly [ More info ]
|
| #10 | 85537A1 | HARNESS ASSEMBLY COIL TO SWITCH BOX (#1, 3 AND 5) (1 required per assembly) |
  |
|
84-85537A 1 - Harness Assembly [ More info ] Unavailable |
| #11 | 63153 | J CLIP HARNESS TO COIL COVER (2 required per assembly) |
  |
|
54-63153 - J Clip [ More info ]
|
| #12 | 96188A4 | HARNESS ASSY [USA-6051526/Canada-7186573] & Up (1 required per assembly) — Replaces: 89564A1, 96188A2 |
  |
|
84-96188A 4 - Harness Assembly, NLA [ More info ] Unavailable |
| #13 | 8M0207796 | FUSE-20 AMP @5 [USA-6051526/Canada-7186573] & Up (1 required per assembly) — Replaces: 79091 |
  |
|
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ]
|
| #14 | 95084A2 | CABLE ASSEMBLY FUSE HOLDER [USA-6051526/Canada-7186573] & Up (1 required per assembly) |
  |
|
84-95084A 2 - Cable Assembly [ More info ]
|
| #15 | 88608 | CLAMP WIRING HARNESS (1 required per assembly) |
  |
|
54-88608 - Clamp [ More info ]
|
| #16 | 28636 | SCREW (.250-20 X .750) WIRING HARNESS CLAMP (2 required per assembly) |
  |
|
10-28636 - Screw - Priced Individually [ More info ]
|
| #17 | 26996 | LOCKWASHER (#10) STAINLESS STEEL WIRING HARNESS CLAMP SCREW (2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #18 | 89047 | BRACKET WIRING HARNESS (1 required per assembly) |
  |
|
89047 - Bracket, NLA [ More info ] Unavailable |
| #19 | 24637 | SCREW (#10-32 X .875) WIRING HARNESS BRACKET (2 required per assembly) |
  |
|
10-24637 - Screw, NLA [ More info ]
|
| #20 | 38833 | WASHER BRACKET SCREW (2 required per assembly) |
  |
|
12-38833 - Washer [ More info ]
|
| #21 | 20110 | NUT (#10-32) BRACKET SCREW (2 required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #22 | 88751 | CLAMP WIRING HARNESS (1 required per assembly) |
  |
|
88751 - Clamp [ More info ] Unavailable |
| #23 | 28636 | SCREW (.250-20 X .750) WIRING HARNESS CLAMP (1 required per assembly) |
| #24 | 20533 | WASHER CLAMP SCREW (1 required per assembly) |
  |
|
12-20533 - Washer, 9/16 Inch O.D. [ More info ]
|
| #25 | 88439A3 | CABLE ASY-BATTERY (1 required per assembly) |
  |
|
84-88439A 3 - Battery Cable Assembly [ More info ]
|
| #25 | 88439A4 | CABLE ASSY-NEG (1 required per assembly) |
  |
|
84-88439A 4 - Cable Assembly -neg [ More info ]
|
