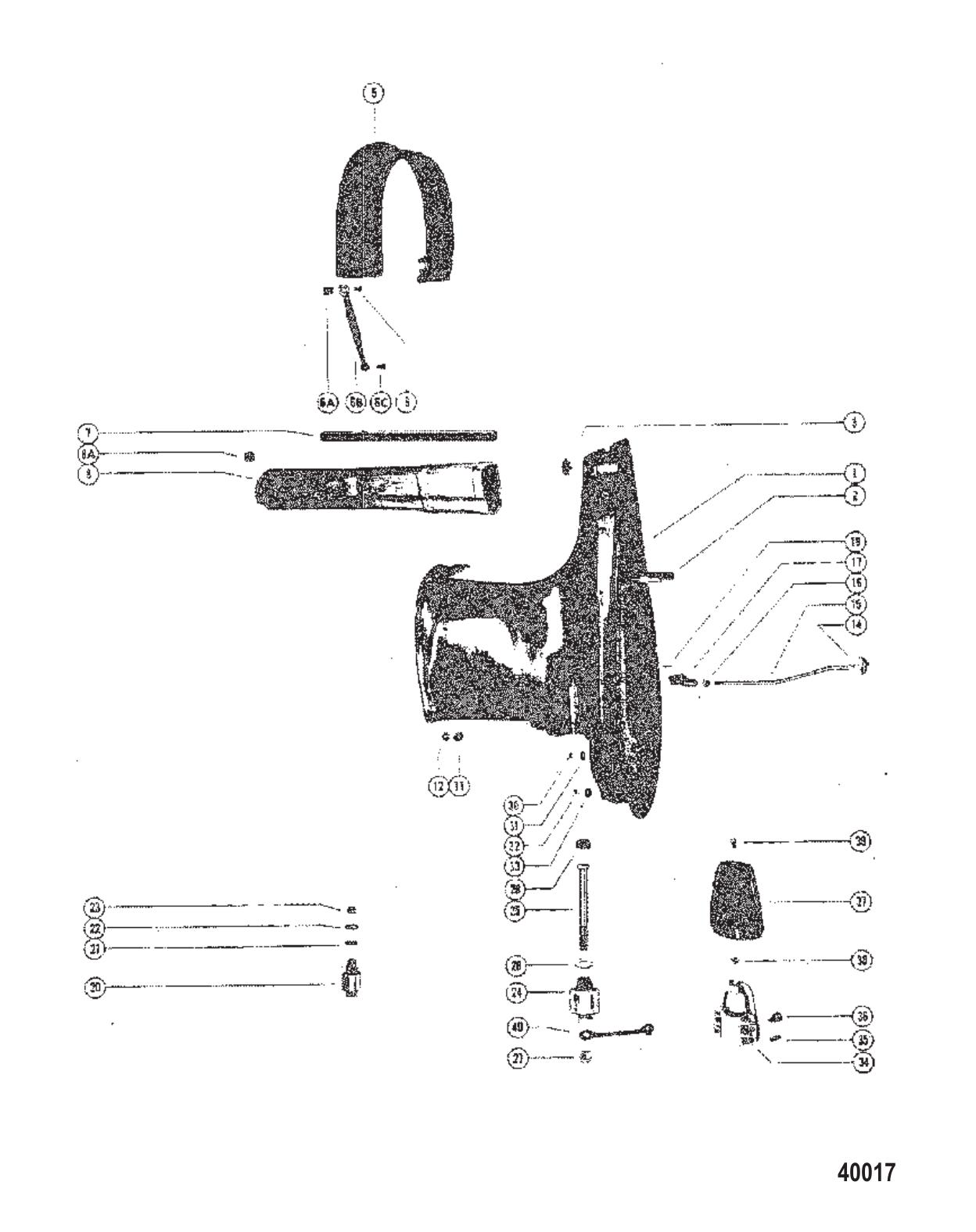

Driveshaft Housing Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	5239A4	DRIVE SHAFT HSG (1 required per assembly)
		1573-5239A 4 - Drive Shaft Housing, NLA [ More info ] Unavailable
#2	56295	STUD (.437 X 2.69) DRIVERSHAFT HOUSING (LONG SHAFT) (2 required per assembly)
		16-56295 - Stud - Priced Individually [ More info ] $12.39 9 In Stock.
#2	74732	STUD DRIVESHAFT HOUSING (EXTRA LONG SHAFT) (2 required per assembly) — Replaces: 77168
		16-74732 - Stud, NLA [ More info ] $34.26 10+ In Stock.
#3	64649	PLUG PLASTIC-TRIM TAB SCREW HOLE (1 required per assembly)
		19-64649 - Plug - Priced Individually [ More info ] $5.29 5 In Stock.
#5	37417	COVER TRIM-DRIVESHAFT HOUSING (1 required per assembly)
		37417 - Cover, NLA [ More info ] Unavailable
#6	57807	SCREW (#10-16 X .750) STAINLESS STEEL TRIM COVER TO BOTTOM COWL (4 required per assembly)
		10-57807 - Screw - Priced Individually [ More info ] $7.39 $5.92 3 In Stock.
#7	60897	TUBE WATER INLET (LONG SHAFT) (1 required per assembly)
		32-60897 - Tubing, NLA [ More info ] $70.66 10+ In Stock.
#7	77121	TUBE WATER INLET (EXTRA LONG SHAFT) (1 required per assembly)
		32-77121 - Tubing, NLA [ More info ] Unavailable
#8	78184T	EXHAUST TUBE (1 required per assembly) — Replaces: 78184
		78184T - Exhaust Tube, NLA [ More info ] Unavailable
#11	69254	NUT POWERHEAD STUDS (3/8-24) (2 required per assembly)
		11-69254 - Nut, (3/4-24) [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#12	20553	WASHER (.406 X .734 X .063) POWERHEAD STUDS (2 required per assembly) — Replaces: 25970
		12-20553 - Washer - Priced Individually [ More info ] $1.50 8 In Stock.
#14	52887	GUIDE PUSH ROD NOT USED WITH FULL POWER TRIM [USA-5829463/Australia-8071134/Canada-7171252] & Below (1 required per assembly)
		52887 - Guide, NLA [ More info ] Unavailable
#14	92704	GUIDE PUSH ROD NOT USED WITH FULL POWER TRIM [USA-5829464/Australia-8071135/Canada-7171253] & Up (1 required per assembly)
		92704 - Guide, NLA [ More info ] $31.25 9 In Stock.
#15	47558	ROD PUSH NOT USED WITH FULL POWER TRIM [USA-5829463/Australia-8071134/Canada-7171252] & Below (1 required per assembly)
		47558 - Push Rod, NLA [ More info ] $20.99 $17.77 3 In Stock.
#15	43417A2	PUSH ROD ASSY PUSH NOT USED WITH FULL POWER TRIM [USA-5829464/Australia-8071135/Canada-7171253] & Up (1 required per assembly) — Replaces: 92707
		43417A 2 - Push Rod Assembly, NLA [ More info ] Unavailable
#16	69254	NUT JAM-PUSH ROD NOT USED WITH FULL POWER TRIM [USA-5829463/Australia-8071134/Canada-7171252] & Below (1 required per assembly) — Replaces: 47661
#16	28770	NUT (.312-24) STAINLESS STEEL JAM-PUSH ROD NOT USED WITH FULL POWER TRIM [USA-5829464/Australia-8071135/Canada-7171253] & Up (2 required per assembly)
		11-28770 - Nut (5/16-24) [ More info ] $3.59 10+ In Stock.
#17	47559	YOKE PUSH ROD NOT USED WITH FULL POWER TRIM [USA-5829463/Australia-8071134/Canada-7171252] & Below (1 required per assembly)
		47559 - Push Rod [ More info ] $8.00 $6.78 10+ In Stock.
#17	89813	ROD END PUSH ROD NOT USED WITH FULL POWER TRIM [USA-5829464/Australia-8071135/Canada-7171253] & Up (1 required per assembly)
		89813 - Rod End [ More info ] $97.00 2 In Stock.
#19	25191	COTTER PIN PUSH ROD PIN NOT USED WITH FULL POWER TRIM (1 required per assembly)
		18-25191 - Cotter Pin - Priced Individually [ More info ] $3.79 2 In Stock.
#20	75296	MOUNT RUBBER-UPPER (2 required per assembly)
		75296 - Mount [ More info ] $62.49 Available to Order: Shipping delay up to 10 days.
#21	47840	WASHER RUBBER-UPPER MOUNT BOLT (2 required per assembly)
		12-47840 - Washer, Rubber, NLA [ More info ] $8.61 10+ In Stock.
#22	31263	WASHER UPPER MOUNT BOLT (2 required per assembly)
		12-31263 - Washer - Priced Individually [ More info ] $1.00 $0.56 10+ In Stock.
#23	8M0204653	NUT @10 UPPER MOUNT BOLT (2 required per assembly) — Replaces: 34933
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.29 9 In Stock.
		11-00118 - Nut, Sold Individually [ More info ] $3.59 $2.95 7 In Stock.
#24	75299	MOUNT RUBBER-LOWER (2 required per assembly)
		75299 - Mount, NLA [ More info ] Unavailable
#25	75284	SCREW (.500-20 X 5.500) LOWER MOUNT (5-1/2&QUOT;) (2 required per assembly) — Replaces: 49318
		10-75284 - Screw [ More info ] $15.69 Available to Order: Shipping delay up to 10 days.
#26	49339	WASHER (.8125) LOWER MOUNT SCREW (2 required per assembly)
		12-49339 - Washer, (.8125) [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#27	25096	NUT LOWER MOUNT SCREW (2 required per assembly)
		11-25096 - Nut, Mount Screw [ More info ] $22.62 10+ In Stock.
#28	25067	BUMPER RUBBER-LOWER MOUTING SCREW (2 required per assembly)
		25067 - Bumper, NLA [ More info ] $11.97 10+ In Stock.
#30	8M0204653	NUT @10 GEAR HOUSING STUDS (2 required per assembly) — Replaces: 34933
#31	45176	WASHER (.453 X .812 X .105) STAINLESS STEEL GEAR HOUSING STUDS (2 required per assembly)
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.50 6 In Stock.
#32	29489	NUT GEAR HOUSING STUDS (1 required per assembly)
		11-29489 - Nut, Gear Hosuing Studs [ More info ] $14.35 10+ In Stock.
#33	45176	WASHER (.453 X .812 X .105) STAINLESS STEEL GEAR HOUSING STUDS (1 required per assembly)
#34	35608	CLAMP LOWER MOUNT (2 required per assembly)
		35608 - Lower Mount Clamp [ More info ] $24.78 10+ In Stock.
#35	35522	SPRING TENSION-LOWER MOUNT CLAMP (4 required per assembly)
		24-35522 - Spring Tension - Lower Mount Clamp,NLA [ More info ] $4.88 10+ In Stock.
#36	29256	SCREW (.312-18 X .875) LOWER MOUNT CLAMP (4 required per assembly)
		10-29256 - Screw - Priced Individually [ More info ] $2.71 10+ In Stock.
#37	35474T	COVER LOWER MOUNT CLAMP (2 required per assembly) — Replaces: 35474
		35474T - Cover [ More info ] Unavailable
#38	35521	NUT LOWER MOUNT CLAMP COVER (2 required per assembly)
		11-35521 - Nut - Priced Individually [ More info ] $2.79 $1.57 10+ In Stock.
#39	87884	SCREW (#12-14 X .920) COVER TO LOWER CLAMP MOUNT (2 required per assembly)
		10-87884 - Screw, NLA [ More info ] $1.96 10+ In Stock.
#40	88238A10	CABLE ASSEMBLY GROUND GROUND (1 required per assembly) — Replaces: 88238A2
		88238A10 - Cable Assembly [ More info ] $8.29 2 In Stock.
#--	77120T	SPACER DRIVE SHAFT HOUSING- EXTRA LONG SHAFT (1 required per assembly) — Replaces: 77120
		77120T - SPACER,NLA [ More info ] Unavailable
#--	21438	PIN SPACER EXTRA LONG SHAFT (2 required per assembly)
		17-21438 - PIN-DOWEL,NLA [ More info ] Unavailable
#6A	8M0079730	GROMMET KIT PLASTIC-TRIM COVER SCREW (4 required per assembly) — Replaces: 92012
		258M0079730 - Grommet Kit [ More info ] $5.20 Available to Order: Shipping delay up to 10 days.
#6B	88238T01	CABLE ASSEMBLY TRIM COVER SCREW (2 required per assembly) — Replaces: 88238A4, 8M0008283
		84-88238T01 - Cable Assembly [ More info ] $46.00 2 In Stock.
#6C	62568	SCREW (#10-16 X .375) GROUND STRAP ATTACHING (2 required per assembly)
		10-62568 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#8A	65638	BOOT EXHAUST TUBE (2 required per assembly)
		65638 - Boot, NLA [ More info ] Unavailable
