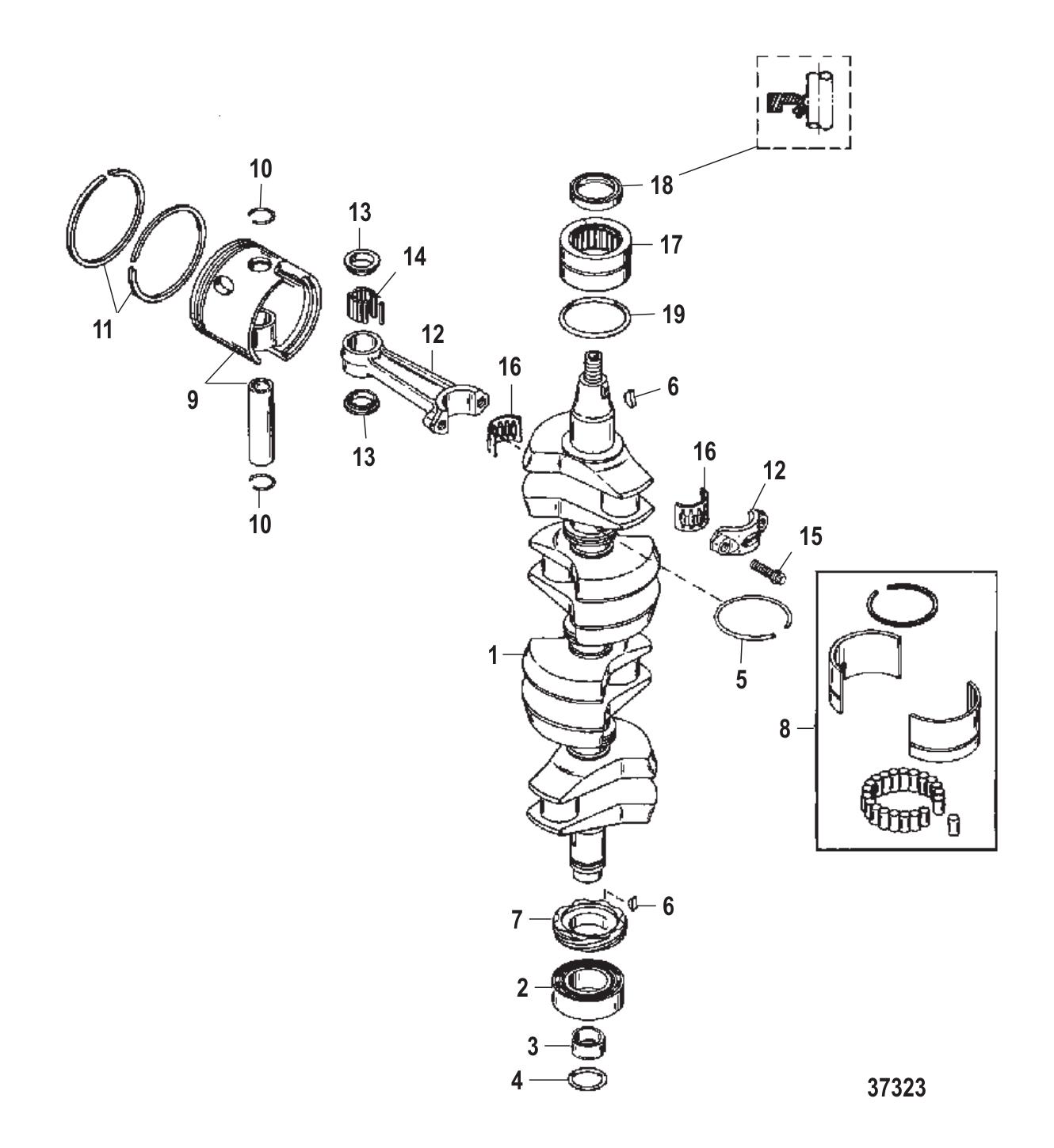

Parts for 115 (4 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Crankshaft, Pistons & Connecting Rods
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 13461A99 | GASKET SET (1 required per assembly) — Replaces: 13461A90 |
  |
|
27-13461A99 - Engine Gasket Set [ More info ]
|
| #- | 17791R97 | PH 100-125 2S -RM (1 required per assembly) — Replaces: 17791A97, 17791T97 |
  |
|
17791R97 - Powerhead 100-125 2S -rm [ More info ] Unavailable |
| #1 | 9193T5 | CRANKSHAFT ASSY (1 required per assembly) — Replaces: 9193A5 |
  |
|
473-9193T 5 - CrankShaft Assembly [ More info ] Unavailable |
| #2 | 43011T | BEARING BALL (LOWER) (1 required per assembly) — Replaces: 43011 |
  |
|
30-43011T - Ball Bearing [ More info ]
|
| #3 | 786611 | WEAR SLEEVE (1 required per assembly) |
  |
|
0786611 - L/P 242.40 [ More info ] Unavailable |
| #4 | 35126 | O-RING (.859 X .139) (1 required per assembly) |
  |
|
25-35126 - O-ring, (.859 X .139) [ More info ]
|
| #5 | 818412A4 | RING ASSEMBLY (2 required per assembly) |
  |
|
39-818412A 4 - Rings - 4 - Standard [ More info ]
|
| #6 | 91800 | KEY WOODRUFF (2 required per assembly) |
  |
|
28-91800 - Key - Priced Individually [ More info ]
|
| #7 | 43019A1 | GEAR ASSEMBLY (1 required per assembly) |
  |
|
43-43019A 1 - Driver Gear [ More info ]
|
| #8 | 42943A1 | BEARING KIT (3 required per assembly) |
  |
|
42943A 1 - Roller Bearing [ More info ] Unavailable |
| #9 | 826191T4 | PISTON ASSY-STD (STANDARD) (4 required per assembly) — Replaces: 826191A4 |
  |
|
2704-826191T 4 - Piston Assembly - Std [ More info ]
|
| #9 | 821896A3 | PISTON ASSY-.015 (.015 O.S.) (AR required per assembly) |
  |
|
2704-821896A 3 - Piston Assembly -.015 [ More info ]
|
| #9 | 821896A4 | PISTON ASSY-.030 (.030 O.S.) (AR required per assembly) |
  |
|
2704-821896A 4 - Piston Assembly -.030 [ More info ]
|
| #10 | 857196 | LOCK RING (8 required per assembly) — Replaces: 52035 |
  |
|
53-857196 - Lock Ring - Priced Individually [ More info ]
|
| #11 | 822321A12 | RING KIT PISTON - STANDARD (1 required per assembly) |
  |
|
39-822321A12 - Rings - Standard [ More info ]
|
  |
|
18-3982 - Piston Rings, 39-822321A12 [ More info ]
|
| #11 | 822321A1 | RING KIT PISTON - .015 OVERSIZE (AR required per assembly) |
  |
|
39-822321A 1 - Rings - .015 [ More info ]
|
| #11 | 822321A2 | RING SET PISTON (.030 O.S.) (AR required per assembly) |
  |
|
39-822321A 2 - Rings - .030 [ More info ]
|
| #12 | 818846T6 | CONNECTING ROD (4 required per assembly) — Replaces: 818846A3 |
  |
|
646-818846T 6 - Connecting Rod [ More info ]
|
| #13 | 8M0012298 | THRUST WASHER (8 required per assembly) — Replaces: 812876 |
  |
|
12-8M0012298 - Thrust Washer [ More info ]
|
| #14 | 818391001 | BEARING NEEDLE (116 required per assembly) — Replaces: 818391 |
  |
|
29-818391001 - Needle Bearing [ More info ]
|
  |
|
29-8M0214954 - BRG-NEEDLE @200 [ More info ] Unavailable |
| #15 | 94320 | SCREW (.375-24 X 1.250) (8 required per assembly) |
  |
|
10-94320 - Screw [ More info ]
|
| #16 | 844338A01 | BEARING ASSEMBLY (4 required per assembly) — Replaces: 43012A1, 43012A04 |
  |
|
31-844338A01 - Bearing Kit [ More info ]
|
  |
|
|
| #17 | 43013T3 | BEARING ASSEMBLY ROLLER (UPPER) (1 required per assembly) — Replaces: 43013A1, 43013T1 |
  |
|
31-43013T 3 - Bearing - Roller [ More info ]
|
| #18 | 43993 | SEAL OIL (1 required per assembly) |
  |
26-43993 - Seal [ More info ] Unavailable |
|
  |
|
18-0523 - Seal, 26-43993 [ More info ]
|
  |
|
26-8M0214932 - Crankshaft OIL SEAL O/B [ More info ]
|
| #19 | 823683 | O-RING (1.989 X .070) (1 required per assembly) |
  |
|
25-823683 - O-ring, (1.989 X .070) [ More info ]
|
