Mercury Marine Conversion / Attaching Kits / Ts Cables Remote Controls & Components Throttle / Shift Interlock Kit
Tap to zoom. Scroll down to order.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 15869A1 | INTERLOCK ASSY (1 required per assembly) |
  |
|
15869A 1 - Interlock Assembly, NLA [ More info ] Unavailable |
| #2 | 15868 | SPRING INTERLOCK (1 required per assembly) |
  |
|
24-15868 - SPRING,NLA [ More info ] Unavailable |
| #3 | 15869 | GUIDE ROD ( required per assembly) |
  |
|
15869 - Guide, NLA [ More info ] Unavailable |
| #4 | 93008 | BALL (3 required per assembly) |
  |
|
30-93008 - Ball [ More info ] Unavailable |
| #5 | 15872 | ROD THROTTLE (1 required per assembly) |
  |
|
15872 - ROD-THROTTLE,NLA [ More info ] Unavailable |
| #6 | 15871 | SHIFT ROD (1 required per assembly) |
  |
|
15871 - ROD-SHIFT,NLA [ More info ] Unavailable |

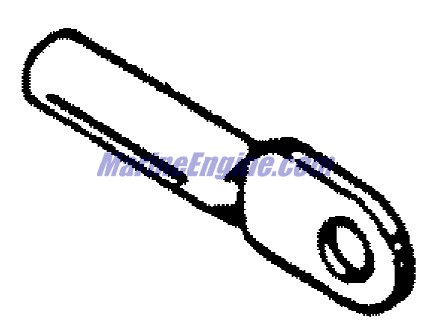

| #7 | 15870 | LINK SHIFT ROD (2 required per assembly) |
  |
|
15870 - LINK,NLA [ More info ] Unavailable |
| #8 | 15873 | BRACKET INTERLOCK (2 required per assembly) |
  |
|
15873 - Bracket, NLA [ More info ] Unavailable |
| #9 | 30272 | SCREW (#6-32 X 0.3125) (2 required per assembly) |
  |
|
10-30272 - SCREW,NLA [ More info ] Unavailable |
| #10 | 15876 | LOCKWASHER EXTERNAL (#6) (2 required per assembly) |
  |
|
13-15876 - LockWasher [ More info ]
|
| #11 | 29031 | NUT (1/4-20) (2 required per assembly) |
  |
|
11-29031 - Nut, (1/4-20) [ More info ] Unavailable |
