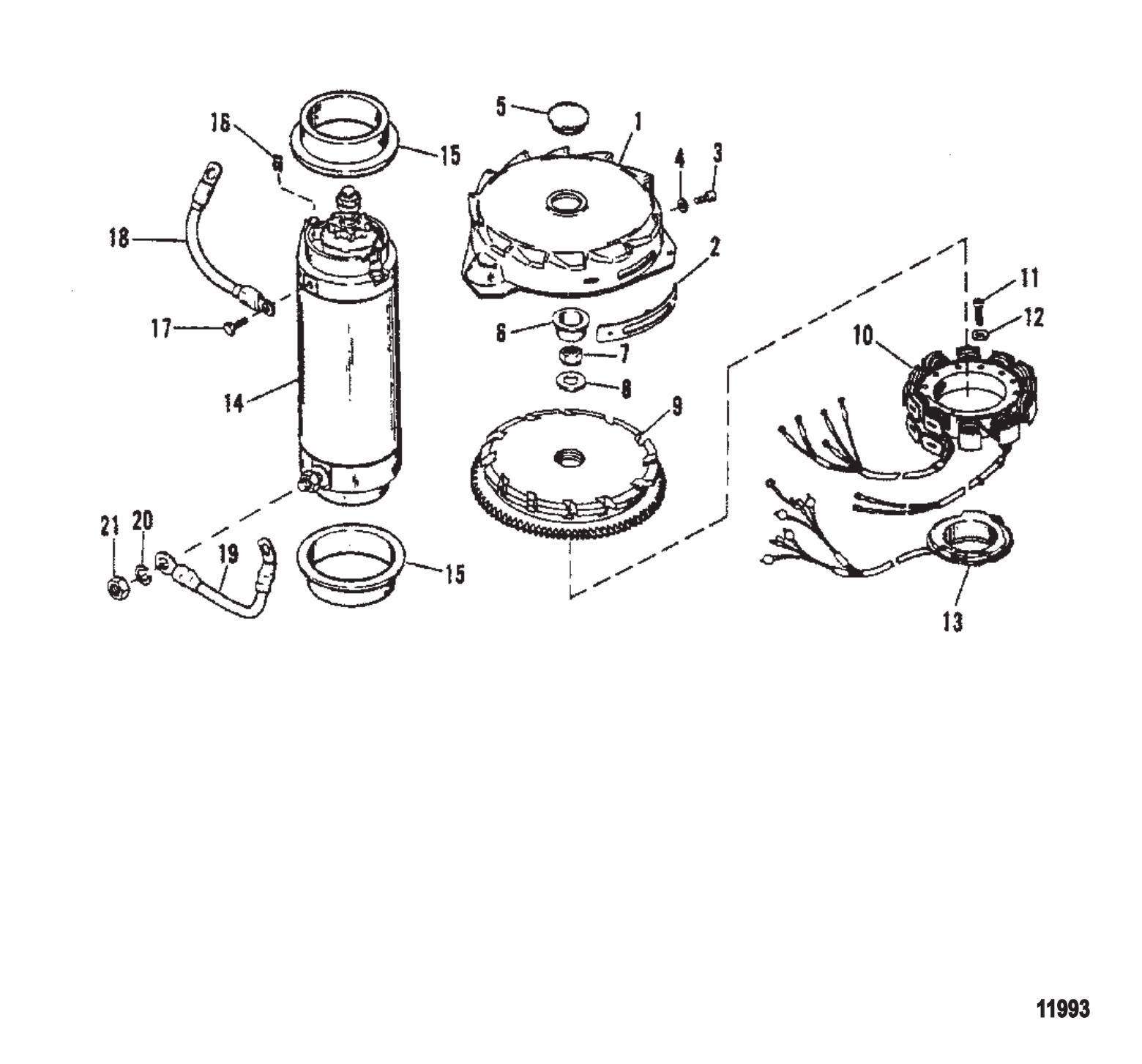

Parts for 105 Jet 2-Stroke Carbureted Mercury Outboard Motor Flywheel / Starter Motor
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 18896A1 | COVER KIT-F WHEEL (1 required per assembly) |
  |
|
18896A 1 - Flywheel Cover Kit [ More info ]
|
| #2 | 79022 | MARKER (1 required per assembly) |
  |
|
79022 - Timing Marker [ More info ]
|
| #3 | 37572 | SCREW (.190-32 X .380) (2 required per assembly) |
  |
|
10-37572 - Screw [ More info ]
|
| #4 | 72761 | WASHER (.203 X .562 X .060) STAINLESS STEEL (2 required per assembly) |
  |
|
12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ]
|
| #5 | 89219001 | PLUG (1 required per assembly) — Replaces: 89219 |
  |
|
19-89219001 - Plug [ More info ] Unavailable |
| #6 | 45907 | PLUG (1 required per assembly) |
  |
|
|
| #7 | 52901 | NUT (1 required per assembly) |
  |
|
11-52901 - Nut (5/8-18) [ More info ]
|
| #8 | 33001 | WASHER @2 (1 required per assembly) — Replaces: 68229 |
  |
|
12-33001 - Washer, Flywheel Nut [ More info ]
|
| #9 | 859238T8 | FLYWHEEL [0G052511] & Below (1 required per assembly) — Replaces: 817632A2, 817632A12 |
  |
271-859238T 8 - Flywheel [ More info ] Unavailable |
|
  |
|
271-859238T16 - Flywheel Assembly [ More info ]
|
| #9 | 859238T16 | FLYWHEEL ASY [0G052512] & Up (1 required per assembly) — Replaces: 817632A12, 859238T8 |
| #10 | 9610A19 | STATOR ASY (1 required per assembly) |
  |
|
398-9610A19 - Stator Assembly [ More info ]
|
  |
|
18-5876-1 - Stator, Mercury 398-9610A19 174-9610K 2 [ More info ]
|
  |
|
18-5876 - Stator, 398-9610A19 [ More info ]
|
| #11 | 90045 | SCREW (4 required per assembly) |
  |
|
10-90045 - Screw [ More info ]
|
| #12 | 26996 | LOCKWASHER @15 (4 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #13 | 96455A9 | TRIGGER PLATE ASY (1 required per assembly) |
  |
|
96455A 9 - Trigger [ More info ]
|
  |
|
18-5798-1 - Trigger V6 Mercury 96455A9 96455A11 [ More info ]
|
| #14 | 884238T | STARTER MOTOR (1 required per assembly) — Replaces: 79472, 794721 |
  |
50-884238T - Starter Motor [ More info ] Unavailable |
|
  |
50-79472T 2 - Starter Motor [ More info ] Unavailable |
|
  |
|
50-893893 - Starter Motor [ More info ] Unavailable |
  |
|
18-5608 - Starter, 50-79472 [ More info ]
|
  |
|
5380 - Starter, 50-79472 1 [ More info ]
|
| #15 | 8M0034918 | COLLAR (2 required per assembly) — Replaces: 56703, 8M0001391 |
  |
|
23-8M0034918 - Collar [ More info ]
|
| #16 | 8M0043376 | STOP (2 required per assembly) — Replaces: 68042 |
  |
|
8M0043376 - Stop [ More info ]
|
| #17 | 69035 | SCREW/LOCKWASHER (1 required per assembly) |
  |
|
10-69035 - Screw/LockWasher [ More info ]
|
| #18 | 93388A1 | CABLE ASSY (1 required per assembly) |
  |
|
84-93388A 1 - Cable Assembly [ More info ]
|
| #19 | 93388A14 | CABLE ASSEMBLY YELLOW/BLACK (BLACK) (1 required per assembly) — Replaces: 93388A7 |
  |
|
84-93388A14 - Cable Assembly [ More info ]
|
| #20 | 26992 | LOCKWASHER @5 (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #21 | 20890 | NUT @5 (1 required per assembly) |
  |
|
11-20890 - Nut (1/4 x20) [ More info ]
|
