Parts for 100 (4 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Cowl Mounting Brackets

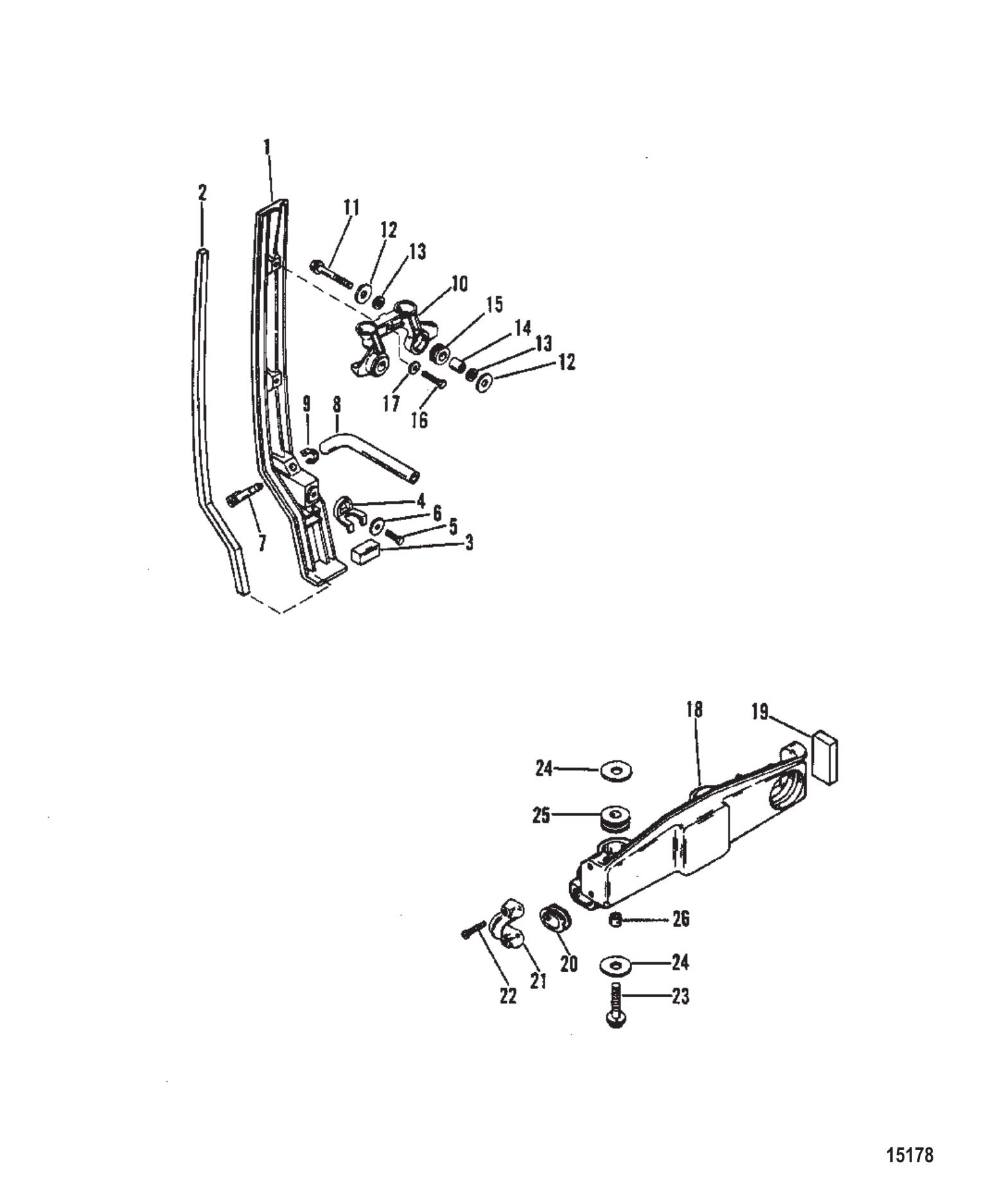

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 11189A1 | BRACKET ASSEMBLY BLACK (1 required per assembly) |
  |
|
11189A 1 - Bracket, NLA [ More info ]
|
| #1 | 11189A2 | BRACKET ASSEMBLY OYSTER (1 required per assembly) — Replaces: 11189A3 |
  |
|
11189A 2 - Bracket, NLA [ More info ] Unavailable |
| #2 | 183061 | SEAL BRACKET, BLACK, GRAY (2 required per assembly) |
  |
|
18306 1 - Seal, NLA [ More info ]
|
| #2 | 193861 | SEAL BRACKET, OYSTER (2 required per assembly) |
  |
|
19386 1 - SEAL REAR BRACKE,NLA [ More info ] Unavailable |
| #3 | 42935 | SEAL (1 required per assembly) |
  |
|
42935 - Seal, NLA [ More info ] Unavailable |
| #4 | 11244 | RESTRAINT (1 required per assembly) |
  |
|
11244 - RESTRAINT,NLA [ More info ] Unavailable |
| #5 | 400015 | SCREW (1 required per assembly) |
  |
|
10-40001 5 - Screw, NLA [ More info ]
|
| #6 | 42118 | WASHER (1 required per assembly) |
  |
|
12-42118 - Washer, Oil Reservoir Screw [ More info ]
|
| #7 | 42907 | CONNECTOR BLACK, GRAY (1 required per assembly) |
  |
|
42907 - Connector [ More info ] Unavailable |
| #7 | 429071 | CONNECTOR OYSTER (1 required per assembly) |
  |
|
42907 1 - Connector, NLA [ More info ] Unavailable |
| #8 | 83075780 | TUBING-28 INCH (1 required per assembly) — Replaces: 9912976, 9912980 |
  |
32-830757 80 - Tubing-28 Inch [ More info ] Unavailable |
|
  |
32-830757130 - Tubing-70 Inch [ More info ] Unavailable |
|
  |
32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108349 - Hose-70 Inch [ More info ]
|
| #9 | 816311T | TIE STRAP @100 (1 required per assembly) — Replaces: 816311 |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #10 | 932642 | HINGE HOUSING (2 required per assembly) |
  |
|
93264 2 - Hinge Housing, NLA [ More info ] Unavailable |
| #11 | 8M0103817 | SCREW @2 (4 required per assembly) — Replaces: 4010760, 88552660 |
  |
|
108M0103817 - Screw - Priced Individually [ More info ]
|
| #12 | 814803 | WASHER (Cylinder Block Cover Casting Number 1035-9195C1) (16 required per assembly) |
  |
|
12-814803 - Washer [ More info ]
|
| #12 | 817274 | WASHER (Cylinder Block Cover Casting Number 1035-9195C2) (8 required per assembly) |
  |
|
12-817274 - Washer, (.344 X 1.00 X .063) Stainless Steel [ More info ]
|
| #13 | 8M0204690 | WASHER (Cylinder Block Cover Casting Number 1035-9195C1) (16 required per assembly) — Replaces: 814806 |
  |
|
12-8M0204690 - WASHER [ More info ] Unavailable |
| #14 | 14395 | BUSHING (Cylinder Block Cover Casting Number 1035-9195C1) (4 required per assembly) |
  |
|
23-14395 - Bushing, NLA [ More info ]
|
| #14 | 143951 | BUSHING (Cylinder Block Cover Casting Number 1035-9195C2) (4 required per assembly) |
  |
|
23-14395 1 - Bushing, NLA [ More info ]
|
| #15 | 88033 | GROMMET (Cylinder Block Cover Casting Number 1035-9195C2) (4 required per assembly) |
  |
|
25-88033 - Grommet, Bracket,NLA [ More info ]
|
| #16 | 400038 | SCREW (2 required per assembly) |
  |
|
10-40003 8 - Screw, NLA [ More info ] Unavailable |
| #17 | 42118 | WASHER (2 required per assembly) |
| #18 | 42952T | BRACKET FRONT, BLACK (1 required per assembly) |
  |
|
42952T - Bracket, NLA [ More info ] Unavailable |
| #18 | 42952T6 | BRACKET FRONT, OYSTER (1 required per assembly) — Replaces: 42952T10 |
  |
|
42952T 6 - Cowl Bracket, NLA [ More info ]
|
| #19 | 67260 | SEAL (1 required per assembly) |
  |
|
67260 - Seal, NLA [ More info ]
|
| #20 | 67272 | GROMMET (2 required per assembly) |
  |
|
25-67272 - Grommet, NLA [ More info ] Unavailable |
| #21 | 99447 | RETAINER (1 required per assembly) |
  |
|
99447 - Cable Retainer, NLA [ More info ] Unavailable |
| #22 | 69011 | SCREW (2 required per assembly) |
  |
|
10-69011 - Screw [ More info ]
|
| #23 | 40011151 | SCREW @5 (2 required per assembly) |
  |
|
10-40011151 - Screw [ More info ]
|
| #24 | 817274 | WASHER (4 required per assembly) |
| #25 | 88033 | GROMMET (2 required per assembly) |
| #26 | 143951 | BUSHING (2 required per assembly) |
