Parts for 10 Marathon 2-Stroke Carbureted Mercury Outboard Motor Throttle & Shift Linkage (Side Shift Models)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 10 Marathon > 9596000 - 9792199 - Belgium > Throttle & Shift Linkage (Side Shift Models)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

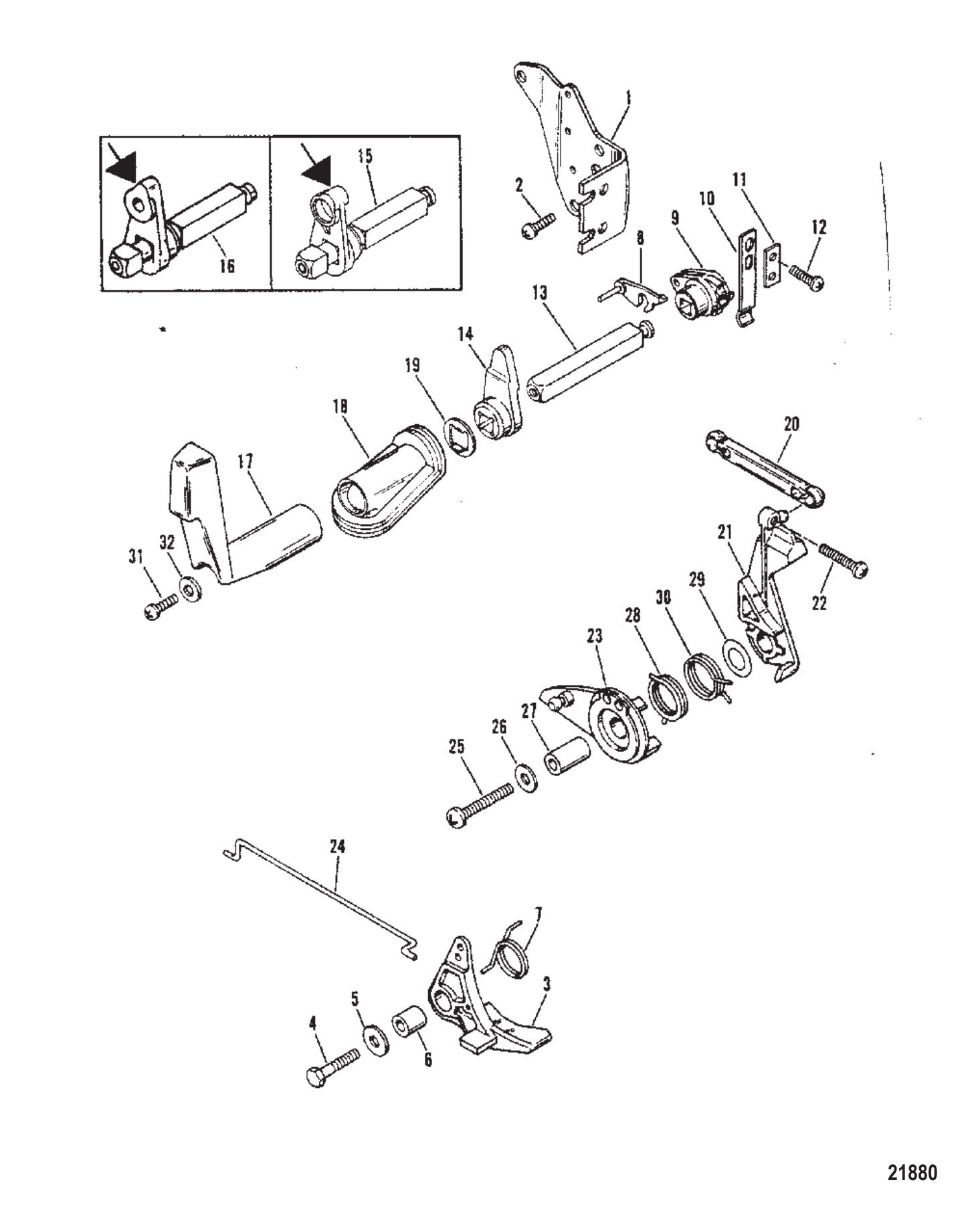

Throttle & Shift Linkage (Side Shift Models)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	42181	BRACKET (1 required per assembly)
		42181 - Cable Bracket, NLA [ More info ] $16.99 $14.38 4 In Stock.
#2	4000171	SCREW @3 (2 required per assembly)
		10-40001 71 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#3	421592	LEVER-INTERLOCK (1 required per assembly) — Replaces: 125732, 125733
		42159 2 - Interlock Lever [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#4	4000331	SCREW (1 required per assembly)
		10-40003 31 - Screw [ More info ] $3.79 6 In Stock.
#5	4002316	WASHER @5 (1 required per assembly)
		12-40023 16 - Washer - Priced Individually [ More info ] $1.17 2 In Stock.
		128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ] $1.00 1 In Stock.
#6	421581	BUSHING (1 required per assembly)
		23-42158 1 - Bushing [ More info ] $6.99 2 In Stock.
#7	42160	SPRING (1 required per assembly)
		24-42160 - Spring [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#8	42156	LEVER (1 required per assembly)
		42156 - Lever [ More info ] $13.69 3 In Stock.
#9	42153	LEVER (1 required per assembly)
		42153 - Lever [ More info ] $27.59 Available to Order: Shipping delay up to 10 days.
#10	39627	SPRING (1 required per assembly)
		24-39627 - Spring, Detent [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#11	39601	PLATE (OLD DESIGN) (1 required per assembly)
		39601 - Plate [ More info ] $9.99 $8.45 10+ In Stock.
#12	400035	SCREW (M5 X 16) (M5 X 16) (2 required per assembly) — Replaces: 4000114
		10-40003 5 - Screw, NLA [ More info ] $2.59 10+ In Stock.
#12	400011	SCREW (2 required per assembly)
		10-40001 1 - Screw [ More info ] $0.60 2 In Stock.
#13	42152	SHAFT (2 Piece Shift Shaft) (1 required per assembly)
		42152 - Shift Shaft, NLA [ More info ] $10.76 9 In Stock.
#14	421541	ACTUATOR (2 Piece Shift Shaft) (1 required per assembly)
		42154 1 - Actuator, NLA [ More info ] $10.76 10+ In Stock.
#15	815550A1	SHIFT SHAFT (W/BALL SOCKET) (1 required per assembly)
		815550A 1 - Shift Link Kit [ More info ] $83.97 2 In Stock.
#16	8155501	SHIFT SHAFT (W/O BALL SOCKET) (1 required per assembly)
		815550 1 - Shift Shaft [ More info ] $28.59 1 In Stock.
#17	815550A1	SHIFT SHAFT (USE W/REF.#13 & 14 OR 15) (1 required per assembly) — Replaces: 42157
#17	421571	SHIFT HANDLE (USSE W/REF.#16) (1 required per assembly)
		42157 1 - Shift Handle C [ More info ] $17.19 Available to Order: Shipping delay up to 10 days.
#18	44459001	GROMMET (1 required per assembly) — Replaces: 44459
		44459001 - Grommet [ More info ] $9.49 Available to Order: Shipping delay up to 10 days.
#19	12003	TAB WASHER (OLD DESIGN) (1 required per assembly)
		14-12003 - TAB WASHER,NLA [ More info ] Unavailable
#20	421671	LINK-TIMING (1 required per assembly)
		42167 1 - Timing Link [ More info ] Unavailable
#21	421631	LEVER (1 required per assembly)
		42163 1 - Lever [ More info ] $21.49 Available to Order: Shipping delay up to 10 days.
#22	40056110	SCREW (1 required per assembly)
		10-40056110 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#22	40019111	SCREW (1 required per assembly)
		10-40019111 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#23	421662	ACTUATOR (1 required per assembly)
		42166 2 - Actuator [ More info ] $19.59 Available to Order: Shipping delay up to 10 days.
#24	42161	LINK (1 required per assembly)
		42161 - Link Interlock [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#25	4000333	SCREW @5 (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#26	4002316	WASHER @5 (1 required per assembly)
#27	421621	BUSHING (1 required per assembly)
		23-42162 1 - Bushing [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#28	42164	SPRING (1 required per assembly)
		24-42164 - Spring [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#29	69708	WASHER-WAVE (1 required per assembly)
		13-69708 - Wave Washer [ More info ] $2.69 2 In Stock.
#30	13676	SPRING (1 required per assembly)
		24-13676 - Spring [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#31	40056107	SCREW (1 required per assembly)
		10-40056107 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#32	4002314	WASHER @5 (1 required per assembly)
		12-40023 14 - Washer - Priced Individually [ More info ] $3.69 $2.96 10+ In Stock.
