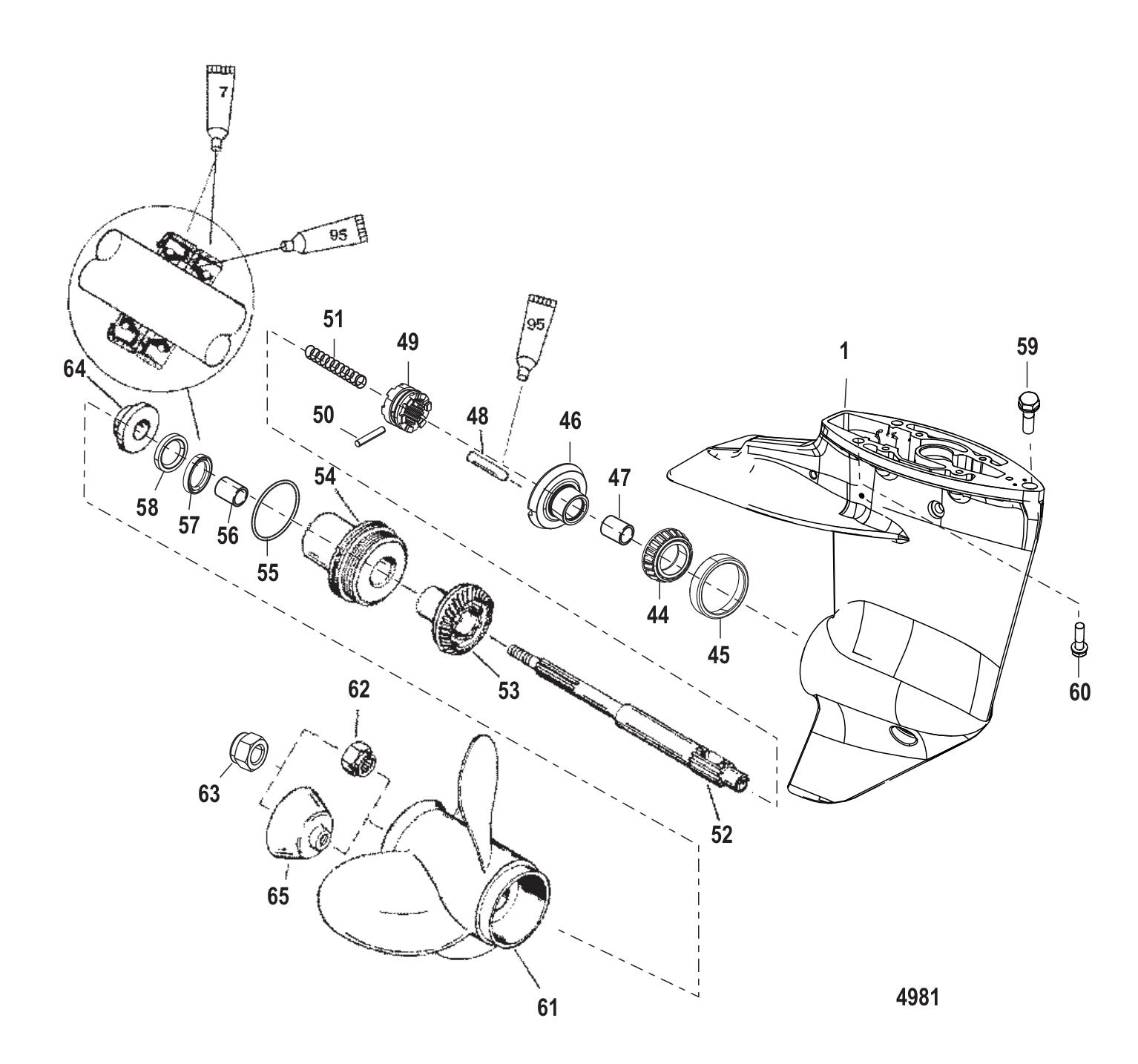

Parts for 10 Marathon 2-Stroke Carbureted Mercury Outboard Motor Gear Housing Propeller Shaft - 2.00:1 Gear Ratio
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 42364A92 | GASKET SET (1 required per assembly) |
  |
|
27-42364A92 - Engine Gasket Set [ More info ]
|
| #- | 41365A3 | SEAL KIT (1 required per assembly) |
  |
|
26-41365A 3 - Seal Kit [ More info ]
|
| #- | 8833T13 | GEAR HSG-SHORT-BK (Short) (Black) (1 required per assembly) |
  |
|
1666-8833T13 - Gear Housing Assembly [ More info ]
|
| #- | 8833T15 | GEAR HSG-LONG-BLK (Short) (Black) (1 required per assembly) |
  |
|
1666-8833T15 - Gear Housing Assembly [ More info ]
|
| #1 | 8M0083312 | GC BASIC9.9/15 4S (Basic) (Black) (1 required per assembly) — Replaces: 8833A17 |
  |
|
1600-8M0083312 - Gear Housing Basic 9.9 15 4 Stroke [ More info ]
|
| #44 | 821321A1 | BEARING ASSEMBLY ROLLER (1 required per assembly) |
  |
|
31-821321A 1 - Bearing Kit [ More info ]
|
| #45 | NSS | NOT SOLD SEPARATE (CUP) (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #46 | 821924A1 | GEAR ASSEMBLY FORWARD (26 TEETH) (1 required per assembly) |
  |
|
43-821924A 1 - Forward Gear Kit [ More info ]
|
| #47 | 41367 | BUSHING (1 required per assembly) |
  |
|
23-41367 - Bushing [ More info ]
|
| #48 | 813139 | FOLLOWER CAM (1 required per assembly) |
  |
|
813139 - Cam Follower [ More info ]
|
| #49 | 821930A1 | CLUTCH ASSEMBLY (1 required per assembly) |
  |
|
52-821930A 1 - Clutch Kit [ More info ]
|
| #50 | 823951 | PIN CROSS (1 required per assembly) |
  |
|
17-823951 - Pin, Cross (Grooved) [ More info ]
|
| #51 | 42204 | SPRING (1 required per assembly) |
  |
|
24-42204 - Spring [ More info ]
|
| #52 | 821929 | PROPELLER SHAFT (1 required per assembly) |
  |
|
44-821929 - Prop Shaft [ More info ]
|
| #53 | 821926T1 | GEAR REVERSE - 13/26 (1 required per assembly) |
  |
|
43-821926T 1 - Reverse Gear [ More info ]
|
| #54 | 42144T3 | CARRIER BEARING (1 required per assembly) |
  |
|
42144T 3 - Bearing Carrier [ More info ]
|
| #55 | 33145 | O-RING (1.984 X .139) (1 required per assembly) |
  |
25-33145 - O-ring, (1.984 X .139) [ More info ] Unavailable |
|
  |
|
18-7162-9 - (PK5) O-Ring 25-33145 [ More info ]
|
  |
|
25-8M0214923 - O RING, sold individually [ More info ]
|
| #56 | 821927 | BUSHING (1 required per assembly) |
  |
|
23-821927 - Bushing [ More info ]
|
| #57 | 99325 | SEAL (1 required per assembly) |
  |
|
|
  |
|
18-0586 - Seal, 26-99325 [ More info ]
|
| #58 | 821928 | SEAL OIL (1 required per assembly) |
  |
|
26-821928 - Seal [ More info ]
|
  |
|
18-0585 - Seal, 26-821928 [ More info ]
|
| #59 | 82407110 | SCREW (M8 X 50) (1 required per assembly) |
  |
|
10-824071 10 - Screw W/Washer [ More info ]
|
| #60 | 8240717 | SCREW (M8 X 30) (2 required per assembly) |
  |
|
10-824071 7 - Screw [ More info ]
|
| #61 | 828156A12 | BLMX 9R9 (1 required per assembly) |
  |
|
48-828156A12 - Propeller, Black Max 9R9 [ More info ]
|
  |
|
Solas Amita 3 Blade Aluminum 9P Mercury 1111-093-09 [ More info ]
|
| #61 | 828150A12 | BLMX 9 3/4R6 1/2 (Sailpower) (1 required per assembly) |
  |
|
48-828150A12 - Propeller, Black Max 9 3/4 R 6 1/2 [ More info ]
|
| #62 | 420911 | SPACER (1 required per assembly) |
  |
|
23-420911 - SPACER [ More info ] Unavailable |
| #63 | 40140 | NUT @2 (1 required per assembly) |
  |
|
11-40140 - Nut, (M10) [ More info ]
|
| #64 | 8219321 | THRUST WASHER (1 required per assembly) |
  |
|
821932 1 - Thrust Washer [ More info ]
|
| #65 | 822559Q01 | BLOCKER ASSY@2 (1 required per assembly) — Replaces: 822559A1 |
  |
|
822559Q01 - Blocker Assembly - Priced Individually [ More info ]
|
