Closed Cooling System (91036A1 / A5 / A8)

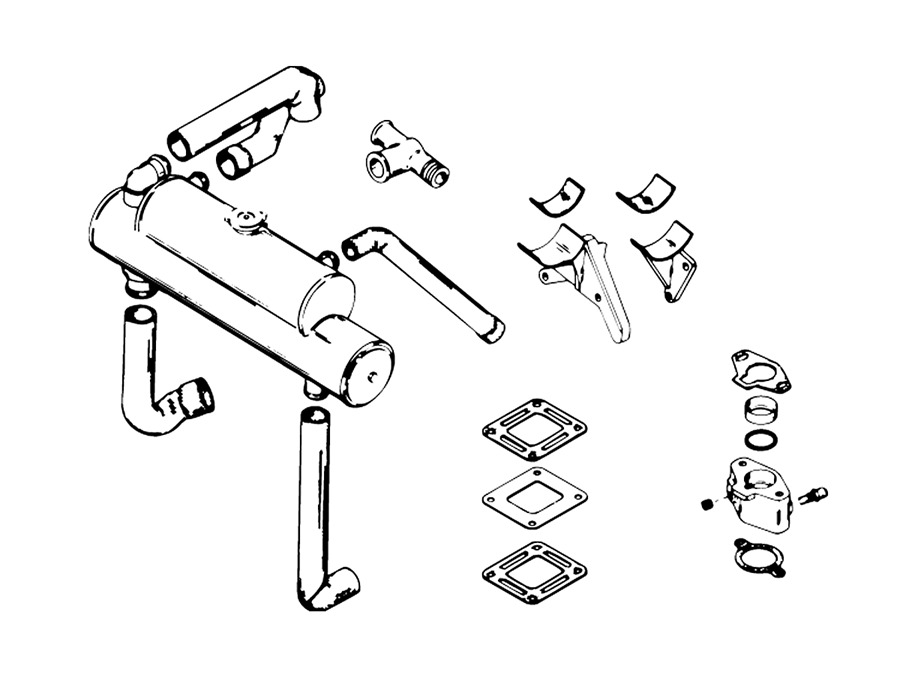

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	91036A8	CLOSED COOLING KT (Stainless Steel Elbow) (1 required per assembly) — Replaces: 91036A1
		91036A 8 - Closed Cooling Kit [ More info ] Unavailable
#-	91036A5	CLOSED COOLING (1 required per assembly)
		91036A 5 - CLOSED COOLING [ More info ] Unavailable
#-	65128	GASKET (1 required per assembly)
		27-65128 - End Cover Gasket [ More info ] $12.19 10+ In Stock.
#-	66221	COVER (1 required per assembly)
		66221 - End Cover [ More info ] $53.99 $51.52 2 In Stock.
#-	66223	SCREW (1 required per assembly)
		10-66223 - Bolt, NLA [ More info ] Unavailable
#1	91036A4	RESERVOIR (1 required per assembly)
		91036A 4 - Heat Exchanger Tank [ More info ] Unavailable
#2	91041A2	BRACKET (1 required per assembly)
		91041A 2 - Bracket Assembly, NLA [ More info ] Unavailable
#3	91042A2	BRACKET (Used in 91036A1/A8 Kit only) (1 required per assembly)
		91042A 2 - Bracket Assembly [ More info ] Unavailable
#4	772233	PAD (2 required per assembly)
		0772233 [ More info ] Unavailable Replaced by 0775385
		0775385 - Quick Connect Flushing Kit (775385) [ More info ] $35.99 $35.34 Available to Order: Shipping delay up to 10 days.
#5	34354	SCREW (.375-16 X 1.50) (Use Quantity 2 for 91036A5 Kit) (3 required per assembly)
		10-34354 - Screw - Priced Individually [ More info ] $2.39 10+ In Stock.
#6	34353	SCREW (.375-16 X 1.00) (1 required per assembly)
		10-34353 - Screw - Priced Individually [ More info ] $2.59 10+ In Stock.
#7	35048	LOCKWASHER (.375) (5 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#8	91034	SPACER (.380 X 1.00 X .530) (Used in 91036A1/A8 Kit only) (1 required per assembly)
		23-91034 - Spacer - 1/2 Inch [ More info ] $23.29 Available to Order: Shipping delay up to 10 days.
#9	90523	SPACER (.420 X .750 X .440) CAD PLATE (Used in 91036A1/A8 Kit only) (1 required per assembly)
		23-90523 - Spacer - .42 X .75 X .44 [ More info ] $4.10 Available to Order: Shipping delay up to 10 days.
#10	40001192	SCREW (M10 X 25) (Used in 91036A1/A8 Kit only) (1 required per assembly)
		10-40001192 - Screw [ More info ] $7.39 $5.92 1 In Stock.
#11	358701	SCREW (.375-16 X 2.00) (1 required per assembly) — Replaces: 64900
		10-35870 1 - Screw [ More info ] $32.59 $31.28 2 In Stock.
#12	36305T	ELBOW (2 required per assembly) — Replaces: 36305
		22-36305T - Elbow [ More info ] $39.49 $38.85 3 In Stock.
		18-8216 - Brass Fitting, 22-36305 [ More info ] $33.99 $33.74 In Stock
#13	63067	TEE (1 required per assembly)
		22-63067 - Fitting, NLA [ More info ] Unavailable
#14	865159	FITTING 45 DEGREE (1 required per assembly) — Replaces: 92499, 92499T
		22-865159 - Fitting [ More info ] $25.39 Available to Order: Shipping delay up to 10 days.
#15	48115	SCREW (.375-16 X 3.50) (2 required per assembly)
		10-48115 - Screw, NLA [ More info ] $1.96 10+ In Stock.
#16	47441A1	COVER DESIGN I (91036A1) (1 required per assembly)
		47441A 1 - Thermostat Cover [ More info ] $99.49 $98.21 Available to Order: Shipping delay up to 10 days.
		18-1977-1 - Thermostat Housing [ More info ] $81.19 $80.29 2 In Stock.
		MC-29-47441 - Mercruiser Thermostat Housing [ More info ] $44.99 $34.08 4 In Stock.
#17	47540	PLUG PIPE - ALLEN HEAD (.375-18) (2 required per assembly)
		22-47540 - Plug [ More info ] Unavailable
#18	47508T	SLEEVE (Used in 91036A1) (1 required per assembly) — Replaces: 47508
		23-47508T - Thermostat Sleeve [ More info ] $17.49 1 In Stock.
#19	488181	GASKET (1 required per assembly)
		27-48818 1 - Gasket - Priced Individually [ More info ] $2.99 1 In Stock.
#20	47510	GASKET (Used in 91036A1) (1 required per assembly)
		27-47510 - Thermostat Gasket [ More info ] $3.39 6 In Stock.
		18-2553-9 - Gasket 27-47510 2-Pack [ More info ] $6.20 $5.61 1 In Stock.
#21	530451	GASKET (1 required per assembly)
		27-53045 1 - Gasket - Priced Individually [ More info ] $5.69 8 In Stock.
		18-2917-9 - Gasket 27-530451 2-Pack [ More info ] $8.83 Available to Order: Shipping delay up to 10 days.
		27-53045Q01 - Gasket [ More info ] $5.89 7 In Stock.
#22	86080	SWITCH TEMPERATURE (1 required per assembly)
		87-86080 - Switch [ More info ] $121.99 $120.10 In Stock
#23	863725	GASKET (2 required per assembly) — Replaces: 41811, 860231
		27-863725 - Gasket [ More info ] Unavailable
		27-863725 1 - Block Off Gasket [ More info ] $19.69 6 In Stock.
		18-0672-9 - Gasket 27-41811 2-Pack [ More info ] $29.99 $29.23 Available to Order: Shipping delay up to 10 days.
		MC-20-87918 - MerCruiser Stainless Block Off Plate [ More info ] $23.00 $17.64 10+ In Stock.
#24	863726	GASKET (Used in 91036A8) (4 required per assembly) — Replaces: 818832, 860232
		27-863726 - Exhaust Elbow Gasket [ More info ] $21.59 4 In Stock.
		18-2849-1 - Exhaust Elbow Gasket MP#283109 [ More info ] $15.88 $12.94 Available to Order: Shipping delay up to 10 days.
		27-00385 - Gasket [ More info ] $12.49 $9.56 Available to Order: Shipping delay up to 10 days.
		MC47-27-87105 - MerCruiser Exhaust Elbow Gasket [ More info ] $13.00 $9.97 3 In Stock.
#25	88795	HOSE (Used in 91036A8) (1 required per assembly)
		32-88795 - Hose - Water Pump To Cooler [ More info ] $59.49 Available to Order: Shipping delay up to 10 days.
		18-75125 - Straight Hose [ More info ] $49.99 $47.23 1 In Stock.
#26	41597A1	BRACE (Used in 91036A1 / A8) (1 required per assembly)
		41597A 1 - Brace Assembly, NLA [ More info ] $10.00 $8.47 3 In Stock.
#26	42709A1	BRACE (Used in 91036A5) (1 required per assembly)
		42709A 1 - Brace Assembly, NLA [ More info ] Unavailable
#27	91030	HOSE (1 required per assembly)
		32-91030 - Hose, NLA [ More info ] Unavailable
#28	98315	HOSE (1 required per assembly)
		32-98315 - Hose [ More info ] $24.99 $21.16 1 In Stock.
#29	91028	HOSE (1 required per assembly)
		32-91028 - Hose [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
#30	91031	HOSE (1 required per assembly)
		32-91031 - Hose [ More info ] $26.59 $25.52 7 In Stock.
#31	91027	HOSE (Used in 91036A1 / A8) (1 required per assembly)
		32-91027 - Hose [ More info ] Unavailable
#31	42701	HOSE (Used in 91036A5) (1 required per assembly)
		32-42701 - Hose, NLA [ More info ] Unavailable
#32	91029	HOSE (1 required per assembly)
		32-91029 - Hose - Tee To Exhaust Elbow - Port [ More info ] $33.29 Available to Order: Shipping delay up to 10 days.
#33	807405	HOSE (Used in 91036A5) (1 required per assembly) — Replaces: 97557, 42702
		32-807405 - Hose - Oil Cooler To Oil Cooler [ More info ] $32.09 Available to Order: Shipping delay up to 10 days.
#34	91033	HOSE (1 required per assembly)
		32-91033 - Hose [ More info ] $48.49 Available to Order: Shipping delay up to 10 days.
#35	55131A5	HOUSING ASSEMBLY THERMOSTAT (Includes Cover) (1 required per assembly)
		55131A 5 - Housing Assembly [ More info ] $394.99 1 In Stock.
#36	71587A10	RECOVERY KIT COOLANT (COMPONENTS PARTS CAN BE PURCHASED LOCALLY.) (1 required per assembly)
		71587A10 - Coolant Recovery Kit [ More info ] $97.49 $96.06 Available to Order: Shipping delay up to 10 days.
#37	71587A11	BOTTLE PLASTIC (1 required per assembly)
		71587A11 - Coolant Recovery Bottle [ More info ] $74.99 Available to Order: Shipping delay up to 10 days.
#38	72058	CAP (1 required per assembly)
		72058 - Bottle Cap [ More info ] $11.29 Available to Order: Shipping delay up to 10 days.
#39	71614	GASKET (1 required per assembly)
		27-71614 - Cap Gasket [ More info ] $3.99 10+ In Stock.
#40	815504220	CLAMP WORM GEAR (AR required per assembly)
		54-815504220 - Clamp [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#41	12753A1	BRACKET STARBOARD (Used in 91036A5) (1 required per assembly)
		12753A 1 - Bracket, NLA [ More info ] Unavailable
#42	64281	STUD (.375-16/.375-24 X 1.880) (Used in 91036A5) (1 required per assembly)
		16-64281 - Stud, NLA [ More info ] $6.60 $5.59 10+ In Stock.
#43	400248	LOCKWASHER (M10) (Used in 91036A5) (2 required per assembly)
		13-40024 8 - LockWasher [ More info ] $1.70 $1.36 1 In Stock.
#44	40001189	SCREW (M10 X 20) (Used in 91036A5) (1 required per assembly) — Replaces: 40001188
		10-40001189 - Screw [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#45	42700A1	COVER (Used in 91036A5) (1 required per assembly)
		42700A 1 - Cover, NLA [ More info ] Unavailable
#46	55133	FITTING TEE (Used in 91036A8) (1 required per assembly) — Replaces: 55133T
		22-55133 - Fitting Tee, NLA [ More info ] Unavailable
#47	817437	HOSE (Used in 91036A8) (1 required per assembly)
		32-817437 - Hose, NLA [ More info ] Unavailable
#48	817440	HOSE (Used in 91036A8) (1 required per assembly)
		32-817440 - Hose [ More info ] Unavailable
#49	8174391	HOSE (Used in 91036A8) (1 required per assembly)
		32-817439 1 - Hose, NLA [ More info ] Unavailable
#50	807252T1	THERMOSTAT-140 (1 required per assembly) — Replaces: 8052731, 8072521
		807252T 1 - Thermostat, 140 Degrees [ More info ] Unavailable
		807252Q 4 - Thermostat Kit, 140 Degrees [ More info ] $57.49 $54.99 Available to Order: Shipping delay up to 10 days.
		8M0089715 - Thermostat, 140 Degrees [ More info ] $27.69 3 In Stock.
		18-3551 - Thermostat, 142 Degrees, 807252T1, 59137 [ More info ] $19.21 7 In Stock.
		75-03057 - Thermostat 142 Degree, 8M0089715 [ More info ] $17.99 $14.91 In Stock
#16A	97428T2	COVER THERMOSTAT DESIGN II (Included with Thermostat Housing) (1 required per assembly)
		97428T 2 - Thermostat Cover, NLA [ More info ] $15.56 $13.18 6 In Stock.
		MC-29-97428 - Thermostat Housing [ More info ] $53.00 $40.64 1 In Stock.
#26A	15082T	BRACE (Used in 91036A8) (1 required per assembly)
		15082T - Brace [ More info ] $66.30 $56.16 4 In Stock.
